2023 HYUNDAI SANTA CRUZ engine

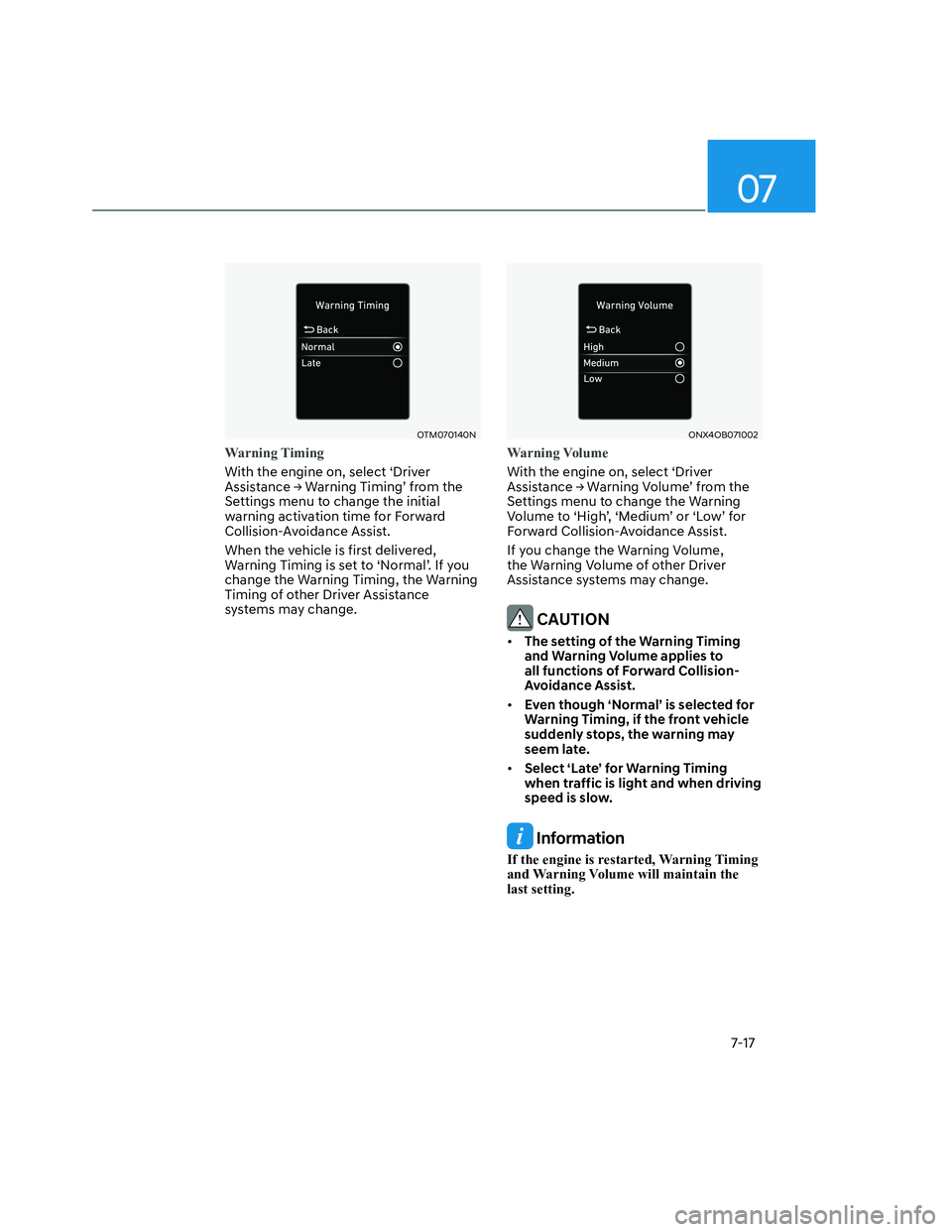

07
7-17
OTM070140NOTM070140N
Warning Timing
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-23
Forward Collision-Avoidance Assist
disabled
OTM070093NOTM070093NOTM070095NOTM070095N
When the front windshield where the
front view camera is located, front radar
cover or sensor is covered with foreign
material, such as snow or rain, it can
reduce the detecting performance and
temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety system
disabled. Camera obscured’ or the
‘Forward Safety system disabled. Radar
blocked’ warning message, and the
and warning lights illuminate on the
cluster.
Forward Collision-Avoidance Assist will
operate properly when when such snow,
rain or foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
• Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.
• Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any objects are not detected after
turning ON the engine.
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:
• The detecting sensor or the
surroundings are contaminated or
damaged
• The temperature around the front
view camera is high or low due to
surrounding environment
• The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass
• Moisture is not removed or frozen on
the windshield
• Washer fluid is continuously sprayed,
or the wiper is on
• Driving in heavy rain or snow, or thick
fog
• The field of view of the front view
camera is obstructed by sun glare
• Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road
• An object is placed on the dashboard

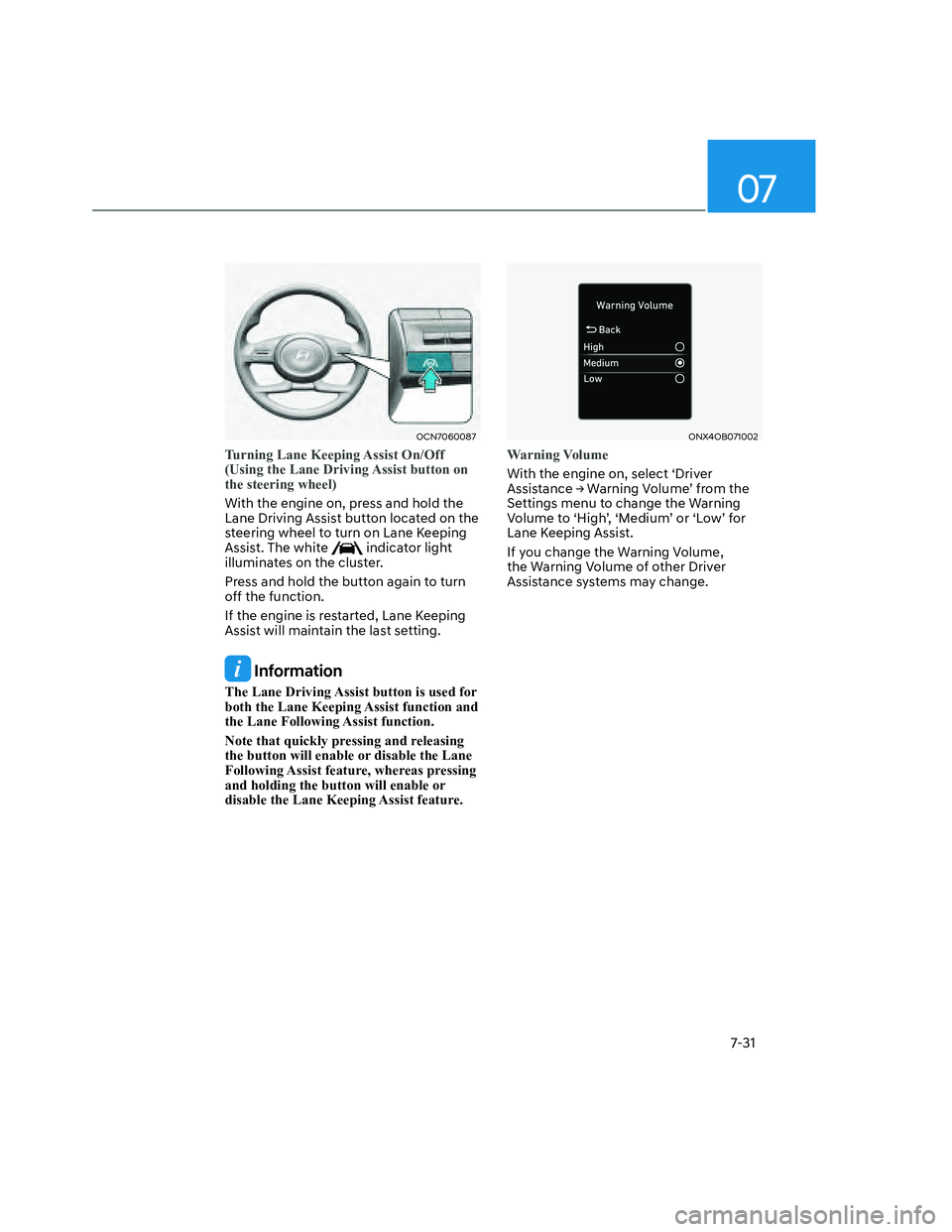

07
7-31
OCN7060087 OCN7060087
Turning Lane Keeping Assist On/Off
(Using the Lane Driving Assist button on
the steering wheel)
With the engine on, press and hold the
Lane Driving Assist button located on the
steering wheel to turn on Lane Keeping
Assist. The white
indicator light
illuminates on the cluster.
Press and hold the button again to turn
off the function.
If the engine is restarted, Lane Keeping
Assist will maintain the last setting.
Information
The Lane Driving Assist button is used for
both the Lane Keeping Assist function and
the Lane Following Assist function.
Note that quickly pressing and releasing
the button will enable or disable the Lane
Following Assist feature, whereas pressing
and holding the button will enable or
disable the Lane Keeping Assist feature.
ONX4OB071002ONX4OB071002
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

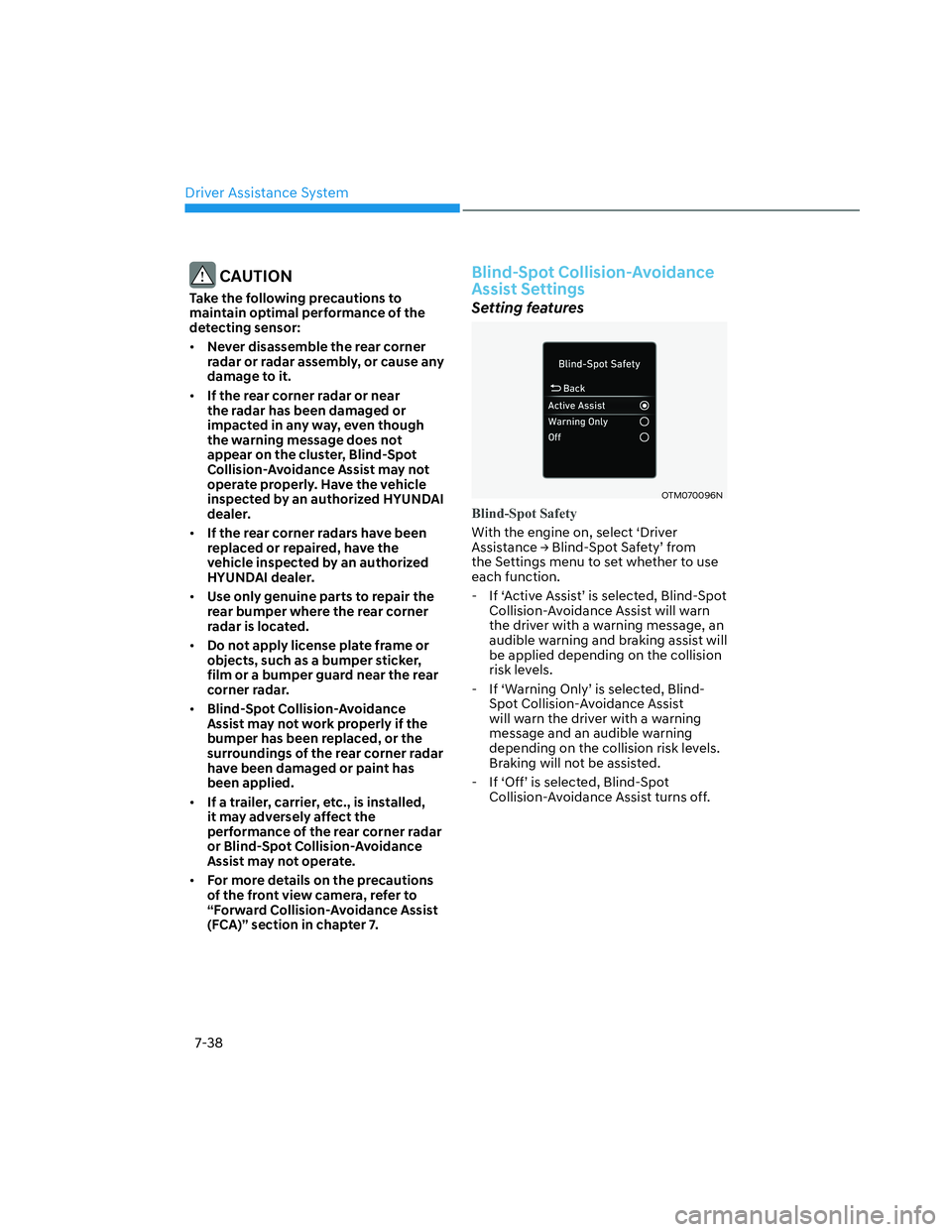

Driver Assistance System
7-38
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:
• Never disassemble the rear corner
radar or radar assembly, or cause any
damage to it.
• If the rear corner radar or near
the radar has been damaged or
impacted in any way, even though
the warning message does not
appear on the cluster, Blind-Spot
Collision-Avoidance Assist may not
operate properly. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
• If the rear corner radars have been
replaced or repaired, have the
vehicle inspected by an authorized
HYUNDAI dealer.
• Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.
• Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.
• Blind-Spot Collision-Avoidance
Assist may not work properly if the
bumper has been replaced, or the
surroundings of the rear corner radar
have been damaged or paint has
been applied.
• If a trailer, carrier, etc., is installed,
it may adversely affect the
performance of the rear corner radar
or Blind-Spot Collision-Avoidance
Assist may not operate.
• For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Blind-Spot Collision-Avoidance
Assist Settings
Setting features
OTM070096NOTM070096N
Blind-Spot Safety
With the engine on, select ‘Driver
$VVLVWDQFH

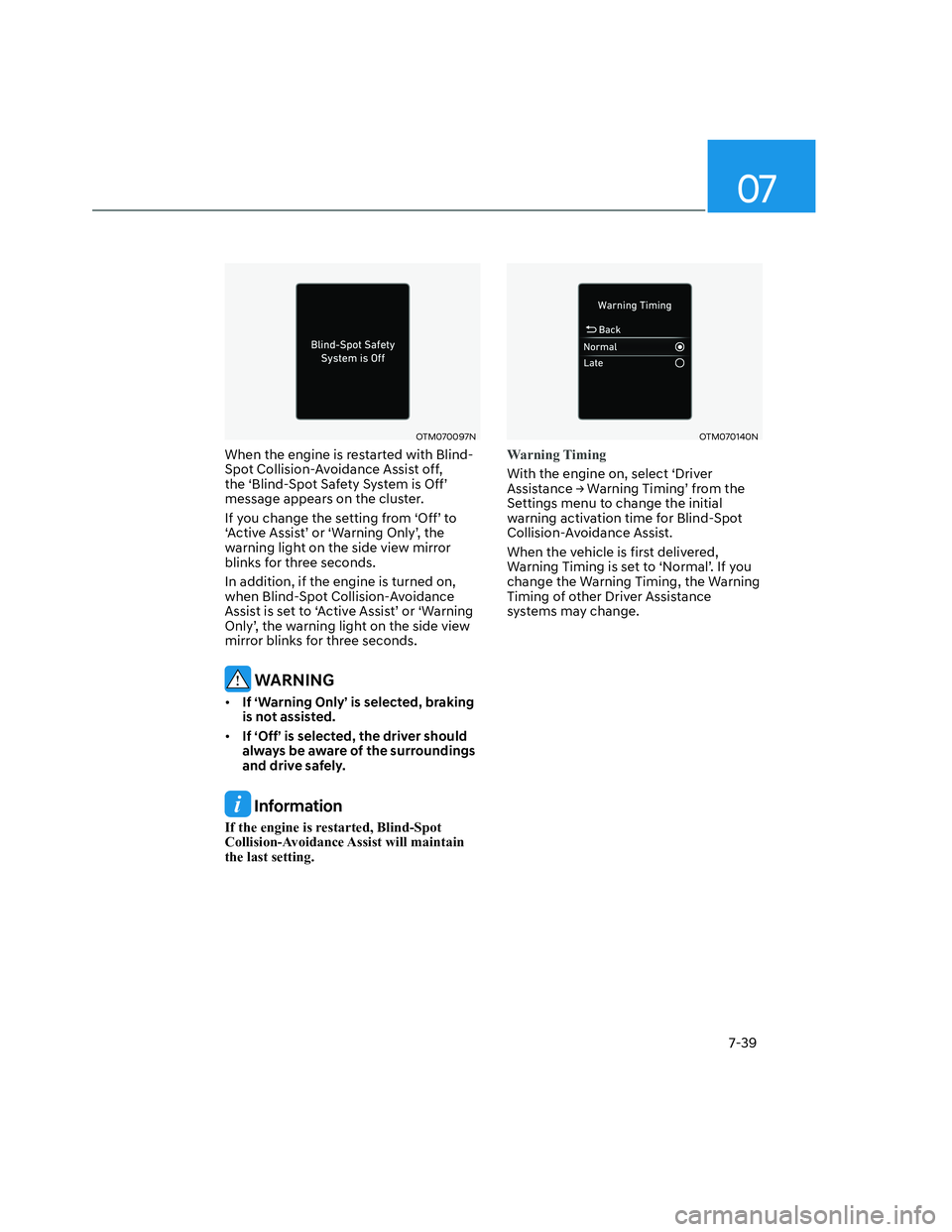

07
7-39
OTM070097NOTM070097N
When the engine is restarted with Blind-
Spot Collision-Avoidance Assist off,
the ‘Blind-Spot Safety System is Off’
message appears on the cluster.
If you change the setting from ‘Off’ to
‘Active Assist’ or ‘Warning Only’, the
warning light on the side view mirror
blinks for three seconds.
In addition, if the engine is turned on,
when Blind-Spot Collision-Avoidance
Assist is set to ‘Active Assist’ or ‘Warning
Only’, the warning light on the side view
mirror blinks for three seconds.
WARNING
• If ‘Warning Only’ is selected, braking
is not assisted.
• If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Collision-Avoidance Assist will maintain
the last setting.
OTM070140NOTM070140N
Warning Timing
With the engine on, select ‘Driver
$VVLVWDQFH

Driver Assistance System
7-40
ONX4OB071002ONX4OB071002
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

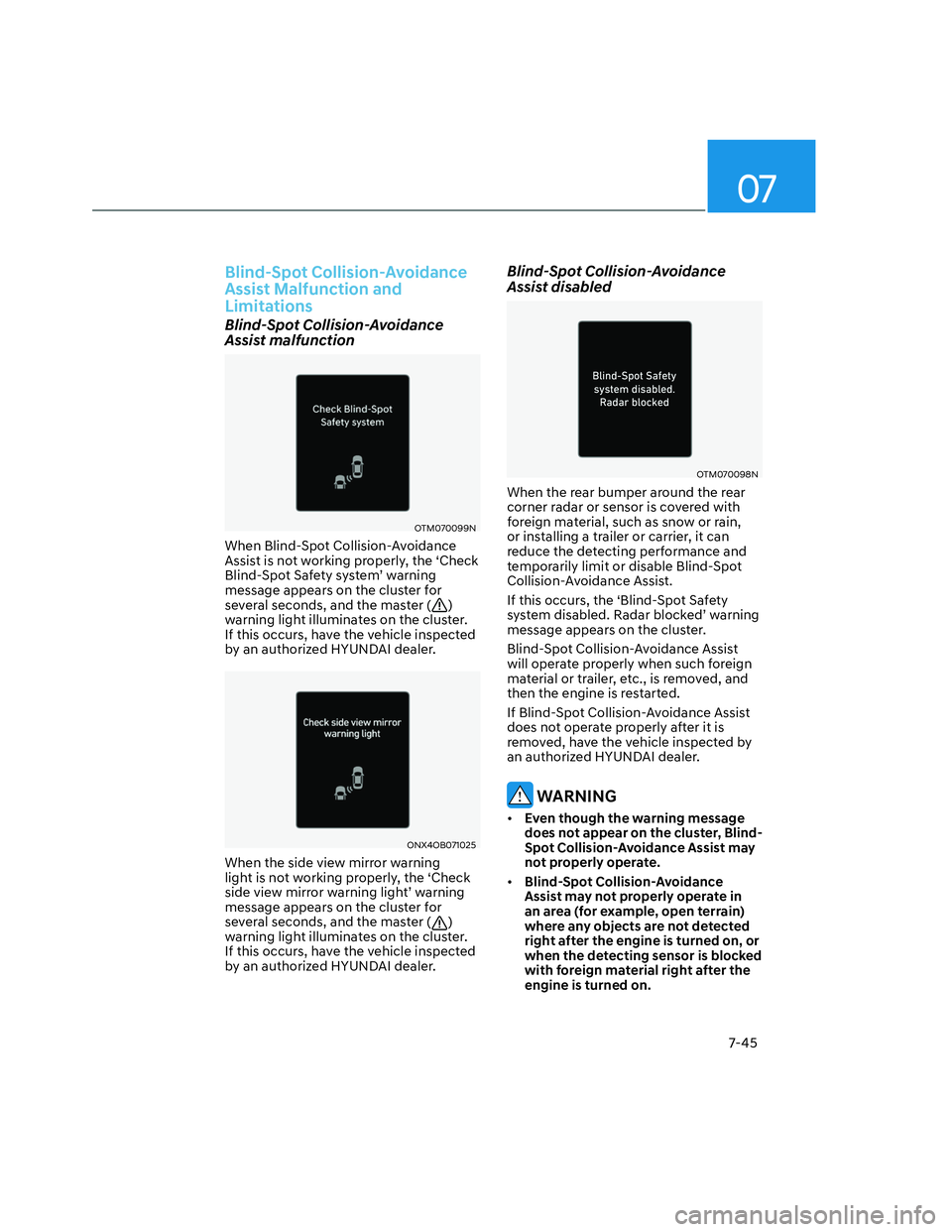

07
7-45
Blind-Spot Collision-Avoidance
Assist Malfunction and
Limitations
Blind-Spot Collision-Avoidance
Assist malfunction
OTM070099NOTM070099N
When Blind-Spot Collision-Avoidance
Assist is not working properly, the ‘Check
Blind-Spot Safety system’ warning
message appears on the cluster for
several seconds, and the master (
)
warning light illuminates on the cluster.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
ONX4OB071025ONX4OB071025
When the side view mirror warning
light is not working properly, the ‘Check
side view mirror warning light’ warning
message appears on the cluster for
several seconds, and the master (
)
warning light illuminates on the cluster.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
Blind-Spot Collision-Avoidance
Assist disabled
OTM070098NOTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Collision-Avoidance Assist.
If this occurs, the ‘Blind-Spot Safety
system disabled. Radar blocked’ warning
message appears on the cluster.
Blind-Spot Collision-Avoidance Assist
will operate properly when such foreign
material or trailer, etc., is removed, and
then the engine is restarted.
If Blind-Spot Collision-Avoidance Assist
does not operate properly after it is
removed, have the vehicle inspected by
an authorized HYUNDAI dealer.
WARNING
• Even though the warning message
does not appear on the cluster, Blind-
Spot Collision-Avoidance Assist may
not properly operate.
• Blind-Spot Collision-Avoidance
Assist may not properly operate in
an area (for example, open terrain)
where any objects are not detected
right after the engine is turned on, or
when the detecting sensor is blocked
with foreign material right after the
engine is turned on.

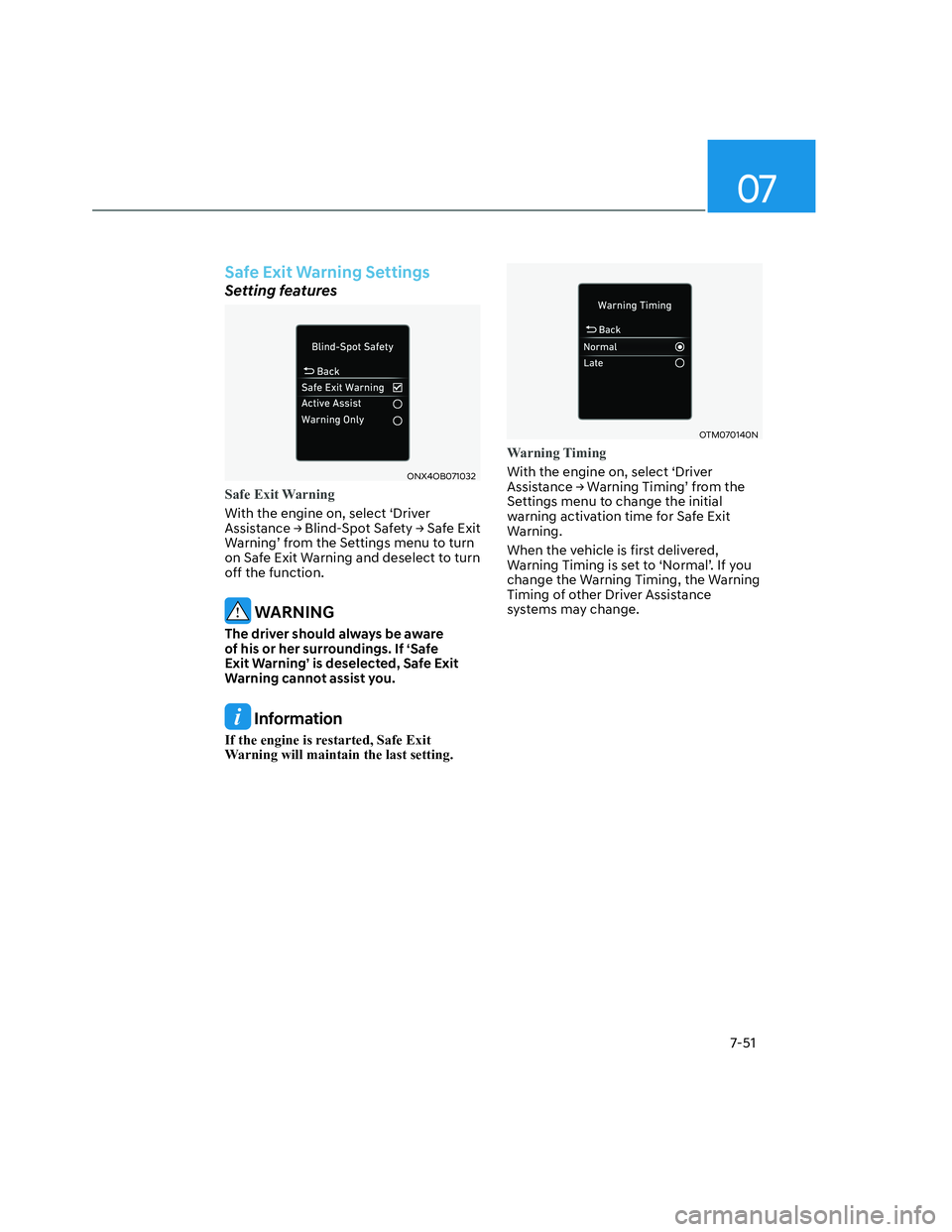

07
7-51
Safe Exit Warning Settings
Setting features
ONX4OB071032ONX4OB071032
Safe Exit Warning
With the engine on, select ‘Driver
$VVLVWDQFH
