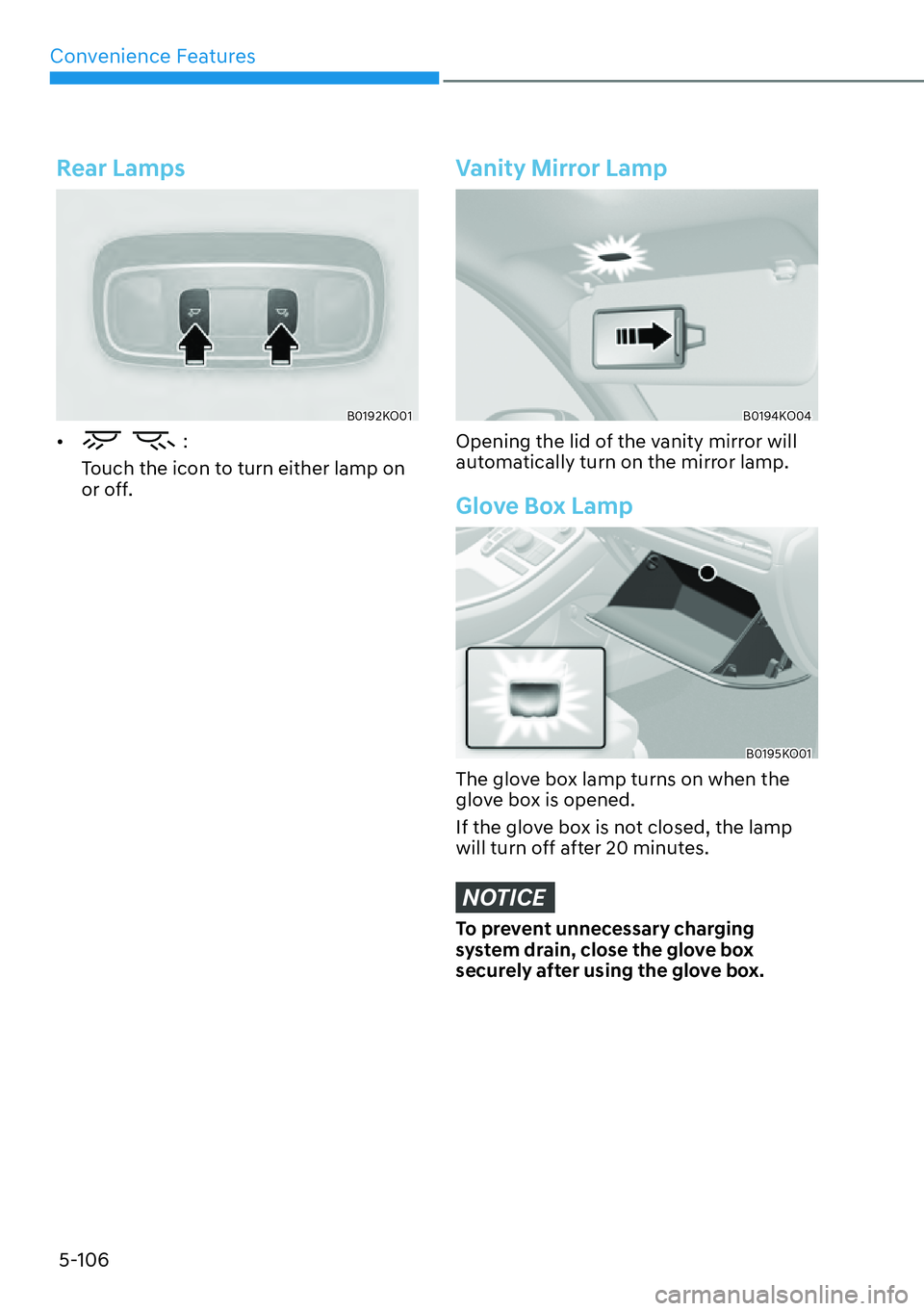

Convenience Features5-106
Rear Lamps
B0192KO01

[ :
Touch the icon to turn either lamp on
or off.
Vanity Mirror Lamp
B0194KO04
Opening the lid of the vanity mirror will
automatically turn on the mirror lamp.
Glove Box Lamp
B0195KO01
The glove box lamp turns on when the
glove box is opened.
If the glove box is not closed, the lamp
will turn off after 20 minutes.
NOTICE
To prevent unnecessary charging
system drain, close the glove box
securely after using the glove box.

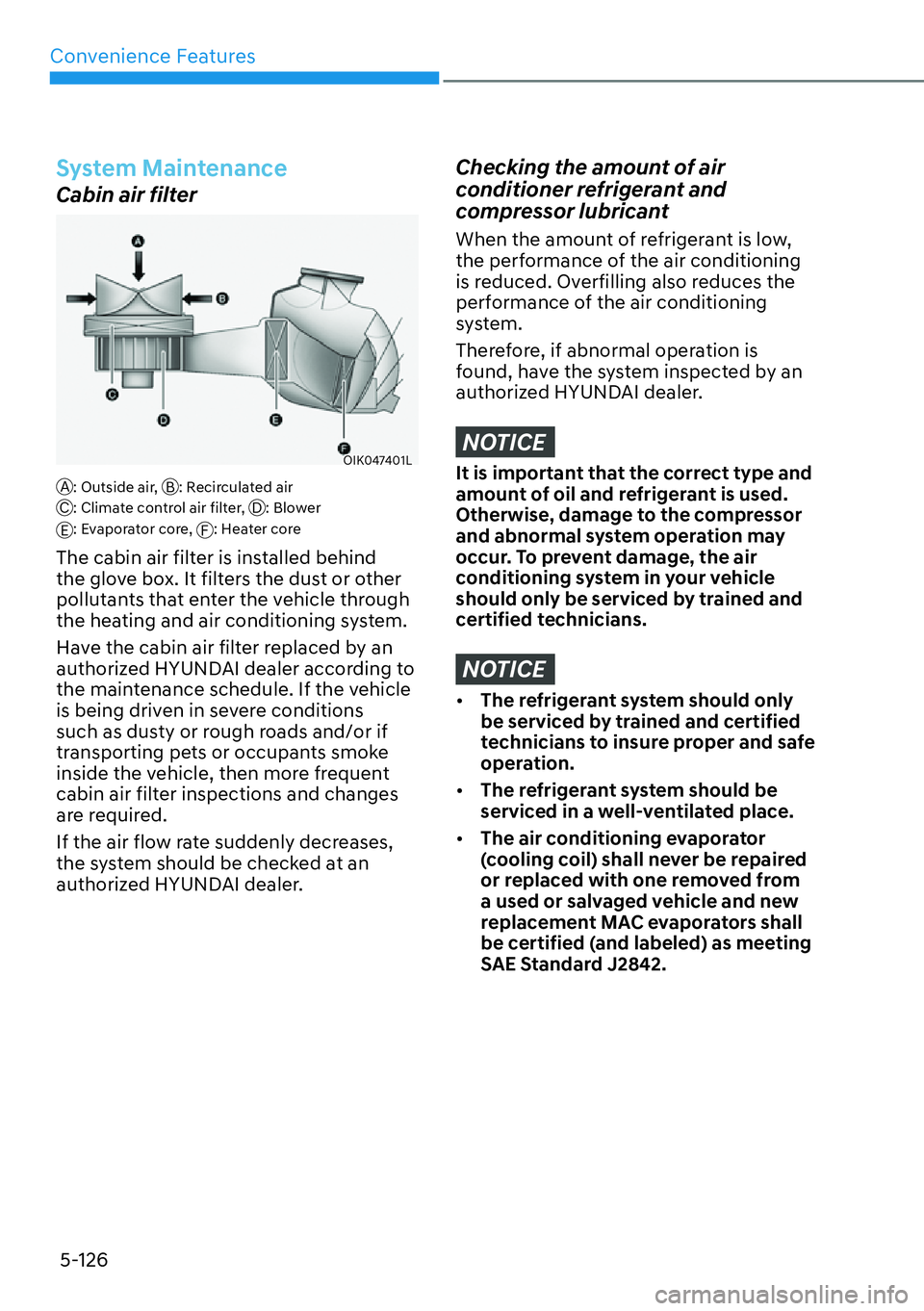

Convenience Features5-126
System Maintenance
Cabin air filter
OIK047401L
A: Outside air, B: Recirculated air
C: Climate control air filter, D: Blower
E: Evaporator core, F: Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions
such as dusty or rough roads and/or if
transporting pets or occupants smoke
inside the vehicle, then more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
NOTICE

[The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.

[ The refrigerant system should be
serviced in a well-ventilated place.

[ The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.

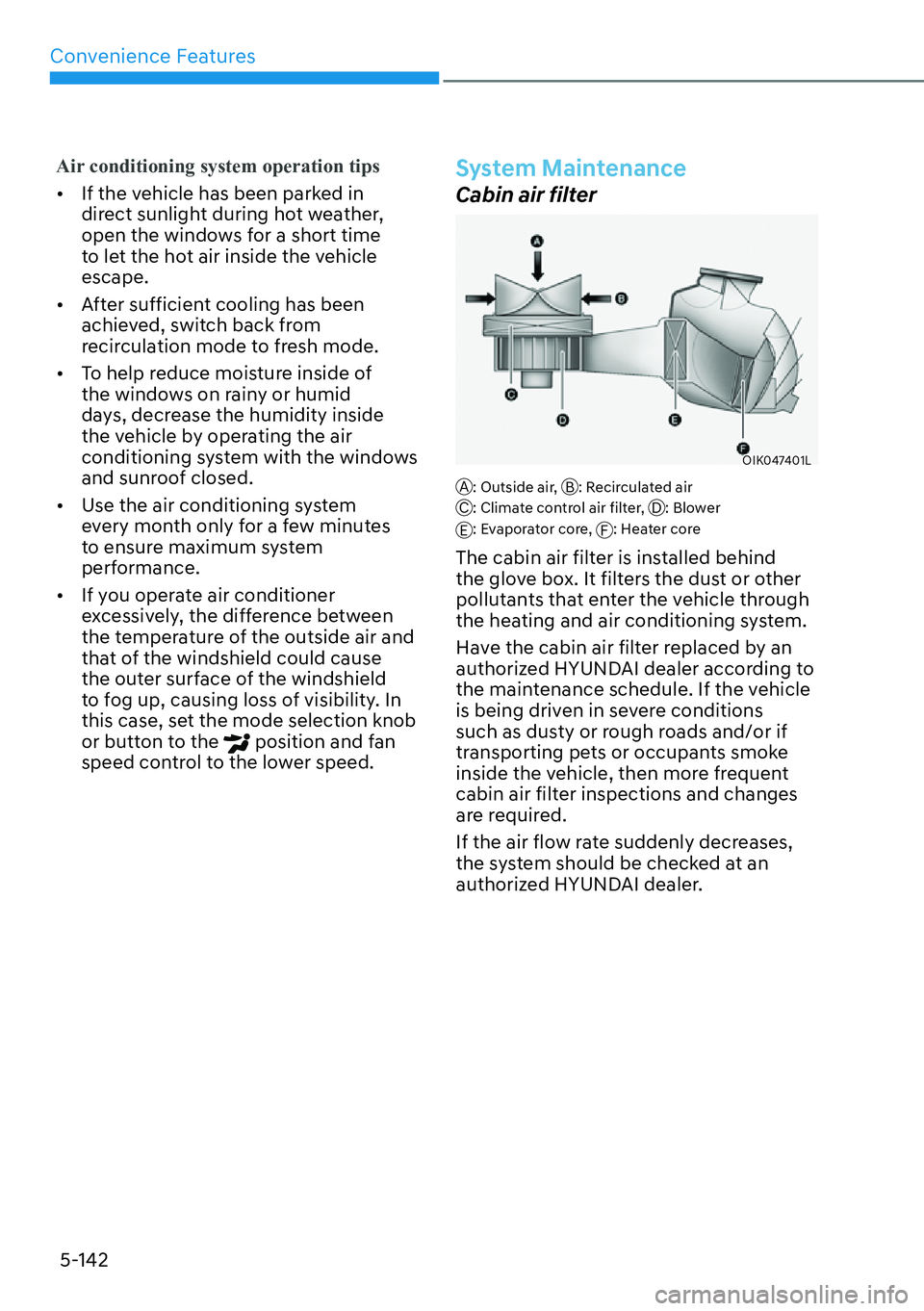

Convenience Features5-142
Air conditioning system operation tips

[ If the v
ehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[ After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[ To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.

[ Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[ If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield
to fog up, causing loss of visibility. In
this case, set the mode selection knob
or button to the
position and fan
speed control to the lower speed.
System Maintenance
Cabin air filter
OIK047401L
A: Outside air, B: Recirculated air
C: Climate control air filter, D: Blower
E: Evaporator core, F: Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions
such as dusty or rough roads and/or if
transporting pets or occupants smoke
inside the vehicle, then more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.

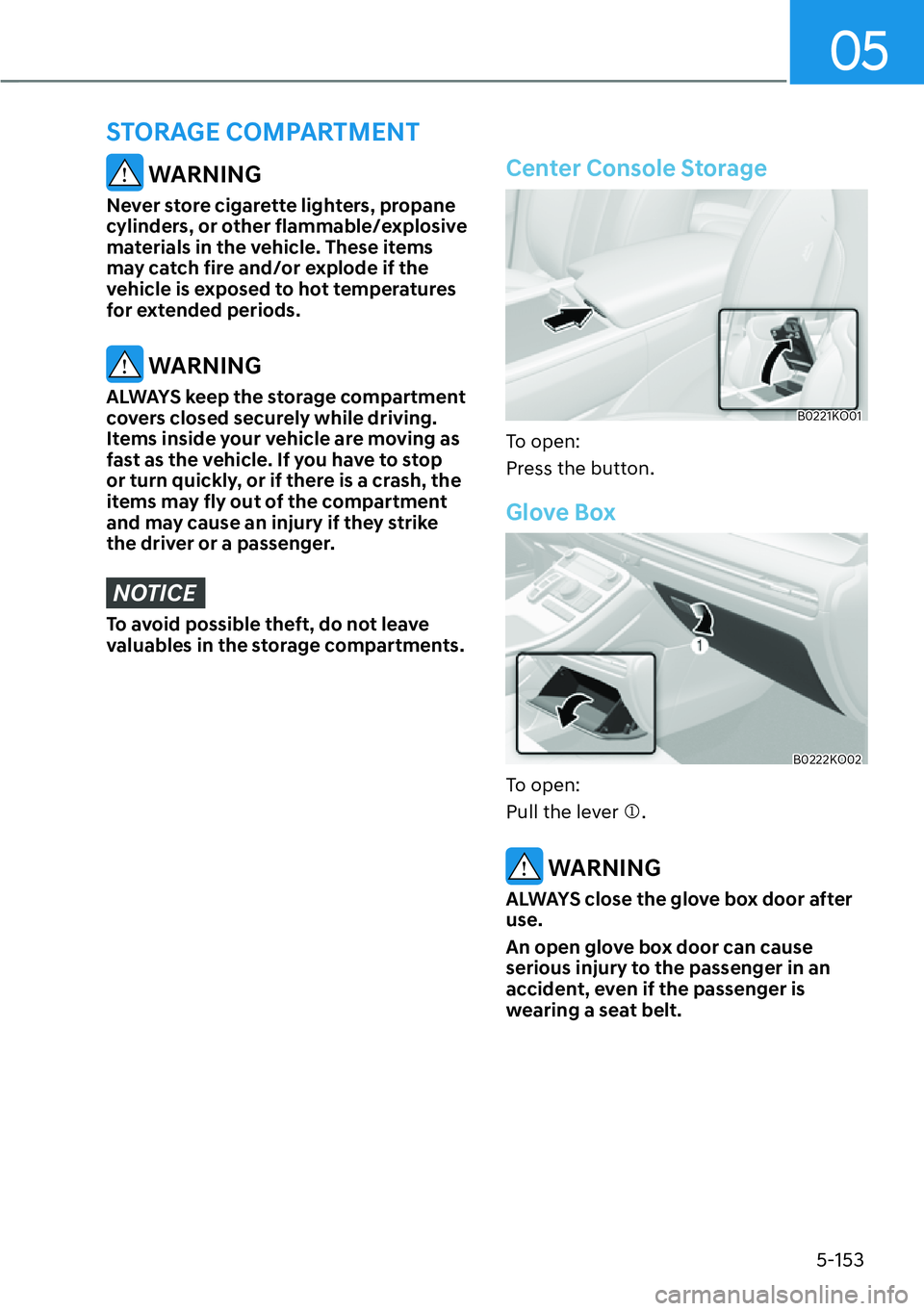

05
5-153
WARNING
Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items
may catch fire and/or explode if the
vehicle is exposed to hot temperatures
for extended periods.
WARNING
ALWAYS keep the storage compartment
covers closed securely while driving.
Items inside your vehicle are moving as
fast as the vehicle. If you have to stop
or turn quickly, or if there is a crash, the
items may fly out of the compartment
and may cause an injury if they strike
the driver or a passenger.
NOTICE
To avoid possible theft, do not leave
valuables in the storage compartments.
Center Console Storage
B0221KO01
To open:
Press the button.
Glove Box
B0222KO02
To open:
Pull the lever M.
WARNING
ALWAYS close the glove box door after
use.
An open glove box door can cause
serious injury to the passenger in an
accident, even if the passenger is
wearing a seat belt.
STORAGE COMPARTMENT

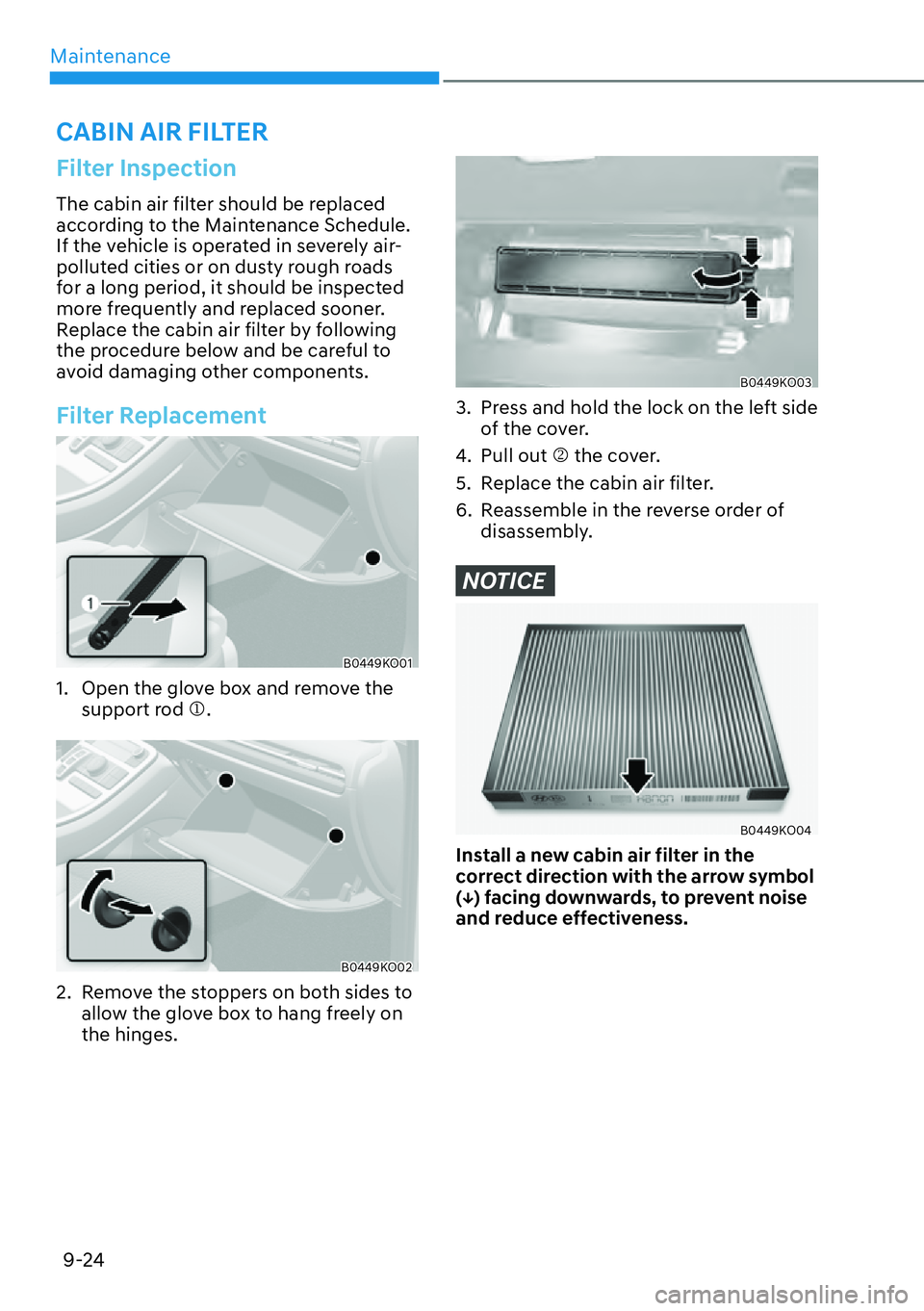

Maintenance9-24
Filter Inspection
The cabin air filter should be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely air-
polluted cities or on dusty rough roads
for a long period, it should be inspected
more frequently and replaced sooner.
Replace the cabin air filter by following
the procedure below and be careful to
avoid damaging other components.
Filter Replacement
B0449KO01
1. Open the glove box and remove the support rod M.
B0449KO02
2. Remove the stoppers on both sides to allow the glove box to hang freely on
the hinges.
B0449KO03
3. Press and hold the lock on the left side of the cover.
4. Pull out N the cover.
5. Replace the cabin air filter.
6. Reassemble in the reverse order of disassembly.
NOTICE
B0449KO04
Install a new cabin air filter in the
correct direction with the arrow symbol

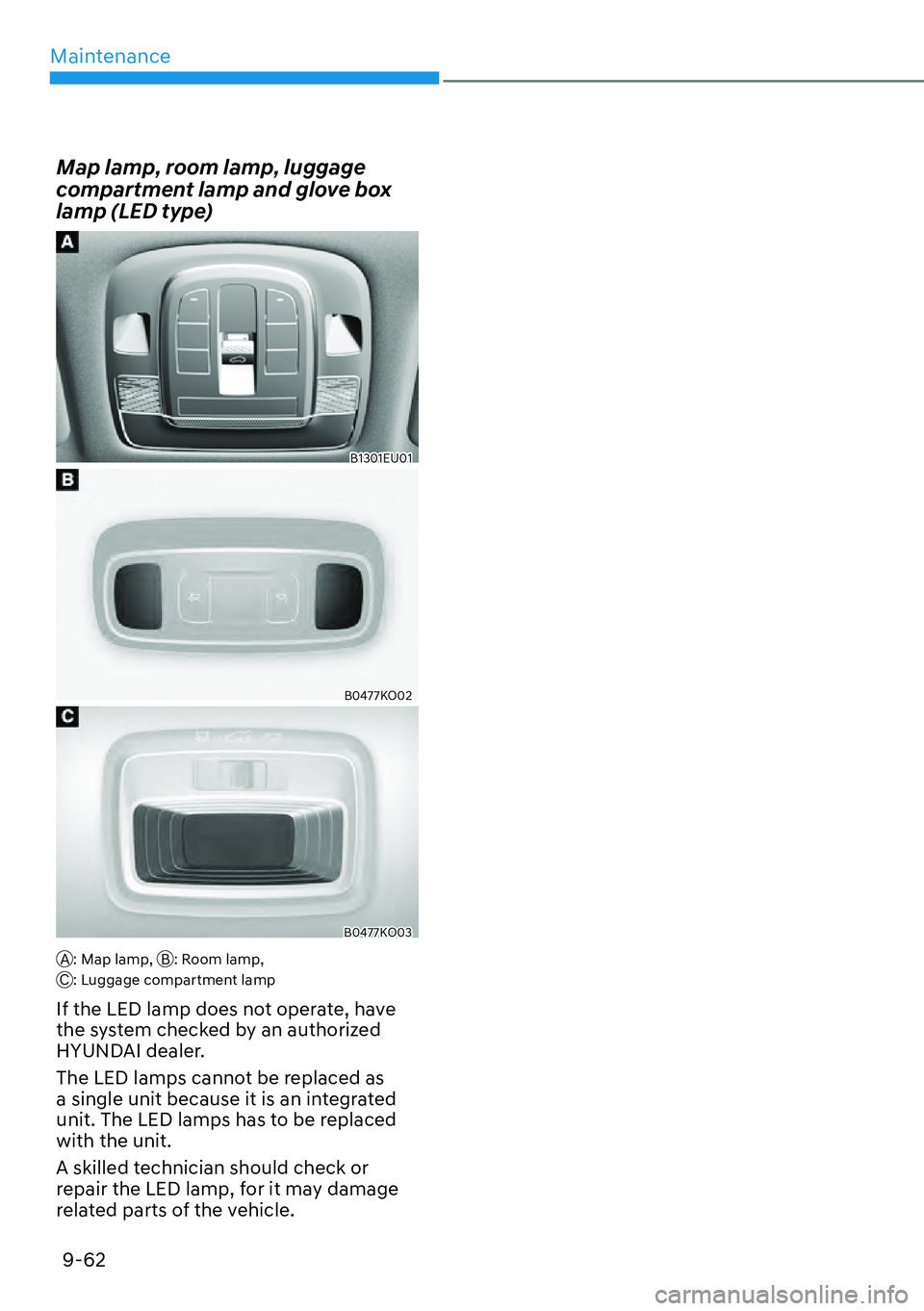

Maintenance9-62
Map lamp, room lamp, luggage
compartment lamp and glove box
lamp (LED type)
B1301EU01
B0477KO02
B0477KO03
A: Map lamp, B: Room lamp,
C: Luggage compartment lamp
If the LED lamp does not operate, have
the system checked by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
