2023 HYUNDAI KONA key

09
9-49

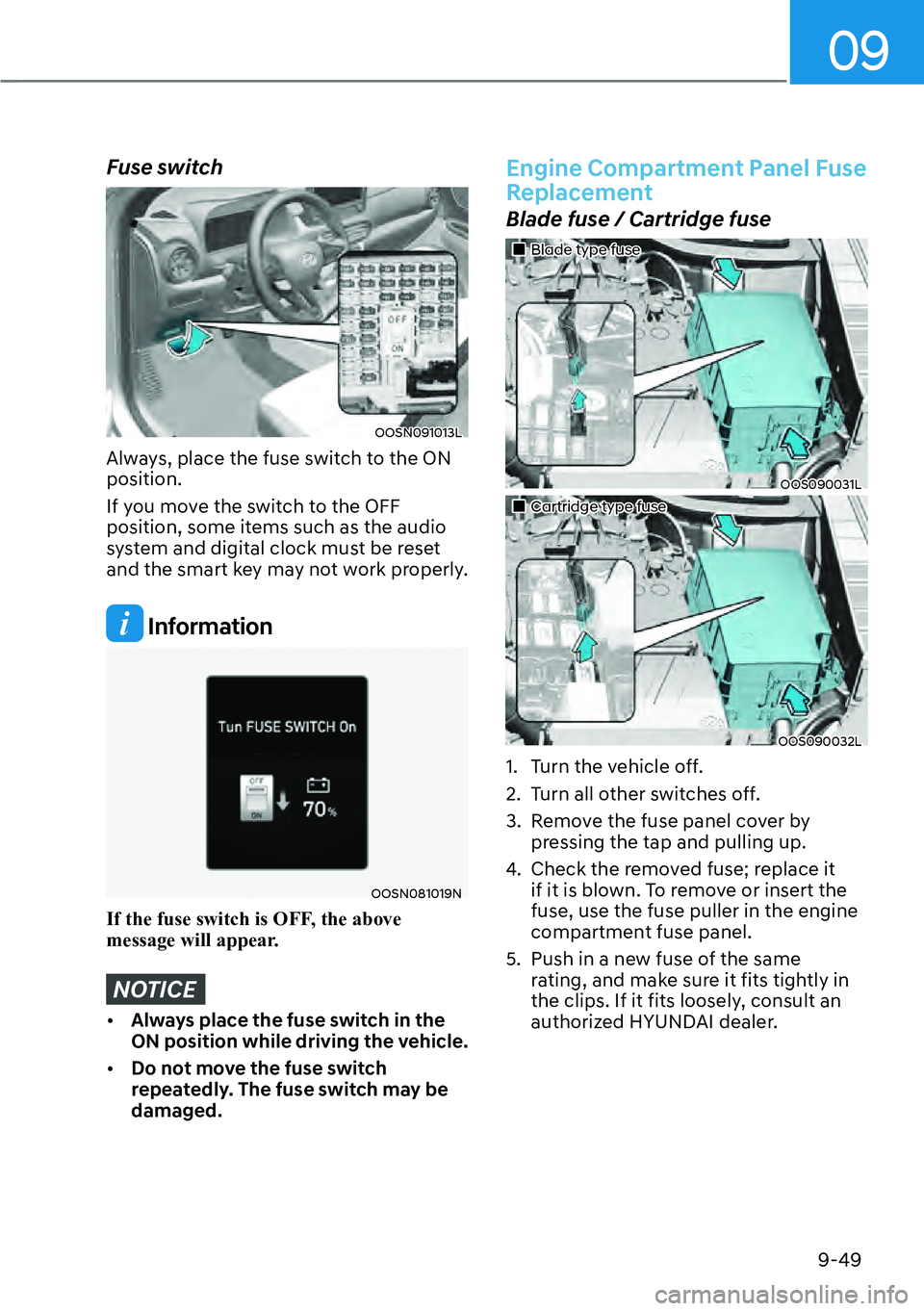

Fuse switch
OOSN091013L
Always, place the fuse switch to the ON
position.
If you move the switch to the OFF
position, some items such as the audio
system and digital clock must be reset
and the smart key may not work properly.
Information
OOSN081019N
If the fuse switch is OFF, the above
message will appear.
NOTICE

[Always place the fuse switch in the
ON position while driving the vehicle.

[ Do not move the fuse switch
repeatedly. The fuse switch may be
damaged.
Engine Compartment Panel Fuse
Replacement
Blade fuse / Cartridge fuse
„Blade type fuse
OOS090031L
„Cartridge type fuse
OOS090032L
1. Turn the vehicle off.
2. Turn all other switches off.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the
fuse, use the fuse puller in the engine
compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.

Maintenance9-52
Driver’s side fuse panel
Fuse Name Fuse Rating Circuit Protected
MODULE5 7
.5AFront Wireless Charger Unit, Front Air Ventilation Control
Module, ATM Shift Lever IND., Driver Console Switch,
Electro Chromic Mirror, A/V & Navigation Head Unit,
Low DC-DC Converter, Data Link Connector, AMP, Crash
Pad Switch, Head Lamp LH/RH, A/C Control Module,
Front/Rear Seat Warmer Control Module
MODULE3 7.5A Stop Lamp Switch, BCM, ATM Shift Lever
SUNROOF 20A Sunroof Unit
TAILGATE OPEN 10A Tailgate Relay
P/WINDOW LH 25APower Window LH Relay, Driver Safety Window Module
(LHD)
MULTI MEDIA 15A Low DC-DC Convertor, A/V & Navigation Head Unit
P/WINDOW RH 25APower Window RH Relay, Driver Safety Window Module
(RHD)
P/SEAT (DRV) 25A Driver Seat Manual Switch, Driver Reclining Switch
P/SEAT (PASS) 25A Passenger Seat Manual Switch
MODULE4 7.5ALSD Control Module, BCM, Front View Camera, ECS Unit,
Steering Angle Sensor
PDM3 7.5A Smart Key Control Module
INTERIOR LAMP 7.5AFoot Lamp LH/RH, Vanity Lamp LH/RH, Room Lamp,
Overhead Console Lamp, Glove Box Lamp, Luggage
Lamp
MEMORY 10AA/C Control Module, Rain Sensor, Head Up Display,
Instrument Cluster, Driver Console Switch, Rear Corner
Radar LH/RH, BCM, Front Wireless Charger Unit, ICM
Relay Box (Outside Folding/Unfoling Relay)

09
9-53
Driver’s side fuse panel
Fuse NameFuse Rating Circuit Protected
S/HEATER REAR 20
A Rear Seat Warmer Control Module
AMP 30A Low DC-DC Convertor, AMP
MODULE6 7.5A Smart Key Control Module, BCM
MDPS 7.5A MDPS Unit
MODULE1 7.5A Hazard Switch, Data Link Connector
MODULE7 7.5AElectronic Sound Generator Unit, Front Air Ventilation
Control Module, Front/Rear Seat Warmer Control Module
A/BAG IND 7.5A A/C Control Module
BRAKE SWITCH 7.5A Stop Lamp Switch, Smart Key Control Module
START 7.5A Smart Key Control Module, ECM
CLUSTER 7.5A Head Up Display, Instrument Cluster
DOOR LOCK 20ADoor Lock Relay, Door Unlock Relay,
ICM Relay Box (Two Turn Unlock Relay)
PDM2 7.5A Not Used
FCA 10A Front Radar Unit

Maintenance9-54
Driver’s side fuse panel
Fuse Name Fuse Rating Circuit Protected
S/HEATER FRT 20
AFront Seat Warmer Control Module,
Front Air Ventilation Control Module
A/C2 10AA/C Control Module, Blower Motor, E/R Junction Block
(RLY. 10)
A/C1 7.5A A/C Control Module, E/R Junction Block (RLY. 10)
PDM1 15ASmart Key Control Module,
Start/Stop Button Switch
SPARE 10A Spare
AIRBAG 15A SRS Control Module
IG1 25A PCB Block (Fuse : F10, F12, F14, F16)
MODULE2 10AEmergency Call (E-Call) Module, Front USB Charger,
Smart Key Control Module, BCM, A/V & Navigation Head
Unit, Low DC-DC Convertor, AMP, Power Outside Mirror
Switch,
E/R Junction Block (RLY. 5)
WASHER 15A Multifunction Switch
WIPER (LO/HI) 10A BCM
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor
WIPER FRT 25A Front Wiper Motor, PCB Block(Front Wiper (Low) Relay)
HEATED
MIRROR 10A
Driver/Passenger Power Outside Mirror, A/C Control
Module
HEATED
STEERING 15A BCM

09
9-61
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING

[Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, press the Engine
Start/Stop button to the OFF position
and take the key with you when
leaving the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.

[ Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have your vehicle
inspected by an authorized HYUNDAI
dealer.
LIGHT BULBS

09
9-73
Leather (if equipped)

[F
eatures of seat leather
- Leather is made from the outer skin of an animal, which goes through a
special process to be available for
use. Since it is a natural product,
each part differs in thickness or
density.
Wrinkles may appear as a natural
result of stretching and shrinking
depending on the temperature and
humidity.
- The seat is made of stretchable fabric to improve comfort.
- The parts contacting the body are curved and the side supporting
area is high which provides driving
comfort and stability.
- Wrinkles may appear naturally from usage. It is not a fault of the
products.
NOTICE

[ Wrinkles or abrasions which appear
naturally from usage are not covered
by warranty.

[ Belts with metallic accessories,
zippers or keys inside the back
pocket may damage the seat fabric.

[ Make sure not to wet the seat. It may
change the nature of natural leather.

[ Jeans or clothes which could bleach
may contaminate the surface of the
seat covering fabric.
[
Caring for the leather seats
- Vacuum the seat periodically to remove dust and sand on the seat. It
will prevent abrasion or damage of
the leather and maintain its quality.
- Wipe the natural leather seat cover often with dry or soft cloth.
- Use of proper leather protector may prevent abrasion of the cover and
helps maintain the color. Be sure to
read the instructions and consult
a specialist when using leather
coating or protective agent.

- Light colored (beige, cream beige)
leather is easily contaminated and
the stain is noticeable. Clean the
seats frequently.
- Avoid wiping with wet cloth. It may cause the surface to crack.

[ Cleaning the leather seats
- Remove all contaminations instantly. Refer to instructions below
for removal of each contaminant.
- Cosmetic products (sunscreen, foundation, etc.)
Apply cleansing cream on a cloth
and wipe the contaminated spot.
Wipe off the cream with a wet cloth
and remove water with a dry cloth.
- Beverages (coffee, soft drink, etc.) Apply a small amount of neutral
detergent and wipe until
contaminations do not smear.
- Oil
Remove oil instantly with
absorbable cloth and wipe with
stain remover used only for natural
leather.
- Chewing gum Harden the gum with ice and
remove gradually.

Maintenance9-78
CALIFORNIA PERCHLORATE NOTICE
Perchlorate Material-special handling may apply, See: https://dtsc.ca.gov/perchlorate
Notice to California Vehicle Dismantlers: Perchlorate containing materials, such as
air bag inflators, seatbelt pretensioners and keyless remote entry batteries, must be
disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

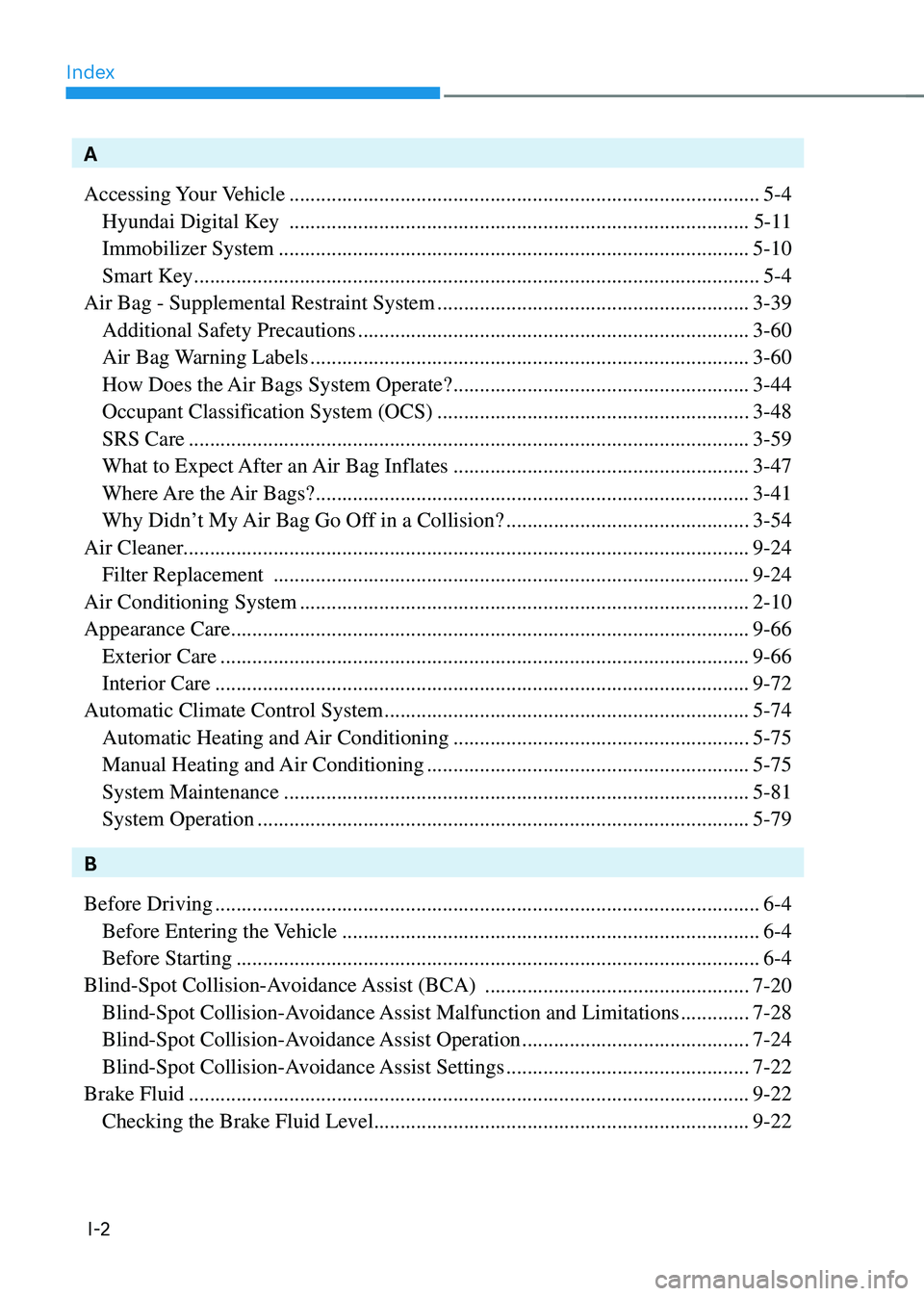

Index
I-2
A
Accessing Your Vehicle
........................................................................\
.................5-4
Hyundai Digital Key ........................................................................\
...............5-11
Immobilizer System ........................................................................\
.................5-10
Smart Key ........................................................................\
...................................5-4
Air Bag - Supplemental Restraint System
...........................................................3-39
Additional Safety Precautions ........................................................................\
..3-60
Air Bag Warning Labels ........................................................................\
...........3-60
How Does the Air Bags System Operate? ........................................................3-44
Occupant Classification System (OCS) ...........................................................3-48
SRS Care ........................................................................\
..................................3-59
What to Expect After an Air Bag Inflates ........................................................3-47
Where Are the Air Bags? ........................................................................\
..........3-41
Why Didn’t My Air Bag Go Off in a Collision? ..............................................3-54
Air Cleaner ........................................................................\
................................... 9-24
Filter Replacement ........................................................................\
..................9-24
Air Conditioning System
........................................................................\
.............2-10
Appearance Care
........................................................................\
..........................9-66
Exterior Care ........................................................................\
............................9-66
Interior Care ........................................................................\
.............................9-72
Automatic Climate Control System
.....................................................................5-74
Automatic Heating and Air Conditioning ........................................................5-75
Manual Heating and Air Conditioning .............................................................5-75
System Maintenance ........................................................................\
................5-81
System Operation ........................................................................\
.....................5-79
B
Before Driving
........................................................................\
...............................6-4
Before Entering the Vehicle ........................................................................\
.......6-4
Before Starting ........................................................................\
...........................6-4
Blind-Spot Collision-Avoidance Assist (BCA)
..................................................7-20
Blind-Spot Collision-A voidance Assist Malfunction and Limitations .............7-28
Blind-Spot Collision-Avoidance Assist Operation ...........................................7-24
Blind-Spot Collision-Avoidance Assist Settings ..............................................7-22
Brake Fluid
........................................................................\
..................................9-22
Checking the Brake Fluid Level .......................................................................9-22
