Driving your vehicle6-16

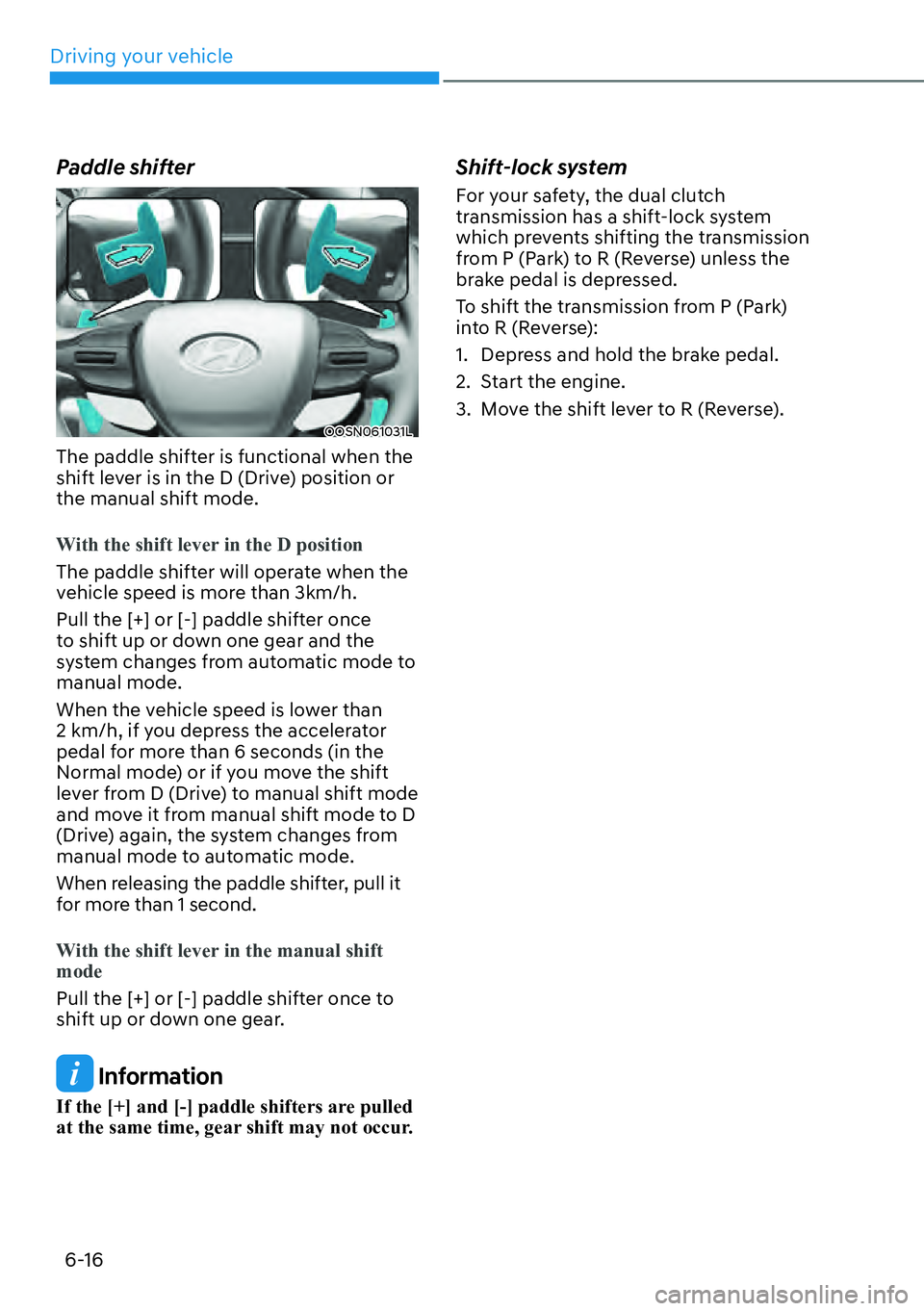

Paddle shifter
OOSN061031L
The paddle shifter is functional when the
shift lever is in the D (Drive) position or
the manual shift mode.
With the shift lever in the D position
The paddle shifter will operate when the
v
ehicle speed is more than 3km/h.
Pull the [+] or [-] paddle shifter once
to shift up or down one gear and the
system changes from automatic mode to
manual mode.
When the vehicle speed is lower than
2 km/h, if you depress the accelerator
pedal for more than 6 seconds (in the
Normal mode) or if you move the shift
lever from D (Drive) to manual shift mode
and move it from manual shift mode to D
(Drive) again, the system changes from
manual mode to automatic mode.
When releasing the paddle shifter, pull it
for more than 1 second.
With the shift lever in the manual shift
mode
Pull the [+] or [-] paddle shifter once to
shift up or do
wn one gear.
Information
If the [+] and [-] paddle shifters are pulled
at the same time, gear shift may not occur.
Shift-lock system
For your safety, the dual clutch
transmission has a shift-lock system
which prevents shifting the transmission
from P (Park) to R (Reverse) unless the
brake pedal is depressed.
To shift the transmission from P (Park)
into R (Reverse):
1. Depress and hold the brake pedal.
2. Start the engine.
3. Move the shift lever to R (Reverse).

Driving your vehicle6-18
Good Driving Practices

[ Never move the shift lever from P
(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.

[ Never move the shift lever into P
(Park) when the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).

[ Do not move the shift lever to N
(Neutral) when driving. Doing so
may result in an accident because
of a loss of engine braking and the
transmission could be damaged.

[ Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If you
drive in the opposite direction of the
selected gear, the engine will turn
off and a serious accident might be
occurred due to the degraded brake
performance.

[ Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.

[ Depressing both accelerator
and brake pedals at the same
time can trigger logic for engine
power reduction to assure vehicle
deceleration. Vehicle acceleration
will resume after the brake pedal is
released.

[ When driving in Manual Shift mode,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine RPMs
are outside of the allowable range.

[ When driving with shifter paddles,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine RPMs
are outside of the allowable range.
[
Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.

[ Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident.

[ Optimum vehicle performance and
economy is obtained by smoothly
depressing and releasing the
accelerator.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seatbelt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[ Avoid high speeds when cornering or
turning.

[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[ The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.

[ HYUNDAI recommends you follow all
posted speed limits.

Driving your vehicle6-22
Anti-Lock Brake System (ABS)
WARNING
Anti-Lock Braking System (ABS) or
Electronic Stability Control (ESC)
system will not prevent accidents
due to improper or dangerous driving
maneuvers. Even though vehicle
control is improved during emergency
braking, always maintain a safe
distance between you and objects
ahead of you. Vehicle speeds should
always be reduced during extreme
road conditions. The braking distance
for vehicles equipped with ABS or ESC
may be longer than for those without
these systems in the following road
conditions.
Drive your vehicle at reduced speeds
during the following conditions:

[ Rough, gravel or snow-covered
roads.

[ On roads where the road surface is
pitted or has different surface height.

[ Tire chains are installed on your
vehicle.
The safety features of ABS or ESC
equipped vehicle should not be tested
by high speed driving or cornering. This
could endanger the safety of yourself or
others.
ABS is an electronic braking system that
helps prevent a braking skid. ABS allows
the driver to steer and brake at the same
time.
Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your brake
pressure and do not try to pump your
brakes. Depress your brake pedal as hard
as possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in the
brake pedal. This is normal and it means
your ABS is active.
ABS does not reduce the time or distance
it takes to stop the vehicle.
Always maintain a safe distance from the
vehicle in front of you.
ABS will not prevent a skid that results
from sudden changes in direction, such
as trying to take a corner too fast or
making a sudden lane change. Always
drive at a safe speed for the road and
weather conditions.
ABS cannot prevent a loss of stability.
Always steer moderately when braking
hard. Severe or sharp steering wheel
movement can still cause your vehicle to
veer into oncoming traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake system
may result in a longer stopping distance
than for vehicles equipped with a
conventional brake system.
The ABS (
) warning light will stay
on for several seconds after the Engine
Start/Stop button is in the ON position.
During that time, ABS will go through
self-diagnosis and the light will go off if
everything is normal.

07
7-17
WARNING

[The steering wheel may not be
assisted if the steering wheel is held
very tight or the steering wheel is
steered over a certain degree.

[ Lane Keeping Assist does not operate
at all times. It is the responsibility of
the driver to safely steer the vehicle
and to maintain the vehicle in its
lane.

[ The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[ If the steering wheel is held very
lightly, the hands–off warning
message may appear because Lane
Keeping Assist may not recognize
that the driver has their hands on the
steering wheel.

[ If you attach objects to the steering
wheel, the hands-off warning may
not work properly.
Information

[For more details on setting the
functions in the infotainment system
Vehicle Settings, refer to “Vehicle
Settings” section in chapter 4.

[ When lane markings (or road edges)
are detected, the lane lines on the
cluster will change from grey to white
and the green
indicator light will
illuminate.
„Lane undetected „Lane detected
OOSN081027NOOSN071019N

[Even though the steering is assisted by
Lane Keeping Assist, the driver may
control the steering wheel.

[ The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Keeping Assist than
when it is not.

Driver Assistance System7-26
WARNING

[ Collision-avoidance assist will
be canceled under the following
circumstances:
- Your vehicle enters the next lane
by a certain distance
- Your vehicle is away from the
collision risk
- The steering wheel is sharply
steered
- The brake pedal is depressed
- Forward Collision-Avoidance Assist
is operating

[ After Blind-Spot Collision-Avoidance
Assist operation or lane change,
you must drive to the center of the
lane. Blind-Spot Collision-Avoidance
Assist will not operate if the vehicle is
not driven in the center of the lane.
OOSN071006L
Collision-avoidance assist (while
departing)

[T
o warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message
will appear on the cluster. At the
same time, an audible warning will
sound, warning light on the head-up
display (if equipped) will blink and the
steering wheel will vibrate.

[ Blind-Spot Collision-Avoidance Assist
will operate when your vehicle speed
is below 2 mph (3 km/h) and the
speed of the vehicle in the blind spot
area is above 3 mph (5 km/h).

[ Emergency Braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.

07
7-27
OOSN071018L
Stopping vehicle and ending brake control

[When the v
ehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Blind-Spot Collision-Avoidance
Assist:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Blind-Spot
Collision-Avoidance Assist’s warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning sound
of Blind-Spot Collision-Avoidance
Assist if the surrounding is noisy.
[
Blind-Spot Collision-Avoidance
Assist may not operate if the driver
applies the brake pedal to avoid
collision.

[ When Blind-Spot Collision-Avoidance
Assist is operating, braking control
by the function will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.

[ During Blind-Spot Collision-
Avoidance Assist operation, the
vehicle may stop suddenly injuring
passengers and shifting loose
objects. Always have the seat belt on
and keep loose objects secured.

[ Even if there is a problem with Blind-
Spot Collision-Avoidance Assist, the
vehicle’s basic braking performance
will operate properly.

[ Blind-Spot Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.

[ Blind-Spot Collision-Avoidance
Assist may warn the driver late or
may not warn the driver depending
on the road and driving conditions.

[ Driver should maintain control of the
vehicle at all times. Do not depend
on Blind-Spot Collision-Avoidance
Assist. Maintain a safe braking
distance, and if necessary, depress
the brake pedal to reduce driving
speed or to stop the vehicle.

[ Never operate Blind-Spot Collision-
Avoidance Assist on people, animal,
objects, etc. It may cause serious
injury or death.

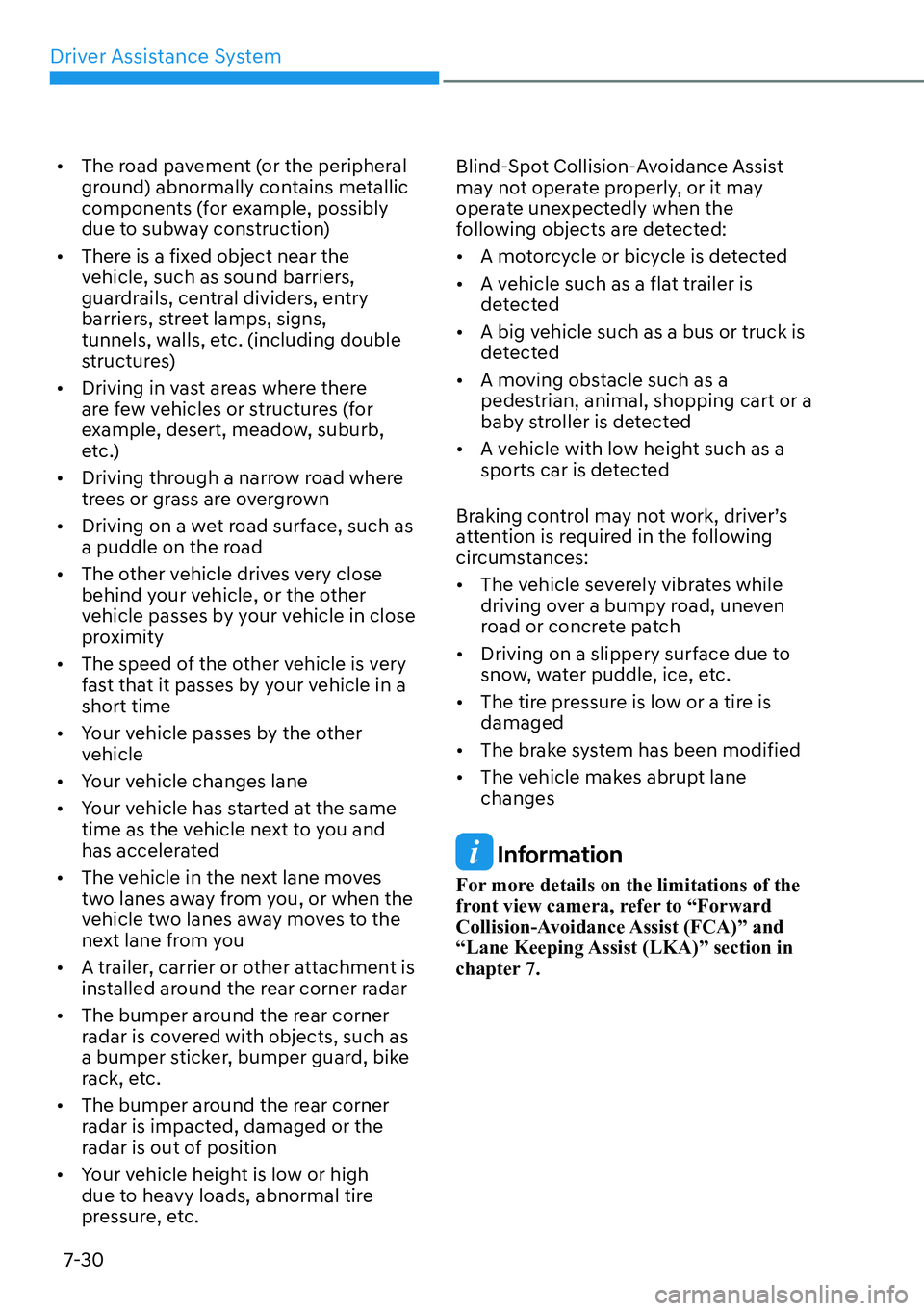

Driver Assistance System7-30

[ The road pavement (or the peripheral
ground) abnormally contains metallic
components (for example, possibly
due to subway construction)

[ There is a fixed object near the
vehicle, such as sound barriers,
guardrails, central dividers, entry
barriers, street lamps, signs,
tunnels, walls, etc. (including double
structures)

[ Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[ Driving through a narrow road where
trees or grass are overgrown

[ Driving on a wet road surface, such as
a puddle on the road

[ The other vehicle drives very close
behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity

[ The speed of the other vehicle is very
fast that it passes by your vehicle in a
short time

[ Your vehicle passes by the other
vehicle

[ Your vehicle changes lane

[ Your vehicle has started at the same
time as the vehicle next to you and
has accelerated

[ The vehicle in the next lane moves
two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you

[ A trailer, carrier or other attachment is
installed around the rear corner radar

[ The bumper around the rear corner
radar is covered with objects, such as
a bumper sticker, bumper guard, bike
rack, etc.

[ The bumper around the rear corner
radar is impacted, damaged or the
radar is out of position

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc. Blind-Spot Collision-Avoidance Assist
may not operate properly, or it may
operate unexpectedly when the
following objects are detected:

[
A motorcycle or bicycle is detected

[ A vehicle such as a flat trailer is
detected

[ A big vehicle such as a bus or truck is
detected

[ A moving obstacle such as a
pedestrian, animal, shopping cart or a
baby stroller is detected

[ A vehicle with low height such as a
sports car is detected
%UDNLQJFRQWUROPD\QRWZRUNGULYHU
TV
attention is required in the following
circumstances:

[ The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch

[ Driving on a slippery surface due to
snow, water puddle, ice, etc.

[ The tire pressure is low or a tire is
damaged

[ The brake system has been modified

[ The vehicle makes abrupt lane
changes
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” and
“Lane Keeping Assist (LKA)” section in
chapter 7.

07

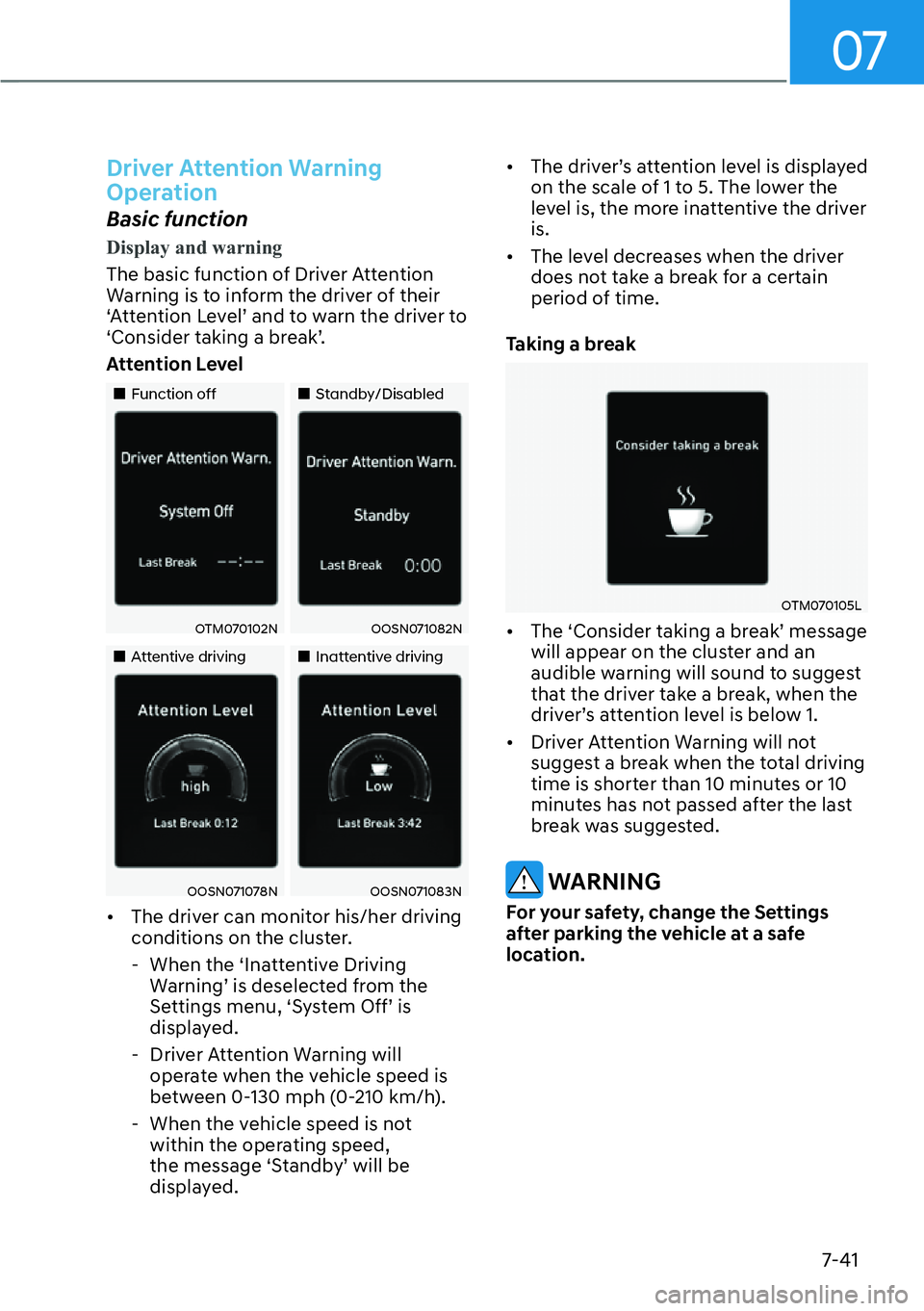

7-41
Driver Attention Warning
Operation
Basic function
Display and warning
The basic function of Driver Attention
W
arning is to inform the driver of their

S$WWHQWLRQ/HYHO
TDQGWRZDUQWKHGULYHUWR

S&RQVLGHUWDNLQJDEUHDN
T
Attention Level
„Function off „Standby/Disabled
OTM070102NOOSN071082N
„Attentive driving„Inattentive driving
OOSN071078NOOSN071083N

[The driver can monitor his/her driving
conditions on the cluster.

- When the ‘Inattentive Driving
:DUQLQJ
TLVGHVHOHFWHGIURPWKH
6HWWLQJVPHQX
S6\VWHP2II
TLV
displayed.
- Driver Attention Warning will operate when the vehicle speed is
between 0-130 mph (0-210 km/h).
- When the vehicle speed is not within the operating speed,
WKHPHVVDJH
S6WDQGE\
TZLOOEH
displayed.
[ 7KHGULYHU
TVDWWHQWLRQOHYHOLVGLVSOD\HG
on the scale of 1 to 5. The lower the
level is, the more inattentive the driver
is.

[ The level decreases when the driver
does not take a break for a certain
period of time.
Taking a break
OTM070105L

[ 7KH
S&RQVLGHUWDNLQJDEUHDN
TPHVVDJH will appear on the cluster and an
audible warning will sound to suggest
that the driver take a break, when the
GULYHU
TVDWWHQWLRQOHYHOLVEHORZ

[ Driver Attention Warning will not
suggest a break when the total driving
time is shorter than 10 minutes or 10
minutes has not passed after the last
break was suggested.
WARNING
For your safety, change the Settings
after parking the vehicle at a safe
location.
