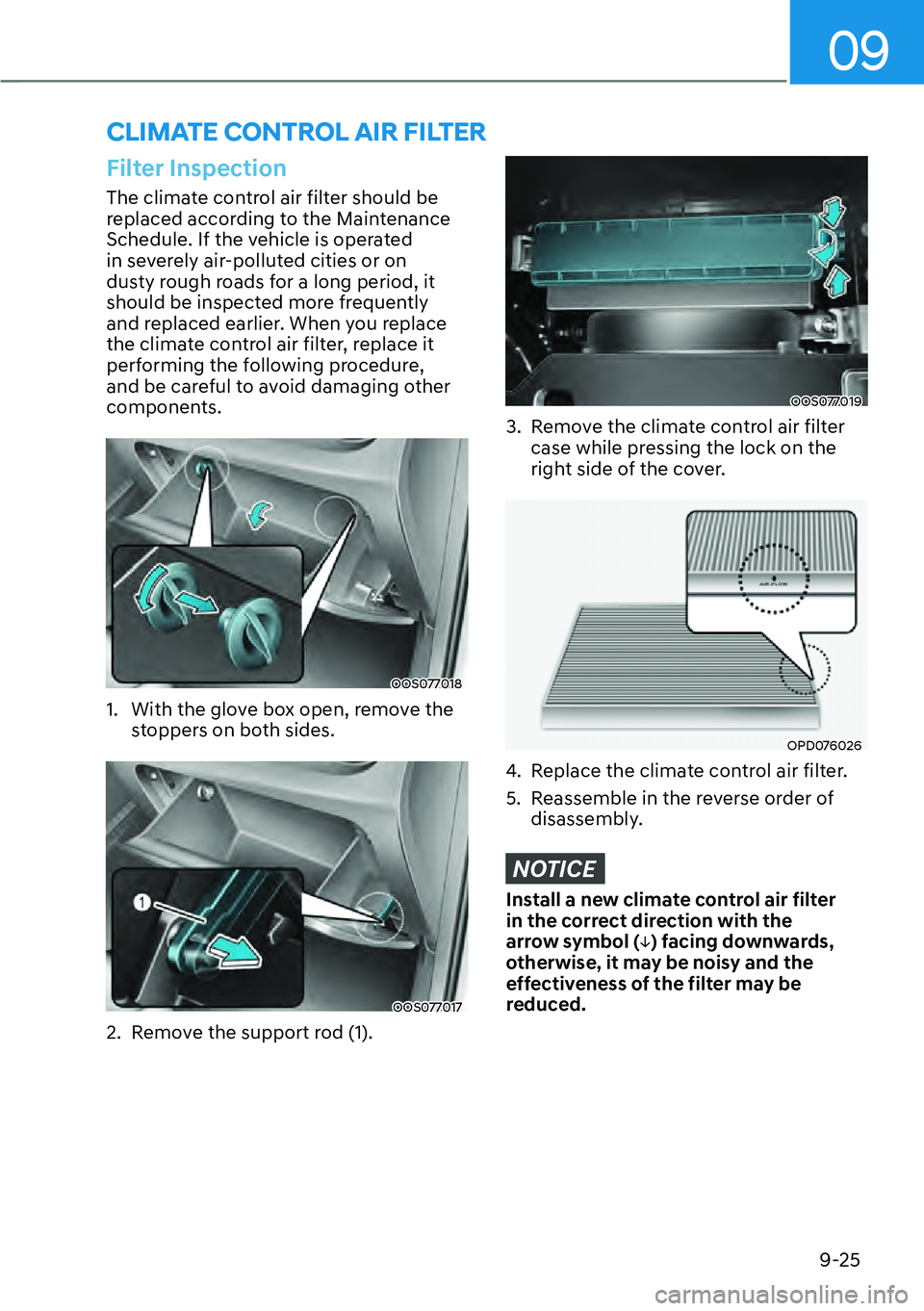

CLIMATE CONTROL AIR FILTER
Filter Inspection
The climate control air filter should be
replaced according to the Maintenance
Schedule. If the vehicle is operated
in severely air-polluted cities or on
dusty rough roads for a long period, it
should be inspected more frequently
and replaced earlier. When you replace
the climate control air filter, replace it
performing the following procedure,
and be careful to avoid damaging other
components.
OOS077018
1. With the glove box open, remove the stoppers on both sides.
OOS077017
2. Remove the support rod (1).
OOS077019
3. Remove the climate control air filter case while pressing the lock on the
right side of the cover.
OPD076026
4. Replace the climate control air filter.
5. Reassemble in the reverse order of disassembly.
NOTICE
Install a new climate control air filter
in the correct direction with the
arrow symbol (
¢) facing downwards,
otherwise, it may be noisy and the
effectiveness of the filter may be
reduced.

Maintenance9-52
Driver’s side fuse panel
Fuse Name Fuse Rating Circuit Protected
MODULE5 7
.5AFront Wireless Charger Unit, Front Air Ventilation Control
Module, ATM Shift Lever IND., Driver Console Switch,
Electro Chromic Mirror, A/V & Navigation Head Unit,
Low DC-DC Converter, Data Link Connector, AMP, Crash
Pad Switch, Head Lamp LH/RH, A/C Control Module,
Front/Rear Seat Warmer Control Module
MODULE3 7.5A Stop Lamp Switch, BCM, ATM Shift Lever
SUNROOF 20A Sunroof Unit
TAILGATE OPEN 10A Tailgate Relay
P/WINDOW LH 25APower Window LH Relay, Driver Safety Window Module
(LHD)
MULTI MEDIA 15A Low DC-DC Convertor, A/V & Navigation Head Unit
P/WINDOW RH 25APower Window RH Relay, Driver Safety Window Module
(RHD)
P/SEAT (DRV) 25A Driver Seat Manual Switch, Driver Reclining Switch
P/SEAT (PASS) 25A Passenger Seat Manual Switch
MODULE4 7.5ALSD Control Module, BCM, Front View Camera, ECS Unit,
Steering Angle Sensor
PDM3 7.5A Smart Key Control Module
INTERIOR LAMP 7.5AFoot Lamp LH/RH, Vanity Lamp LH/RH, Room Lamp,
Overhead Console Lamp, Glove Box Lamp, Luggage
Lamp
MEMORY 10AA/C Control Module, Rain Sensor, Head Up Display,
Instrument Cluster, Driver Console Switch, Rear Corner
Radar LH/RH, BCM, Front Wireless Charger Unit, ICM
Relay Box (Outside Folding/Unfoling Relay)

09
9-65
Interior Light Bulb Replacement
Map lamp, Room lamp, Vanity mirror
lamp, Luggage compartment lamp
and Glove box lamp
OOS077053
„Room lamp
OOS077054
„Vanity mirror lamp
OOS077046
„Luggage compartment lamp
OOS077048
„Glove box lamp
OOS077047
1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp
housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior lamp housing notches and snap the
lens into place.
NOTICE
Use care not to dirty or damage lens,
lens tab, and plastic housings.
