2023 HYUNDAI KONA turn signal bulb

Vehicle Information, Consumer Information and Reporting Safety Defects2-8
Light Bulb Bulb TypeWattage
Front H
eadlamp
Low LED LED
High LED LED
Turn signal lamp LED LED Side marker LED LED
Turn signal lamp (side view mirror) LED LED Daytime running lamp (DRL) / position lamp LED LED
Rear Rear combination
lamp Stop/Tail LED LED
Turn signal LED LED
Reverse lamp P21W 21
High mounted stop lamp LED LED Side marker LED LED
License plate lamp W5W 5
Interior Map lamp
W10W10
Room lamp (without sunroof) FESTOON 10
Sunvisor lamp FESTOON5
Liftgate room lamp FESTOON10
Glove box lamp FESTOON5
BULB WATTAGE

Instrument Cluster4-26
Engine overheated / Engine has
overheated (if equipped)
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check headlight (if equipped)
This warning message is displayed if the
headlamps are not operating properly.
A corresponding bulb may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlamp LED (if equipped)
This message is displayed if there is a
problem with the LED headlamp. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
Check Forward Safety system
(if equipped)
This warning message is displayed
if there is a problem with Forward
Collision-Avoidance Assist. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)” in
chapter 7.
Check Lane Keeping Assist (LKA)
system
This warning message is displayed if
there is a problem with Lane Keeping
Assist. Have the vehicle inspected by an
authorized HYUNDAI dealer.
For more details, refer to “Lane Keeping
Assist (LKA)” in chapter 7.
Check Blind-Spot Safety system
This warning message is displayed
if there is a problem with Blind-Spot
Collision-Avoidance Assist. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
For more details, refer to “Blind-Spot
Collision -Avoidance Assist (BCA)” in
chapter 7.

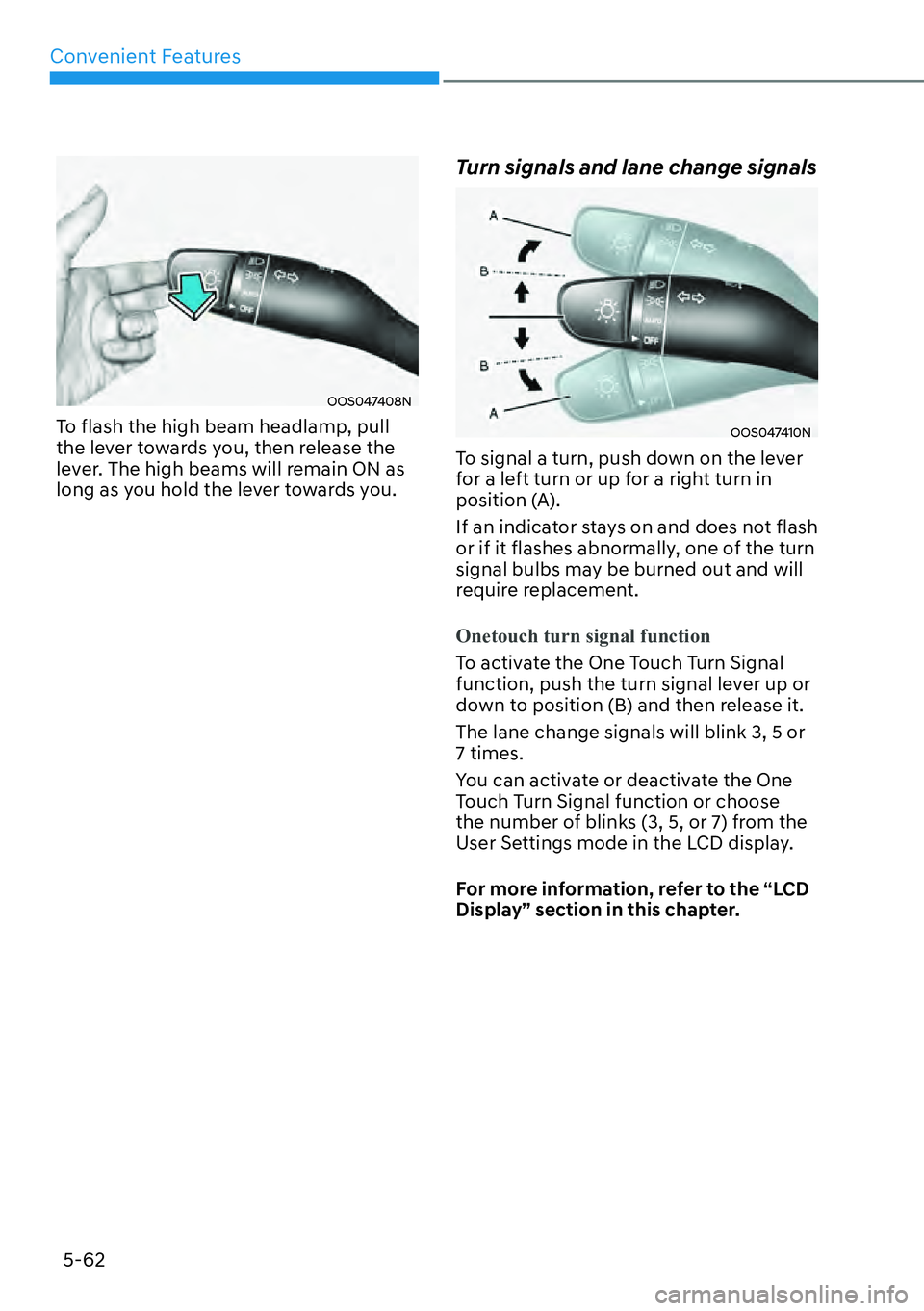

Convenient Features5-62
OOS047408N
To flash the high beam headlamp, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
Turn signals and lane change signals
OOS047410N
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
Onetouch turn signal function
To activate the One Touch Turn Signal
function, push the turn signal le
ver up or
down to position (B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can activate or deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from the
User Settings mode in the LCD display.
For more information, refer to the “LCD
Display” section in this chapter.

9
Tires and Wheels ........................................................................\
..................... 9-34Tire Care ........................................................................\
..............................................9-35
Recommended Cold Tire Inflation Pressures ...........................................................9-35
Check Tire Inflation Pressure ........................................................................\
.............9-36
Tire Rotation ........................................................................\
.......................................9-36
Wheel Alignment and Tire Balance ........................................................................\
... 9-37
Tire Replacement ........................................................................\
............................... 9-37
Wheel Replacement ........................................................................\
...........................9-39
Tire Traction ........................................................................\
........................................9-39
Tire Maintenance..................................................................\
......................................9-39
Tire Sidewall Labeling ........................................................................\
........................9-39
Tire Terminology and Definitions ........................................................................\
.... 9-42
All Season Tires ........................................................................\
.................................. 9-45
Summer Tires ........................................................................\
.................................... 9-45
Snow Tires......................................................................\
............................................ 9-45
Radial-Ply Tires ........................................................................\
.................................. 9-45
Low Aspect Ratio Tires ........................................................................\
...................... 9-46
Fuses ...................................................................\
............................................. 9-47Instrument Panel Fuse Replacement ....................................................................... 9-48
Engine Compartment Panel Fuse Replacement ..................................................... 9-49
Fuse/Relay Panel Description........................................................................\
............ 9-51
Light Bulbs ........................................................................\
................................9-61
Headlamp, position lamp, turn signal lamp, Daytime Running Light (DRL)
replacement .............................................................\
................................................. 9-62
Side Repeater Lamp Replacement ........................................................................\
.. 9-63
Rear Combination Lamp Bulb Replacement ........................................................... 9-63
High Mounted Stop Lamp Replacement ................................................................. 9-64
License Plate Light Bulb Replacement ................................................................... 9-64
Interior Light Bulb Replacement ........................................................................\
...... 9-65
Appearance Care ........................................................................\
....................9-66Exterior Care ........................................................................\
...................................... 9-66
Interior Care ........................................................................\
........................................ 9 -7 2
Emission Control System ........................................................................\
.........9-75Gasoline Particulate Filter (GPF) ..................................................................\
............. 9-77
California Perchlorate Notice ........................................................................\
. 9-78

09

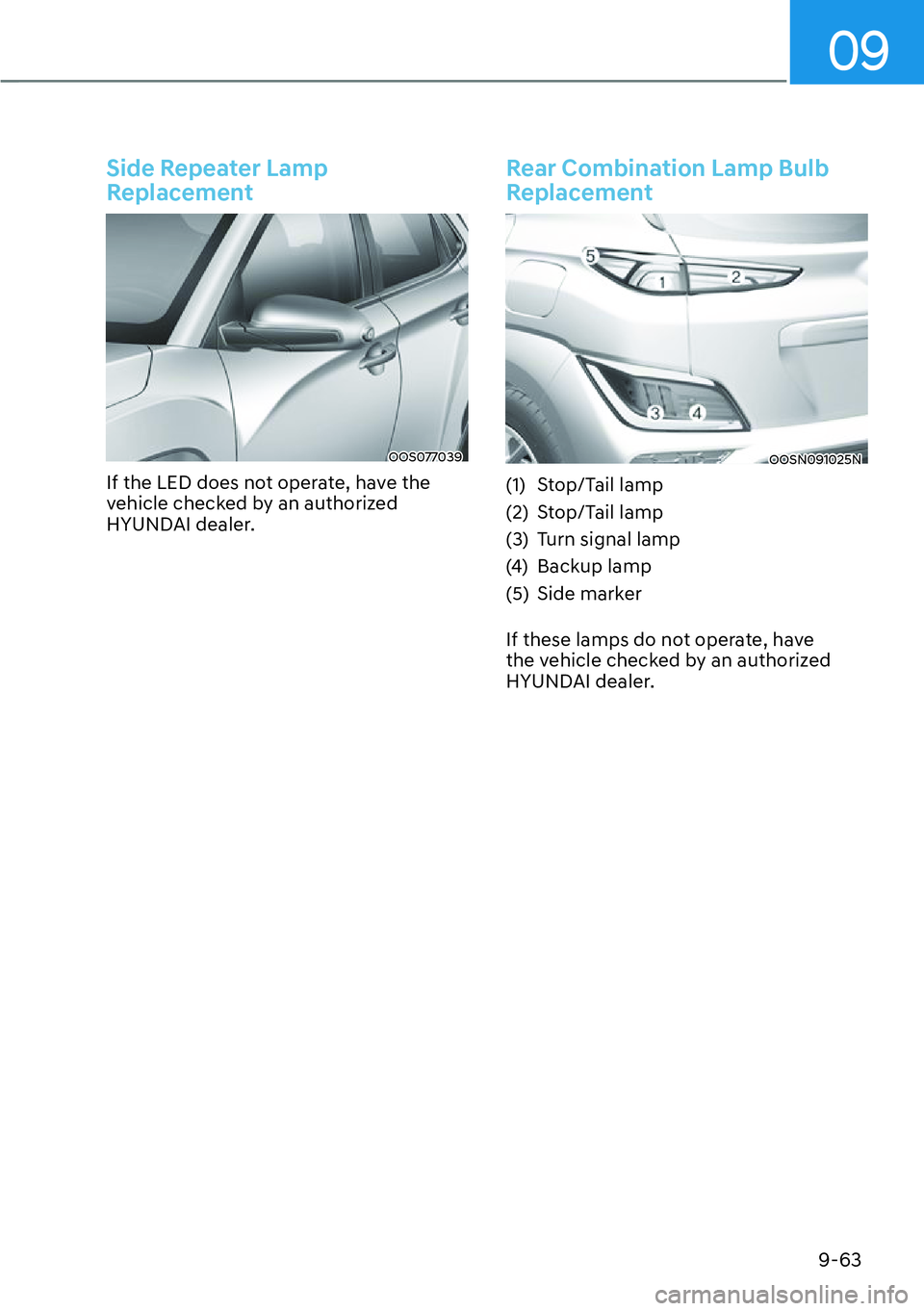

9-63
Side Repeater Lamp
Replacement
OOS077039
If the LED does not operate, have the
vehicle checked by an authorized
HYUNDAI dealer.
Rear Combination Lamp Bulb
Replacement
OOSN091025N
(1) Stop/Tail lamp
(2) Stop/Tail lamp
(3) Turn signal lamp
(4) Backup lamp
(5) Side marker
If these lamps do not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.

I
I -7
Interior Features ........................................................................\
...........................5-91
Cargo Area Cover ........................................................................\
.....................5-99
Clock ........................................................................\
........................................5-96
Clothes Hanger ........................................................................\
.........................5-97
Cup Holder ........................................................................\
...............................5-91
Floor Mat Anchor(s) ........................................................................\
.................5-97
Luggage Net Holder ........................................................................\
.................5-98
Power outlet ........................................................................\
..............................5-92
Sunvisor ........................................................................\
....................................5-92
USB Charger ........................................................................\
............................5-93
Wireless Smart Phone Charging System ..........................................................5-94
Interior Overview (I) ........................................................................\
...................... 2-4
Interior Overview (II)
........................................................................\
....................2-5
J
Jump Starting
........................................................................\
.................................8-4
L
Lane Following Assist (LFA)
........................................................................\
.....7-50
Lane Following Assist Malfunction and Limitations .......................................7-53
Lane Following Assist Operation .....................................................................7-51
Lane Following Assist Settings ........................................................................\
7-50
Lane Keeping Assist (LKA)
........................................................................\
.......7-14
Lane Keeping Assist Malfunction and Limitations ..........................................7-18
Lane Keeping Assist Operation ........................................................................\
7-16
Lane Keeping Assist Settings ........................................................................\
..7-14
LCD display
........................................................................\
.................................4-28
LCD Display Control ........................................................................\
...............4-28
Trip Computer ........................................................................\
..........................4-34
View Modes ........................................................................\
..............................4-29
Light Bulbs
........................................................................\
..................................9-61
Headlamp, position lamp, turn signal lamp, Daytime Running Light (DRL)\

replacement ........................................................................\
............................9-62
High Mounted Stop Lamp Replacement ..........................................................9-64
Interior Light Bulb Replacement ......................................................................9-65
License Plate Light Bulb Replacement ...........................................................9-64
Rear Combination Lamp Bulb Replacement ...................................................9-63
Side Repeater Lamp Replacement ...................................................................9-63
