Type Fuse NameFuse Rating Circuit Protected
FUSEB+4
40AICU Junction Block (Long Term Load Latch
Relay,
Fuse : F8, F17, F18, F26, F27, F35, F36, F45,
F44, F53, F54)
E-SHIFTER1 40A
P/R Junction Block (RLY.2, Fuse : F22)
CHARGER1 10AP/R Junction Block (RLY.1, RLY.12), ICCU,
VCMS
CHARGER2 10A
CDM
AMS 10A
12V Battery Sensor
EWP1 20A
Electronic Water Pump #1
EWP2 20A
Electronic Water Pump #2
TRAILER2 20A
Trailer Connector Unit
VESS 10A
VESS Unit
VCU1 40A
VCU
09
9-47

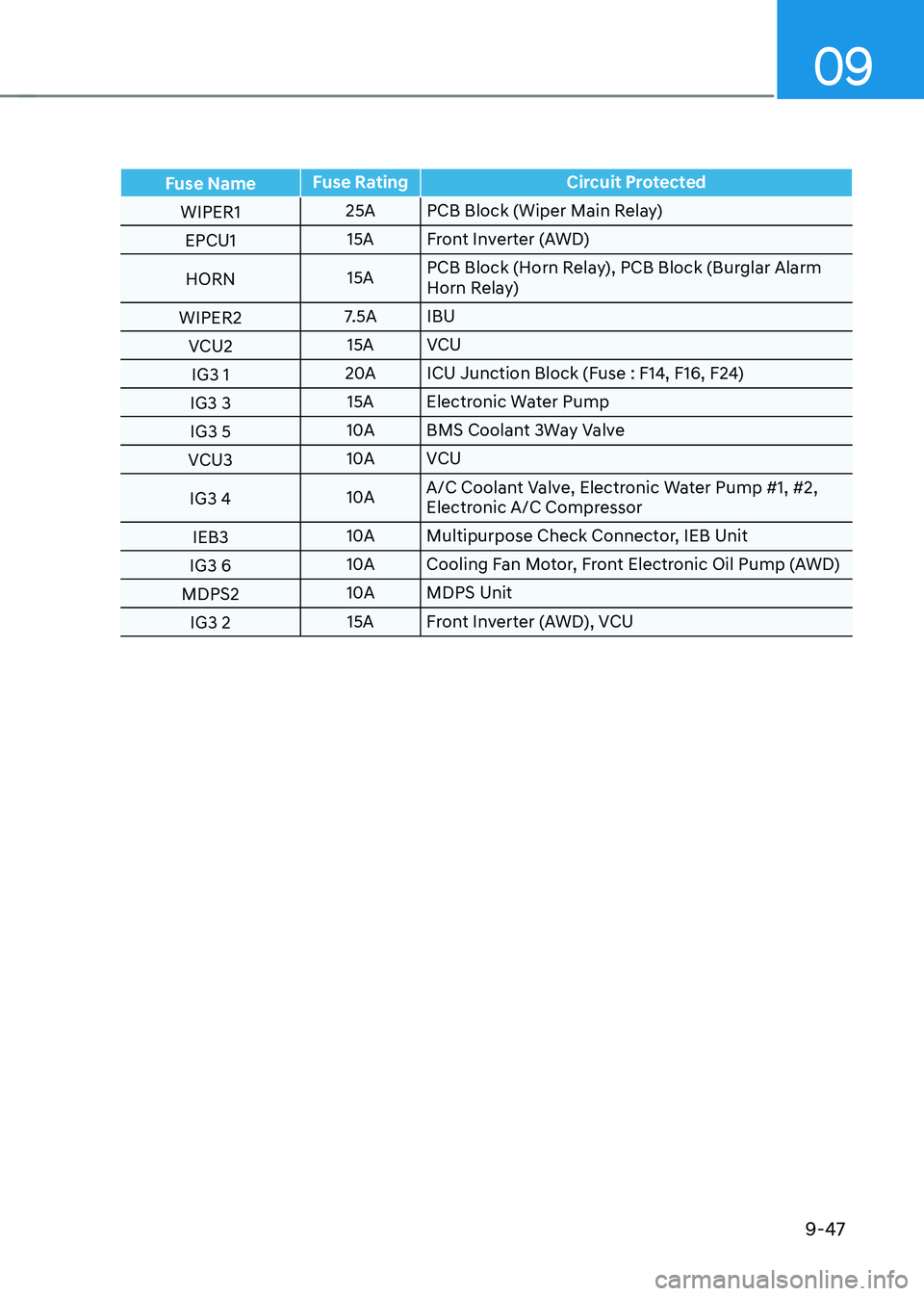

Fuse NameFuse Rating Circuit Protected
WIPER1 25A PCB Block (Wiper Main Relay)
EPCU1 15A Front Inverter (AWD)
HORN 15APCB Block (Horn Relay), PCB Block (Burglar Alarm
Horn Relay)
WIPER2 7.5A IBU
VCU2 15A
VCU
IG3 1 20A
ICU Junction Block (Fuse : F14, F16, F24)
IG3 3 15A Electronic Water Pump
IG3 5 10A
BMS Coolant 3Way Valve
VCU3 10A
VCU
IG3 4 10AA/C Coolant Valve, Electronic Water Pump #1, #2,
Electronic A/C Compressor
IEB3 10A
Multipurpose Check Connector, IEB Unit
IG3 6 10A
Cooling Fan Motor, Front Electronic Oil Pump (AWD)
MDPS2 10A
MDPS Unit
IG3 2 15A Front Inverter (AWD), VCU
