If your temperature gauge indicates
overheating, you experience a loss of
power, or hear loud pinging or knocking,
the engine may be overheating. If this
happens, you should:
1. Pull off the road and stop as soon as it
is safe to do so.
2. Place the shift lever in P (Park, for
automatic transmission/dual clutch
transmission vehicle) or neutral (for
manual transmission/dual clutch
transmission vehicle) and set the
parking brake. If the air conditioning is
ON, turn it OFF.
3. If engine coolant is running out under
the vehicle or steam is coming out
from the bonnet, stop the engine. Do
not open the bonnet until the coolant
has stopped running or the steaming
has stopped. If there is no visible
loss of engine coolant and no steam,
leave the engine running and check
to be sure the engine cooling fan is
operating. If the fan is not running,
turn the engine off.
WARNING
Whilst the engine is
running, keep hands,
clothing and tools away
from the moving parts such
as the cooling fan and drive
belt to prevent serious
injury.4. Check for coolant leaking from the
radiator, hoses or under the vehicle. (If
the air conditioning had been in use, it
is normal for cold water to be draining
from it when you stop.)
5. If engine coolant is leaking out, stop
the engine immediately and we
recommend that you call a HYUNDAI
authorised repairer for assistance.
WARNING
NEVER remove the radiator
cap or the drain plug whilst
the engine and radiator are
hot. Hot coolant and steam
may blow out under
pressure, causing serious injury.
Turn the engine off and wait until the
engine cools down. Use extreme care
when removing the radiator cap. Wrap
a thick towel around it, and turn it
counterclockwise slowly to the first
stop. Step back whilst the pressure
is released from the cooling system.
When you are sure all the pressure
has been released, press down on the
cap, using a thick towel, and continue
turning counterclockwise to remove it.
IF THE ENGINE OVERHEATS

8-16
Emergency situations
WARNING
Changing a tyre can be dangerous.
Follow the instructions in this section
when changing a tyre to reduce the risk
of serious injury or death.
CAUTION
Be careful as you use the jack handle to
stay clear of the flat end. The flat end
has sharp edges that could cause cuts.

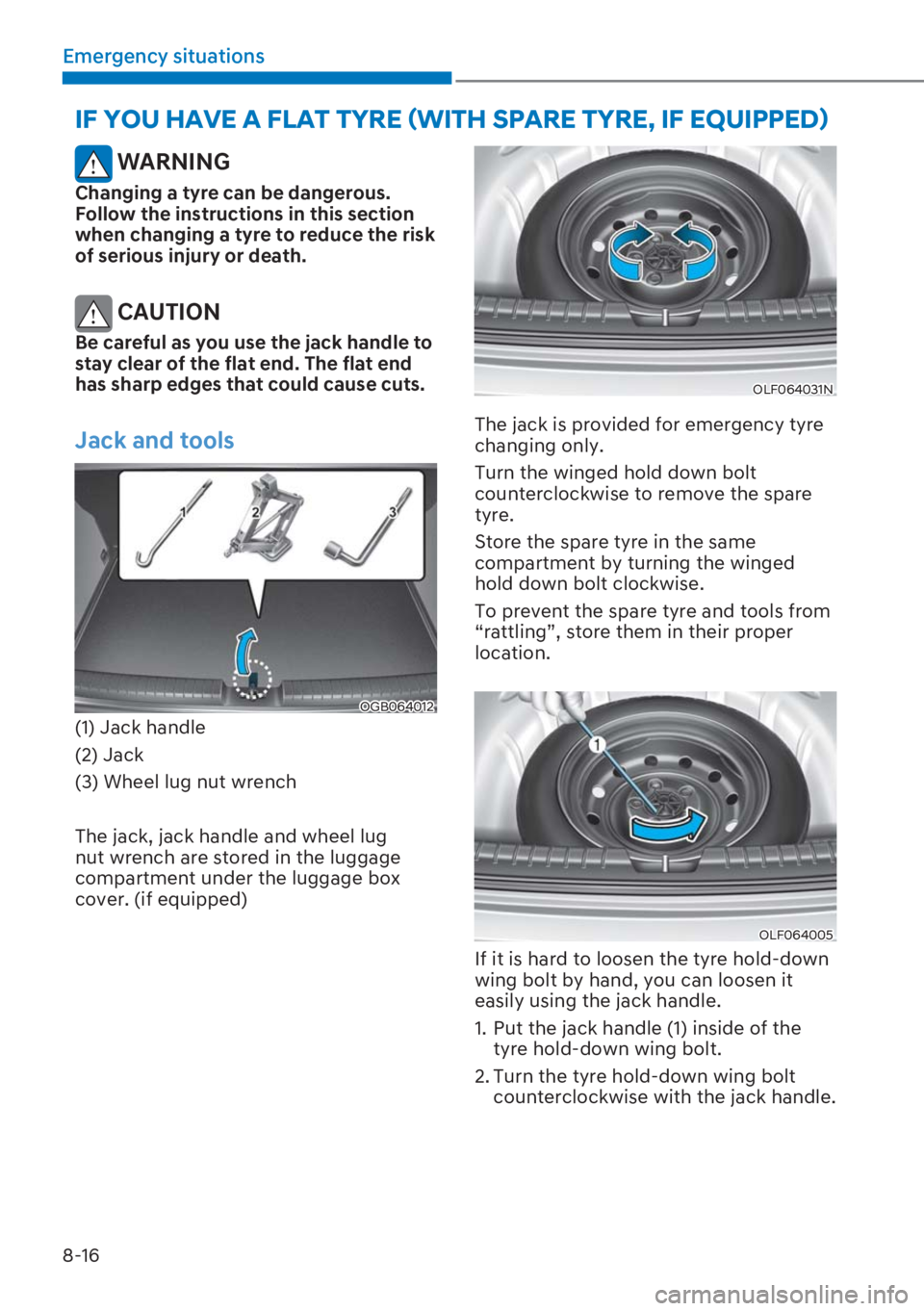

Jack and tools
OGB064012
(1) Jack handle
(2) Jack
(3) Wheel lug nut wrench
The jack, jack handle and wheel lug
nut wrench are stored in the luggage
compartment under the luggage box
cover. (if equipped)
OLF064031N
The jack is provided for emergency tyre
changing only.
Turn the winged hold down bolt
counterclockwise to remove the spare
tyre.
Store the spare tyre in the same
compartment by turning the winged
hold down bolt clockwise.
To prevent the spare tyre and tools from
“rattling”, store them in their proper
location.
OLF064005
If it is hard to loosen the tyre hold-down
wing bolt by hand, you can loosen it
easily using the jack handle.
1. Put the jack handle (1) inside of the
tyre hold-down wing bolt.
2. Turn the tyre hold-down wing bolt
counterclockwise with the jack handle.
,)<28+$9($)/$77<5(

8-17
08
Changing tyres
WARNING
A vehicle can slip or roll off of a jack
causing serious injury or death to you
or those nearby. Take the following
safety precautions:

[Do not get under a vehicle that is
supported by a jack.

[NEVER attempt to change a tyre in
the lane of traffic. ALWAYS move the
vehicle completely off the road on
level, firm ground away from traffic
before trying to change a tyre. If you
cannot find a level, firm place off
the road, call a towing service for
assistance.

[Be sure to use the jack provided with
the vehicle.

[ALWAYS place the jack on the
designated jacking positions on the
vehicle and NEVER on the bumpers
or any other part of the vehicle for
jacking support.

[Do not start or run the engine whilst
the vehicle is on the jack.

[Do not allow anyone to remain in the
vehicle whilst it is on the jack.

[Keep children away from the road
and the vehicle.
Follow these steps to change your
vehicle’s tyre:
1. Park on a level, firm surface.
2. Move the shift lever into P (Park, for
automatic transmission/dual clutch
transmission vehicle) or neutral
(for manual transmission vehicle),
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.
3. Press the hazard warning flasher
button.
4. Remove the wheel lug nut wrench,
jack, jack handle, and spare tyre from
the vehicle.
OBC3080005
[A] : Block
5. Block both the front and rear of the
tyre diagonally opposite of the tyre
you are changing.
OBC3080006
6. Loosen the wheel lug nuts
counterclockwise one turn each in
the order shown above, but do not
remove any lug nuts until the tyre has
been raised off of the ground.

8-18
Emergency situations
OBC3080007
7. Place the jack at the designated
jacking position under the frame
closest to the tyre you are changing.
The jacking positions are plates
welded to the frame with two notches.
Never jack any other position or part
of the vehicle. Doing so may damage
the side seal molding or other parts of
the vehicle.
OBC3080008
8. Insert the jack handle into the jack and
turn it clockwise, raising the vehicle
until the tyre clears the ground. Make
sure the vehicle is stable on the jack.9. Loosen the lug nuts with the wheel
lug nut wrench and remove them
with your fingers. Remove the wheel
from the studs and lay it flat on the
ground out of the way. Remove any
dirt or debris from the studs, mounting
surfaces, and wheel.
10. Install the spare tyre onto the studs
of the hub.
11. Tighten the lug nuts with your fingers
onto the studs with the smaller end of
the lug nuts closest to the wheel.
12. Lower the vehicle to the ground
by turning the jack handle
counterclockwise.
OBC3080009
13. Use the wheel lug nut wrench to
tighten the lug nuts in the order
shown. Double-check each lug nut
until they are tight. After changing
tyres, we recommend that a
HYUNDAI authorised repairer tighten
the lug nuts to their proper torque as
soon as possible. The wheel lug nut
should be tightened to 11~13kgf.m
(79~94 lbf.ft, 107~127N.m).

8-33
08
When towing your vehicle in an
emergency without wheel dollies:
1. Place the ignition switch in the ACC
position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
CAUTION
Failure to place the shift lever in N
(Neutral) may cause internal damage to
the transmission.
Removable towing hook
OBC3080017
1. Open the tailgate, and remove the
towing hook from the tool case.
OBC3080018
2. Remove the hole cover by pressing
the lower part of the cover on the
bumper.
3. Install the towing hook by turning it
clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install
the cover after use.

8-34
Emergency situations
Emergency towing
OBC3080019
„Front
„Rear
OBC3080020
If towing is necessary, we recommend
you have it done by a HYUNDAI
authorised repairer or a commercial tow
truck service.
If towing service is not available in
an emergency, your vehicle may be
temporarily towed using a cable or chain
secured to the emergency towing hook
at the front (or rear) of the vehicle.
Use extreme caution when towing the
vehicle with a cable or chain. A driver
must be in the vehicle to steer it and
operate the brakes.
Towing in this manner may be done
only on hard-surfaced roads for a short
distance and at low speeds. Also, the
wheels, axles, power train, steering and
brakes must all be in good condition.
CAUTION
The driver must be in the vehicle for
steering and braking operations when
the vehicle is being towed. Passengers
other than the driver must not be in the
vehicle.
Always follow these emergency towing
precautions:

[Place the ignition switch in the ACC
position so the steering wheel is not
locked.

[Place the shift lever in N (Neutral).

[Release the parking brake.

[Depress the brake pedal with more
force than normal since you will have
reduced braking performance.

[More steering effort will be required
because the power steering system
will be disabled.

[Use a vehicle heavier than your own to
tow your vehicle.

[The drivers of both vehicles should
communicate with each other
frequently.

[Before emergency towing, check that
the hook is not broken or damaged.

[Fasten the towing cable or chain
securely to the hook.

[Do not jerk the hook. Apply steady and
even force.

8-41
08
Modalities for exercising data
subject’s rights
The data subject (the vehicle’s owner)
has a right of access to data and as
appropriate to request the rectification,
erasure or blocking of data, concerning
him or her, the processing of which
does not comply with the provisions
of Directive 95/46/EC. Any third
parties to whom the data have been
disclosed have to be notified of such
rectification, erasure or blocking carried
out in compliance with this Directive,
unless it proves impossible or involves a
disproportionate effort.
The data subject has a right to complain
to the competent data protection
authority if he or she considers that his
or her rights have been infringed as a
result of the processing of his or her
personal data.
Contact service responsible for handling
access requests (if any): Not applicable
Pan-European eCall System
OBC3N080014
Elements of the Pan-European
eCall system, installed in passenger
compartment:
(1) SOS button
(2) LED
SOS button: the driver/passenger makes
an emergency call to the single duty
dispatch service by pressing the button.
LED: the red and green LED illuminates
for 3 seconds when the ignition switch
is in the ON position. After that they will
switch off at normal operation of the
system.
If there are some problems in the
system, the LED remains in red.

9-7
09
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience
or the proper tools and equipment
to do the work, we recommend that
the system be serviced by a HYUNDAI
authorised repairer. ALWAYS follow
these precautions for performing
maintenance work:

[ 3DUN\RXUYHKLFOHRQOHYHOJURXQG
move the shift lever into the P (Park,
for automatic transmission/dual
clutch transmission vehicle) position,
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.

[ %ORFNWKHW\UHVIURQWDQGEDFNWR
prevent the vehicle from moving.
Remove loose clothing or jewellery
that can become entangled in
moving parts.

[ ,I\RXPXVWUXQWKHHQJLQHGXULQJ
maintenance, do so out doors or in an
area with plenty of ventilation.

[ .HHSIODPHVVSDUNVRUVPRNLQJ
materials away from the battery and
fuel-related parts.The following lists are vehicle checks
and inspections that should be
performed by the owner or a HYUNDAI
authorised repairer at the frequencies
indicated to help ensure safe,
dependable operation of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer
as soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labour, parts and lubricants used.
Owner maintenance schedule
When you stop for fuel:

[Check the coolant level in the engine
coolant reservoir.

[Check the windscreen washer fluid
level.

[Check for low or under-inflated tyres.

[Check the radiator and condenser.
Check if the front of the radiator and
condenser are clean and not blocked
with leaves, dirt or insects, etc.
If any of the above parts are extremely
dirty or you are not sure of their
condition, we recommend that
you contact a HYUNDAI authorised
repairer.
WARNING
%HFDUHIXOZKHQFKHFNLQJ\RXUHQJLQH
coolant level when the engine is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
OWNER MAINTENANCE
