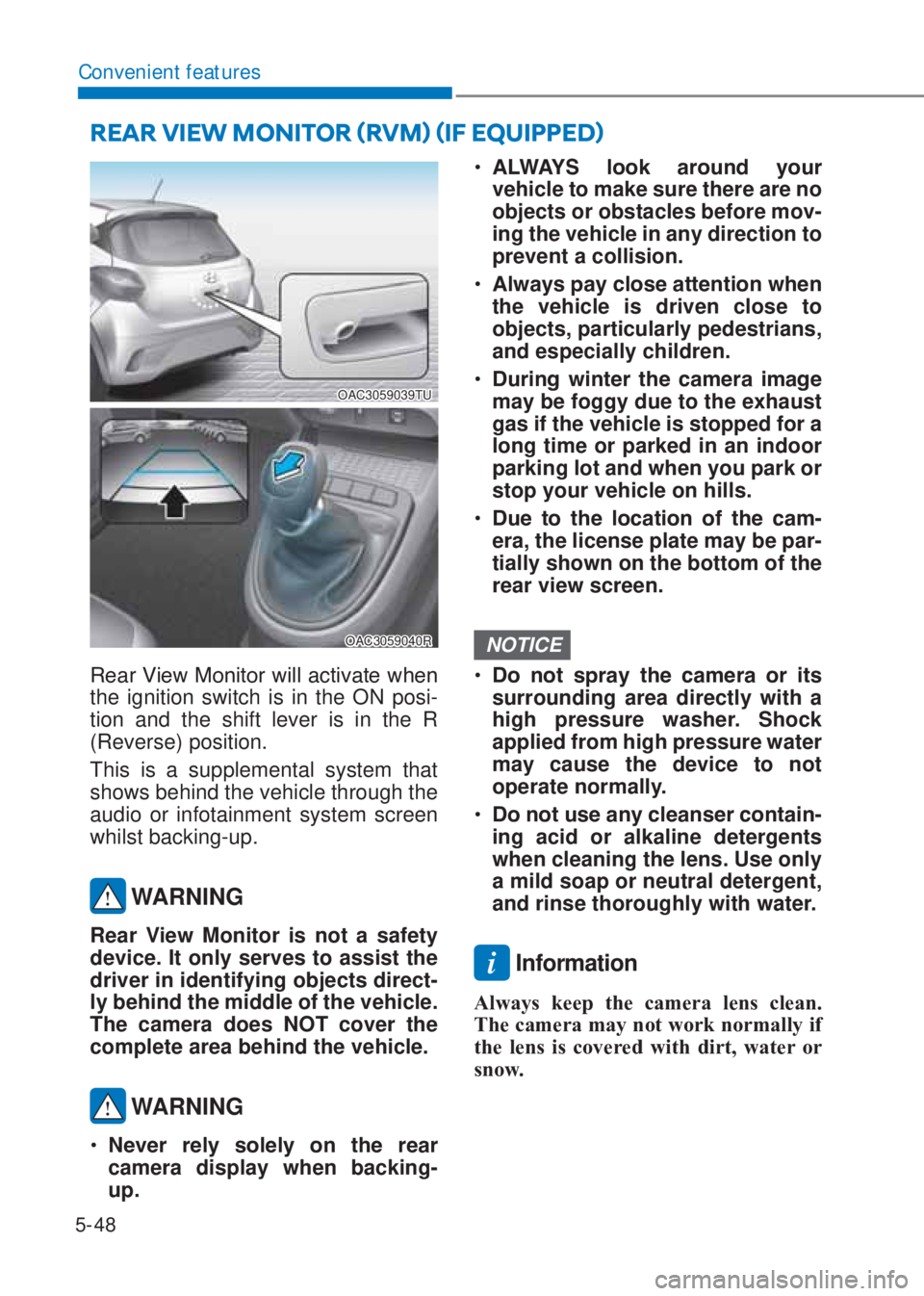

2023 HYUNDAI I10 Camera

5-48
Convenient features
OAC3059039TU
OAC3059040R
5HDU9LHZ0RQLWRUZLOODFWLYDWHZKHQ
the ignition switch is in the ON posi-
tion and the shift lever is in the R
(Reverse) position.
This is a supplemental system that
shows behind the vehicle through the
audio or infotainment system screen
whilst backing-up.
WARNING
Rear View Monitor is not a safety
device. It only serves to assist the
driver in identifying objects direct-
ly behind the middle of the vehicle.
The camera does NOT cover the
complete area behind the vehicle.
WARNING

6
Forward collision-avoidance assist (FCA) ...................................................... 6-49
System setting and activation ..................................................................... 6-49
FCA warning message and brake control .................................................... 6-51
FCA sensor (front view camera) ...................................................................6-53
System malfunction ..................................................................................... 6-54
Limitations of the system............................................................................. 6-56
Lane keeping assist (LKA)
................................................................................ 6-61
LKA operation ............................................................................................... 6-62
LKA system function change ....................................................................... 6-63
Warning light and message ......................................................................... 6-65
Limitations of the system..............................................................................6-67
Manual speed limit assist (MSLA)
................................................................... 6-69
Speed limit assist operation ........................................................................ 6-69
Intelligent speed limit warning (ISLW)
........................................................ 6-72
System setting and activation ...................................................................... 6-73
Display ............................................................................................................ 6-73
Limitations of the system ............................................................................. 6-76
Driver attention warning (DAW)
...................................................................... 6-78
System setting and operation ...................................................................... 6-78
Resetting the system ................................................................................... 6-80
System standby ............................................................................................ 6-80
System malfunction ..................................................................................... 6-80
Leading vehicle departure alert .................................................................. 6-82
Cruise control
................................................................................................... 6-83
Cruise Control operation ............................................................................. 6-83

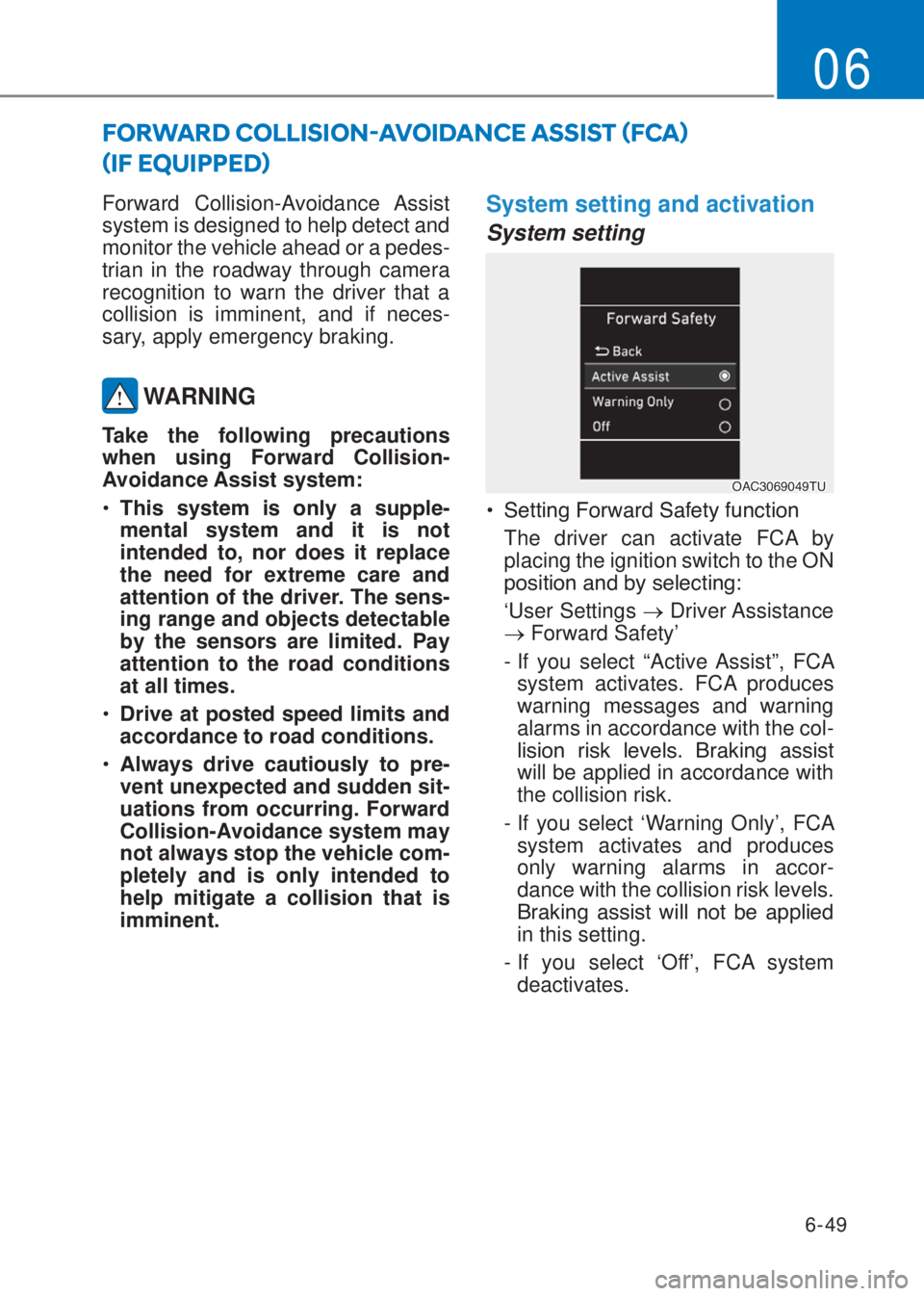

6-49
06
Forward Collision-Avoidance Assist
system is designed to help detect and
monitor the vehicle ahead or a pedes-
trian in the roadway through camera
recognition to warn the driver that a
collision is imminent, and if neces-
sary, apply emergency braking.
WARNING
Take the following precautions
when using Forward Collision-
Avoidance Assist system:

6-53
06
WARNING
The braking control cannot com-
pletely stop the vehicle nor avoid
all collisions. The driver should
hold the responsibility to safely
drive and control the vehicle.
WARNING
FCA system logic operates within
certain parameters, such as the
distance from the vehicle or pedes-
trian ahead, the speed of the vehi-
cle ahead, and the driver’s vehicle
speed. Certain conditions such as
inclement weather and road condi-
tions may affect the operation of
FCA system.
WARNING
Never deliberately drive danger-
ously to activate the system.
FCA sensor (front view
camera)
2$&78
In order for FCA system to operate
properly, always make sure the sen-
sor or wind shield glass is clean and
free of dirt, snow, and debris.
Dirt, snow, or foreign substances may
adversely affect the sensing perfor-
mance of the sensor.
NOTICE

6-54
Whilst driving
Warning message and warning
light
2$&78
Critical forward safety functions are
limited. Camera obscured
When the camera is blocked with dirt,
snow, or debris, FCA system may not
detect other vehicles.
If this occurs, a warning message will
appear on the LCD display.
The system will operate normally
when such dirt, snow or debris is
removed.
FCA may not properly operate in an
area (e.g. open terrain) where any
REMHFWV RU YHKLFOHV DUH QRW GHWHFWHG
after turning on the engine.
Also, even though a warning mes-
sage does not appear on the LCD
display, FCA may not properly oper-
ate.
WARNING
FCA system may not activate
according to road conditions,
inclement weather, driving condi-
tions or traffic conditions.
System malfunction
2$&78
Check forward safety systems

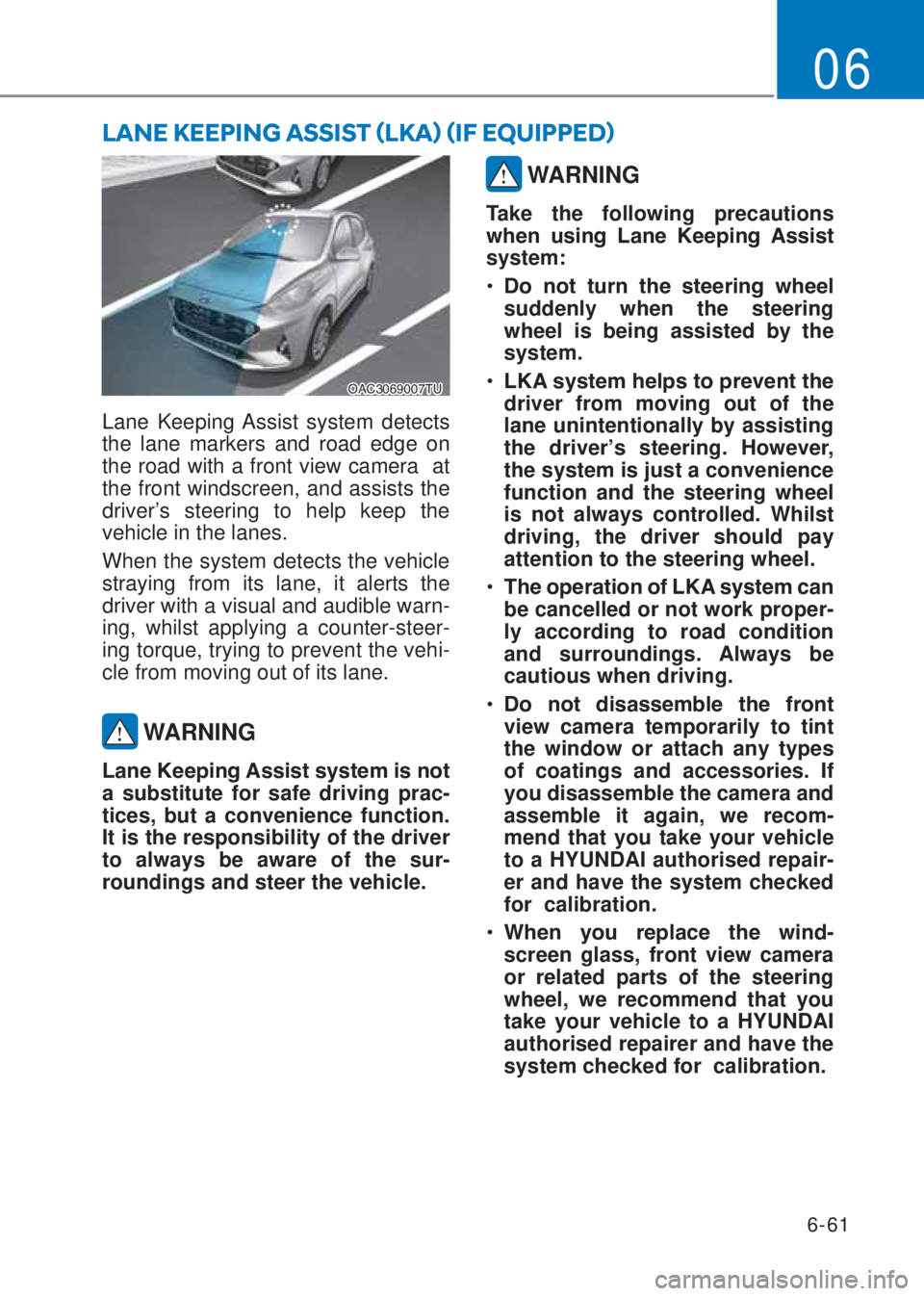

6-61
06
LANE KEEPING ASSIST
ãLKA
ä
ãIF EQUIPPED
ä
2$&78
Lane Keeping Assist system detects
the lane markers and road edge on
the road with a front view camera at
the front windscreen, and assists the
driver’s steering to help keep the
vehicle in the lanes.
When the system detects the vehicle
straying from its lane, it alerts the
driver with a visual and audible warn-
ing, whilst applying a counter-steer-
ing torque, trying to prevent the vehi-
cle from moving out of its lane.
WARNING
/DQH.HHSLQJ$VVLVWV\VWHPLVQRW
a substitute for safe driving prac-
tices, but a convenience function.
It is the responsibility of the driver
to always be aware of the sur-
roundings and steer the vehicle.
WARNING
Take the following precautions
ZKHQ XVLQJ /DQH .HHSLQJ $VVLVW
system:

6-72
Whilst driving
2$&78
Intelligent Speed Limit Warning sys-
tem displays the speed limit informa-
tion and overtaking restriction of the
current road through the instrument
cluster and the navigation. ISLW
reads the traffic signs through the
front view camera, which is attached
on the upper part of the inner front
windscreen.
ISLW also utilizes the navigation and
vehicle information to display the
speed limit information.
WARNING

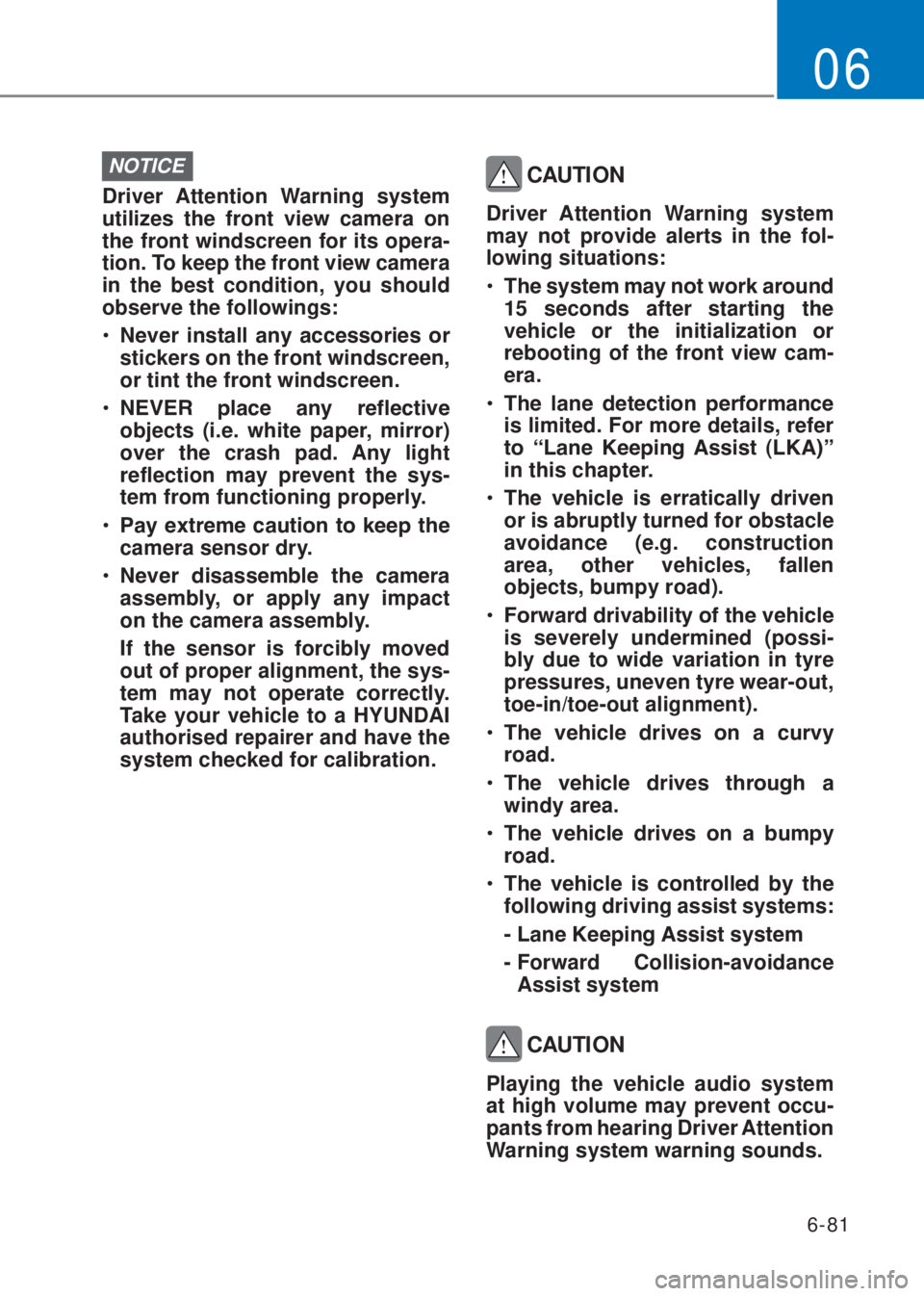

6-81
06
NOTICE
Driver Attention Warning system
utilizes the front view camera on
the front windscreen for its opera-
tion. To keep the front view camera
in the best condition, you should
observe the followings:
