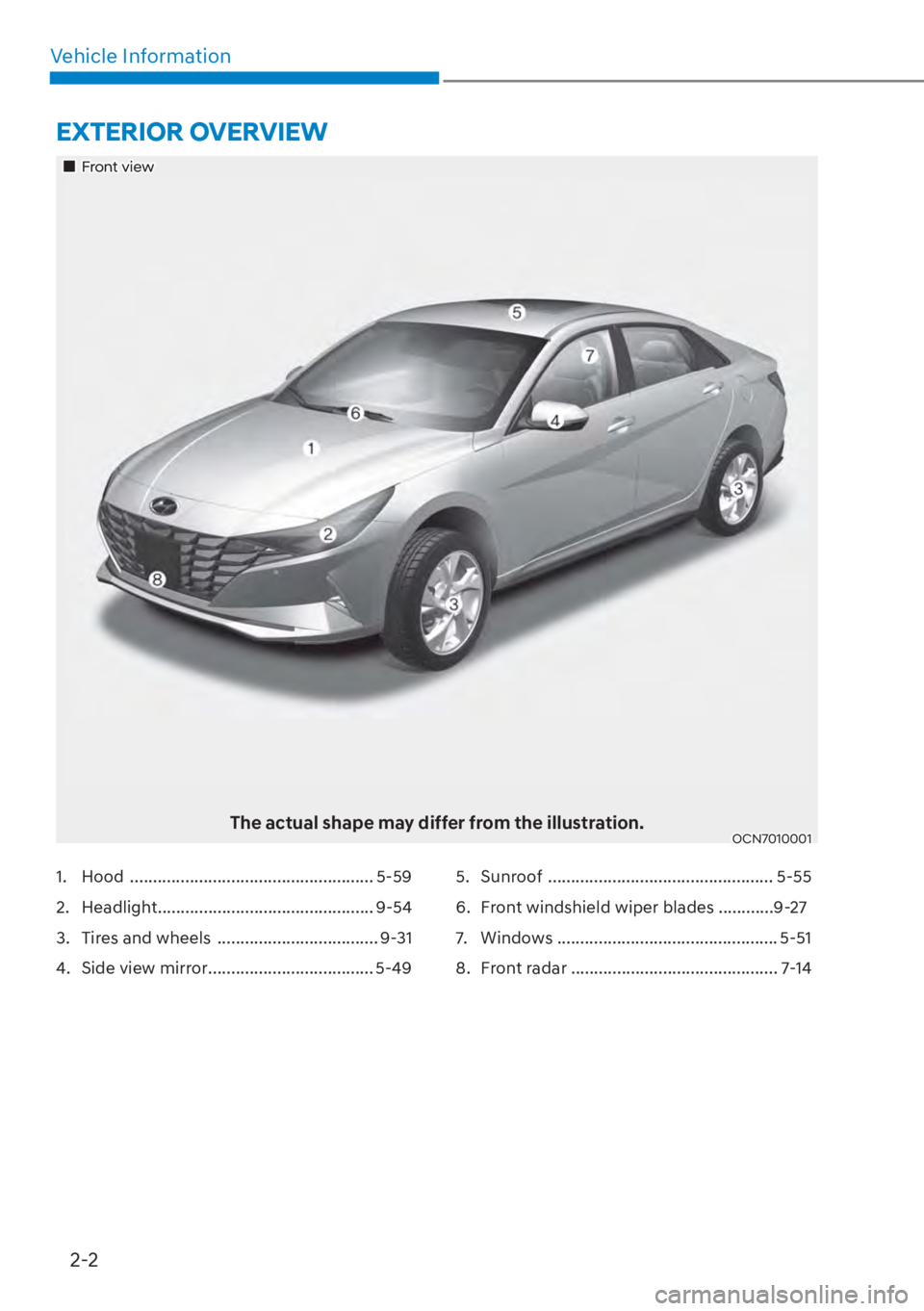

EXTERIOR OVERVIEW
„Front view
The actual shape may differ from the illustration.OCN7010001
1. Hood ..................................................... 5-59
2. Headlight ............................................... 9-54
3. Tires and wheels ................................... 9-31
4. Side view mirror .................................... 5-49
5. Sunroof ................................................. 5-55
6. Front windshield wiper blades ............9-27
7. Windows ................................................ 5-51
8. Front radar ............................................. 7-14

2-3
02
1. Hood ...................................................... 5-59
2. Headlight ............................................... 9-54
3. Tires and wheels .................................... 9-31
4. Side view mirror .................................... 5-49
5. Sunroof .................................................. 5-556. Front windshield wiper blades ............9-27
7. Windows ................................................ 5-51
8. Front radar ............................................. 7-14

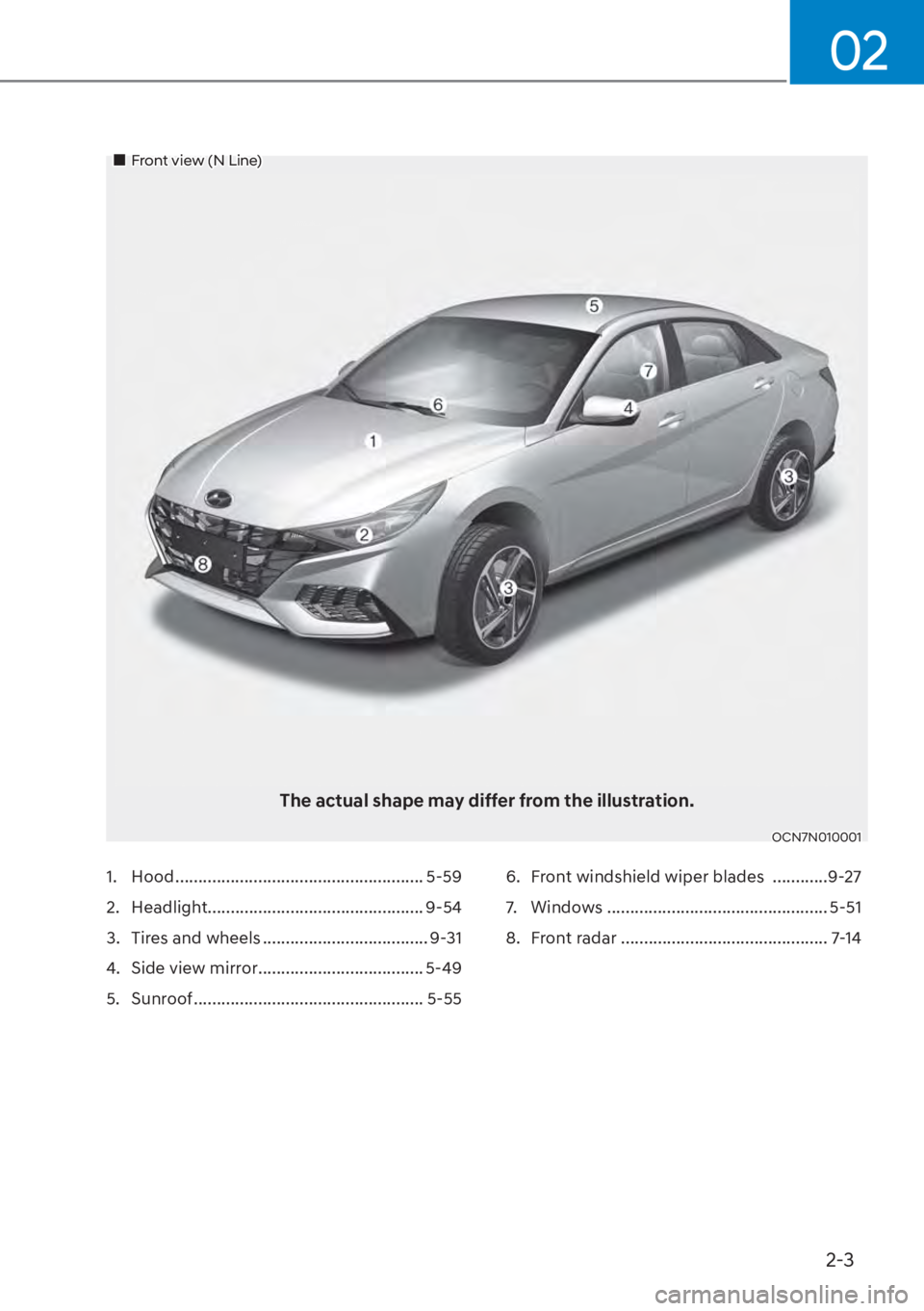

„Front view (N Line)
The actual shape may differ from the illustration.
OCN7N010001

03
3-39
WARNING
To reduce the risk of serious injury or
death from an inflating side air bag,
take the following precautions:

[Seat belts must be worn at all times
to help keep occupants positioned
properly.

[ Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.

[ Hold the steering wheel at the 9
o’clock and 3 o’clock positions, to
minimize the risk of injuries to your
hands and arms.

[ Do not use any accessory seat
covers. This could reduce or prevent
the effectiveness of the system.

[ Do not place any objects over the
air bag or between the air bag and
yourself. Also, do not attach any
objects around the area the air bag
inflates such as the door, side door
glass, front and rear pillar.

[ Do not place any objects between
the door and the seat. They may
become dangerous projectiles if the
side air bag inflates.

[ Do not install any accessories on the
side or near the side air bags.

[ Do not put any objects between the
side airbag label and seat cushion. It
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.

[ Do not cause impact to the doors
when the ignition switch button is in
the ON position as this may cause the
side air bags to inflate.

[ If the seat or seat cover is damaged,
have the vehicle checked and
repaired by an authorized HYUNDAI
dealer.
Curtain air bags
OCN7030044
OCN7030043
Curtain air bags are located along both
sides of the roof rails above the front and
rear doors.
They are designed to help protect the
heads of the front seat occupants and
the rear outboard seat occupants in
certain side impact collisions.
The curtain air bags are designed to
deploy during certain side impact
collisions, depending on the crash
severity.
The side and curtain air bags on both
sides of the vehicle may deploy if a
rollover or possible rollover is detected.
The curtain air bags are not designed
to deploy in all side impact or rollover
situations.

Seats & Safety System3-40
WARNING
To reduce the risk of serious injury or
death from an inflating curtain air bag,
take the following precautions:

[ All seat occupants must wear
seat belts at all times to help keep
occupants positioned properly.

[ Properly secure child restraints as far
away from the door as possible.

[ Do not place any objects over the air
bag. Also, do not attach any objects
around the area the air bag inflates
such as the door, side door glass,
front and rear pillar, roof side rail.

[ Do not hang other objects except
clothes, especially hard or breakable
objects. In an accident, it may cause
vehicle damage or personal injury.

[ Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.

[ Do not attempt to open or repair
the side curtain air bags yourself.
If necessary, have the air bag be
inspected by an authorized HYUNDAI
dealer.
How Does the Air Bag System
Operate?
OCN7030061N
The SRS consists of the following
components:
1. Driver’s front air bag module
2. Passenger’s front air bag module
3. Side air bag modules (front)
4. Curtain air bag modules
5. Retractor pre-tensioner assemblies
6. Air bag warning light
7. SRS control module (SRSCM) /
Rollover sensor
8. Front impact sensors
9. Side impact sensors (acceleration)
10. Side impact sensors (pressure)
11. Occupant classification system
12. Driver’s and front passenger’s seat belt buckle sensors
The SRSCM (Supplemental Restraint
System Control Module) continually
monitors all SRS components while
the Engine Start/Stop button is in the
ON position or approximately within
3 minutes after the ignition is off to
determine if a crash impact is severe
enough to require air bag deployment or
pre-tensioner seat belt deployment.

Seats & Safety System3-54
OCN7030056
Front air bags may not inflate in rollover
accidents because air bag deployment
may not provide protection to the
occupants.
However, side and curtain air bags may
inflate when the vehicle is rolled over by
a side impact collision.
OCN7030055
Air bags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.
SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the ignition switch is in the ON position,
or continuously remains on, have your
vehicle immediately inspected by an
authorized HYUNDAI dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails must be performed by an authorized
HYUNDAI dealer. Improper handling of
the SRS system may result in serious
personal injury.
WARNING
To reduce the risk of serious injury or
death, take the following precautions:

[ Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.

[ Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, or the front
passenger’s panel above the glove box.

[ Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.

[ Always have inflated air bags
replaced by an authorized HYUNDAI
dealer.

[ If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized HYUNDAI
dealer for the necessary information.
Failure to follow these precautions
could increase the risk of personal
injury.

4
Cruise Indicator Light ........................................................................\
...................4-18
SPORT Mode Indicator Light ........................................................................\
........4-18
SMART Mode Indicator Light ........................................................................\
.......4-19
Icy Road Warning Light ........................................................................\
................4-19
LCD Display Messages ........................................................................\
....................4-19 Shift to P or N to start engine (for smart key system) ........................................4-19
Shift to P (for smart key system and intelligent variable transmission) ............4-19
Low key battery (for smart key system)...............................................................4-19
Press brake pedal to start engine (for smart key system and intelligent
variable transmission)......................................................................\
.....................4-19
Press clutch pedal to start engine (for smart key system and manual
transmission) .....................................................................\
................................... 4-20
Key not in vehicle (for smart key system) ........................................................... 4-20
Key not detected (for smart key system)............................................................ 4-20
Press START button again (for smart key system) ............................................. 4-20
Battery discharging due to external electrical devices ..................................... 4-20
Press START button with key (for smart key system) ........................................ 4-20
Check BRAKE SWITCH fuse (for smart key system and automatic
transmission/intelligent variable transmission)................................................. 4-20
Door, Hood, Trunk Open Indicator....................................................................... 4-21
Sunroof Open ........................................................................\
................................ 4-21
Low Pressure ........................................................................\
................................. 4-21
Lights Mode........................................................................\
................................... 4-21
Wiper ..................................................................\
.................................................. 4-22
Heated Steering Wheel turned off ...................................................................... 4-22
Low washer fluid ........................................................................\
.......................... 4-22
Low fuel ........................................................................\
........................................ 4-22
Engine Overheated ........................................................................\
...................... 4-22
Check headlight ........................................................................\
........................... 4-22
Check headlight (Low) ........................................................................\
................ 4-23
Check turn signal ........................................................................\
......................... 4-23
Check brake light ........................................................................\
......................... 4-23
Check daytime running light ........................................................................\
....... 4-23
Check high mounted stop lamp ........................................................................\
. 4-23
Check headlight LED ........................................................................\
................... 4-23
Check Forward Collision-Avoidance Assist system ........................................... 4-24
Check Lane Keeping Assist system .................................................................... 4-24
Check Blind-Spot Collision Warning system...................................................... 4-24
Check Driver Attention Warning system ............................................................ 4-24
Check High Beam Assist system ........................................................................\
. 4-24
Check Smart Cruise Control system ................................................................... 4-24

04
4-21

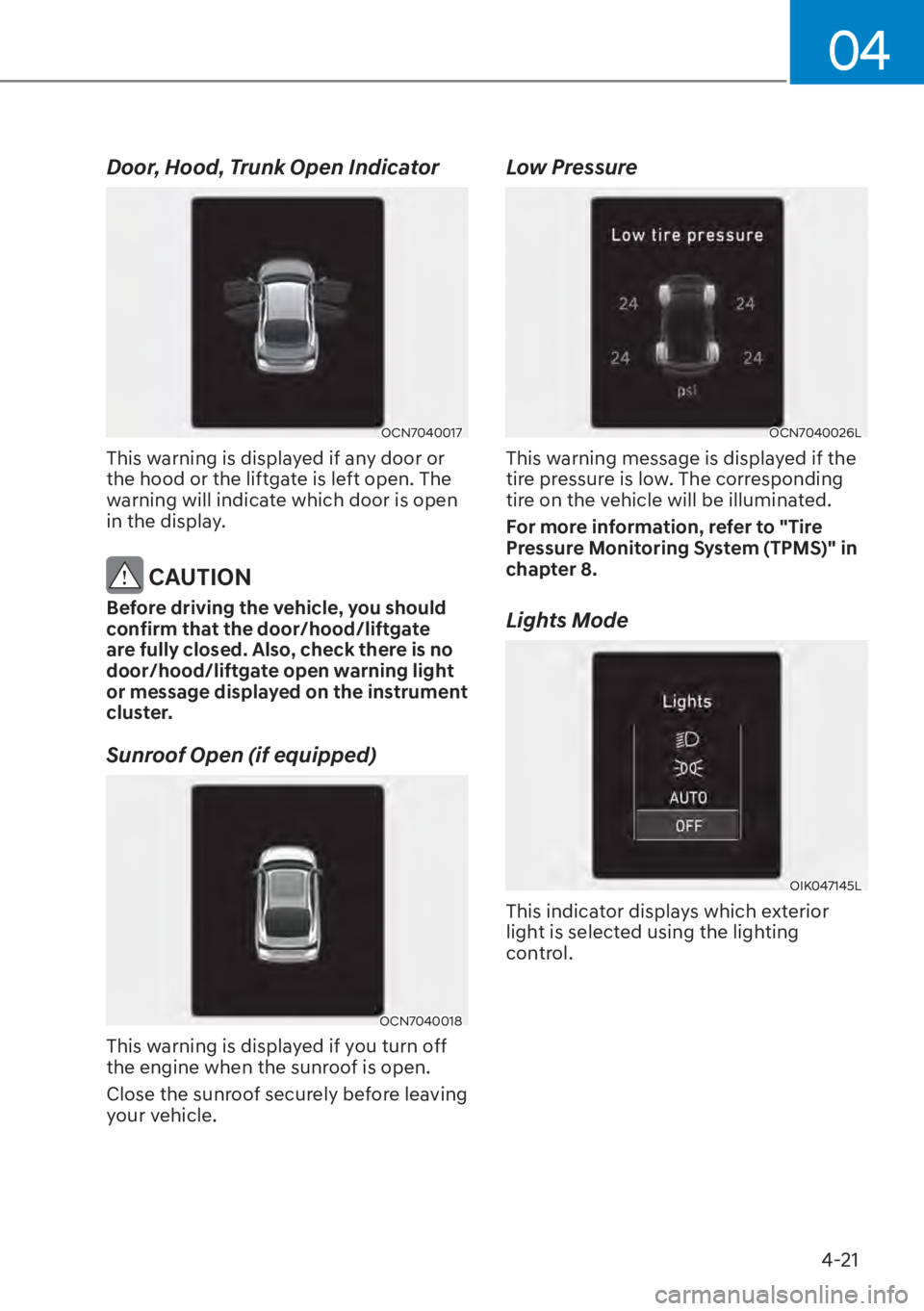

Door, Hood, Trunk Open Indicator
OCN7040017
This warning is displayed if any door or
the hood or the liftgate is left open. The
warning will indicate which door is open
in the display.
CAUTION
Before driving the vehicle, you should
confirm that the door/hood/liftgate
are fully closed. Also, check there is no
door/hood/liftgate open warning light
or message displayed on the instrument
cluster.
Sunroof Open (if equipped)
OCN7040018
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
Low Pressure
OCN7040026L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 8.
Lights Mode
OIK047145L
This indicator displays which exterior
light is selected using the lighting
control.

5. Convenience Features
Accessing Your Vehicle ........................................................................\
.......... 5-4Remote Key ........................................................................\
....................................... 5-4
Smart Key ........................................................................\
...........................................5-7
Immobilizer System ........................................................................\
........................ 5-14
Hyundai Digital Key ........................................................................\
......................... 5-15
Door Locks ........................................................................\
............................ 5-31Operating Door Locks from Outside the Vehicle .................................................. 5-31
Operating Door Locks from Inside the Vehicle .................................................... 5-33
Automatic Door Lock and Unlock Features .......................................................... 5-35
Child-Protector Rear Door Locks ........................................................................\
.. 5-35
Rear Occupant Alert (ROA) .....................................................................\
.... 5-36Rear Occupant Alert Operation ........................................................................\
..... 5-36
Theft-Alarm System ........................................................................\
............ 5-37
Steering Wheel ........................................................................\
..................... 5-38
Electric Power Steering (EPS) ........................................................................\
........ 5-38
Tilt Steering / Telescope Steering ........................................................................\
. 5-39
Horn........................................................................\
.................................................5-40
Mirrors ......................................................................\
.....................................5-41Inside Rearview Mirror ........................................................................\
....................5-41
Side View Mirrors ........................................................................\
........................... 5-49
Windows ......................................................................\
..................................5-51Power Windows ........................................................................\
.............................. 5-52
Sunroof ......................................................................\
................................... 5-55Sunshade ...............................................................\
................................................. 5-55
Tilt Open/Close........................................................................\
............................... 5-56
Slide Open/Close .......................................................\
............................................ 5-56
Automatic Reversal ........................................................................\
....................... 5-57
Resetting the Sunroof ........................................................................\
.................... 5-58
Sunroof Open Warning ........................................................................\
.................. 5-58
Hood ....................................................................\
......................................... 5-59
Trunk ...................................................................\
.......................................... 5-61
Emergency Trunk Safety Release ........................................................................\
.. 5-62
Smart Trunk Release ........................................................................\
...................... 5-63
5
