2023 HYUNDAI ELANTRA display

Driver Assistance System7-84
OCN7061186C

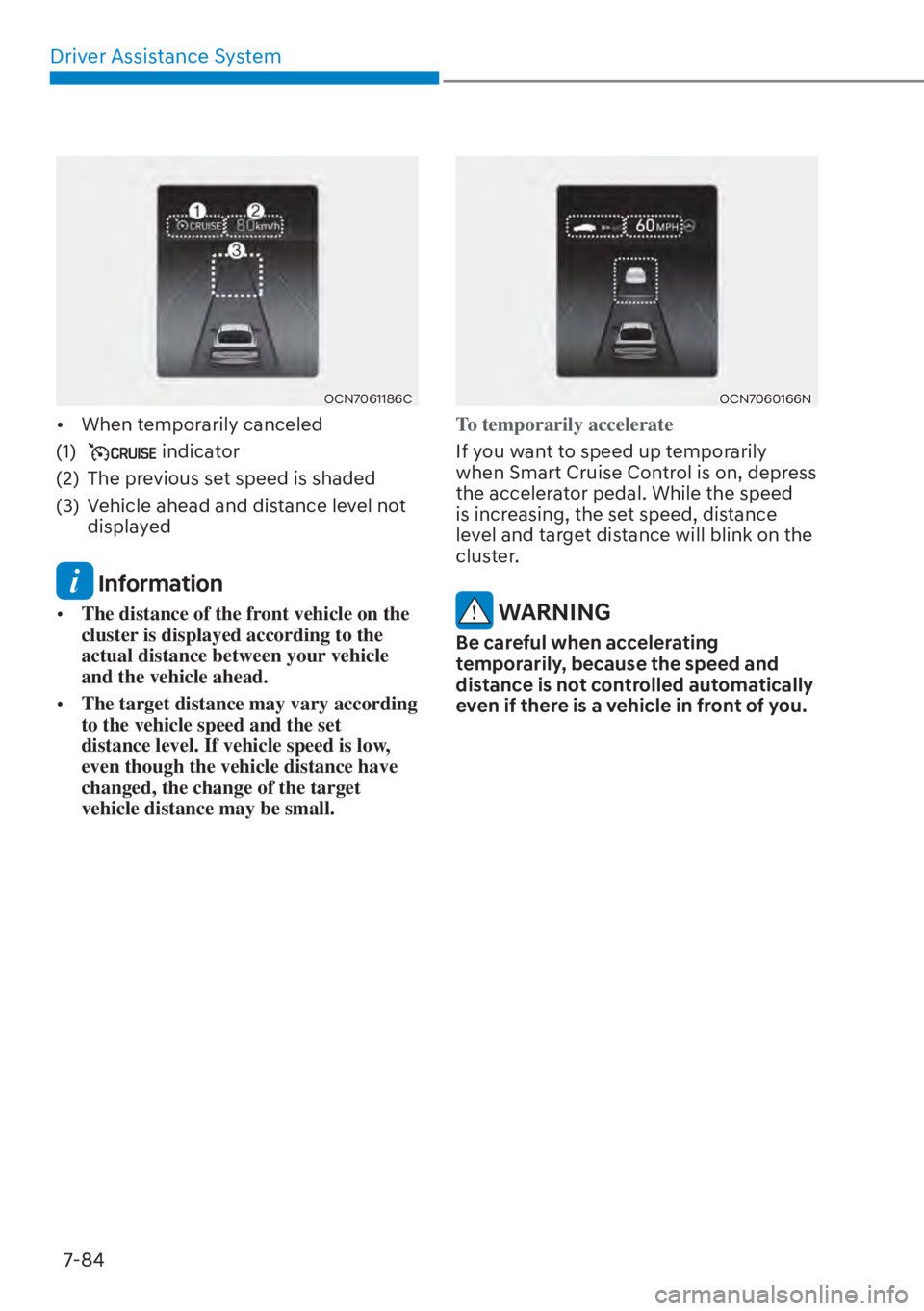

[ When temporarily canceled
(1)
indicator
(2) The previous set speed is shaded
(3) Vehicle ahead and distance level not displayed
Information

[The distance of the front vehicle on the
cluster is displayed according to the
actual distance between your vehicle
and the vehicle ahead.

[ The target distance may vary according
to the vehicle speed and the set
distance level. If vehicle speed is low,
even though the vehicle distance have
changed, the change of the target
vehicle distance may be small.
OCN7060166N
To temporarily accelerate
If you want to speed up temporarily
when Smart Cruise Con

trol is on, depress
the accelerator pedal. While the speed
is increasing, the set speed, distance
level and target distance will blink on the
cluster.
WARNING
Be careful when accelerating
temporarily, because the speed and
distance is not controlled automatically
even if there is a vehicle in front of you.

Driver Assistance System7-86
OCN7070054L
In traffic situation
In traffic, your vehicle will stop if the
v
ehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving, your
vehicle will start as well. In addition, after
the vehicle has stopped and a certain
time have passed, the ‘Use switch or
SHGDOWRDFFHOHUDWH
TPHVVDJHZLOODSSHDU
on the cluster. Depress the accelerator
pedal or push the + switch, - switch or
switch to start driving.
WARNING
While the message is displayed on
the cluster, if there is no vehicle in
front or the vehicle is far away from
you, and the + switch, – switch or
switch is pushed, Smart Cruise
Control will automatically cancel and
EPB will be applied. However, if the
accelerator pedal is depressed, EPB
will not be applied even though Smart
Cruise Control is canceled. Always pay
attention to the road condition ahead.
OCN7070055L
Warning road conditions ahead
In the following situation, the ‘Watch for
VXUU
RXQGLQJYHKLFOHV
TZDUQLQJPHVVDJH
will appear on the cluster, and an audible
warning will sound to warn the driver of
road conditions ahead.

- The vehicle in front disappears when
Smart Cruise Control is maintaining
the distance with the vehicle ahead
while driving below a certain speed.
- While the ‘Use switch or pedal to DFFHOHUDWH
TPHVVDJHLVGLVSOD\HGRQ
the cluster, if there is no vehicle in
front or the vehicle is far away from
you, and the + switch, – switch or

switch is pushed.
WARNING
Always pay attention to vehicles or
objects that may suddenly appear in
front of you, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe
distance.

Driver Assistance System7-88

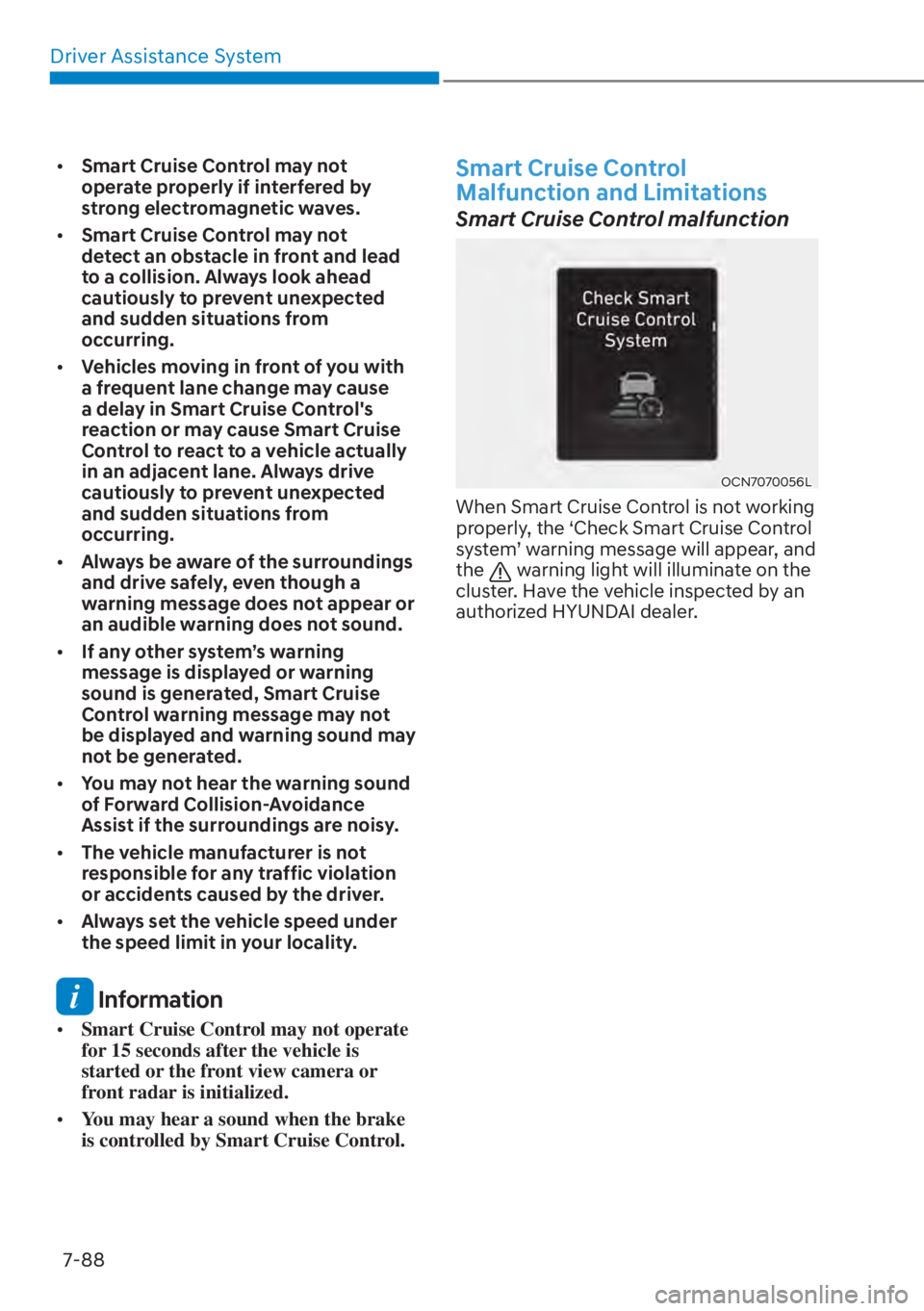

[ Smart Cruise Control may not
operate properly if interfered by
strong electromagnetic waves.

[ Smart Cruise Control may not
detect an obstacle in front and lead
to a collision. Always look ahead
cautiously to prevent unexpected
and sudden situations from
occurring.

[ Vehicles moving in front of you with
a frequent lane change may cause
a delay in Smart Cruise Control's
reaction or may cause Smart Cruise
Control to react to a vehicle actually
in an adjacent lane. Always drive
cautiously to prevent unexpected
and sudden situations from
occurring.

[ Always be aware of the surroundings
and drive safely, even though a
warning message does not appear or
an audible warning does not sound.

[ If any other system’s warning
message is displayed or warning
sound is generated, Smart Cruise
Control warning message may not
be displayed and warning sound may
not be generated.

[ You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surroundings are noisy.

[ The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[ Always set the vehicle speed under
the speed limit in your locality.
Information

[Smart Cruise Control may not operate
for 15 seconds after the vehicle is
started or the front view camera or
front radar is initialized.

[ You may hear a sound when the brake
is controlled by Smart Cruise Control.
Smart Cruise Control
Malfunction and Limitations
Smart Cruise Control malfunction
OCN7070056L
When Smart Cruise Control is not working
properly, the ‘Check Smart Cruise Control
V\VWHP
TZDUQLQJPHVVDJHZLOODSSHDUDQG
the
warning light will illuminate on the
cluster. Have the vehicle inspected by an
authorized HYUNDAI dealer.

Driver Assistance System7-96

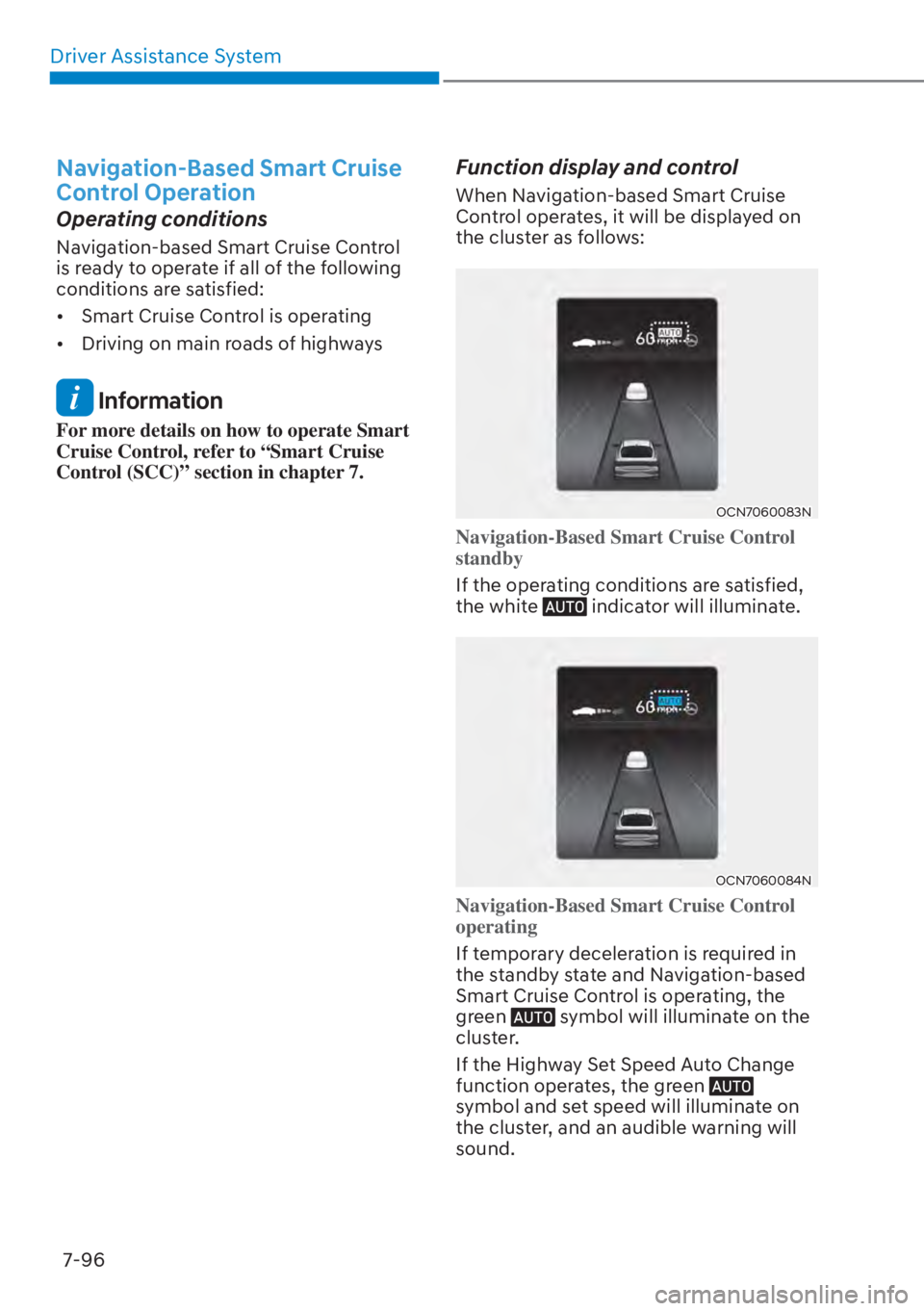

Navigation-Based Smart Cruise
Control Operation
Operating conditions
Navigation-based Smart Cruise Control
is ready to operate if all of the following
conditions are satisfied:

[ Smart Cruise Control is operating

[ Driving on main roads of highways
Information
For more details on how to operate Smart
Cruise Control, refer to “Smart Cruise
Control (SCC)” section in chapter 7.
Function display and control
When Navigation-based Smart Cruise
Control operates, it will be displayed on
the cluster as follows:
OCN7060083N
Navigation-Based Smart Cruise Control
standby
If the operating conditions are satisfied,
the whit

e indicator will illuminate.
OCN7060084N
Navigation-Based Smart Cruise Control
operating
If temporary deceleration is required in
the s
tandby state and Navigation-based
Smart Cruise Control is operating, the
green
symbol will illuminate on the
cluster.
If the Highway Set Speed Auto Change
function operates, the green

symbol and set speed will illuminate on
the cluster, and an audible warning will
sound.

Driver Assistance System7-108

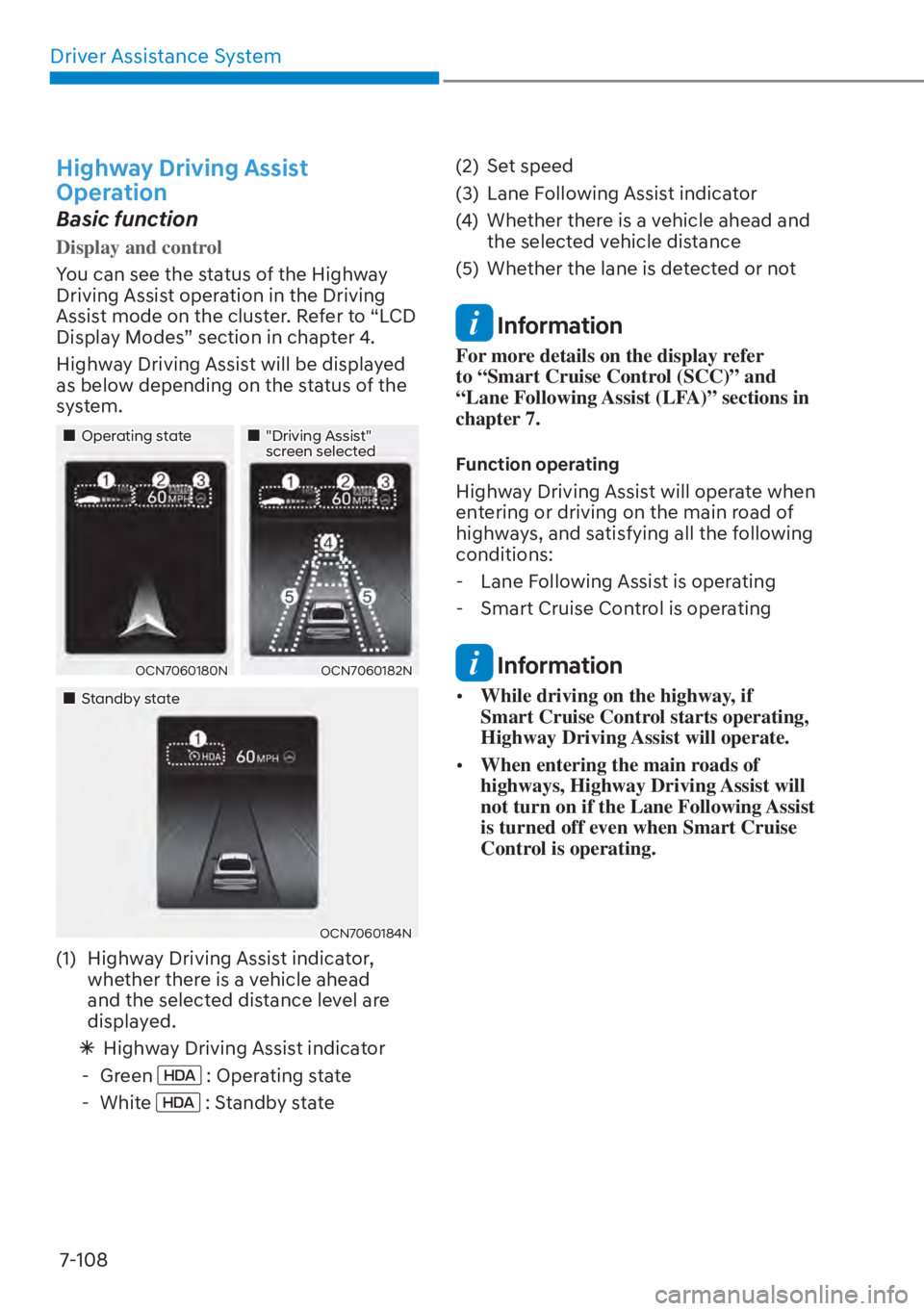

Highway Driving Assist
Operation
Basic function
Display and control
You can see the status of the Highway
Driving Assis
t operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Highway Driving Assist will be displayed
as below depending on the status of the
system.
„Operating state „"Driving Assist" screen selected
OCN7060180NOCN7060182N
„Standby state
OCN7060184N
(1) Highway Driving Assist indicator,
whether there is a vehicle ahead
and the selected distance level are
displayed.

à Highway Driving Assist indicator
- Green
: Operating state
- White
: Standby state (2) Set speed
(3) Lane Following Assist indicator
(4) Whether there is a vehicle ahead and
the selected vehicle distance
(5) Whether the lane is detected or not
Information
For more details on the display refer
to “Smart Cruise Control (SCC)” and
“Lane Following Assist (LFA)” sections in
chapter 7.
Function operating
Highway Driving Assist will operate when
entering or driving on the main road of
highways, and satisfying all the following
conditions: - Lane Following Assist is operating
- Smart Cruise Control is operating
Information

[ While driving on the highway, if
Smart Cruise Control starts operating,
Highway Driving Assist will operate.

[ When entering the main roads of
highways, Highway Driving Assist will
not turn on if the Lane Following Assist
is turned off even when Smart Cruise
Control is operating.

07
7-115

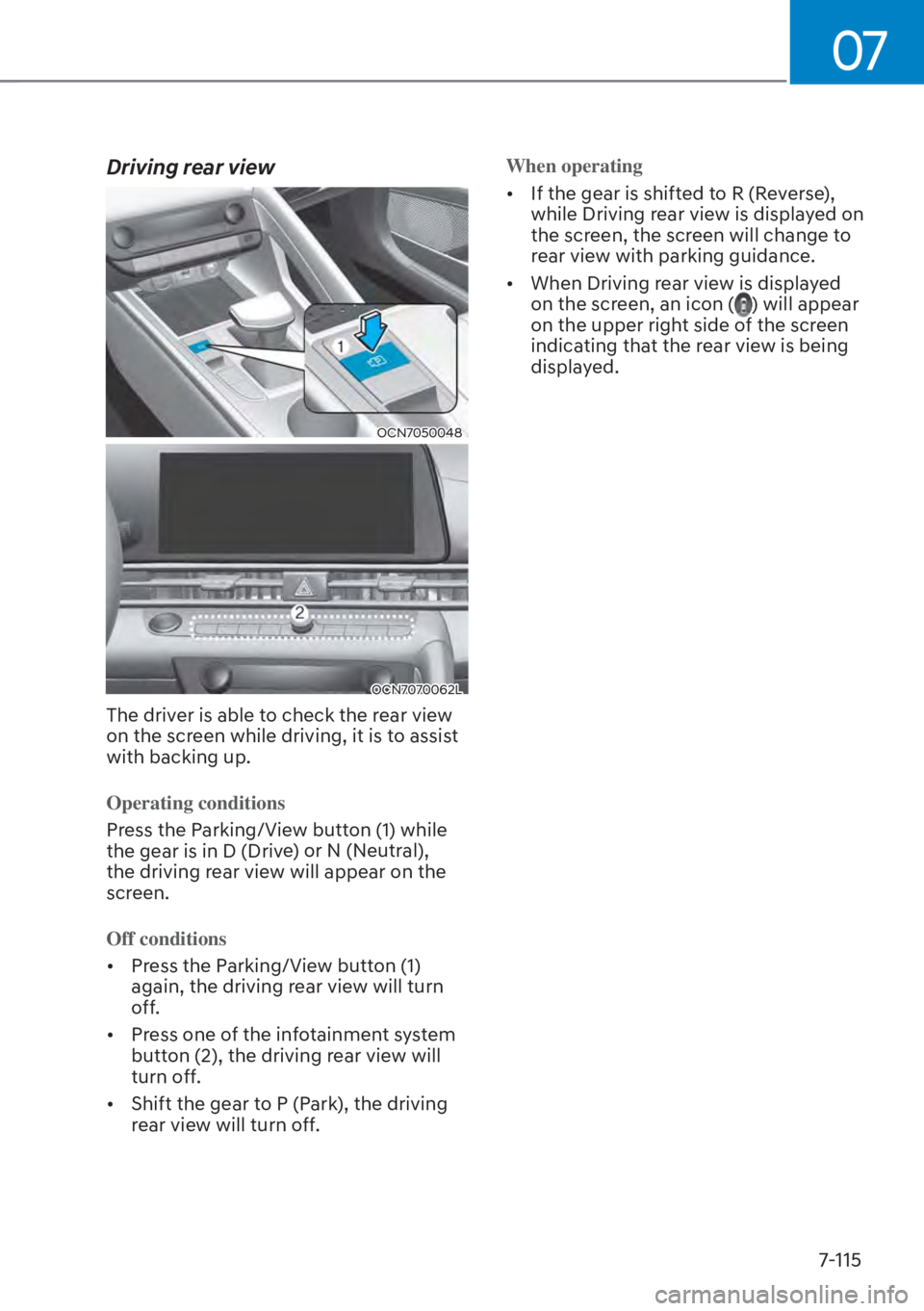

Driving rear view
OCN7050048
OCN7070062L
The driver is able to check the rear view
on the screen while driving, it is to assist
with backing up.
Operating conditions
Press the Parking/View button (1) while
the gear is in D (Driv
e) or N (Neutral),
the driving rear view will appear on the
screen.
Off conditions

[ Pr
ess the Parking/View button (1)
again, the driving rear view will turn
off.

[ Press one of the infotainment system
button (2), the driving rear view will
turn off.

[ Shift the gear to P (Park), the driving
rear view will turn off. When operating

[
If the gear is shift
ed to R (Reverse),
while Driving rear view is displayed on
the screen, the screen will change to
rear view with parking guidance.

[ When Driving rear view is displayed
on the screen, an icon (
) will appear
on the upper right side of the screen
indicating that the rear view is being
displayed.

Driver Assistance System7-116
Rear top view
OCN7060147L
When you touch the icon (1), the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display properly,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[ The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
properly. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

Driver Assistance System7-120

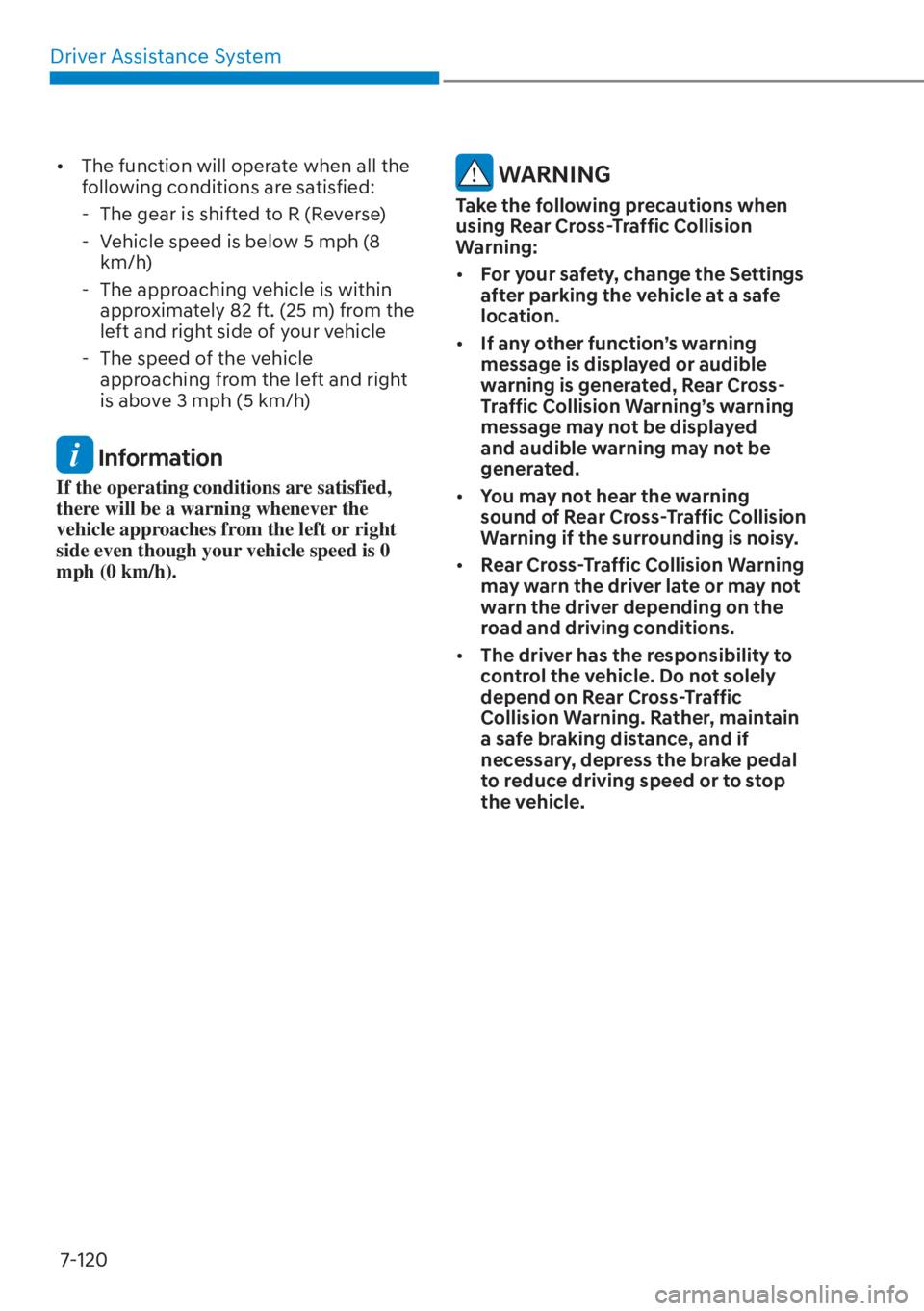

[ The function will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
WARNING
Take the following precautions when
using Rear Cross-Traffic Collision
Warning:

[ For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other function’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Collision Warning’s warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning
sound of Rear Cross-Traffic Collision
Warning if the surrounding is noisy.

[ Rear Cross-Traffic Collision Warning
may warn the driver late or may not
warn the driver depending on the
road and driving conditions.

[ The driver has the responsibility to
control the vehicle. Do not solely
depend on Rear Cross-Traffic
Collision Warning. Rather, maintain
a safe braking distance, and if
necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.
