Driving Your Vehicle6-10
NOTICE
To prevent damage to the vehicle:

[ If the engine stalls while you are in
motion, do not attempt to move the
shift lever to the P (Park) position.
If traffic and road conditions permit,
you may put the shift lever in the N
(Neutral) position while the vehicle
is still moving and press the Engine
Start/Stop button in an attempt to
restart the engine.

[ Do not push or tow your vehicle to
start the engine.
NOTICE
To prevent damage to the vehicle:
When the stop lamp switch fuse is
blown, you can't start the engine
normally. Replace the fuse with a new
one. If you are not able to replace
the fuse, you can start the engine by
pressing and holding the Engine Start/
Stop button for 10 seconds with the
Engine Start/Stop button in the ACC
position.
Do not press the Engine Start/Stop
button for more than 10 seconds except
when the stop lamp switch fuse is
blown.
For your safety always depress the
brake pedal before starting the engine.
Emergency starting
OCN7060004L
If the smart key battery is weak or the
smart key does not work correctly, you
can start the engine by pressing the
Engine Start/Stop button with the smart
key in the direction of the picture above.

Driving Your Vehicle6-20
Shift-lock release
If the shift lever cannot be moved from
the P (Park) position into R (Reverse)
position with the brake pedal depressed,
continue depressing the brake, and then
do the following:
OCN7060110
1. Place the ignition switch in the LOCK/ OFF position
2. Apply the parking brake.
3. Carefully remove the shift lever boots.
4. Move the shift lever while holding the release button (1) with a tool (for
example, flathead screw-driver).
If you need to use the shift-lock release,
have the vehicle inspected by an
authorized HYUNDAI dealer immediately.
CAUTION
Be careful not to damage the trim
beside of the shift lever while removing
the shift lever boots.
Ignition key interlock system
The ignition key cannot be removed
unless the shift lever is in the P (Park)
position.
Parking
Always come to a complete stop and
continue to depress the brake pedal.
Move the shift lever into the P (Park)
position, apply the parking brake, and
place the ignition switch in the LOCK/
OFF position. Take the Key with you
when exiting the vehicle.
WARNING
When you stay in the vehicle with
the engine running, be careful not to
depress the accelerator pedal for a long
period of time. The engine or exhaust
system may overheat and start a fire.
The exhaust gas and the exhaust system
are very hot. Keep away from the
exhaust system components.
Do not stop or park over flammable
materials, such as dry grass, paper or
leaves. They may ignite and cause a fire.

Driver Assistance System7-30
Lane Keeping Assist is designed to help
detect lane markings (or road edges)
while driving over a certain speed. The
system will warn the driver if the vehicle
leaves the lane without using the turn
signal, or will automatically assist the
GULYHU
TVVWHHULQJWRKHOSSUHYHQWWKH
vehicle from departing the lane.
Detecting sensor
OCN7061030L[1] : Front view camera
The front view camera is used as a
detecting sensor to detect lane markings
(or road edges).
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Lane Keeping Assist Settings
Setting features
OCN7070034L
Lane Safety
With the Engine Start/Stop button in
the ON position, select or deselect

S'ULY
HU$VVLVWDQFH

07
7-101

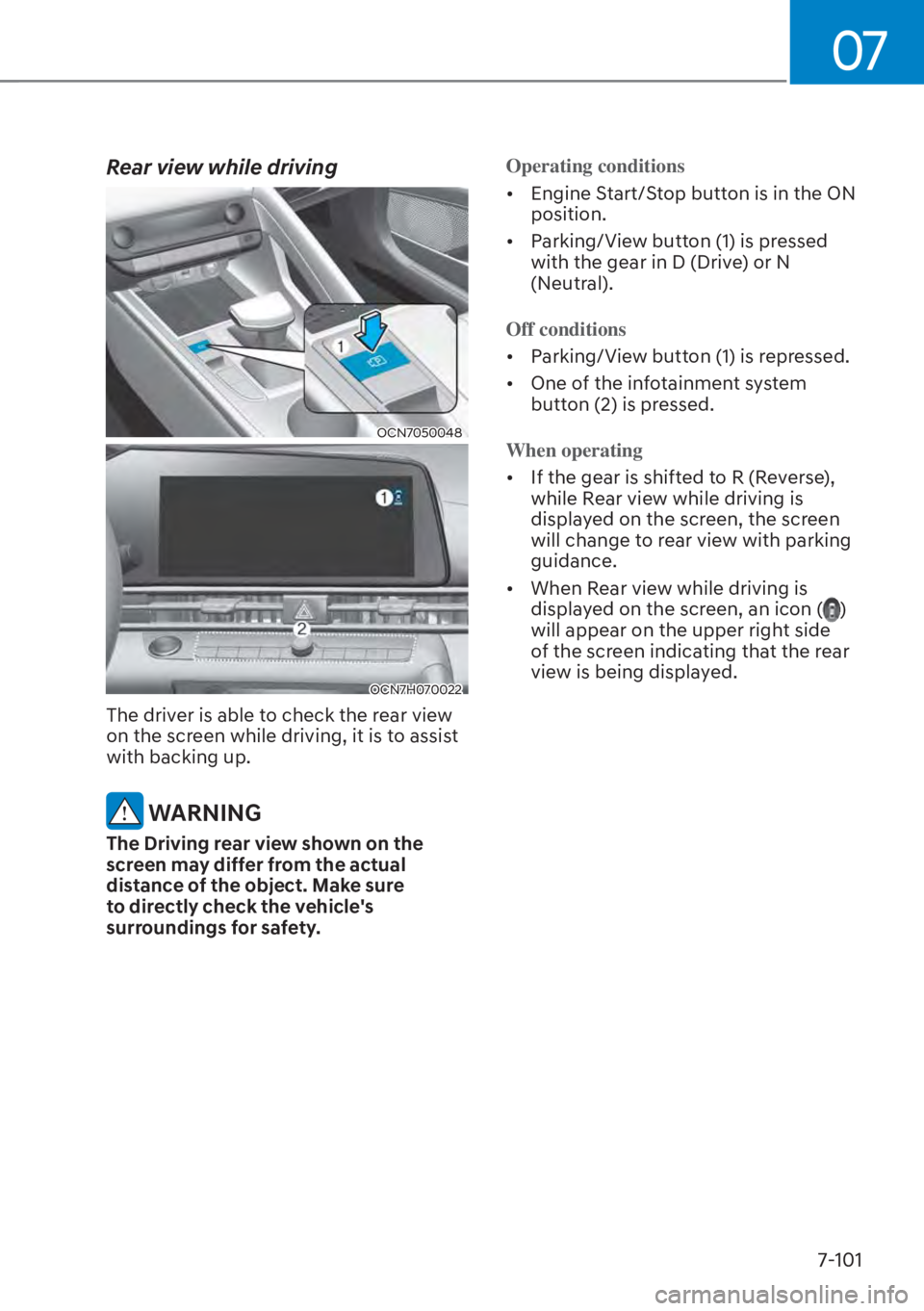

Rear view while driving
OCN7050048
OCN7H070022
The driver is able to check the rear view
on the screen while driving, it is to assist
with backing up.
WARNING
The Driving rear view shown on the
screen may differ from the actual
distance of the object. Make sure
to directly check the vehicle's
surroundings for safety.Operating conditions

[
E
ngine Start/Stop button is in the ON
position.

[ Parking/View button (1) is pressed
with the gear in D (Drive) or N
(Neutral).
Off conditions

[ P
arking/View button (1) is repressed.

[One of the infotainment system
button (2) is pressed.
When operating

[ If the gear is shift
ed to R (Reverse),
while Rear view while driving is
displayed on the screen, the screen
will change to rear view with parking
guidance.

[ When Rear view while driving is
displayed on the screen, an icon (
)
will appear on the upper right side
of the screen indicating that the rear
view is being displayed.

07
7-117
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensors:

[Always keep the rear view camera
and rear ultrasonic sensors clean.

[ Do not use any cleanser containing
acid or alkaline detergents when
cleaning the rear view camera lens.
Use only a mild soap or neutral
detergent, and rinse thoroughly with
water.

[ Never disassemble or strike the rear
view camera or the rear ultrasonic
sensors components.

[ Do not apply unnecessary force on
the rear view camera or the rear
ultrasonic sensors. The system may
not operate properly if the rear
view camera or the rear ultrasonic
sensor(s) is forcibly moved out of
proper alignment. Have the vehicle
inspected by an authorized HYUNDAI
dealer.

[ Do not spray the rear view camera or
the rear ultrasonic sensors or their
surrounding area directly with a
high pressure washer. It may cause
the rear view camera or the rear
ultrasonic sensors to malfunction.

[ The function may not work properly
if the bumper has been damaged,
replaced or repaired.

[ Do not apply objects, such as a
bumper sticker or a bumper guard,
near the rear view camera or rear
ultrasonic sensors or apply paint to
the bumper. Doing so may adversely
affect the performance of the
function.

[ Reverse Parking Collision-Avoidance
Assist may not operate properly if
interfered by strong electromagnetic
waves.
Reverse Parking Collision-
Avoidance Assist Settings
Setting features
OCN7070110N
Parking Safety

[With the E
ngine Start/Stop button in
the ON position, select or deselect

S'ULYHU$VVLVWDQFH

Driver Assistance System7-118

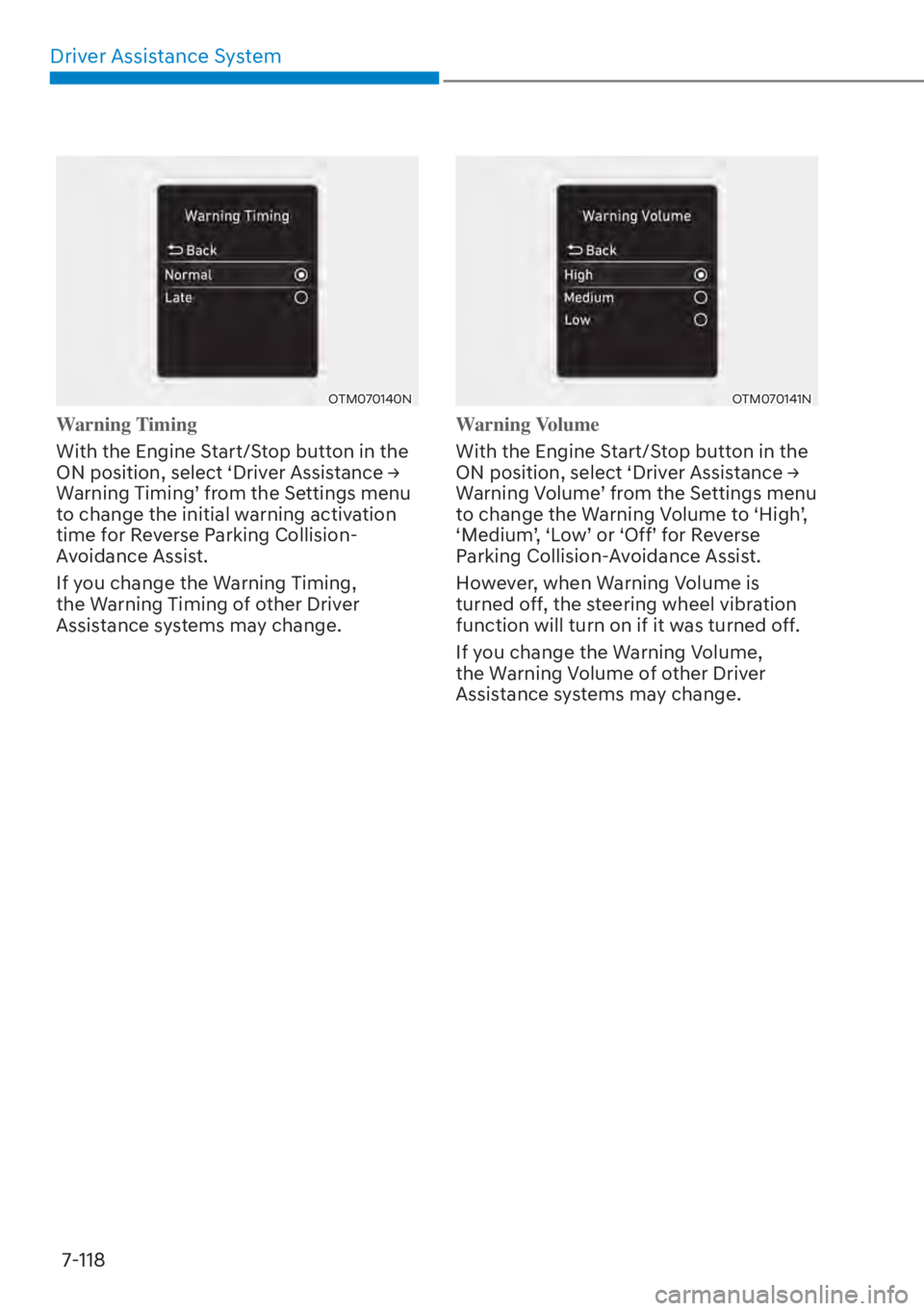

OTM070140N
Warning Timing
With the Engine Start/Stop button in the
21SRVLWLRQVHOHFW
S'ULY
HU$VVLVWDQFH

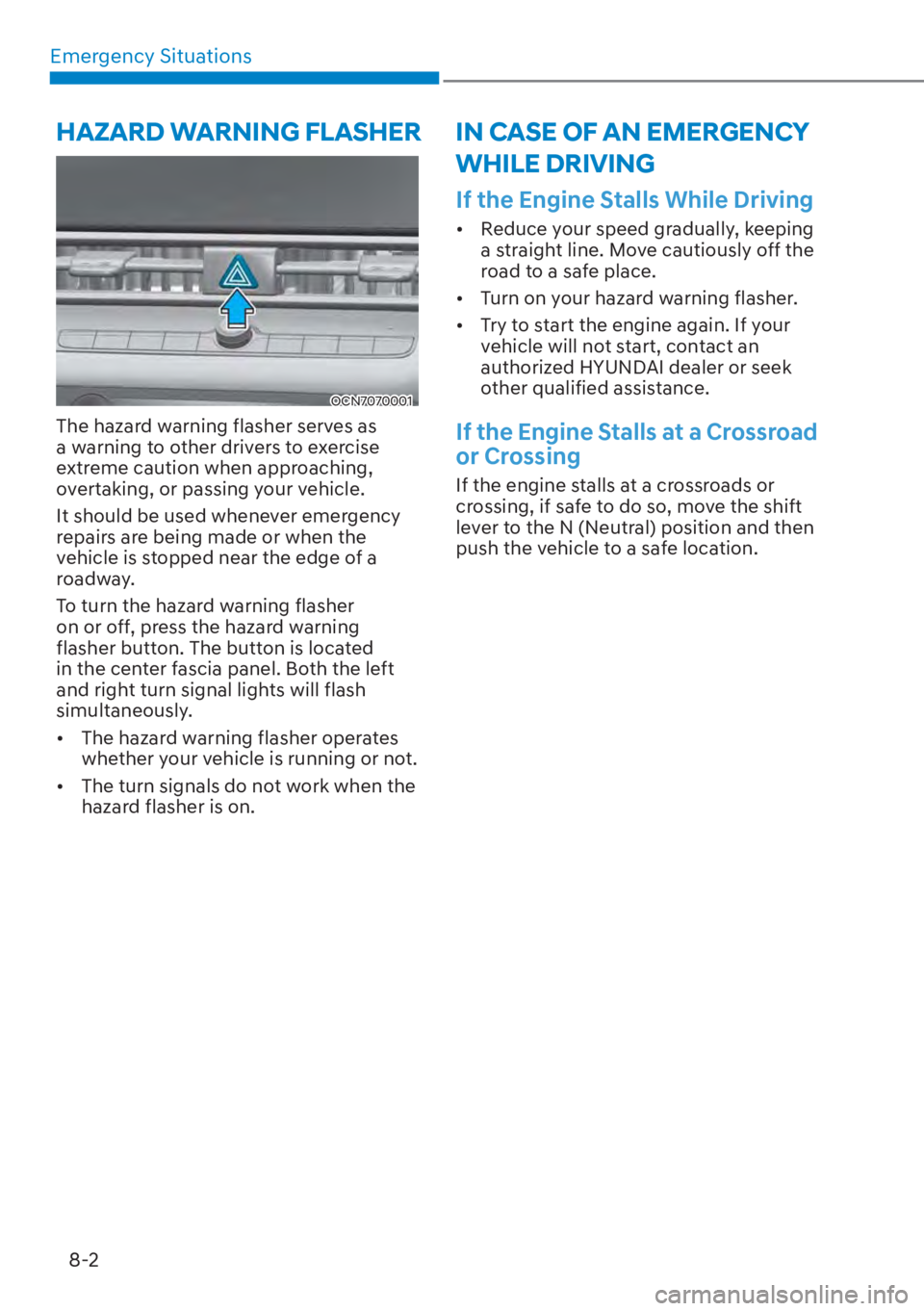

Emergency Situations8-2
If the Engine Stalls While Driving

[ Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.

[ Turn on your hazard warning flasher.

[ Try to start the engine again. If your
vehicle will not start, contact an
authorized HYUNDAI dealer or seek
other qualified assistance.
If the Engine Stalls at a Crossroad
or Crossing
If the engine stalls at a crossroads or
crossing, if safe to do so, move the shift
lever to the N (Neutral) position and then
push the vehicle to a safe location.
IN CASE OF AN EMERGENCY
WHILE DRIVING
OCN7070001
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.
To turn the hazard warning flasher
on or off, press the hazard warning
flasher button. The button is located
in the center fascia panel. Both the left
and right turn signal lights will flash
simultaneously.

[The hazard warning flasher operates
whether your vehicle is running or not.

[ The turn signals do not work when the
hazard flasher is on.
HAZARD WARNING FLASHER

08
8-3

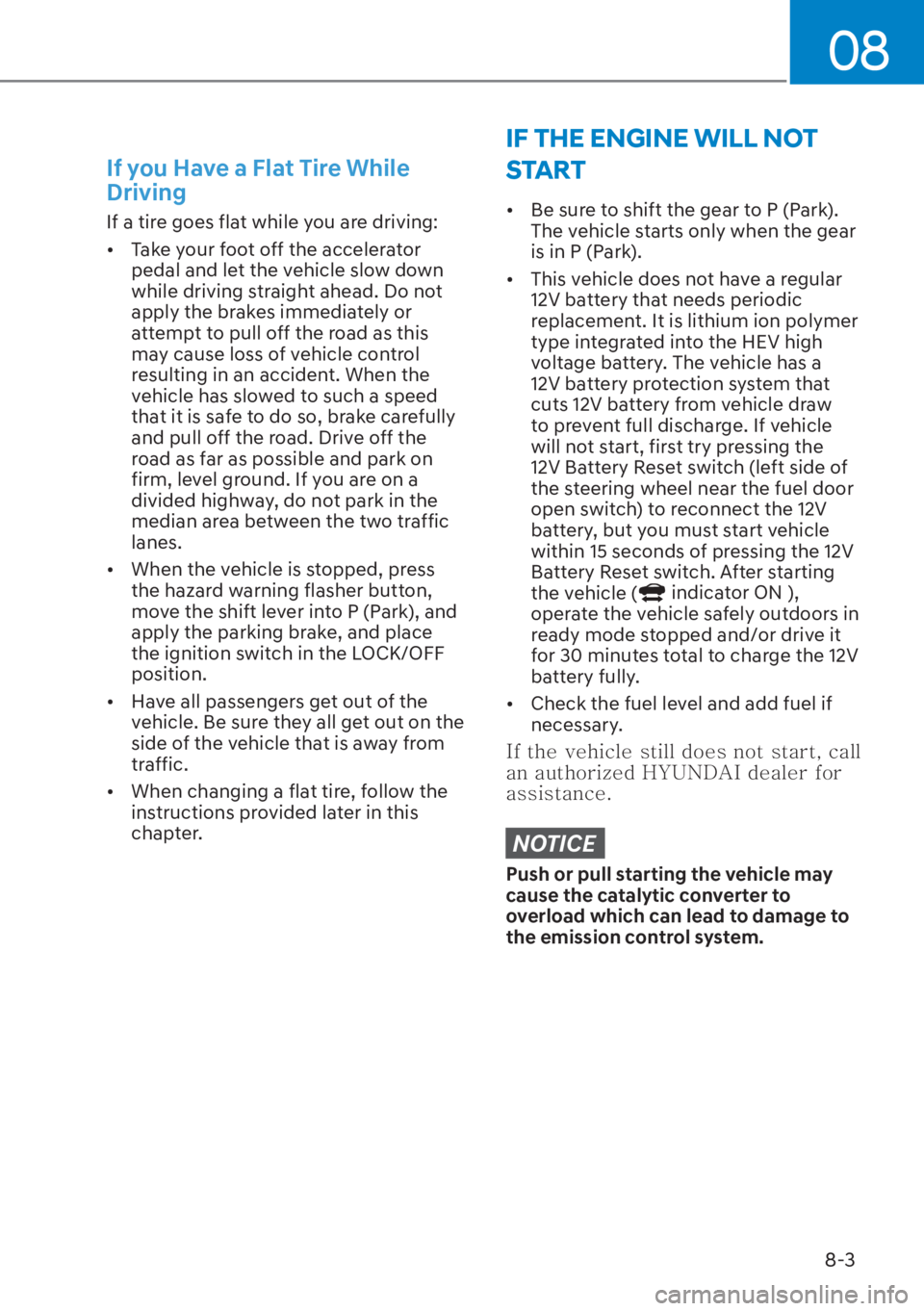

If you Have a Flat Tire While
Driving
If a tire goes flat while you are driving:

[Take your foot off the accelerator
pedal and let the vehicle slow down
while driving straight ahead. Do not
apply the brakes immediately or
attempt to pull off the road as this
may cause loss of vehicle control
resulting in an accident. When the
vehicle has slowed to such a speed
that it is safe to do so, brake carefully
and pull off the road. Drive off the
road as far as possible and park on
firm, level ground. If you are on a
divided highway, do not park in the
median area between the two traffic
lanes.

[ When the vehicle is stopped, press
the hazard warning flasher button,
move the shift lever into P (Park), and
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.

[ Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.

[ When changing a flat tire, follow the
instructions provided later in this
chapter.
[Be sure to shift the gear to P (Park).
The vehicle starts only when the gear
is in P (Park).

[ This vehicle does not have a regular
12V battery that needs periodic
replacement. It is lithium ion polymer
type integrated into the HEV high
voltage battery. The vehicle has a
12V battery protection system that
cuts 12V battery from vehicle draw
to prevent full discharge. If vehicle
will not start, first try pressing the
12V Battery Reset switch (left side of
the steering wheel near the fuel door
open switch) to reconnect the 12V
battery, but you must start vehicle
within 15 seconds of pressing the 12V
Battery Reset switch. After starting
the vehicle (
indicator ON ),
operate the vehicle safely outdoors in
ready mode stopped and/or drive it
for 30 minutes total to charge the 12V
battery fully.

[ Check the fuel level and add fuel if
necessary.
*G
UIF
WFIJDMF
TUJMM
EPFT
OPU
TUBSU

DBMM

BO
BVUIPSJ[FE
):6/%"*
EFBMFS
GPS

BTTJTUBODF
NOTICE
Push or pull starting the vehicle may
cause the catalytic converter to
overload which can lead to damage to
the emission control system.
IF THE ENGINE WILL NOT
START
