05
5-27

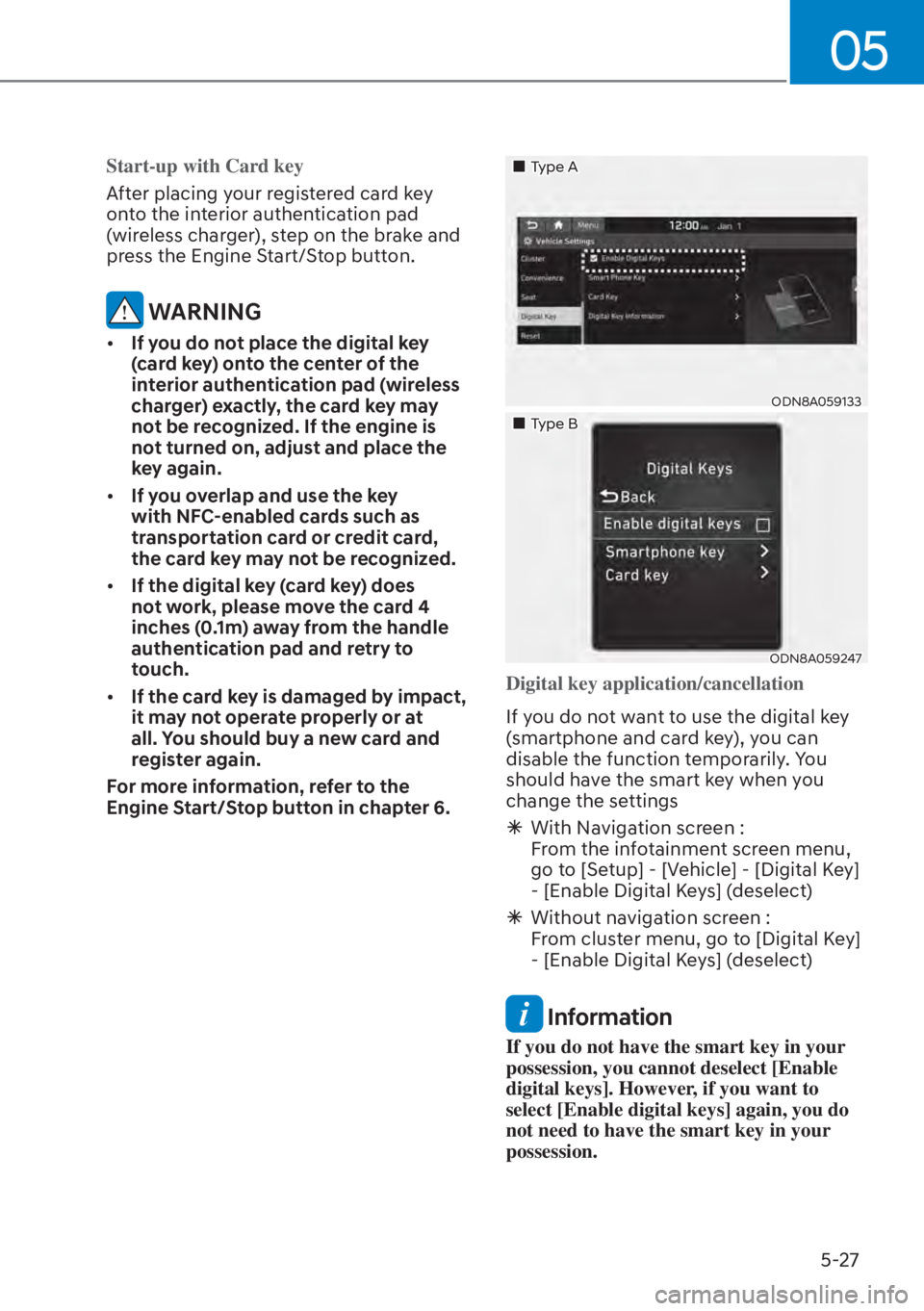

Start-up with Card key
After placing your registered card key
ont
o the interior authentication pad
(wireless charger), step on the brake and
press the Engine Start/Stop button.
WARNING

[ If you do not place the digital key
(card key) onto the center of the
interior authentication pad (wireless
charger) exactly, the card key may
not be recognized. If the engine is
not turned on, adjust and place the
key again.

[ If you overlap and use the key
with NFC-enabled cards such as
transportation card or credit card,
the card key may not be recognized.

[ If the digital key (card key) does
not work, please move the card 4
inches (0.1m) away from the handle
authentication pad and retry to
touch.

[ If the card key is damaged by impact,
it may not operate properly or at
all. You should buy a new card and
register again.
For more information, refer to the
Engine Start/Stop button in chapter 6.
„Type A
ODN8A059133
„Type B
ODN8A059247
Digital key application/cancellation
If you do not want to use the digital key
(
smartphone and card key), you can
disable the function temporarily. You
should have the smart key when you
change the settings

à With Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Enable Digital Keys] (deselect)

à Without navigation screen :
From cluster menu, go to [Digital Key]
- [Enable Digital Keys] (deselect)
Information
If you do not have the smart key in your
possession, you cannot deselect [Enable
digital keys]. However, if you want to
select [Enable digital keys] again, you do
not need to have the smart key in your
possession.

Convenience Features5-38
OCN7050012
The Driver Position Memory System is
provided to store and recall the following
memory settings with a simple button
operation. - Driver’s seat position
- Instrument panel illumination intensity
WARNING
Never attempt to operate the driver
position memory system while the
vehicle is moving.
This could result in loss of control, and
an accident causing death, serious
injury, or property damage.
Information

[ If the battery connector is disconnected,
the memory settings will be erased.

[ If the Driver Position Memory
System does not operate normally, we
recommend that you have the system
checked by an authorized HYUNDAI
dealer.
Storing Memory Positions
1. Shift to P (Park) while the Engine
Start/Stop button is in the ON
position.
2. Adjust the driver’s seat position and instrument panel illumination intensity
to the desired position.
3. Press the SET button. The system will beep once and notify you ‘Press
button to save settings’ on the cluster
LCD display.
4. Press one of the memory buttons (1 or 2) within 4 seconds. The system
will beep twice when the memory has
been successfully stored.
5. “Settings 1 (or 2) saved” will appear on the LCD display.
Recalling Memory Positions
1. The ignition switch is in the ON position.
2. Press the desired memory button (1 or 2). The system will beep once,
and then the driver’s position and
instrument panel illumination intensity
will automatically adjust to the stored
positions.
3. “Settings 1 (or 2) applied“ will appear on the LCD display.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
'5,9(5326,7,210(025<6<67(0

Convenience Features5-40
Easy Access Function (if
equipped)
The system will move the driver’s seat
automatically as follows:

[ Without smart key system
- It will move the driver’s seat rearward when the ignition key is
removed and the driver’s door is
opened.
- It will move the driver’s seat forward when the ignition switch is in the
ACC or ON position.

[ With smart key system
- It will move the driver’s seat rearward when the Engine Start/
Stop button is in the OFF position
and the driver’s door is opened.
- It will move the driver’s seat forward when the vehicle is turned ON or
the driver’s door is closed with the
smart key with you.
You can activate or deactivate the
Easy Access Function from the User
Settings Mode on the LCD display. For
more details, refer to “LCD Display”
in chapter 4. If your vehicle is
equipped with additional navigation,
please refer to the infotainment
system manual separately supplied.

Convenience Features5-46

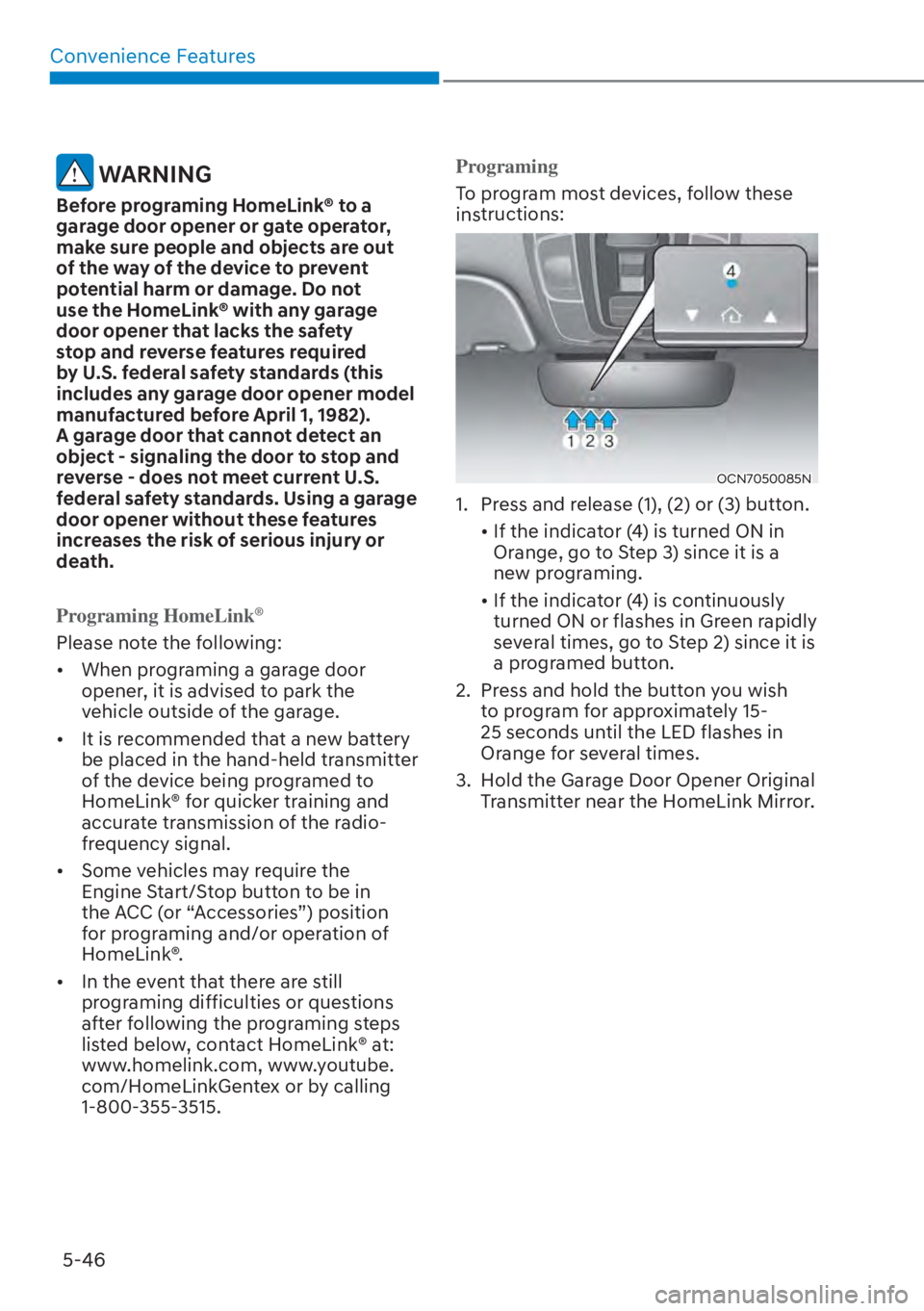

WARNING
Before programing HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
potential harm or damage. Do not
use the HomeLink® with any garage
door opener that lacks the safety
stop and reverse features required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
Programing HomeLink
®
Please note the following:

[ :KHQSURJUDPLQJDJDUDJHGRRU opener, it is advised to park the
vehicle outside of the garage.

[ ,WLVUHFRPPHQGHGWKDWDQHZEDWWHU\ be placed in the hand-held transmitter
of the device being programed to
HomeLink® for quicker training and
accurate transmission of the radio-
frequency signal.

[ 6RPHYHKLFOHVPD\UHTXLUHWKH Engine Start/Stop button to be in
the ACC (or “Accessories”) position
for programing and/or operation of
HomeLink®.

[ ,QWKHHYHQWWKDWWKHUHDUHVWLOO programing difficulties or questions
after following the programing steps
listed below, contact HomeLink® at:
www.homelink.com, www.youtube.
com/HomeLinkGentex or by calling
1-800-355-3515. Programing
To program most devices, follow these
ins

tructions:
OCN7050085N
1. Press and release (1), (2) or (3) button.

[,IWKHLQGLFDWRULVWXUQHG21LQ Orange, go to Step 3) since it is a
new programing.

[,IWKHLQGLFDWRULVFRQWLQXRXVO\ turned ON or flashes in Green rapidly
several times, go to Step 2) since it is
a programed button.
2. Press and hold the button you wish to program for approximately 15-
25 seconds until the LED flashes in
Orange for several times.
3. Hold the Garage Door Opener Original Transmitter near the HomeLink Mirror.

6

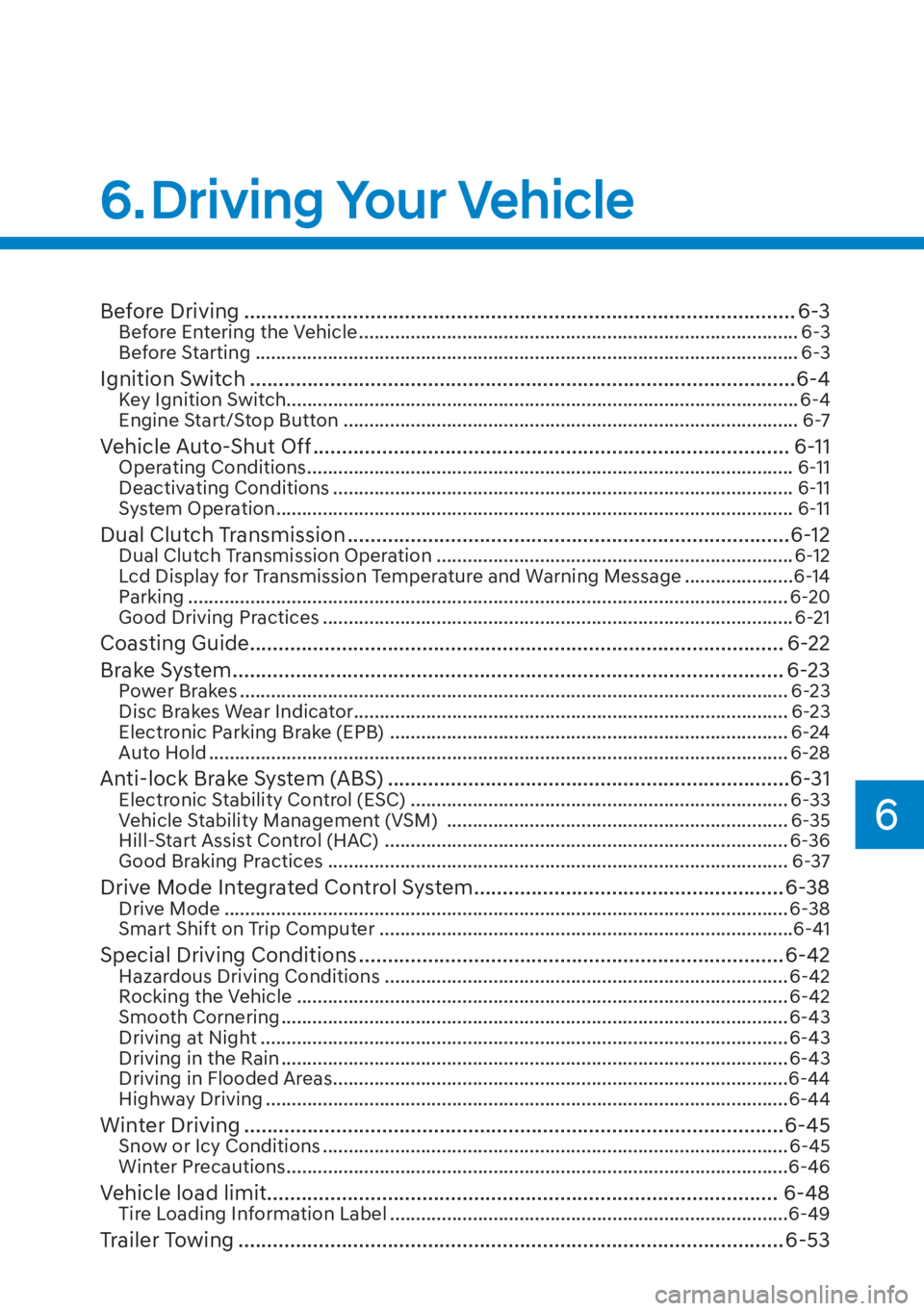

6. Driving Your Vehicle
Before Driving ........................................................................\
........................ 6-3Before Entering the Vehicle ........................................................................\
............. 6-3
Before Starting ........................................................................\
................................. 6-3
Ignition Switch ........................................................................\
.......................6-4Key Ignition Switch ........................................................................\
........................... 6-4
Engine Start/Stop Button ........................................................................\
................ 6-7
Vehicle Auto-Shut Off ........................................................................\
........... 6-11Operating Conditions ........................................................................\
...................... 6-11
Deactivating Conditions ........................................................................\
................. 6-11
System Operation ........................................................................\
............................ 6-11
Dual Clutch Transmission ........................................................................\
.....6-12Dual Clutch Transmission Operation ..................................................................... 6-12
Lcd Display for Transmission Temperature and Warning Message .....................6-14
Parking .................................................................\
................................................... 6-20
Good Driving Practices ........................................................................\
................... 6-21
Coasting Guide ........................................................................\
..................... 6-22
Brake System ........................................................................\
........................ 6-23
Power Brakes ........................................................................\
.................................. 6-23
Disc Brakes Wear Indicator......................................................................\
.............. 6-23
Electronic Parking Brake (EPB) ........................................................................\
..... 6-24
Auto Hold ........................................................................\
........................................ 6-28
Anti-lock Brake System (ABS) ......................................................................6-31Electronic Stability Control (ESC) ........................................................................\
. 6-33
Vehicle Stability Management (VSM) .................................................................. 6-35
Hill-Start Assist Control (HAC) ........................................................................\
...... 6-36
Good Braking Practices ................................................................\
......................... 6-37
Drive Mode Integrated Control System ...................................................... 6-38Drive Mode ........................................................................\
..................................... 6-38
Smart Shift on Trip Computer .....................................................................\
...........6-41
Special Driving Conditions ........................................................................\
..6-42Hazardous Driving Conditions ................................................\
.............................. 6-42
Rocking the Vehicle .................................................................\
.............................. 6-42
Smooth Cornering ........................................................................\
.......................... 6-43
Driving at Night ........................................................................\
.............................. 6-43
Driving in the Rain ........................................................................\
.......................... 6-43
Driving in Flooded Areas ........................................................................\
................6-44
Highway Driving ........................................................................\
.............................6-44
Winter Driving ........................................................................\
......................6-45Snow or Icy Conditions ........................................................................\
.................. 6-45
Winter Precautions ........................................................................\
.........................6-46
Vehicle load limit.......................................................\
.................................. 6-48Tire Loading Information Label ........................................................................\
.....6-49
Trailer Towing ........................................................................\
....................... 6-53

06
6-7

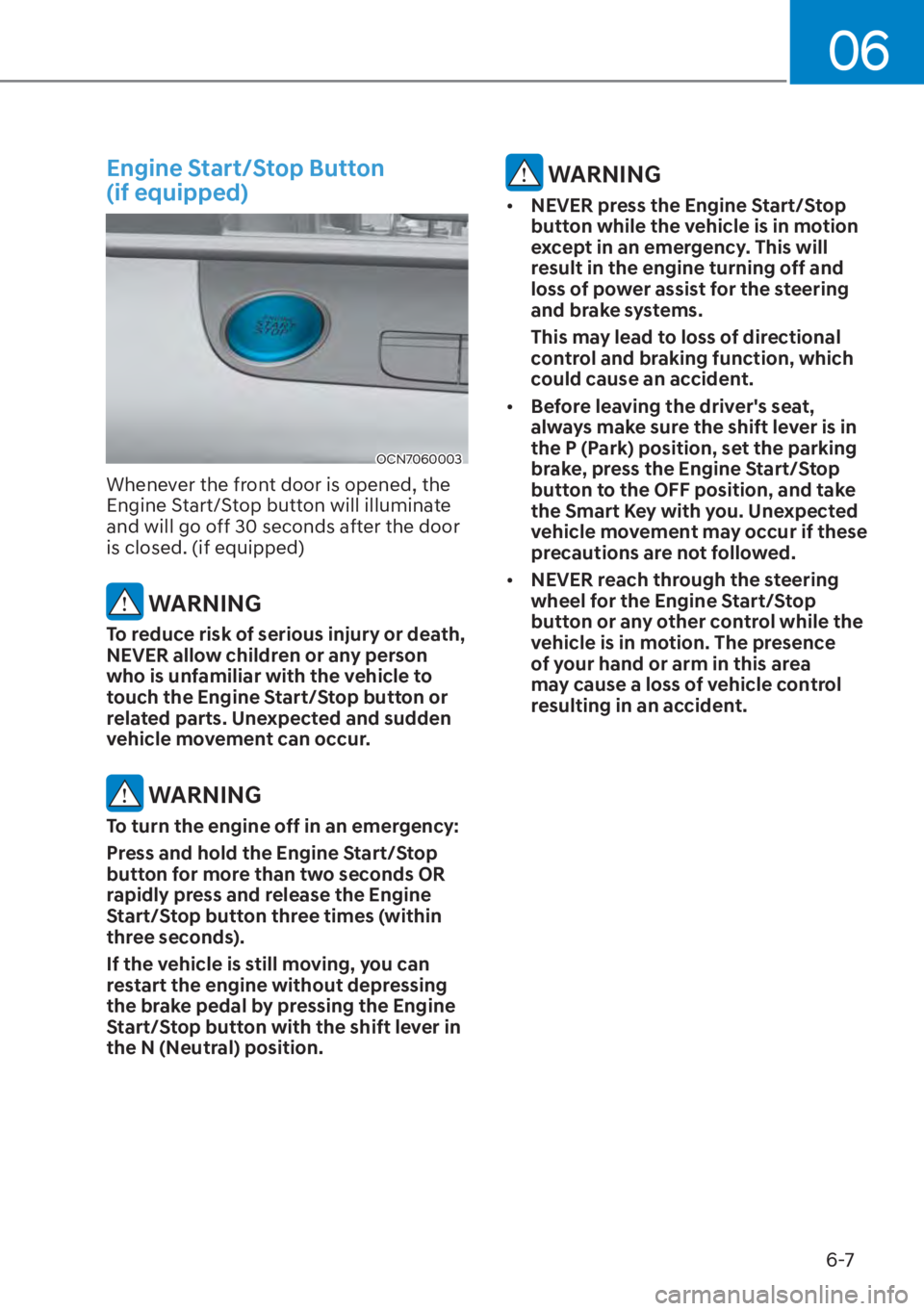

Engine Start/Stop Button
(if equipped)
OCN7060003
Whenever the front door is opened, the
Engine Start/Stop button will illuminate
and will go off 30 seconds after the door
is closed. (if equipped)
WARNING
To reduce risk of serious injury or death,
NEVER allow children or any person
who is unfamiliar with the vehicle to
touch the Engine Start/Stop button or
related parts. Unexpected and sudden
vehicle movement can occur.
WARNING
To turn the engine off in an emergency:
Press and hold the Engine Start/Stop
button for more than two seconds OR
rapidly press and release the Engine
Start/Stop button three times (within
three seconds).
If the vehicle is still moving, you can
restart the engine without depressing
the brake pedal by pressing the Engine
Start/Stop button with the shift lever in
the N (Neutral) position.
WARNING

[NEVER press the Engine Start/Stop
button while the vehicle is in motion
except in an emergency. This will
result in the engine turning off and
loss of power assist for the steering
and brake systems.
This may lead to loss of directional
control and braking function, which
could cause an accident.

[ Before leaving the driver's seat,
always make sure the shift lever is in
the P (Park) position, set the parking
brake, press the Engine Start/Stop
button to the OFF position, and take
the Smart Key with you. Unexpected
vehicle movement may occur if these
precautions are not followed.

[ NEVER reach through the steering
wheel for the Engine Start/Stop
button or any other control while the
vehicle is in motion. The presence
of your hand or arm in this area
may cause a loss of vehicle control
resulting in an accident.

Driving Your Vehicle6-8

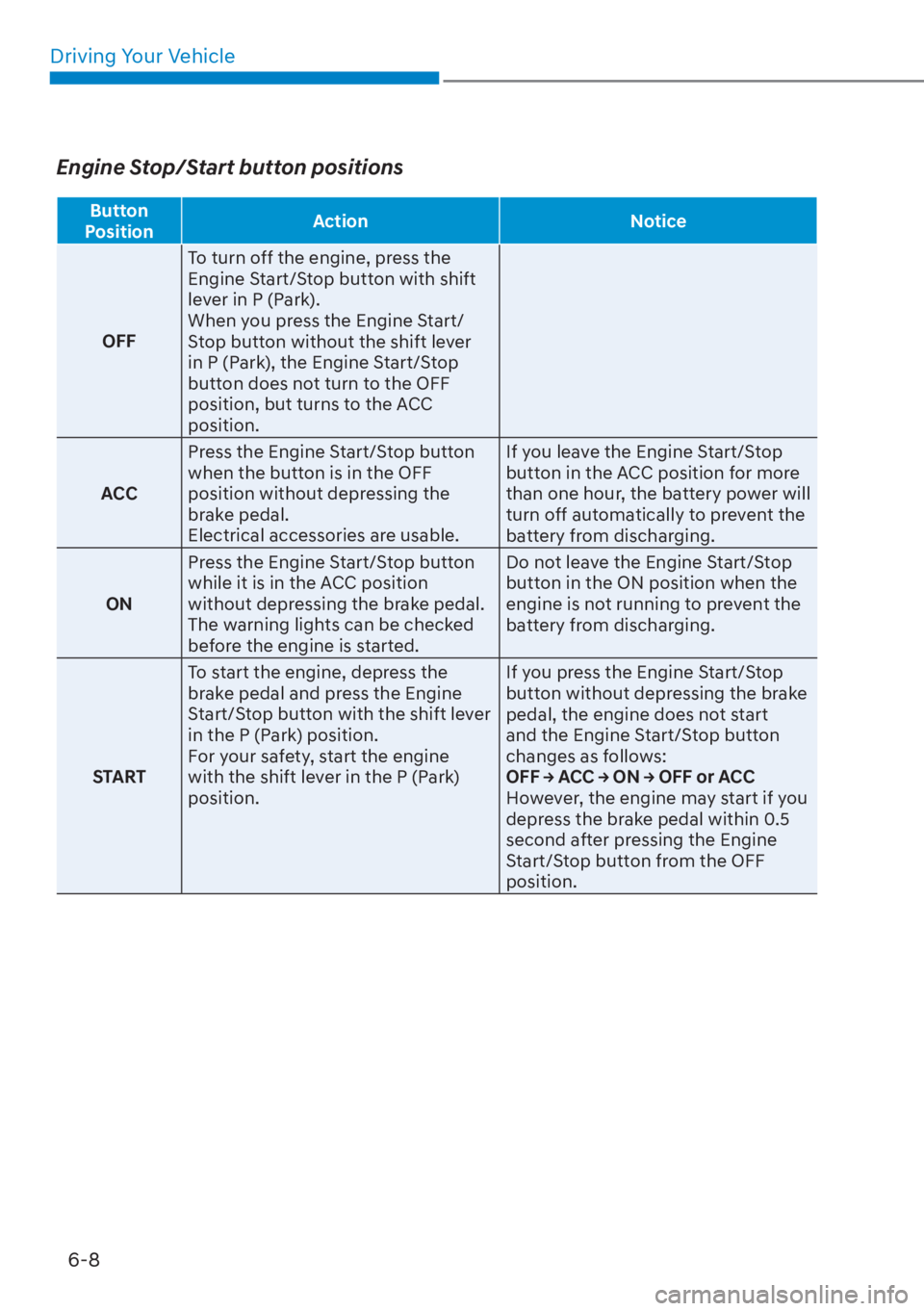

Engine Stop/Start button positions
Button
Position Action Notice
OFF T
o turn off the engine, press the
Engine Start/Stop button with shift
lever in P (Park).
When you press the Engine Start/
Stop button without the shift lever
in P (Park), the Engine Start/Stop
button does not turn to the OFF
position, but turns to the ACC
position.
ACC Press the Engine Start/Stop button
when the button is in the OFF
position without depressing the
brake pedal.
Electrical accessories are usable. If you leave the Engine Start/Stop
button in the ACC position for more
than one hour, the battery power will
turn off automatically to prevent the
battery from discharging.
ON Press the Engine Start/Stop button
while it is in the ACC position
without depressing the brake pedal.
The warning lights can be checked
before the engine is started. Do not leave the Engine Start/Stop
button in the ON position when the
engine is not running to prevent the
battery from discharging.
START To start the engine, depress the
brake pedal and press the Engine
Start/Stop button with the shift lever
in the P (Park) position.
For your safety, start the engine
with the shift lever in the P (Park)
position. If you press the Engine Start/Stop
button without depressing the brake
pedal, the engine does not start
and the Engine Start/Stop button
changes as follows:
2))

06
6-9

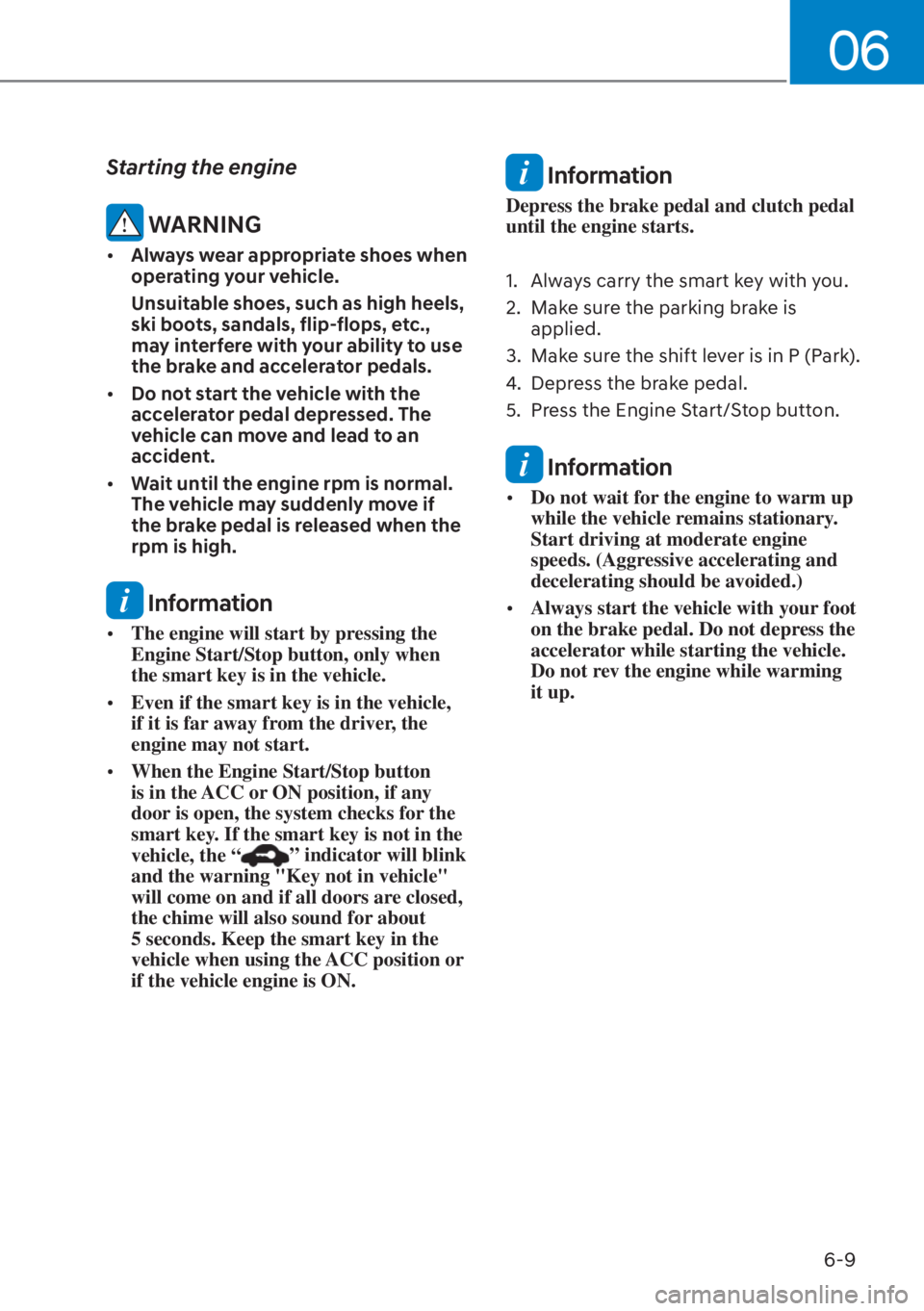

Starting the engine
WARNING

[Always wear appropriate shoes when
operating your vehicle.
Unsuitable shoes, such as high heels,
ski boots, sandals, flip-flops, etc.,
may interfere with your ability to use
the brake and accelerator pedals.

[ Do not start the vehicle with the
accelerator pedal depressed. The
vehicle can move and lead to an
accident.

[ Wait until the engine rpm is normal.
The vehicle may suddenly move if
the brake pedal is released when the
rpm is high.
Information

[The engine will start by pressing the
Engine Start/Stop button, only when
the smart key is in the vehicle.

[ Even if the smart key is in the vehicle,
if it is far away from the driver, the
engine may not start.

[ When the Engine Start/Stop button
is in the ACC or ON position, if any
door is open, the system checks for the
smart key. If the smart key is not in the
vehicle, the “
” indicator will blink
and the warning "Key not in vehicle"
will come on and if all doors are closed,
the chime will also sound for about
5 seconds. Keep the smart key in the
vehicle when using the ACC position or
if the vehicle engine is ON.
Information
Depress the brake pedal and clutch pedal
until the engine starts.
1. Always carry the smart key with you.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in P (Park).
4. Depress the brake pedal.
5. Press the Engine Start/Stop button.
Information

[ Do not wait for the engine to warm up
while the vehicle remains stationary.
Start driving at moderate engine
speeds. (Aggressive accelerating and
decelerating should be avoided.)

[ Always start the vehicle with your foot
on the brake pedal. Do not depress the
accelerator while starting the vehicle.
Do not rev the engine while warming
it up.
