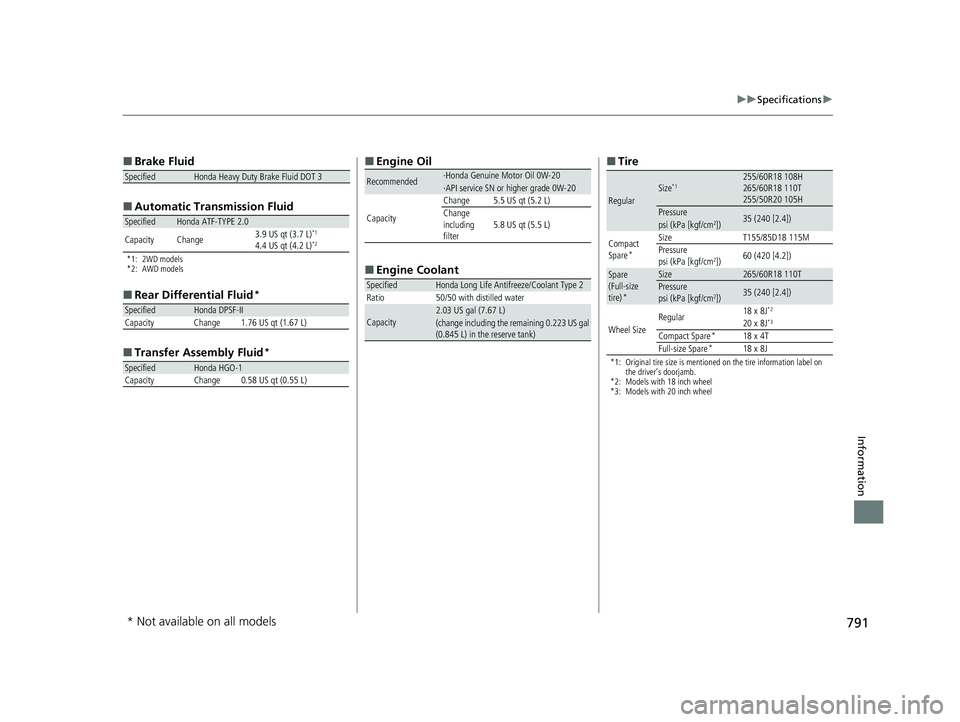

uuSpecifications u
Information
■
Brake Fluid
■ Automatic Tran smission Fluid
*1: 2WD models
*2: AWD models
■
Rear Differential Fluid*
■Transfer Assembly Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF-TYPE 2.0
Capacity Change 3.9 US qt (3.7 L)*1
4.4 US qt (4.2 L)*2
SpecifiedHonda DPSF-II
Capacity Change 1.76 US qt (1.67 L)
SpecifiedHonda HGO-1CapacityChange0.58 US qt (0.55 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20·API service SN or higher grade 0W-20
Capacity
Change5.5 US qt (5.2 L)Change
including
filter5.8 US qt (5.5 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity2.03 US gal (7.67 L)(change including the remaining 0.223 US gal
(0.845 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 18 inch wheel
*3: Models with 20 inch wheel
RegularSize*1255/60R18 108H
265/60R18 110T
255/50R20 105H
Pressure35 (240 [2.4])psi (kPa [kgf/cm2])
Compact
Spare*
SizeT155/85D18 115MPressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Spare
(Full-size
tire)
*
Size265/60R18 110TPressure
psi (kPa [kgf/cm2])35 (240 [2.4])
Wheel Size Regular
18 x 8J
*2
20 x 8J*3
Compact Spare*18 x 4T
Full-size Spare*18 x 8J
* Not available on all models
23 PILOT-31T906000_03.book 791 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Index
804
Index
Index
A
ABS (Anti-lock Brake System)................... 659
AC Power Outlet ....................................... 274
Accessories and Modifications ................. 747
Accessory Power Sockets .......................... 273
Adaptive Cruise Control (ACC) with Low Speed Follow ........................................... 590
Additives
Coolant ................................................... 714
Engine Oil ................................................ 709
Washer .................................................... 717
Additives, Engine Oil ................................ 709
Adjusting Armrest ................................................... 258
Clock ....................................................... 176
Front Seats .............................................. 239
Head Restraints................................ 253, 257
Mirrors .................................................... 236
Sound.............................................. 302, 346
Steering Wheel ........................................ 235
Third row seat ......................................... 249
Agile Handling Assist ................................ 557
Air Conditioning System (Climate Control System) .................................................... 283
Defrosting the Windshield and
Windows ............................................... 285
Dust and Pollen Filter ............................... 741
Sensor ..................................................... 289
Synchronized Mode ................................. 286
Using Automatic Climate Control ............ 283
Air Pressure ....................................... 729, 791 Airbags
........................................................ 59
Advanced Airbags ..................................... 65
After a Collision ........................................ 62
Airbag Care............................................... 76
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 62
Indicator............................................ 73, 106
Knee Airbags............................................. 67
Passenger Airbag Off Indicator .................. 74
Sensors ..................................................... 59
Side Airbags .............................................. 70
Side Curtain Airbags.................................. 72
AM/FM Radio .................................... 304, 352
Android Auto
TM................................ 322, 392
Anti-lock Brake System (ABS) .................. 659
Indicator.................................................. 106
Apple CarPlay ................................... 318, 385
Armrest ..................................................... 258
AT&T Hotspot ........................................... 384
Audio ........................................................ 130
Audio Remote Controls ........................... 296
Audio System ............................ 292, 301, 326
Adjusting the Sound........................ 302, 346
Android Auto
TM............................... 322, 392
Audio/Information Screen........................ 328
Display Setup .................................. 303, 347
Error Messages ........................................ 398
General Information ................................ 400
Home Screen........................................... 334
How to Update ....................................... 340
How to Update Wirelessly ....................... 344 How to Update with a USB Device .......... 345
iPod ................................................ 306, 367
Limitations for Manual
Operation ............................. 348, 461, 481
MP3/WMA/AAC ............................. 309, 370
Reactivating ............................................ 295
Recommended Devices ........................... 401
Remote Controls ..................................... 296
Security Code ......................................... 295
Selecting an Audio Source ...................... 348
Start Up .................................................. 327
Status Area ............................................. 339
System Updates ...................................... 340
System Updates Settings ......................... 341
Theft Protection ...................................... 295
USB Flash Drives...................................... 401
USB Ports ................................................ 293
Wallpaper Setup ..................................... 332
Audio/Information Screen ....................... 328
Authorized Manuals ................................ 800
Auto Door Locking/Unlocking ................ 195
Auto High-Beam ...................................... 226
Indicator ................................................. 108
Auto Idle Stop .......................................... 542
OFF Button ............................................. 543
Automatic Brake Hold ............................. 656
Indicator ......................................... 102, 656
Automatic Brake Hold System
Indicator ......................................... 102, 656
Automatic Folding Door Mirror .............. 238
Automatic Intermittent Wipers .............. 230
23 PILOT-31T906000_03.book 804 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

806
Index
Coolant (Engine)....................................... 714
Adding to the Radiator ............................ 715
Adding to the Reserve Tank ..................... 714
Overheating............................................. 769
Creeping (Automatic Transmission) ........ 532
Cross Traffic Monitor ................................ 668
Cup Holders ............................................... 264
Customer Service Information ................. 801
Customize Display ..................................... 152
Customized Features ........................ 421, 429
D
Daytime Running Lights ........................... 225
Dead Battery ............................................. 767
Defaulting All the Settings .............. 428, 455
Defrosting the Windshield and Windows .................................................. 285
Detachable Anchor ..................................... 54
Devices that Emit Radio Waves ................ 793
Dimming
Headlights ............................................... 220
Rearview Mirror ....................................... 236
Dipstick (Engine Oil) ................................. 710
Display Setup .................................... 303, 347
Door Mirrors ............................................. 237
Doors ......................................................... 178
Auto Door Locking .................................. 195
Auto Door Unlocking ............................... 195
Door Open Message .................................. 42
Keys ........................................................ 178 Locking/Unlocking the Doors from
the Inside .............................................. 192
Locking/Unlocking the Doors from the Outside ........................................... 181
DOT Tire Quality Grading ........................ 731
Drive Mode System .................................. 548
Driver Attention Monitor ................ 132, 160
Driver Information Interface
Switching the Display ...................... 125, 154
Driver Information Interface (A-type Meter) ........................................ 125
Driver Information Interface Left Side Area (B-type-Meter) ........................................ 151
Driver Information Interface Right Side Area
(B-type-Meter) ........................................ 154
Driving ...................................................... 501
Automatic Transmission .......................... 532
Braking ................................................... 652
Off-Highway Driving Guidelines............... 519
Shifting Gear ........................................... 533
Starting the Engine.................................. 524
Driving Position Memory System ............ 233
Dust and Pollen Filter ............................... 741
E
Eco Assist® System ...................................... 14
Elapsed Time ..................................... 130, 159
Electric Power Steering (EPS) System Indicator.......................................... 106, 774
Electronic Stability Control (ESC) ............. 555Emergency
................................................ 785
Emissions Testing (Readiness Codes) ...... 795
Engine Coolant .................................................. 714
If the Battery Is Dead............................... 767
Number .................................................. 792
Oil .......................................................... 709
Starting................................................... 524
Switch Buzzer ................................. 218, 219
Engine Compartment Cover .................... 708
Engine Coolant ........................................ 714
Adding to the Radiator ........................... 715
Adding to the Reserve Tank .................... 714
Overheating ............................................ 769
Temperature Gauge ................................ 122
Engine Oil ................................................. 709
Adding ................................................... 711
Checking ................................................ 710
Displaying Oil Life ................................... 696
Engine oil pressure low Warning ............. 771
Recommended Engine Oil ....................... 709
Engine oil pressure low Warning ............ 771
ENGINE START/STOP Button .................... 217
EPS (Electric Power Steering) System ...... 774
Exhaust Gas Hazard (Carbon Monoxide) .. 95
Exterior Care (Cleaning) .......................... 744
Exterior Mirrors ........................................ 237
23 PILOT-31T906000_03.book 806 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

807
Index
F
Features.................................................... 291
Filters Dust and Pollen....................................... 741
Oil .......................................................... 712
Flat Tire ..................................................... 751
Floor Mats ................................................ 743
Fluids
Automatic Transmission .......................... 716
Brake ...................................................... 717
Engine Coolant ....................................... 714
Transfer Assembly ................................... 716
Windshield Washer ................................. 717
FM/AM Radio ................................... 304, 352
Fog Light Indicator .................................. 108
Folding Down the Second Row Seat ...... 244
Folding Down the Third Row Seat .......... 250
Foot Brake ................................................ 655
Front Airbags (SRS) .................................... 62
Front Seat Heaters ................................... 280
Front Seats Adjusting ................................................ 239
Front Sensor Camera ............................... 648
Fuel ..................................................... 29, 686
Average Fuel Economy .................... 128, 157
Economy................................................. 689
Gauge .................................................... 122
Instant Fuel Economy ...................... 128, 157
Low Fuel Indicator................................... 105
Range ............................................. 128, 157
Recommendation.................................... 686 Refueling ................................................. 686
Fuel Economy ............................................ 689
Fuel Fill Door ............................................. 687
Unable to Unlock ..................................... 786
Fuses .......................................................... 778
Inspecting and Changing ......................... 783
Locations ................................. 778, 780, 782
G
Gasoline (Fuel) Average Fuel Economy .................... 128, 157
Economy ................................................. 689
Gauge ..................................................... 122
Information ............................................. 686
Instant Fuel Economy ....................... 128, 157
Low Fuel Indicator ................................... 105
Refueling ................................................. 686
Gauge Display Settings .................... 139, 167
Gauges ...................................................... 121
Gear Position Indicator .................... 103, 535
Gear Shift Positions Automatic Transmission ........................... 533
Glass (care) ................................................ 745
Glove Box .................................................. 263
H
Handling the Unexpected ........................ 749
HandsFreeLink ® (HFL) ....................... 459, 479
Automatic Import of Ce llular Phonebook and
Call History .................................... 471, 489
Automatic Transferring.................... 469, 488
Favorite Contacts ............................ 472, 490
HFL Buttons..................................... 459, 479
HFL Menus ...................................... 462, 482
HFL Status Display ........................... 461, 481
In Case of Emergency .............................. 496
Limitations for Manual Operation .... 461, 481
Making a Call .................................. 474, 492
Options During a Call ...................... 478, 495
Phone Setup.................................... 464, 484
Receiving a Call ............................... 477, 494
Ringtone ......................................... 469, 488
Hazard Warning Button .............................. 8
HD Radio
TM............................................... 353
Head Restraints ................................ 253, 257
Headlights ................................................. 220
Aiming .................................................... 718
Auto High-Beam ..................................... 226
Dimming ................................................. 220
Operating................................................ 220
Head-Up Display ....................................... 169
Heated Door Mirrors ................................ 232
Heated Steering Wheel ............................ 279
Heated Windshield ................................... 232
Heaters (Front Seat) ................................. 280
Heaters (Seat) ................................... 281, 282
23 PILOT-31T906000_03.book 807 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

809
Index
K
Keyless Access System.............................. 181
Keys ........................................................... 178
Number Tag............................................ 179
Rear Door Won’t Open ........................... 194
Remote Transmitter ................................ 187
Kickdown (Automatic Transmission) ...... 532
Knee Airbags .............................................. 67
L
Lane Keeping Assist System (LKAS) ........ 612
LATCH (Child Seats) ............................. 82, 89
Lights ................................................ 220, 718
Auto High-Beam ..................................... 226
Bulb Replacement ................................... 718
Daytime Running Lights .......................... 225
Fog Light ................................................ 224
High Beam Indicator ............................... 108
Interior.................................................... 260
Light Switches......................................... 220
Lights On Indicator.................................. 108
Parking Lights ......................................... 220
Load Limits ............................................... 505
Locking/Unlocking ................................... 178
Auto Door Locking/Unlocking ................. 195
Childproof Door Locks ............................ 194
From Inside ............................................. 192
From Outside .......................................... 181
Keys........................................................ 178
Using a Key............................................. 188 Low Battery Charge
.................................. 772
Low Fuel Indicator .................................... 105
Low Speed Braking Control ..................... 584
Lower Anchors ............................................ 82
Lubricant Specifications Chart ................. 791
Luggage (Maximum Load Limit) ............. 505
Lumbar Support ........................................ 240
Lumbar Support Adjustment Switch ....... 240
M
Maintenance............................................. 691
Battery .................................................... 737
Brake Fluid .............................................. 717
Cleaning .................................................. 742
Coolant ................................................... 714
Maintenance Minder
TM............................ 695
Oil ........................................................... 710
Precautions .............................................. 692
Radiator .................................................. 715
Remote Transmitter ................................. 739
Replacing Light Bulbs ............................... 718
Safety ...................................................... 693
Service Items ........................................... 700
Tires ........................................................ 728
Transfer Assembly Fluid ........................... 716
Transmission Fluid ................................... 716
Under the Hood ...................................... 705
Malfunction Indicator Lamp ............ 103, 772
Map Light Switches .................................. 261
Maximum Load Limit ............................... 505 Meters, Gauges
......................................... 121
Mirrors ...................................................... 236
Adjusting ................................................ 236
Door ....................................................... 237
Exterior ................................................... 237
Interior Rearview ..................................... 236
Modifications (and Accessories) .............. 747
MP3 ................................................... 309, 370
Multi-View Rear Camera .......................... 672
N
Navigation........................................ 131, 159
No Content ............................................... 138
Numbers (Identification) .......................... 792
O
Odometer................................................. 122
Off-Highway Driving Guidelines ............. 519
Oil (Engine) ............................................... 709
Adding .................................................... 711
Checking................................................. 710
Displaying Oil Life .................................... 696
Engine oil pressure low Warning ............. 771
Recommended Engine Oil ....................... 709
Viscosity .................................................. 709
Open Source Licenses ....................... 416, 802
Opening/Closing
Hood....................................................... 706
Panoramic Roof ....................................... 213
23 PILOT-31T906000_03.book 809 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
