2023 HONDA HRV gas type

33

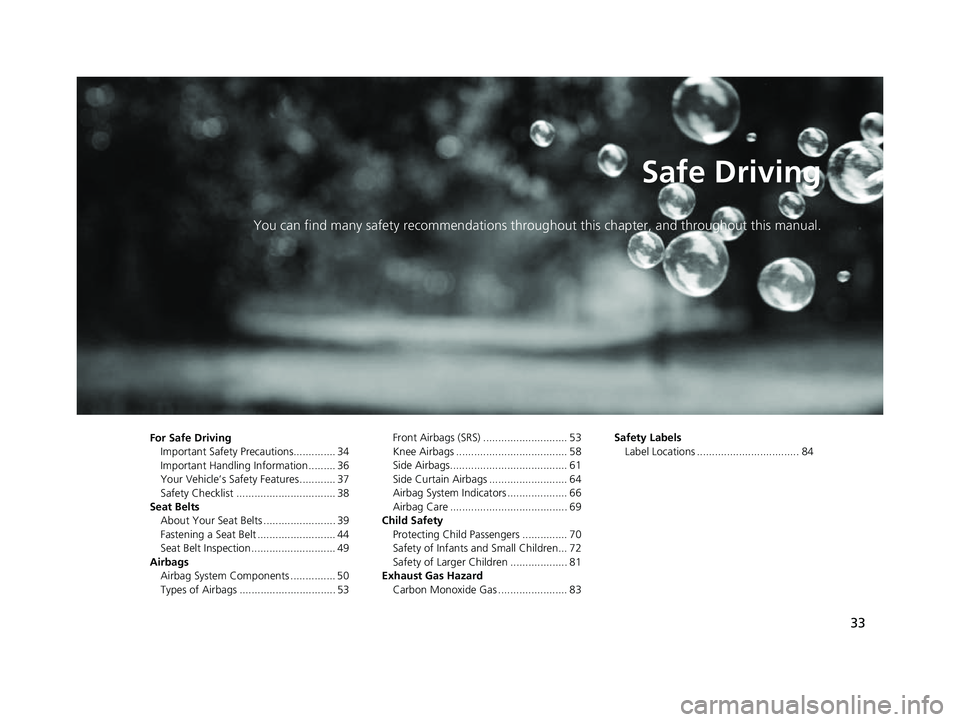

Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions.............. 34
Important Handling Information ......... 36
Your Vehicle’s Safety Features ............ 37
Safety Checklist ................................. 38
Seat Belts About Your Seat Belts ........................ 39
Fastening a Seat Belt .......................... 44
Seat Belt Inspection ............................ 49
Airbags Airbag System Components ............... 50
Types of Airbags ................................ 53 Front Airbags (SRS) ............................ 53
Knee Airbags ..................................... 58
Side Airbags....................................... 61
Side Curtain Airbags .......................... 64
Airbag System Indicators .................... 66
Airbag Care ....................................... 69
Child Safety Protecting Child Passengers ............... 70
Safety of Infants a nd Small Children... 72
Safety of Larger Children ................... 81
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 83 Safety Labels
Label Locations .................................. 84
23 HR-V-313V06000_01.book 33 ページ ２０２２年４月４日　月曜日　午前１０時４９分

Continued599

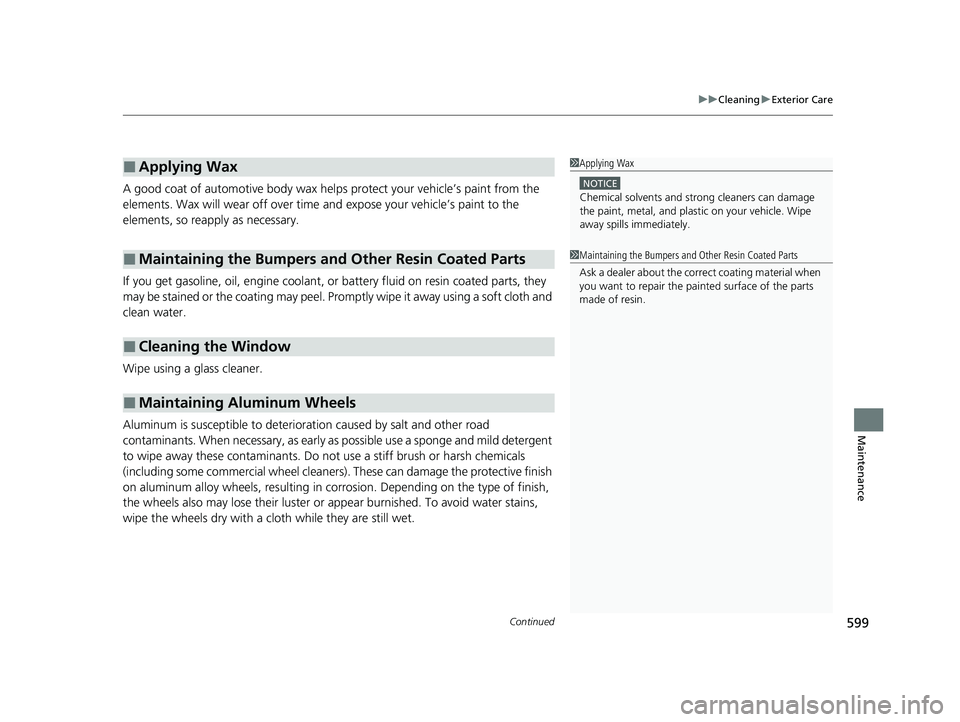

uuCleaning uExterior Care
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resi n coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
23 HR-V-313V06000_01.book 599 ページ ２０２２年４月４日　月曜日　午前１０時４９分

637

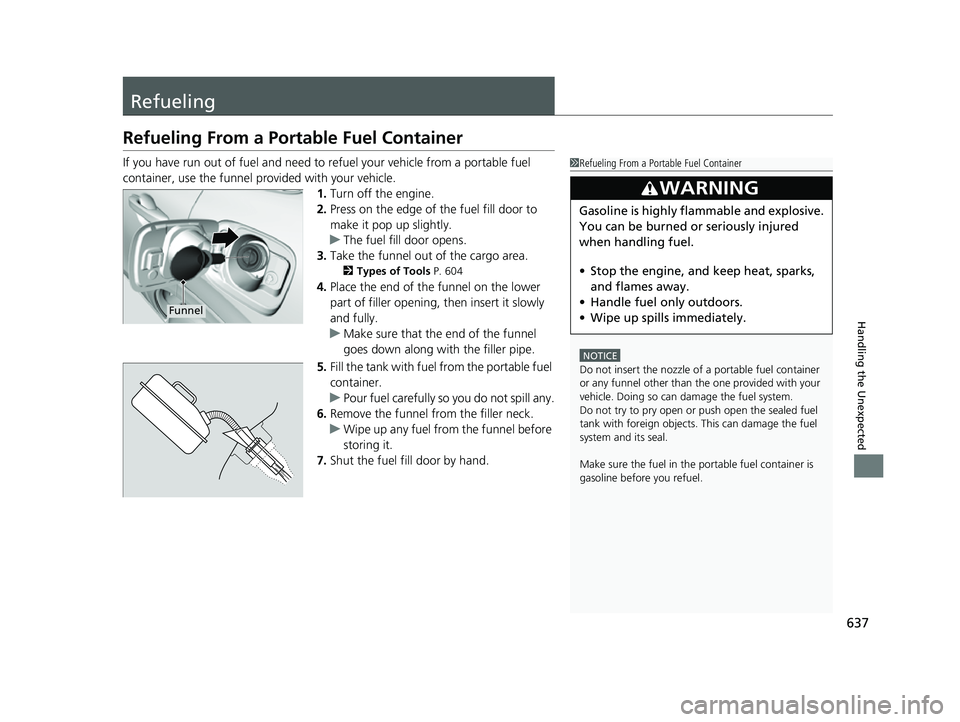

Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the cargo area.
2 Types of Tools P. 604
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel systemM
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuelM
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
23 HR-V-313V06000_01.book 637 ページ ２０２２年４月４日　月曜日　午前１０時４９分

640
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelHR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 – 17.1 oz (435 – 485 g)
Lubricant TypeND-OIL14 (POE)
Quantity 6.41 – 7.32 cu-in (105 – 120 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.8 cu-in (1,996 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSODXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 14.0 US gal (53 L)
Tank CapacityU.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal/Parking/Daytime
Running LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights*
(on Door Mirrors)LED
Brake Lights LED
Rear Side Marker LightsLED
Back-Up Lights LED
TaillightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map
LightsLED
Ambient Lights*LEDVanity Mirror Light*1.4 WUnder Tray LightLEDCargo Area LightsLED
* Not available on all models
23 HR-V-313V06000_01.book 640 ページ ２０２２年４月４日　月曜日　午前１０時４９分
