2023 HONDA CRV spark plugs

608
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
U.S. models
· Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 701.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for temporary tire repair kit
bottle
●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (76,000 km) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs
5
●Replace engine coolant
6●Replace rear differential fluid*
7●Replace brake fluid*5
* Not available on all models

609
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
Canadian models
· Adjust the valves during services A, 0, 9, 1, 2, or 3 if they are noisy.
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 76,000 km (47,500 miles) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 701.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs
5
●Replace engine coolant
6●Replace rear differential fluid
7
●Replace brake fluid*5
9●Service front and rear brakes●Check expiration date for temporary tire repair kit
bottle
●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#

694
Information

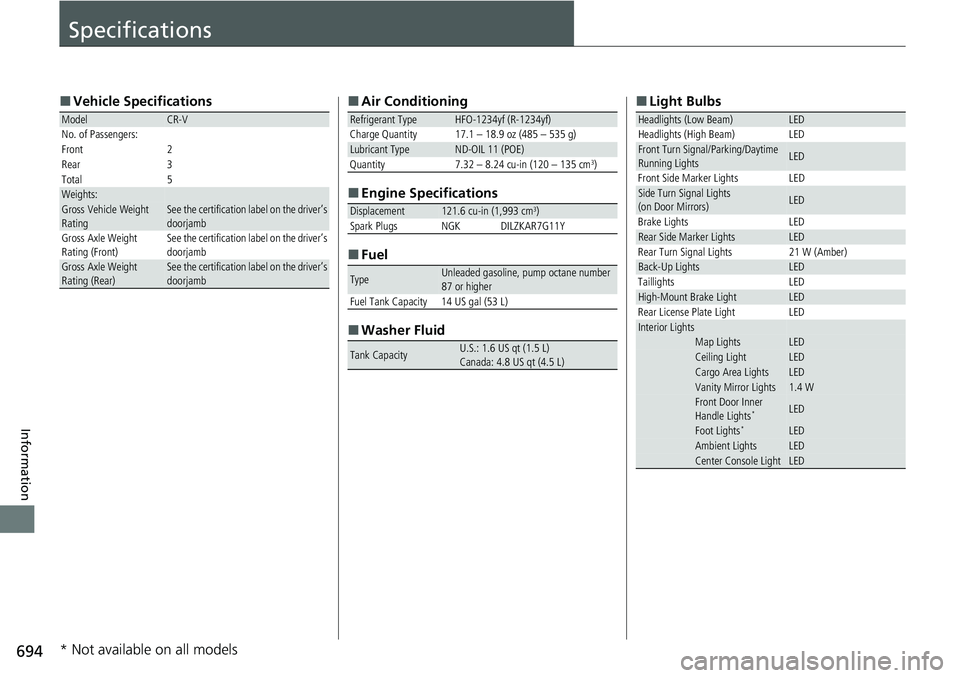

Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 17.1 – 18.9 oz (485 – 535 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
Displacement121.6 cu-in (1,993 cm3)Spark PlugsNGKDILZKAR7G11Y
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank CapacityU.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFront Turn Signal/Parking/Daytime
Running LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake Lights LED
Rear Side Marker LightsLED
Rear Turn Signal Lights 21 W (Amber)
Back-Up LightsLED
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap LightsLEDCeiling LightLEDCargo Area LightsLEDVanity Mirror Lights1.4 WFront Door Inner
Handle Lights*LED
Foot Lights*LEDAmbient LightsLEDCenter Console LightLED
* Not available on all models

715
Index
S
Safe Driving................................................ 43
Safety Check ............................................... 48
Safety Labels .............................................. 93
Safety Message ............................................ 4
Safety Support ......................................... 130
Seat Belts .................................................... 49
Adjusting the Shoulder Anchor ................. 55
Automatic Seat Belt Tensioners ................. 53
Checking .................................................. 58
Detachable Anchor ................................... 56
Fastening .................................................. 54
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 86
Pregnant Women...................................... 57
Reminder .................................................. 51
Warning Indicator ............................. 51, 103
Seat Heaters ..................................... 230, 231
Seats .......................................................... 205
Adjusting ................................................ 205
Driver’s Seat Lumbar Support .................. 206
Front Seat Heaters .................................. 230
Front Seats.............................................. 205
Rear Seat Heaters.................................... 231
Rear Seats ............................................... 209
Security System ........................................ 176
Immobilizer System Indicator................... 107
Security System Alarm Indicator .............. 107
Selecting a Child Seat ................................ 83
Selector Knob (Audio) ............................. 246
Setting the Clock ...................................... 146 Settings
..................................................... 135
Shift Lever ................................................. 464
Operation ................................................ 465
Releasing ................................................. 673
Won’t Move ............................................ 673
Shift Position Indicator ..................... 102, 465
Shifting (Transmission) ............................. 464
Shoulder Anchor ......................................... 55
Side Airbags ................................................ 70
Side Curtain Airbags ................................... 73
Siri Eyes Free ............................................. 261
SiriusXM ® Radio ........................................ 300
Smart Shortcuts ........................................ 324
SNOW Mode ..................................... 108, 470
Snow Tires ................................................. 639
Spark Plugs ................................................ 694
Specifications ............................................ 694
Specified Fuel .................................... 595, 694
Speedometer ............................................ 114
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................ 13
SPORT Mode ..................................... 108, 470
SRS Airbags (Airbags) ................................. 62
Steering Wheel ......................................... 202
Adjusting ................................................. 202
Stopping .................................................... 582
Summer Tires ............................................ 639
Sunglasses Holder ..................................... 223
Supplemental Restraint System (SRS) ........ 62
Switches (Around the Steering Wheel) ........ 8, 9, 184System Message Indicator
........................ 108
System Updates ........................................ 284
T
Tailgate..................................................... 165
Unable to Open....................................... 691
Temperature Outside Temperature Display ................... 115
Temperature Sensor ......................... 115, 236
Temporary Repair Kit (TRK) ..................... 653
Time (Setting) ........................................... 146
Tire Pressure Monitoring System
(TPMS) ..................................................... 480
Indicator.................................................. 105
Tires ........................................................... 631
Air Pressure ..................................... 632, 695
Checking and Maintaining ...................... 631
Inspection ............................................... 631
Labeling .................................................. 632
Puncture (Flat Tire) .................................. 653
Regulations ............................................. 634
Rotation .................................................. 638
Summer .................................................. 639
Temporary Repair Kit (TRK) ...................... 653
Tire Chains .............................................. 639
Wear Indicators ....................................... 636
Winter..................................................... 639
Tools .......................................................... 652
