2023 HONDA CIVIC steering wheel

Contents
This owner's manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.honda.com
(U.S.) or honda.ca (Canada). If you are the first registered owner
of your vehicle, you may request a complimentary printed
copy of the Navigation Manual within the first six months of
vehicle purchase. To request a copy, visit owners.honda.com. In
Canada, please request a copy from your Honda dealer.
This owner's manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner's manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner's manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 43
For Safe Driving P. 44 Seat Belts P. 48 Airbags P. 57
2Instrument Panel P. 95
Indicators P. 96 Gauges and Driver Information Interface P. 118
2Controls P. 173
Clock P. 174 Locking and Unlocking the Doors P. 176
Operating the Switches Ar ound the Steering Wheel P. 202
Interior Convenience Items P. 231
2 Features P. 255
Audio System P. 256 Audio System Basic Operation P. 264, 289
Customized Features P. 382, 390 Honda LogR* P. 414
HomeLink ® Universal Transceiver* P. 441
2 Driving P. 485
Before Driving P. 486 Towing a Trailer P. 492
Multi-View Rear Camera P. 681 Refueling P. 683
2Maintenance P. 691
Before Performing Maintenance P. 692 Maintenance MinderTM P. 695
Checking and Maintaining Wiper Blades P. 733
Climate Control System Maintenance P. 750
2Handling the Unexpected P. 759
Tools P. 760 If a Tire Goes Flat P. 761
Shift Lever Does Not Move P. 790 Overheating P. 791
If You Cannot Unlock the Fuel Fill Door P. 809
2 Information P. 813
Specifications P. 814 Identification Numbers P. 816
Emissions Testing P. 820 Warranty Coverages P. 823
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 6 ページ ２０２２年６月２３日　 木曜日　午後９時２８分

9
Quick Reference Guide❚Headlights/Turn Signals (P205, 206)
❚Fog Lights* (P209)
❚Paddle Shifter (Shift down)* (P507)
❚Left Selector Wheel (P126)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P578)
❚Lane Keeping Assist System (LKAS) Button
(P621)
❚Interval Button (P592)
❚Steering Wheel Adjustments (P219)
❚Heated Steering Wheel* (P246)
Canadian models
❚Right Selector Wheel* (P155)
❚Bluetooth® HandsFreeLink ® System Voice Control Button* (P464)
❚Audio Remote Controls (P260)
❚ (home) Button* (P125)
❚Horn (Press an area around .)
❚Adaptive Cruise Control (ACC) Buttons*
(P598)
❚Paddle Shifter (Shift up)* (P507)
❚Wipers/Washers (P213)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 9 ページ ２０２２年６月２３日　 木曜日　午後９時２８分

16
Quick Reference Guide
Safe Driving (P43)
Airbags (P57)
●Your vehicle is fitted with airbags to help protect you and your
passengers during a moderate-to-severe collision.
Child Safety (P77)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P92)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P486)
●Before driving, check that the front seats, head restraints*,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P48)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 16 ページ ２０２２年６月２３日　木曜日　午後９時２８分

21
Quick Reference Guide
Turn Signals (P205)
Lights (P206)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P213)
*1:Models with automatic intermittent wipers
*2:Models with manual intermittent operation
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
( -: Low sensitivity*1
: Lower speed, fewer sweeps*2
(+: High sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P219)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P189)
●Pull either front door inner handle to
unlock and open it at the same time.
To adjust
To lock
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 21 ページ ２０２２年６月２３日　木曜日　午後９時２８分

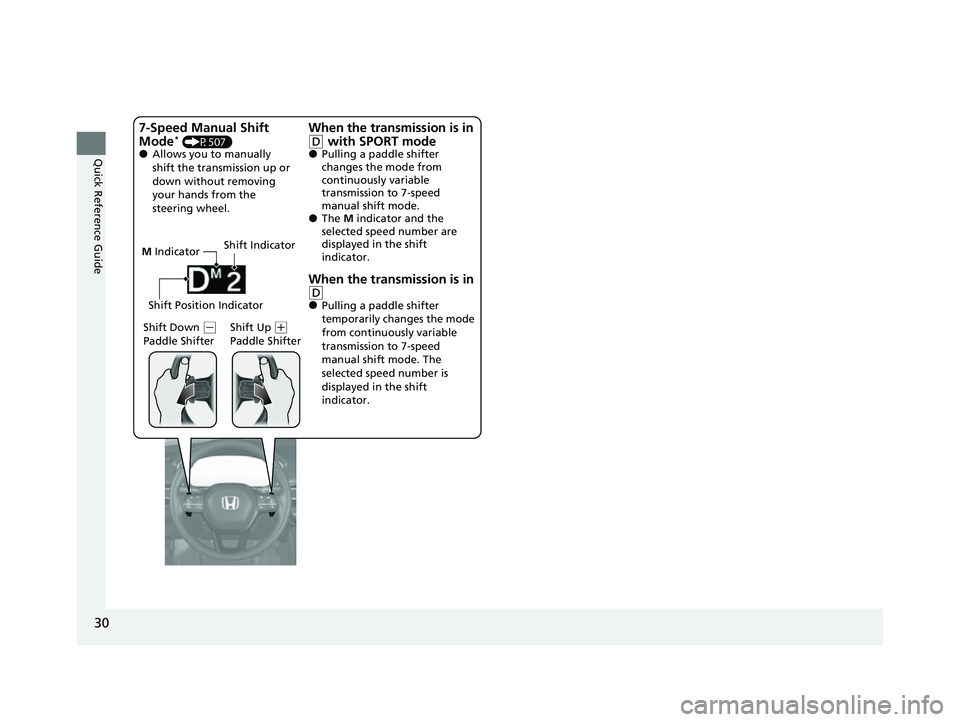

30
Quick Reference Guide
M Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
7-Speed Manual Shift
Mode* (P507)●Allows you to manually
shift the transmission up or
down without removing
your hands from the
steering wheel.
When the transmission is in
(D with SPORT mode●Pulling a paddle shifter
changes the mode from
continuously variable
transmission to 7-speed
manual shift mode.
●The M indicator and the
selected speed number are
displayed in the shift
indicator.
When the transmission is in (D●Pulling a paddle shifter
temporarily changes the mode
from continuously variable
transmission to 7-speed
manual shift mode. The
selected speed number is
displayed in the shift
indicator.
Shift Position Indicator
Shift Indicator
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 30 ページ ２０２２年６月２３日　木曜日　午後９時２８分

38
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY. Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
after pressing the ENGINE START/STOP
button.
The power mode does not
change from ACCESSORY to
VEHICLE OFF (LOCK). Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal.
Never pump the brake pedal.
2Anti-lock Brake System (ABS) (P667)
Manual transmission models
Continuously variable transmission models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 38 ページ ２０２２年６月２３日　木曜日　午後９時２８分

58
uuAirbags uAirbag System Components
Safe Driving
The front, driver's knee, front passenger's
knee, side, and side curtain airbags are
deployed according to the direction and
severity of impact. Both side curtain airbags
are deployed in a ro llover. The airbag
system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo knee airbags. Th e driver's knee
airbag is stored under the steering
column; the front passenger's knee
airbag is stored under the glove box.
Both are marked SRS AIRBAG.
cFour side airbags, one for the driver, one
for the front passenger and two for the
rear outboard. The front airbags are
stored in the outer edges of the seat-
backs and the rear airbags are stored next
to the outer rear seating positions. All are
marked SIDE AIRBAG .
dTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG .
eAn electronic control unit that, when the
power mode is in ON, continually
monitors information about the various
impact sensors, seat and buckle sensors,
rollover sensor, airbag activators, seat
belt tensioners, and other vehicle
information. During a crash event the
unit can record such information.
fAutomatic seat belt tensioners for the
front seats and outer rear seats. In
addition, the driver's and front
passenger's seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
gDriver's seat position sensor. This sensor
detects the driver's seat slide position to
help determine the optimal deployment
of the driver's airbag.
hWeight sensors in the front passenger's
seat. The sensors are used for occupant
classification to activa te or deactivate the
front passenger's airbag.
iImpact sensors that can detect a
moderate-to-severe front or side impact.
jAn indicator on the center console that
alerts you that the front passenger's front
airbag has been turned off.
kAn indicator on the instrument panel that
alerts you to a possib le problem with your
airbag system or seat belt tensioners.
lA rollover sensor that can detect if your
vehicle is about to roll over and signal the
control unit to deploy both side curtain
airbags.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 58 ページ ２０２２年６月２３日　木曜日　午後９時２８分

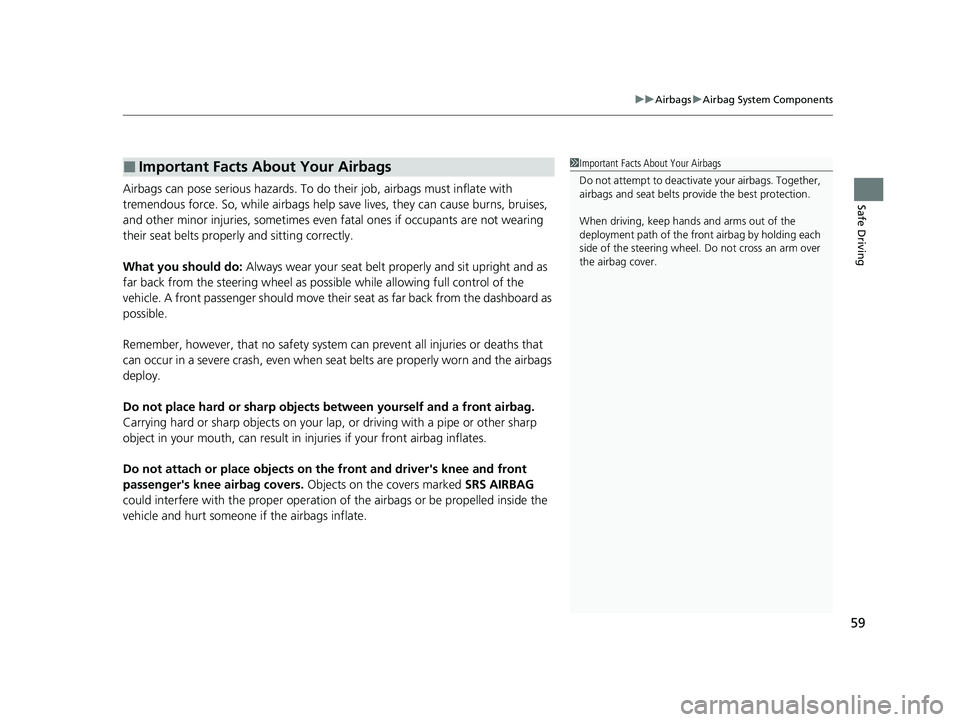

59
uuAirbags uAirbag System Components
Safe DrivingAirbags can pose serious hazards. To do their job, airbags must inflate with
tremendous force. So, while airbags help sa ve lives, they can cause burns, bruises,
and other minor injuries, sometimes even fatal ones if occupants are not wearing
their seat belts properl y and sitting correctly.
What you should do: Always wear your seat belt properly and sit upright and as
far back from the steering wheel as possi ble while allowing full control of the
vehicle. A front passenger should move their seat as far back from the dashboard as
possible.
Remember, however, that no safety system ca n prevent all injuries or deaths that
can occur in a severe crash, even when s eat belts are properly worn and the airbags
deploy.
Do not place hard or sharp objects between yourself and a front airbag.
Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp
object in your mouth, can result in in juries if your front airbag inflates.
Do not attach or place objects on the front and driver's knee and front
passenger's knee airbag covers. Objects on the covers marked SRS AIRBAG
could interfere with the proper operation of the airbags or be propelled inside the
vehicle and hurt someone if the airbags inflate.
■Important Facts About Your Airbags1 Important Facts About Your Airbags
Do not attempt to deactivate your airbags. Together,
airbags and seat belts pr ovide the best protection.
When driving, keep hands and arms out of the
deployment path of the fro nt airbag by holding each
side of the steering wheel. Do not cross an arm over
the airbag cover.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 59 ページ ２０２２年６月２３日　木曜日　午後９時２８分
