GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-16510661) - 2023 - CRC - 11/29/22
6 Keys, Doors, and Windows
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Key Operation . . . . . . . . . . . . . . . . . . . 7
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . 12
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . 14
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 14
Automatic Door Locks . . . . . . . . . . . . . . . . . . . 15
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 15
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Doors
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Transporting Items That CanCatch Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 18
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 18
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Immobilizer Operation . . . . . . . . . . . . . . . . . . 19
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 19
Power Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 20
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 20
Interior Mirrors
Interior Rearview Mirrors . . . . . . . . . . . . . . . 20
Manual Rearview Mirror . . . . . . . . . . . . . . . . 20
Automatic Dimming Rearview Mirror . . . 20
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Power Windows . . . . . . . . . . . . . . . . . . . . . . . . 21
Rear Windows . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with a
remote key is dangerous and children or
others could be seriously injured or killed.
They could operate the power windows
or other controls or make the vehicle
move. The windows will function with
the remote key in the vehicle, and
children or others could be caught in the
path of a closing window. Do not leave
children in a vehicle with a remote key.

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-16510661) - 2023 - CRC - 11/29/22
Climate Controls 143
Climate Controls
Climate Control Systems
Climate Control Systems . . . . . . . . . . . . . . . 143
Dual Automatic Climate ControlSystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Air Vents
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Maintenance
Passenger Compartment Air Filter . . . . . 148
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Climate Control Systems
The climate control system controls the heating, cooling, and ventilation in the vehicle.
1. Fan Control
2. MAX Defrost
3. Rear Window Defogger (If Equipped) or Heated Mirrors (If Equipped)
4. ON/OFF (Power)
5. A/C (Air Conditioning)
6. TEMP (Temperature Control)
7. Recirculation
8. Air Delivery Mode Controls9: Turn clockwise or counterclockwise to
increase or decrease the fan speed. Turn the
knob all the way counterclockwise to turn
the fan off.
TEMP : Turn clockwise or counterclockwise
to increase or decrease the temperature
inside the vehicle.
Air Delivery Mode Controls : Press
z,Y,
or
[to change the direction of the
airflow. Any combination of the three
controls can be selected. An indicator light
comes on in the selected mode button.

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-16510661) - 2023 - CRC - 11/29/22
144 Climate Controls
To change the current mode, select one or
more of the following. An indicator light will
illuminate:
z:Air is directed to the windshield,
outboard A/C outlets, and side window
outlets.
Y: Air is directed to the A/C outlets.
[:Air is directed to the floor outlets,
with some air directed to the windshield,
outboard A/C outlets, and side window
outlets.
0MAX : Air is directed to the windshield
and the fan runs at a higher speed if not
already above a medium fan speed. This
mode overrides the previous mode selected
and clears fog or frost from the windshield
more quickly. When the control is pressed
again, the system returns to the previous
mode setting and fan speed.
For best results, clear all snow and ice from
the windshield before defrosting.
@: Press to turn on recirculation. An
indicator light comes on. Air is recirculated
to quickly cool the inside of the vehicle.
It can also be used to help reduce outside
air and odors that enter the vehicle.
Avoid using recirculation for long periods of
time in cold or damp conditions. Using
recirculation in cold or damp conditions can
result in window fogging.
A/C : Press to turn the air conditioning on
or off. An indicator light comes on. If the
fan is turned off, the air conditioner will not
run. The A/C light will stay on even if the
outside temperatures are below freezing.
Rear Window Defogger/Heated Mirrors
1REAR : If equipped, press to turn the
rear window defogger on or off. An indicator
light comes on.
The rear window defogger only works when
the engine is running. The defogger can be
turned off by turning the vehicle off or to
accessory mode. If equipped with heated outside mirrors,
press
fto turn them on or off. See
Heated
Mirrors 020.
Caution
Using a razor blade or sharp object to
clear the inside rear window can damage
the rear window defogger. Repairs would
not be covered by the vehicle warranty.
Do not clear the inside rear window with
sharp objects.
Dual Automatic Climate Control
System
The heating, cooling, and ventilation in the
vehicle can be controlled with this system.

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-16510661) - 2023 - CRC - 11/29/22
Climate Controls 145
Uplevel Shown
1. Driver and Passenger Temperature Controls
2. Heated and Ventilated Seat Controls (If Equipped)
3. Air Delivery Mode Controls
4. ON/OFF (Power)
5. SYNC (Synchronized Temperature) 6. A/C (Air Conditioning)
7. Recirculation
8. Fan Control
9. Rear Window Defogger (If Equipped) or
Heated Mirrors (If Equipped)
10. MAX Defrost
11. AUTO (Automatic Operation)
Climate Control Display
1. Driver and Passenger Temperature Settings
2. Fan Control
3. Driver and Passenger Temperature Controls
4. Recirculation
5. A/C (Air Conditioning)
6. SYNC (Synchronized Temperature)
7. Air Delivery Mode Controls
8. Auto (Automatic Operation)
9. On/Off (Power)

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-16510661) - 2023 - CRC - 11/29/22
Climate Controls 147
.:Press to turn on recirculation. An
indicator light comes on. Air is recirculated
to quickly cool the inside of the vehicle.
It can also be used to help reduce outside
air and odors that enter the vehicle.
Avoid using recirculation for long periods of
time in cold or damp conditions. Using
recirculation in cold or damp conditions can
result in window fogging.
A/C : Press to turn the air conditioning on
or off. An indicator light comes on to show
that the air conditioning is enabled. If the
fan is turned off, the air conditioner will not
run. The A/C light will stay on even if the
outside temperatures are below freezing.
Rear Window Defogger
1REAR : If equipped, press to turn the
rear window defogger on or off. An indicator
light on the button comes on to show that
the rear window defogger is on.
The rear window defogger only works when
the engine is running.The defogger can be
turned off by turning the vehicle off or to
accessory mode.
If equipped with heated outside mirrors,
press
fto turn them on or off. See Heated
Mirrors 020.
Caution
Using a razor blade or sharp object to
clear the inside rear window can damage
the rear window defogger. Repairs would
not be covered by the vehicle warranty.
Do not clear the inside rear window with
sharp objects.
Remote Start Climate Control Operation :
If equipped with remote start, the climate
control system may run when the vehicle is
started remotely. If equipped with heated or
ventilated seats or a heated steering wheel,
these features may come on during a
remote start. See Remote Vehicle Start 012,
Heated and Ventilated Front Seats 031, and
Heated Steering Wheel 073.
Sensors
The solar sensor, on top of the instrument
panel near the windshield, monitors the
solar heat.
The climate control system uses the sensor
information to adjust the temperature, fan
speed, recirculation, and air delivery mode
for best comfort.
Do not cover the sensor; otherwise the
automatic climate control system may not
work properly.
Afterblow Feature
If equipped, under certain conditions, the
fan may stay on or may turn on and off
several times after you turn off and lock the
vehicle. This is normal.
Air Vents
Adjustable air vents are located at the
center and side of the instrument panel and
the rear of the console. Use the sliding
knobs on the air vents to change the
direction of the airflow. Slide the knob left
or right to open or close off the airflow.
Air vents blow warm air on the side
windows in cold weather. If Floor, Defog,
or Defrost modes are selected, a small
amount of air will come from the vents

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-16510661) - 2023 - CRC - 11/29/22
360 Index
Center ConsoleStorage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Charging System Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Check Engine Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Child Restraints Infants and Young Children . . . . . . . . . . . . . 52
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65, 67
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Child Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . 15
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Climate Control Systems . . . . . . . . . . . . . . . . . .143
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . 143
Dual Automatic . . . . . . . . . . . . . . . . . . . . . . . . 144
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . 79, 81
Collision Damage Repair . . . . . . . . . . . . . . . . . 344 Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
Connections Connected Services . . . . . . . . . . . . . . . . . . . . 355
Control Hill Descent . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Traction and Electronic Stability . . . . . . . 185
Control Light Hill Descent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . . 151
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 118
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Coolant Engine Temperature Gauge . . . . . . . . . . . . . 86
Engine Temperature Warning Light . . . . . 95
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143, 144
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Courtesy Transportation Program . . . . . . . . 343
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Adaptive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Customer Assistance
Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Text Telephone (TTY) Users . . . . . . . . . . . . 340
Customer Information Publications Ordering Information . . . . . 345
Customer Satisfaction Procedure . . . . . . . . . 338
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 344
Danger, Warning, and Caution . . . . . . . . . . . . . .2
Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Data Collection Infotainment System . . . . . . . . . . . . . . . . . . 349
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 348
Daytime Running Lamps (DRL) . . . . . . . . . . . .110
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . . 151
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 357
Differential, Limited-Slip . . . . . . . . . . . . . . . . . . 191
Disabled Vehicle Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . 150
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-16510661) - 2023 - CRC - 11/29/22

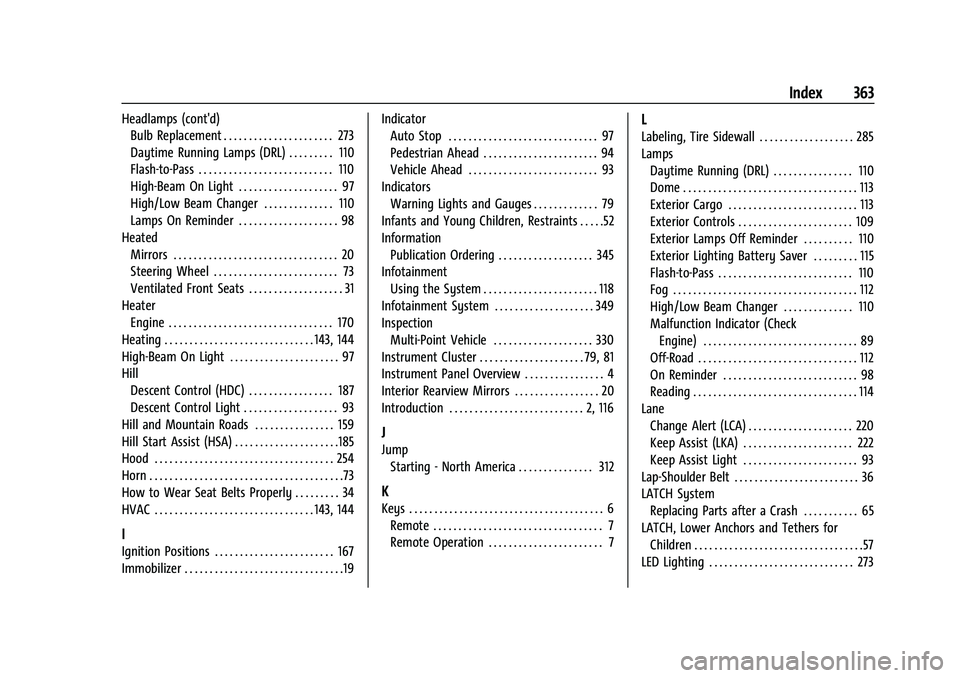

Index 363
Headlamps (cont'd)Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 273
Daytime Running Lamps (DRL) . . . . . . . . . 110
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
High-Beam On Light . . . . . . . . . . . . . . . . . . . . 97
High/Low Beam Changer . . . . . . . . . . . . . . 110
Lamps On Reminder . . . . . . . . . . . . . . . . . . . . 98
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 73
Ventilated Front Seats . . . . . . . . . . . . . . . . . . . 31
Heater
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143, 144
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . . 97
Hill Descent Control (HDC) . . . . . . . . . . . . . . . . . 187
Descent Control Light . . . . . . . . . . . . . . . . . . . 93
Hill and Mountain Roads . . . . . . . . . . . . . . . . 159
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . .185
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
How to Wear Seat Belts Properly . . . . . . . . . 34
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143, 144
I
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 167
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Indicator
Auto Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Pedestrian Ahead . . . . . . . . . . . . . . . . . . . . . . . 94
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Indicators Warning Lights and Gauges . . . . . . . . . . . . . 79
Infants and Young Children, Restraints . . . . .52
Information
Publication Ordering . . . . . . . . . . . . . . . . . . . 345
Infotainment Using the System . . . . . . . . . . . . . . . . . . . . . . . 118
Infotainment System . . . . . . . . . . . . . . . . . . . . 349
Inspection Multi-Point Vehicle . . . . . . . . . . . . . . . . . . . . 330
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . 79, 81
Instrument Panel Overview . . . . . . . . . . . . . . . . 4
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . 20
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 116
J
Jump Starting - North America . . . . . . . . . . . . . . . 312
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Operation . . . . . . . . . . . . . . . . . . . . . . . 7
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 285
LampsDaytime Running (DRL) . . . . . . . . . . . . . . . . 110
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Exterior Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . 109
Exterior Lamps Off Reminder . . . . . . . . . . 110
Exterior Lighting Battery Saver . . . . . . . . . 115
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Fog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
High/Low Beam Changer . . . . . . . . . . . . . . 110
Malfunction Indicator (CheckEngine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Lane Change Alert (LCA) . . . . . . . . . . . . . . . . . . . . . 220
Keep Assist (LKA) . . . . . . . . . . . . . . . . . . . . . . 222
Keep Assist Light . . . . . . . . . . . . . . . . . . . . . . . 93
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 36
LATCH System Replacing Parts after a Crash . . . . . . . . . . . 65
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
