4-14
Instrument Cluster
Electric Power Steering (EPS)
warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The electric powering steering
warning light illuminates for about 3
seconds and then goes off.

[Whenever there is a malfunction with
the electric power steering.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Master warning light
This warning light illuminates:
When there is a malfunction in operation
in any of the following systems:
- Forward Collision-Avoidance Assist
malfunction (if equipped)
- Forward Collision-Avoidance Assist
radar blocked (if equipped)
- Blind-Spot Collision Warning
malfunction (if equipped)
- Blind-Spot Collision Warning radar
blocked (if equipped)
- LED headlamp malfunction
(if equipped)
- High Beam Assist malfunction
(if equipped)
- Smart Cruise Control malfunction (if
equipped)
- Smart Cruise Control radar blocked (if
equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction
To identify the details of the warning,
look at the LCD display.
Electronic Parking Brake
(EPB) warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The EPB warning light illuminates
for about 3 seconds and then goes
off.

[Whenever there is a malfunction with
EPB.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Information
The Electronic Parking Brake (EPB)
warning light may illuminate when
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
ESC is not working properly. This does
not indicate malfunction of EPB.

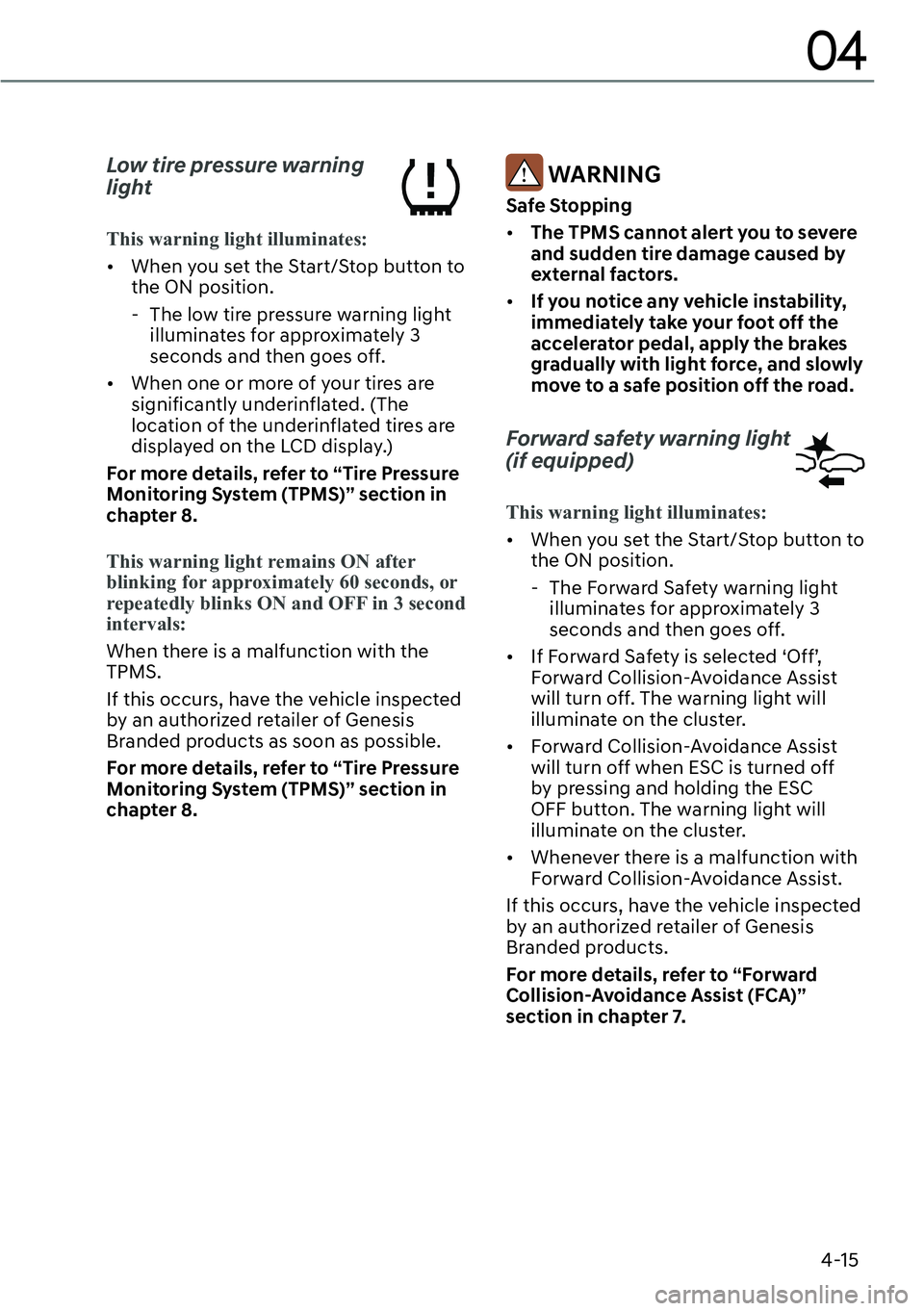

4-15
04
Low tire pressure warning
light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The low tire pressure warning light
illuminates for approximately 3
seconds and then goes off.

[When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires are
displayed on the LCD display.)
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains ON after
blinking for approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products as soon as possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping

[The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.

[If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
Forward safety warning light
(if equipped)
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The Forward Safety warning light
illuminates for approximately 3
seconds and then goes off.

[If Forward Safety is selected ‘Off’,
Forward Collision-Avoidance Assist
will turn off. The warning light will
illuminate on the cluster.

[Forward Collision-Avoidance Assist
will turn off when ESC is turned off
by pressing and holding the ESC
OFF button. The warning light will
illuminate on the cluster.

[Whenever there is a malfunction with
Forward Collision-Avoidance Assist.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)”
section in chapter 7.

4-16
Instrument Cluster
Lane safety indicator light
(if equipped)
This indicator light illuminates:

[[Green] When Lane Keeping Assist
operating conditions are satisfied.

[[Gray] When Lane Keeping Assist
operating conditions are not satisfied.

[[Yellow] Whenever there is a
malfunction with Lane Keeping Assist.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
For more details, refer to “Lane Keeping
Assist (LKA)” section in chapter 7.
LED headlight warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The LED headlight warning light
illuminates for approximately 3
seconds and then goes off.

[Whenever there is a malfunction with
the LED headlight.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
This warning light blinks:
Whenever there is a malfunction with a
LED headlight related part.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
NOTICE
Continuous driving with the LED
Headlight warning light on or blinking
can reduce LED headlight life.

4-18
Instrument Cluster
Immobilizer indicator light
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the vehicle with the Start/Stop button
in the ACC or ON position.
- Once the smart key is detected, you
can start the vehicle.
- The indicator light goes off after
starting the vehicle.
This indicator light blinks for a few
seconds:
When the smart key is not in the vehicle.
- If the smart key is not detected, you
cannot start the vehicle.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
Start/Stop button is ON, but the vehicle
cannot detect the smart key.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
This indicator light blinks:
Whenever there is a malfunction with the
immobilizer system.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Turn signal indicator light
This indicator light blinks:
When you operate the turn signal
indicator stalk.
If any of the following occur, there may
be a malfunction with the turn signal
system.
- The turn signal indicator light
illuminates but does not blink
- The turn signal indicator light blinks
rapidly
- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
the vehicle inspected by an authorized
retailer of Genesis Branded products.

4-20
Instrument Cluster
LCD Display Messages
Shift to P
This message is displayed if you try to
turn off the vehicle without the gear in
the P (Park) position.
If this occurs, the Start/Stop button turns
to the ACC position.
Vehicle is in N. Press START button
and shift to P (and turn vehicle off)
This message is displayed if you try to
turn off the vehicle with the gear in N
(Neutral).
To turn off the vehicle:
1. Press the Start/Stop button. The
button will change to the ON position.
2. Press the P button to shift to P (Park).
3. Press the Start/Stop button again,
then the vehicle will turn off.
Low key battery
This message is displayed if the battery
of the smart key is discharged while
changing the Start/Stop button to the
OFF position.
Press START button while turning
wheel (if equipped)
This message is displayed if the steering
wheel does not unlock normally when
the Start/Stop button is pressed.
You should press the Start/Stop button
while turning the steering wheel right
and left.
Low washer fluid (if equipped)
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Check steering wheel lock system
(if equipped)
This message is displayed if the steering
wheel does not lock normally while the
Start/Stop button is pressed to the OFF
position.
Press brake pedal to start vehicle
This message is displayed if the Start/
Stop button changes to the ACC position
twice by pressing the button repeatedly
without depressing the brake pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Start/Stop button.
Key not in vehicle
This message is displayed if the smart
key is not in the vehicle when you leave
the vehicle with the Start/Stop button in
the ON or Start position.
Always turn off the vehicle before leaving
your vehicle.
Key not detected
This message is displayed if the smart
key is not detected when you press the
Start/Stop button.
Press START button again
This message is displayed if you were
unable to start the vehicle when the
Start/Stop button was pressed.
If this occurs, attempt to start the vehicle
by pressing the Start/Stop button again.
If the warning message appears each
time you press the Start/Stop button,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

4-21
04
Place the smart key in the
emergency start slot and press the
start button
This message is displayed if you press
the Start/Stop button while the warning
message “Key not detected” is displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse
This message is displayed if the brake
switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the vehicle.
If that is not possible, you can start the
vehicle by pressing the Start/Stop button
for 10 seconds in the ACC position.
Shift to P to start vehicle
This message is displayed if you try to
start the vehicle in any other position
except P (Park).
Information
You can start the vehicle with the gear in
N (Neutral). But, for your safety, start the
vehicle with the gear shifted to P (Park).
Battery discharging due to external
/additional electrical devices
This message is displayed if the 12V
battery voltage is weak due to any
non-factory electrical accessories (ex.
dashboard camera) while parking. Be
careful that the battery is not discharged.
If the message appears after removing
the non-factory electrical accessories,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Door, Hood, Liftgate open indicator
OJWEV041002
This warning is displayed if any door or
hood or liftgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/hood/liftgate are
fully closed.

4-27
04
EV Battery Overheated! Stop vehicle
ORG3EVQ011050L
This warning message is displayed to
protect battery and electric vehicle
system when the high voltage battery
temperature is too high.
Turn off the START/STOP button and
stop the vehicle so that the battery
temperature decreases.
Power limited
ORG3EVQ011003L
This Indicator light illuminates:

[For the safety of high-powered
components of electric vehicles, the
power is limited due to the following
reasons. (Unless both Service Warning
Light and Power Down Indicator Light
illuminate at the same time, it is not a
failure.)
- The high voltage battery level is too
low or voltage is decreasing
- The temperature of the high voltage
battery is too high or too low
- The temperature of the motor is
high
NOTICE

[When this warning message is
displayed, do not start or accelerate
the vehicle suddenly.

[Your vehicle may not be driven,
or may roll back on a slope with
the indicator light ON due to the
limitation of the vehicle power.

4-32
Instrument Cluster
OJWEV041027E
Accumulated info
This display shows the accumulated trip
distance, total driving time and average
energy consumption.
The information is accumulated starting
from the last reset.
To manually reset the information,
triple press the (
) button when
viewing the Accumulated driving info.
The trip distance, the average energy
consumption, and total driving time will
reset simultaneously.
The accumulated driving information
will continue to be counted while the
vehicle is in the ready (
) mode (for
example, when the vehicle is in traffic or
stopped at a stop light).
Information
The vehicle must be driven for a minimum
of 300 meters (0.19 miles) since the last
ignition key cycle before the accumulated
driving information is recalculated.
OJWEV041033L
Tire pressure / Tyre pressure
The tire pressure of each tire is displayed.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
