2023 GENESIS GV60 ESP

6-40
Driving Your Vehicle
Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your brake
pressure and do not try to pump your
brakes.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in the
brake pedal. This is normal and it means
your ABS is active.
ABS does not reduce the time or distance
it takes to stop the vehicle.
Always maintain a safe distance from the
vehicle in front of you.
ABS will not prevent a skid that results
from sudden changes in direction, such
as trying to take a corner too fast or
making a sudden lane change. Always
drive at a safe speed for the road and
weather conditions.
ABS cannot prevent a loss of stability.
Always steer moderately when braking
hard. Severe or sharp steering wheel
movement can still cause your vehicle to
veer into oncoming traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake system
may result in a longer stopping distance
than for vehicles equipped with a
conventional brake system.
The ABS (
) warning light will stay on
for several seconds after the Start/Stop
button is in the ON position.
During that time, ABS will go through
self-diagnosis and the light will go off if
everything is normal. If the light stays on,
you may have a problem with your ABS.
Contact an authorized retailer of Genesis
Branded products as soon as possible.
WARNING
If the ABS () warning light is on and
stays on, you may have a problem with
the ABS. Your power brakes will work
normally. To reduce the risk of serious
injury or death, contact your authorized
retailer of Genesis Branded products as
soon as possible.
NOTICE
When you drive on a road having poor
traction, such as an icy road, and apply
your brakes continuously, ABS will be
active continuously and the ABS (
)
warning light may illuminate. Pull your
vehicle over to a safe place and turn the
vehicle off.
Restart the vehicle. If the ABS warning
light is off, then your ABS system is
normal.
Otherwise, you may have a problem
with your ABS system. Contact an
authorized retailer of Genesis Branded
products as soon as possible.

6-41
06
Information
When you jump start your vehicle because
of a drained battery, the ABS ()
warning light may turn on at the same
time. This happens because of the low
battery voltage. It does not mean your
ABS is malfunctioning. Have the battery
recharged before driving the vehicle.
Electronic Stability Control (ESC)
OJWEV061035
Electronic Stability Control helps to
stabilize the vehicle during cornering
maneuvers.
ESC checks where you are steering and
where the vehicle is actually going. ESC
applies braking pressure to any one of
the vehicle's brakes and intervenes in the
electric vehicle control system to assist
the driver with keeping the vehicle on the
intended path. It is not a substitute for
safe driving practices. Always adjust your
speed and driving to the road conditions.
WARNING
Never drive too fast for the road
conditions when cornering. ESC will not
prevent accidents.
Excessive speed in turns, abrupt
maneuvers, and hydroplaning on wet
surfaces can result in severe accidents.
ESC operation
ESC ON condition
When the Start/Stop button is in the ON
position, ESC and the ESC OFF indicator
lights illuminate for approximately three
seconds. After both lights go off, ESC is
enabled.
When operating
When ESC is in operation, the
ESC indicator light blinks:

[When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in
the brake pedal. This is normal and it
means your ESC is active.

[When ESC activates, the vehicle may
not respond to the accelerator as it
does under routine conditions.

[If Smart Cruise Control (SCC) was
in use when ESC activates, Smart
Cruise Control (SCC) automatically
disengages. Smart Cruise Control
(SCC) can be reengaged when the
road conditions allow. See “Smart
Cruise Control (SCC)” section in
chapter 7 (if equipped).

6-44
Driving Your Vehicle
Vehicle Stability Management
(VSM)
Vehicle Stability Management is a
function of the Electronic Stability
Control (ESC) system. It helps the vehicle
stay stable when accelerating or braking
suddenly on wet, slippery and rough
roads where traction over the four tires
can suddenly become uneven.
WARNING
Take the following precautions when
using Vehicle Stability Management:

[ALWAYS check the speed and the
distance to the vehicle ahead. VSM
is not a substitute for safe driving
practices.

[Never drive too fast for the road
conditions. VSM will not prevent
accidents. Excessive speed in bad
weather, on slippery and uneven
roads can result in severe accidents.
VSM operation
When operating
When you apply your brakes under
conditions which may activate ESC, you
may hear sounds from the brakes, or feel
a corresponding sensation in the brake
pedal. This is normal and it means your
VSM is active.
Information
VSM does not operate when:

[Driving on a banked road such as
gradient or incline.

[Driving in reverse.

[The ESC OFF indicator light is on.

[The EPS (Electric power steering)
warning light (
) is on or blinks.

6-47
06
When All Wheel Drive (AWD) is
activated, driving forces are distributed
appropriately to front and rear wheels.
It could improve driving performance by
maximizing the driving force of vehicles
on severe road conditions such as steep
hills, unpaved, slippery, etc.
Advantage of electronic AWD
1. Improvement of straight stability
2. Improvement of driving performance
on curve
3. Secure stability on severe condition
such as wet and sandy roads.
4. Improvement of energy efficiency
from driving mode automatic control.
Information
AWD vehicles could change the
engagement status of the motor according
to the situation required. Auto changing
the driving mode(2WD/AWD)helps
improve energy efficiency and driving
stability.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[Avoid high speeds when cornering or
turning.

[Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[The risk of a rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.
NOTICE

[Do not drive in water if the level
is higher than the bottom of the
vehicle.

[Check your brake condition once
you are out of mud or water. Depress
the brake pedal several times as you
move slowly until you feel normal
braking return.

[Shorten your scheduled
maintenance interval if you drive in
off-road conditions such as sand,
mud or water (see "Maintenance
Under Severe Usage Conditions"
section in chapter 9).

[Always wash your vehicle thoroughly
after off road use, especially the
bottom of the vehicle.

[Be sure to equip the vehicle with four
tires of the same size and type.

[Make sure that a full time AWD
vehicle is towed by a flat bed tow
truck.
$//:+((/'5,9(

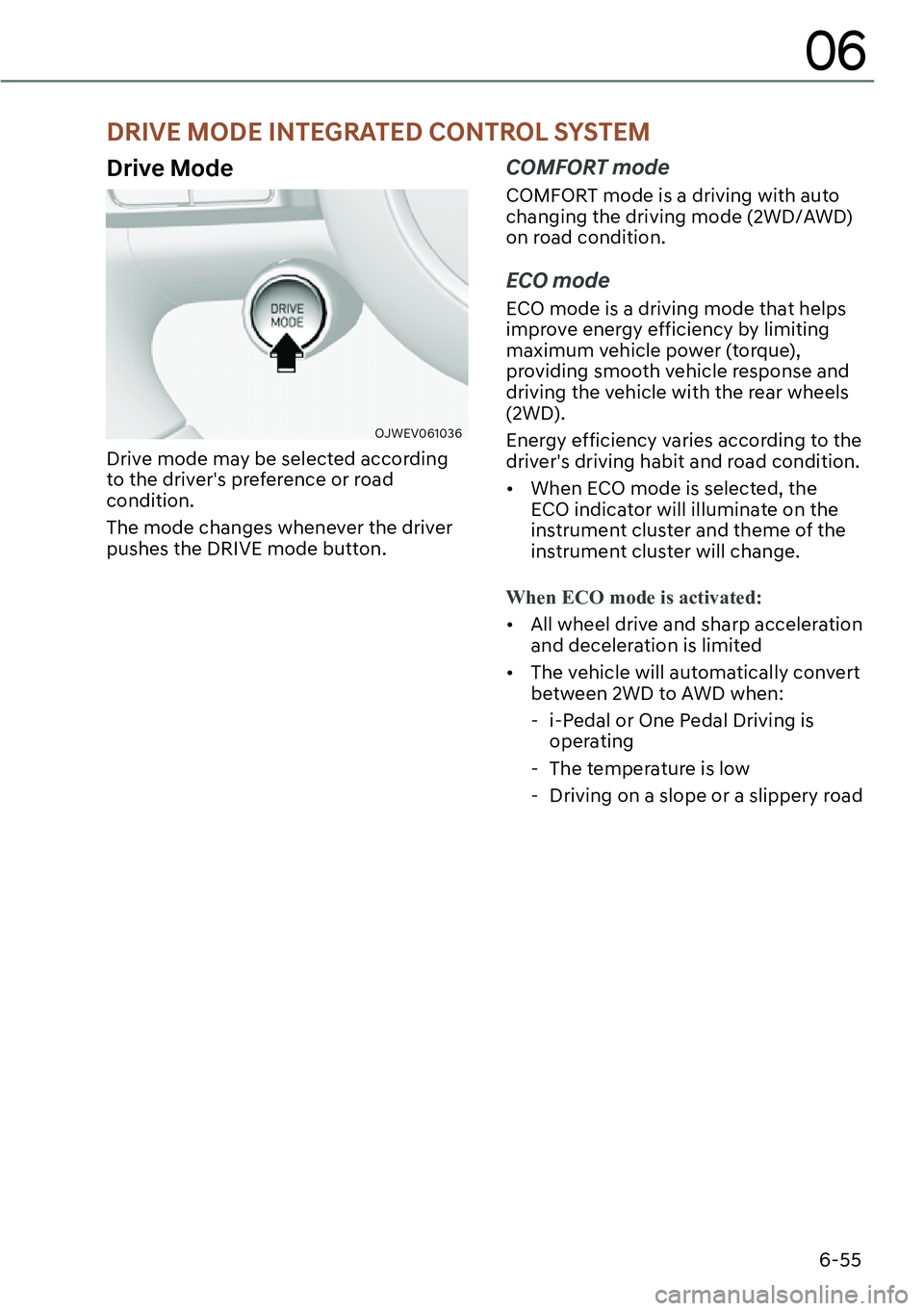

6-55
06
Drive Mode
OJWEV061036
Drive mode may be selected according
to the driver's preference or road
condition.
The mode changes whenever the driver
pushes the DRIVE mode button.
COMFORT mode
COMFORT mode is a driving with auto
changing the driving mode (2WD/AWD)
on road condition.
ECO mode
ECO mode is a driving mode that helps
improve energy efficiency by limiting
maximum vehicle power (torque),
providing smooth vehicle response and
driving the vehicle with the rear wheels
(2WD).
Energy efficiency varies according to the
driver's driving habit and road condition.

[When ECO mode is selected, the
ECO indicator will illuminate on the
instrument cluster and theme of the
instrument cluster will change.
When ECO mode is activated:

[All wheel drive and sharp acceleration
and deceleration is limited

[The vehicle will automatically convert
between 2WD to AWD when:
- i-Pedal or One Pedal Driving is
operating
- The temperature is low
- Driving on a slope or a slippery road
DRIVE MODE INTEGRATED CONTROL SYSTEM

6-56
Driving Your Vehicle
SPORT mode
SPORT mode is a driving mode that
provides sporty but firm riding by making
the motor response more quickly,
making the steering wheel heavier and
driving the vehicle with all four wheels
(AWD).
In SPORT mode, the energy efficiency
may decrease.

[When SPORT mode is selected, the
SPORT indicator will illuminate on the
instrument cluster and theme of the
instrument cluster will change.

[Whenever the vehicle is restarted,
the drive mode will revert back to
COMFORT mode. If SPORT mode is
required, re-select SPORT mode.
SNOW mode
SNOW mode is a driving mode improving
driving performance by changing
the engagement status of the motor
according to the situation required. Auto
changing the driving mode(2WD/AWD)
helps improve driving stability.

[Press and hold the drive mode button
to select SNOW mode.

[When SNOW mode is selected, the
SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.

[When SNOW mode is activated, the
driving power is distributed to four
wheels automatically, increasing the
stability of the vehicle.
NOTICE

[Depress the accelerator pedal softly
on the snow and the ice.

[Keep the distance from the vehicle in
the front.

[Prevent rapid acceleration,
deceleration and steering control.
Abrupt driving on the snow may
cause the accident.

6-57
06
Drive Modes Characteristic
The characteristic of each components varies according to which drive mode is
selected.
Drive mode SNOW COMFORT ECO SPORTMY DRIVE
MODE
CharacteristicsSnow
drivingCOMFORT
driving modeHigh electric
energy
efficiency
modeSporty
driving modeSelected
Button
activationPress more
than1 sec.Press Press PressPress more
than 1 sec.
Indicator on
the clusterSNOW - ECO SPORT MY
Climate
system controlCOMFORT COMFORTECO
(ECO/
COMFORT)
*1COMFORT COMFORT
Speed Limit - - - - -
Regenerative
braking level0~1 0~3
BRAKE MODE COMFORTCOMFORT/
SPORT
*1COMFORTCOMFORT/
SPORT *1COMFORT/
SPORT *1
*1 :
It is possible to set the driving condition for each drive mode, at the drive mode setting in
Infotainment system, For more information, refer to the separately supplied manual.
ÃYou can reset CUSTOM mode from the Settings menu in the infotainment system
screen.
-6HWXS

6-59
06
DRIFT mode is a driving mode that
automatically activates rear wheels(2WD)
and brakes or Electronic Limited Slip
Differential(e-LSD) to easily achieve drift
with a small steering wheel angle and
accelerator pedal.
To Activate DRIFT Mode
Pull and hold the left and right paddle
shift levers for more than 3 seconds at
the same time to switch to drift mode.
When activated DRIFT mode, the
message "DRIFT mode activated" and
the DRIFT indicator will illuminate on the
instrument panel.
To activate the DRIFT mode, satisfy all of
the following conditions:
- Gear in P (Park)
- The ESC OFF is in state 2
- The drive mode is SPORT mode
- Depress the brake pedal

DRIFT Mode Disabled
The DRIFT mode will be cancelled or
limited when:
- If the driving mode is changed to a
mode other than SPORT during DRIFT
mode operation
- The ESC OFF stage 2 is released
- When pull and hold the left and right
paddle shift levers for more than 3
seconds at the same times during
DRIFT mode operation
- The power down warning
(
) indicator or service warning()
indicator is illuminate
- The ESC or e-LSD indicator is
illuminate
WARNING

[The driver should hold the
responsibility to safely drive and
control the vehicle when using DRIFT
mode.

[Use the drift mode in wide and flat
road surface without pedestrians,
vehicles or obstacles for the safety of
vehicles and pedestrians.

[Always look ahead cautiously to
prevent unexpected and sudden
situations from occurring.

[If you drive in DRIFT mode
continuous, it can cause premature
wear or damage to drive shafts and
brake parts.
'5,)702'(
