2023 GENESIS GV60 key

7-171
07

[The vehicle moves 22 ft. (7 m) while
the smart key is pressed with Remote
Operation function (maximum travel
distance per button press)
When Remote Operation function is
paused, the vehicle will stop. If the
condition that made the function to
pause disappears, the function may
operate again.
The function will cancel in the following
conditions when:

[The steering wheel is steered

[The gear is shifted while the vehicle is
moving

[Operating EPB while the vehicle is
moving

[The hood is open

[The brake pedal or accelerator pedal
is depressed when all the doors are
closed

[The smart key is outside the vehicle
when the brake pedal is depressed
while the driver's door is open

[Rapid acceleration occurs

[Vehicle skid occurs

[The wheel is stuck by an obstacle and
cannot move
[Approximately 3 minutes and 50
seconds have past after Remote
Operation function has started to
operate

[The slope of the road exceeds the
operational range

[The function is paused for more than
1 minute

[The total travel distance of the vehicle
has exceeded 45 ft. (14 m) after
Remote Operation function operation

[The steering wheel, gearshift, braking,
and drive controls are not working
properly

[There is a problem with the smart key
or the smart key battery is low

[ABS, TCS or ESC system operates due
to slippery road conditions

[The alarm of the Theft Alarm System
sounds

[The charging door is open
When Remote Operation function is
cancelled, the vehicle will automatically
stop, shift the gear to P (Park) and
engage EPB (Electronic Parking Brake).

7-176
Driver Assistance System

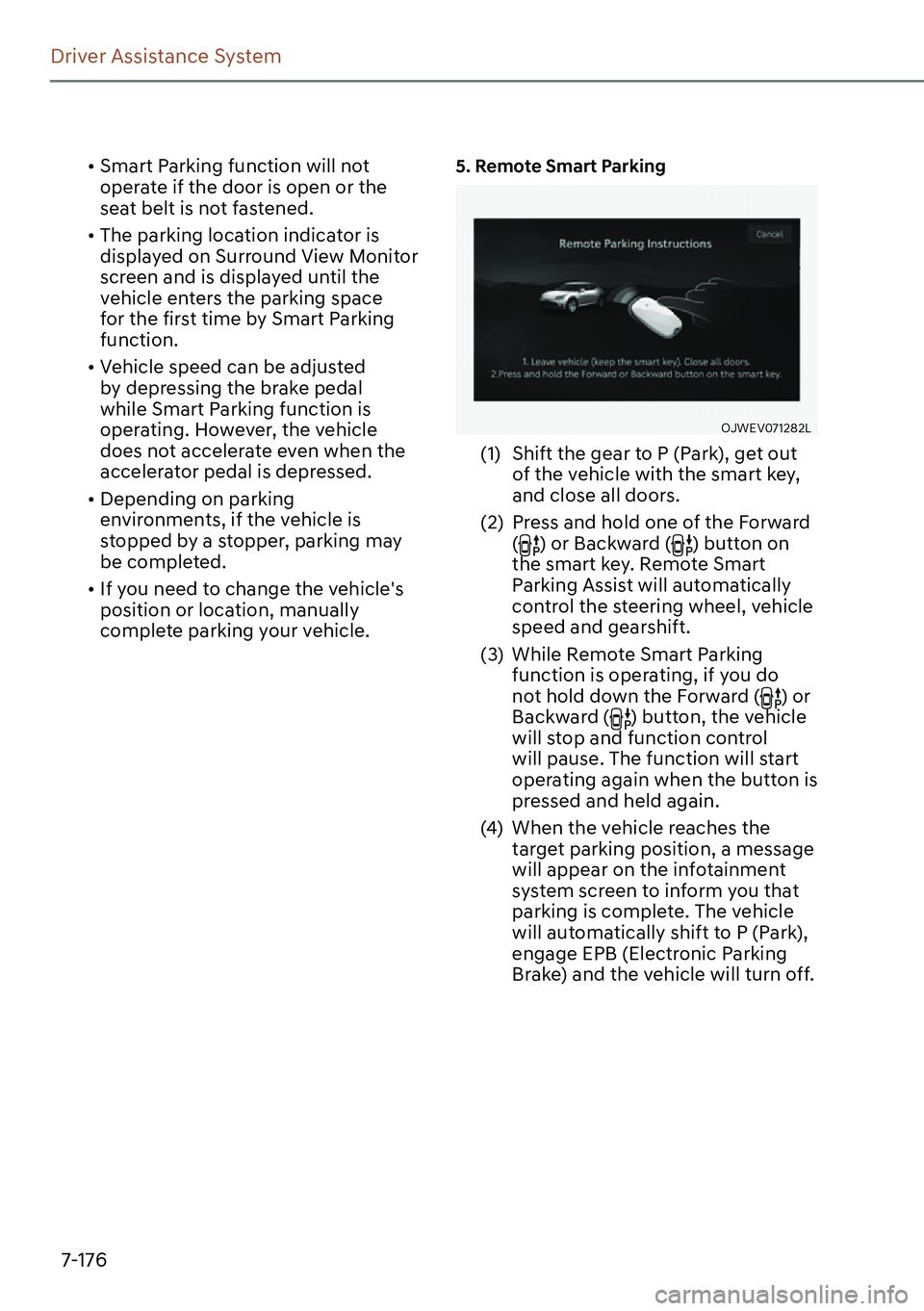

[Smart Parking function will not
operate if the door is open or the
seat belt is not fastened.

[The parking location indicator is
displayed on Surround View Monitor
screen and is displayed until the
vehicle enters the parking space
for the first time by Smart Parking
function.

[Vehicle speed can be adjusted
by depressing the brake pedal
while Smart Parking function is
operating. However, the vehicle
does not accelerate even when the
accelerator pedal is depressed.

[Depending on parking
environments, if the vehicle is
stopped by a stopper, parking may
be completed.

[If you need to change the vehicle's
position or location, manually
complete parking your vehicle.5HPRWH6PDUW3DUNLQJ
OJWEV071282L
(1) Shift the gear to P (Park), get out
of the vehicle with the smart key,
and close all doors.
(2) Press and hold one of the Forward
(
) or Backward () button on
the smart key. Remote Smart
Parking Assist will automatically
control the steering wheel, vehicle
speed and gearshift.
(3) While Remote Smart Parking
function is operating, if you do
not hold down the Forward (
) or
Backward () button, the vehicle
will stop and function control
will pause. The function will start
operating again when the button is
pressed and held again.
(4) When the vehicle reaches the
target parking position, a message
will appear on the infotainment
system screen to inform you that
parking is complete. The vehicle
will automatically shift to P (Park),
engage EPB (Electronic Parking
Brake) and the vehicle will turn off.

7-177
07

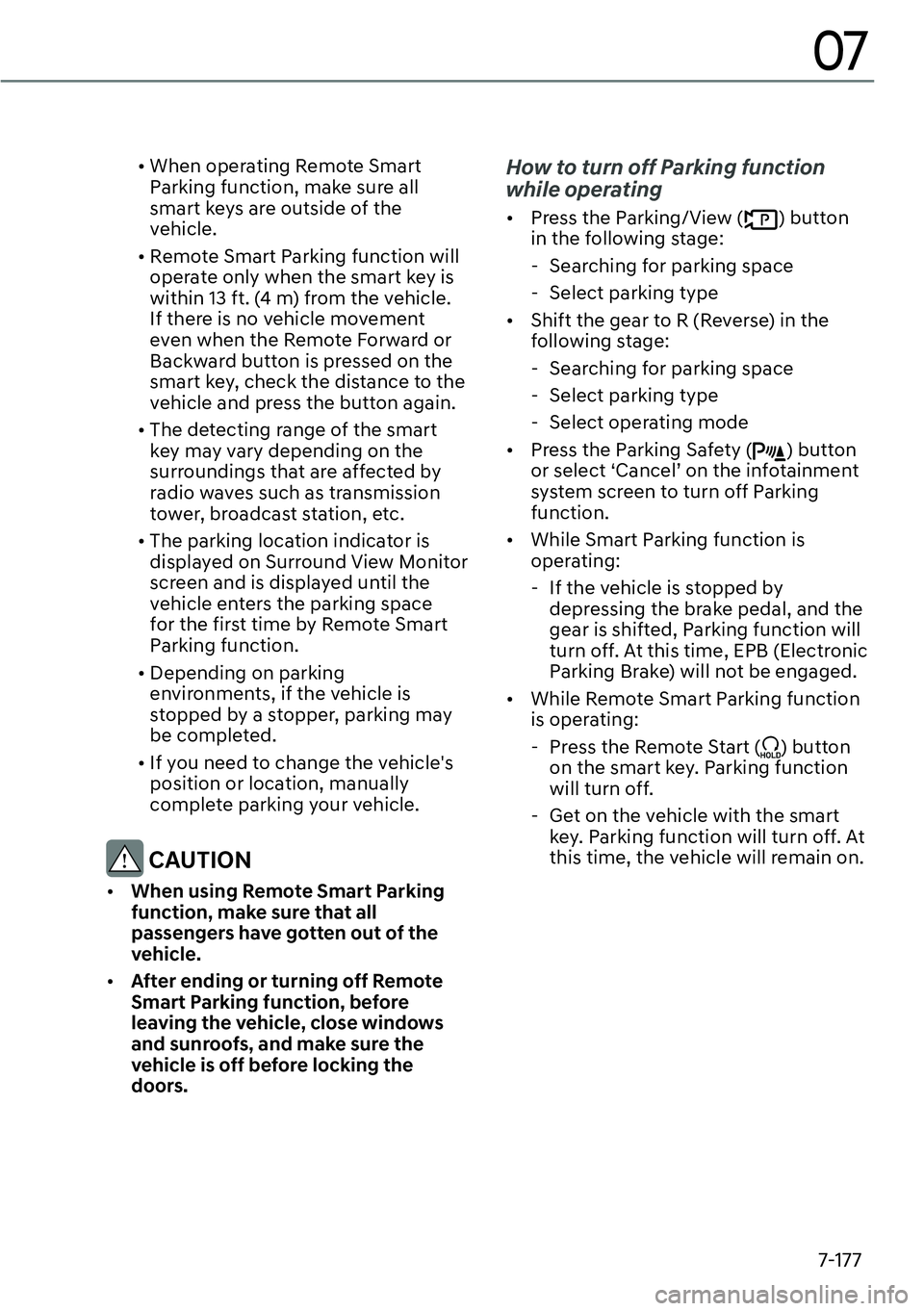

[When operating Remote Smart
Parking function, make sure all
smart keys are outside of the
vehicle.

[Remote Smart Parking function will
operate only when the smart key is
within 13 ft. (4 m) from the vehicle.
If there is no vehicle movement
even when the Remote Forward or
Backward button is pressed on the
smart key, check the distance to the
vehicle and press the button again.

[The detecting range of the smart
key may vary depending on the
surroundings that are affected by
radio waves such as transmission
tower, broadcast station, etc.

[The parking location indicator is
displayed on Surround View Monitor
screen and is displayed until the
vehicle enters the parking space
for the first time by Remote Smart
Parking function.

[Depending on parking
environments, if the vehicle is
stopped by a stopper, parking may
be completed.

[If you need to change the vehicle's
position or location, manually
complete parking your vehicle.
CAUTION

[When using Remote Smart Parking
IXQFWLRQPDNHVXUHWKDWDOO
SDVVHQJHUVKDYHJRWWHQRXWRIWKH
YHKLFOH

[After ending or turning off Remote
6PDUW3DUNLQJIXQFWLRQEHIRUH
OHDYLQJWKHYHKLFOHFORVHZLQGRZV
DQGVXQURRIVDQGPDNHVXUHWKH
YHKLFOHLVRIIEHIRUHORFNLQJWKH
GRRUV
How to turn off Parking function
while operating

[Press the Parking/View () button
in the following stage:
- Searching for parking space
- Select parking type

[Shift the gear to R (Reverse) in the
following stage:
- Searching for parking space
- Select parking type
- Select operating mode

[Press the Parking Safety (
) button
or select ‘Cancel’ on the infotainment
system screen to turn off Parking
function.

[While Smart Parking function is
operating:
- If the vehicle is stopped by
depressing the brake pedal, and the
gear is shifted, Parking function will
turn off. At this time, EPB (Electronic
Parking Brake) will not be engaged.

[While Remote Smart Parking function
is operating:
- Press the Remote Start (
) button
on the smart key. Parking function
will turn off.
- Get on the vehicle with the smart
key. Parking function will turn off. At
this time, the vehicle will remain on.

7-178
Driver Assistance System
Parking function operation status

[Smart Parking function
Operation status Turn signal
Under controlThe turn signal of the parking direction blinks until the first reverse
is complete.

[Smart Parking function
Operation status6PDUWNH\/(' +D]DUGZDUQLQJOLJKWTurn signal
Under controlGreen LED
continuously blinks-The turn signal of
the parking direction
blinks until the first
reverse is complete.
PauseRed LED
continuously blinksBlinks -
OffRed LED illuminates
for 4 seconds and
then turns offBlinks 3 times and
turns off-
CompleteGreen LED
illuminates for 4
seconds and then
turns offBlinks 1 time and
turns off-
ÃOperation status the hazard warning light and the turn signal light may not be
applicable based on the regulation of your country.
ÃIf the smart key is not within the operating range from the vehicle (approximately 13
ft. (4m)), the smart key LED will not illuminate or blink. Use the smart key within the
operating range.

7-179
07
The function will pause in the
following conditions when:

[Smart Parking
- There is a pedestrian, animal or
object in the direction the vehicle is
moving
- The door or liftgate is open
- The driver’s seat belt is not fastened
- Blind-Spot Collision-Avoidance
Assist or Rear-Cross Traffic Collision
Assist operates while the vehicle
is being controlled in the reverse
direction
- The Parking/View (
) button is
not continuously pressed
- The vehicle is stopped by
depressing the brake pedal

[Remote Smart Parking
- There is a pedestrian, animal or
object in the direction the vehicle is
moving
- The door or liftgate is open
- The Forward (
) or Backward ()
button is not continuously pressed
- Simultaneously pressing multiple
buttons on a smart key
- The smart key is not operated within
13 ft. (4 m) from the vehicle
- Button of another smart key is
pressed in addition to the operating
smart key
- Blind-Spot Collision-Avoidance
Assist or Rear-Cross Traffic Collision
Assist operates while the vehicle
is being controlled in the reverse
direction
When Parking function is paused, the
vehicle will automatically stop. If the
condition that made the function to
pause disappears, the function may
operate again.
The function will cancel in the
following conditions when:

[Smart Parking
- The steering wheel is steered
- The gear is shifted while the vehicle
is moving
- Operating EPB while the vehicle is
moving
- The hood is open
- The driver opens the door with the
seatbelt unfastened
- Rapid acceleration occurs
- Vehicle skid occurs
- The wheel is stuck by an obstacle
and cannot move
- There are pedestrians, animals or
objects at the front and rear of the
vehicle at the same time
- Approximately 3 minutes and 50
seconds have past after Smart
Parking function has started to
operate
- The slope of the road exceeds the
operational range
- The function is paused for more
than 1 minute
- The steering wheel, gearshift,
braking, and drive controls are not
working properly
- ABS, TCS or ESC system operates
due to slippery road conditions
- The charging door is open
When Smart Parking function is
cancelled, the vehicle will automatically
stop, shift the gear to P (Park) and
engage EPB (Electronic Parking Brake).

7-180
Driver Assistance System

[Remote Smart Parking
- The steering wheel is steered
- The gear is shifted
- Operating EPB while the vehicle is
moving
- The hood is open
- The brake pedal or accelerator
pedal is depressed when all the
doors are closed
- The smart key is outside the vehicle
when the brake pedal is depressed
while the driver's door is open.
- Rapid acceleration occurs
- Vehicle skid occurs
- The wheel is stuck by an obstacle
and cannot move
- There are detected pedestrians,
animals or objects at the front and
rear of the vehicle at the same time
- Approximately 3 minutes and 50
seconds have past after Remote
Smart Parking function has started
to operate
- The slope of the road exceeds the
operational range
- The function is paused for more
than 1 minute
- The steering wheel, gearshift,
braking, and drive controls are not
working properly
- There is a problem with the smart
key or the smart key battery is low
- ABS, TCS or ESC system operates
due to slippery road conditions
- The alarm of the Theft Alarm System
sounds
- The charging door is open
When Remote Smart Parking function is
cancelled, the vehicle will automatically
stop, shift the gear to P (Park) and
engage EPB (Electronic Parking Brake). Smart Exit
Operating order
Smart Exit function operates in the
following order:
1. Getting ready for exit
2. Checking space
3. Select exit direction
4. Smart Exit
*HWWLQJUHDG\IRUH[LW
OJWEV071102
(1) With the vehicle turned on,
depress the brake pedal and shift
the gear to P (Park) or N (Neutral).
(2) Press and hold the Parking/View
(
) button to turn on Remote
Smart Parking Assist.

['Agree' must be selected on the
infotainment system screen and the
infotainment system has to operate
properly to use Smart Smart Exit
function.

[Drive below 3 mph (5 km/h) with
the vehicle on and shift the gear to
N (Neutral), Smart Exit function can
be used.

[If the function is turned on again
after parallel parking is completed
by Remote Smart Parking Assist,
Smart Exit function can be used.

7-185
07
OJWEV071288L
Remote Smart Parking Assist standby
When ‘Parking Assist Conditions Not
Met’ message appears, when Parking/
View (
) button has been pressed and
held, Remote Smart Parking Assist is in
standby. After a while, press and hold the
Parking/View (
) button again to see if
Remote Smart Parking Assist works.
The message appears even when the
smart key's battery is low. Check the
smart key battery level.
It does not work even when the EV
mode is in the Utility mode. For related
information refer to Utility Mode in
‘Electric vehicle system overview’.
Limitations of Remote Smart Parking
Assist
In the following circumstances, Remote
Smart Parking Assist performance to
park or exit the vehicle may be limited,
there may be a risk of collision, or
Remote Smart Parking Assist may turn
off. Park or exit the vehicle manually if
necessary.

[An object is attached to the steering
wheel

[The vehicle is installed with a snow
chain, spare tire or different size
wheel

[Tire pressure is lower or higher than
the standard tire pressure

[Your vehicle is loaded with cargo
longer or wider than your vehicle or a
trailer is connected to your vehicle

[There is a problem with the wheel
alignment

[Your vehicle is leaned severely to one
side

[Your vehicle is equipped with a trailer
hitch

[The license plate is installed
differently from the original location

[There is a person, animal or object
above or below the ultrasonic sensor
when Remote Smart Parking Assist is
activated

[The parking space is narrow or curve

[There is an obstacle such as a person,
animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow
pillar, etc.) near the parking space

[There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc., near the
parking space

9-40
Maintenance
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
EPCU310A Rear Inverter (System)
E-SHIFTER 410A SCU
WASHER15A Washer Relay
BATTERY
MANAGEMENT10A Battery System Assembly (BMU)
POWER
HANDLE15A Steering Tilt & Telescopic Unit
MODULE 67.5A IBU, IAU
MODULE 410AELSD Unit, Rear Inverter (System), ECS Unit, Rear Corner
Radar LH/RH, Front View Camera, ADAS unit (Driving/
Parking), Crash Pad Switch, VESS Unit, Steering Tilt &
Telescopic Unit, Front Radar, Front Corner Radar LH/RH,
Front Inverter (System)
MODULE 510AData Link Connector, CCIC Head Unit, Electro Chromic
Mirror, DCU, CCIC Keyboard, Smart Phone Wireless
Charger, Console Switch, AMP, Driver/Passenger Power
Seat Module, Front Seat Warmer Control Module, Rear
Seat Warmer Control Module, Face Recognition Unit,
Front Air Ventilation Seat Control Module
MODULE 210AFace Recognition Unit, Center Control Panel, AMP, IBU,
CCIC Head Unit,P/R Junction Block (RLY. 11), Instrument
Cluster, CCU, DCU, IAU, ADAS Unit (Parking)
SPARE (B+)10A Not Used
