5-35
05
&DXWLRQVZKHQZDVKLQJWKHYHKLFOH
If touch sensors are equipped, an
unexpected warning may sound, and
the doors might lock or unlock when the
smart key is within the detectable range
and the outside door handle is wet.

[Conditions when using the automatic
car wash
- Prior to wash, keep the Engine
Start/Stop button in ACC or ON
position, stay in N (Neutral) and
enter the automatic car wash. For
details of staying in N (Neutral),
refer to “To Stay in N (Neutral)”
section in chapter 6.
- Enter the automatic car wash with
the doors locked and the outside
door handle in its original position.

[Conditions when self car washing
- Wash your car with the doors locked
and the outside door handle in its
original position.
- If any water or a rag is touching the
door handle lock/unlock sensor, the
door handle will pop out and the
door will be unlocked. To prevent
unintended operation of the door
handle sensor, keep the key over 6.5
ft. (2 m) away from the vehicle.
- Be careful to avoid theft of your
smart key during car wash.
- Make sure to keep your smart key
with you after car wash or keep
the key over 6.5 ft. (2 m) from the
vehicle.
- If an unexpected waring sounds
during car wash, keep the Engine
Start/Stop button in ACC or ON
position and leave the smart key
inside the vehicle.
Using mechanical key
ORS051019
ORS051260
A : Lock,
B : Unlock
Lock or unlock the door with the
mechanical key. Use the mechanical key
according to the following direction.
1. Pull the door handle while pressing
the front part of the outside door
handle M (front side of the vehicle).
Then remove the cover under the rear
part of the door handle.
2. Insert the key into the key hole N and
turn it to lock or unlock the door.
3. After unlocking with the mechanical
key, remove the key.
4. Release the door handle.
5. Press the front part of the door handle
again to manually pop out the handle,
then pull it out to open the door.

5-40
Convenience Features
ORS051029
Rear door lock switch
Press the lock switch M on the rear door
to lock the corresponding door. When
the door is locked, the indicator light on
the switch illuminates.
However, if the door is opened, the door
will not lock.
Note that the doors cannot be unlocked
with the rear door lock switch.
WARNING

[Lock all the doors using the central
door lock switch in the driver's seat
or front passenger's seat before
driving. Especially when children
are in the vehicle. If the vehicle door
accidentally opens while the vehicle
is in motion, it may lead to a serious
injury.

[Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/ Stop button and may
operate power windows, lock the
doors or other controls, or even make
the vehicle move, which could result
in serious injury or death.
Information
If the door is locked with children or
animals in your vehicle, you can unlock
the driver's door the mechanical key. For
more details, refer to "Using Mechanical
Key" section in this chapter.
In case of an emergency
ORS051030L
In case of emergency such as when the
battery is discharged, the only way to
lock the door(s) is with the mechanical
key from the outside key hole.
Doors without an outside key hole can be
locked as follows:
1. Open the door. Then, remove the plug
to use emergency lock.
2. Insert the key into the emergency
door lock hole and turn the key
to the lock position (left door:
counterclockwise, right door:
clockwise).
3. Close the door securely.
Information
If the electrical power door lock switch
does not operate (for example, dead car
battery) and the trunk is closed, you will
not be able to open the trunk until power
is restored.

5-43
05
Information

[The following situations are normal
and may happen when using the easy
close feature.
-Before resetting easy close, opening
and closing the door manually may
require more strength.
-When the door opens about 7.9 in.
(20 cm) and stops, or is automatically
opened or closed, a sound may occur
due to motor rotation.
-If the door is repeatedly opened and
closed manually, a noise may sound
due to the motor brake.
-When the battery is low, starting
the engine while the door is open
may cancel the initial setting of the
easy close feature. When canceled,
manually opening and closing the
door requires more force. Pressing
the door close button or closing the
door manually will normalize the
setting of the easy close feature.

[During cold weather, opening and
closing the door manually may require
more strength due to low lubrication.
If the door can be automatically closed
with the door switch or key, the doors
are working properly.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
Automatic Door Lock and Unlock
)HDWXUHV
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the infotainment system screen.
Auto LOCK Enable on driving
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle exceeds 9 mph (15 km/h).
Auto LOCK Enable on shift
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle is shifted out of P (Park) while the
engine is running.
Auto UNLOCK On shift to P
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is shifted back into P (Park) while
the engine is running.
Auto UNLOCK Upon vehicle Off
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is turned off.
See additional information in supplied
Infotainment Manual.
Additional unlock safety feature air
bag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the air bags to deploy.

5-44
Convenience Features
Electronic Child Safety Lock (if
equipped)
ORS051031
When the electronic child safety lock
button is pressed and the indicator
light on the button illuminates, the rear
doors cannot be opened from inside the
vehicle.

[The rear door window cannot be
opened or closed while the electronic
child safety lock button is in the LOCK
position (indicator light ON).
For more details, refer to “Windows”
section in this chapter.

[Electronic child safety lock does not
automatically turn on unless the driver
presses the electronic child safety
lock button.

[If 3 minutes passes after the Engine
Start/Stop button is pressed to the
OFF position, the indicator on the
button turns off, and the driver cannot
turn off electronic child safety lock by
pressing the button. To turn off the
function, press the Engine Start/Stop
button to the ACC or ON position, and
then press the electronic child safety
lock button.
[If the power is supplied again after
removing the battery or battery is
discharged while the electronic child
safety lock button is in the LOCK
position, press the button once more
to match the state of the indicator on
the electronic child safety lock button
and actual status of the electronic
child safety lock function.

[If the airbag is activated while the
electronic child safety lock button
is in the LOCK position (indicator
light ON), the rear doors will unlock
automatically.

[Vehicles equipped with the electronic
child safety lock feature is not
provided with a manual child safety
lock.
WARNING
If children accidentally opens the rear
door while the vehicle is in motion, they
could fall out of the vehicle. Electronic
child safety lock should always be used
whenever children are in the vehicle.

5-48
Convenience Features
ORS031142LA: Cluster,
B: Steering wheel
If you do not want to use Rear Occupant
Alert, press the OK button on the steering
wheel when the first alert is displayed on
the cluster. Doing so will deactivate the
second alert one time.

[If the vehicle is started remotely (if
equipped with Remote Start), inside
movement detection will stop.
System Precautions

[Make sure that all the windows are
closed. If the window is open, the
alert may operate by the sensor
detecting an unintended movement
(for example, wind or bugs).

[The alert may operate if movement
in the driver or passenger seat is
detected.

[If the doors are locked with a
passenger inside the vehicle, the alert
may operate.

[An alert can occur if there is an impact
on the vehicle.

[If boxes or objects are stacked in the
vehicle, the system may not detect
passengers. Or, the alert may operate
if the boxes or objects fall off.

[The alert may operate when the
vehicle is pushed or shaken, or while
washed, or by surrounding noise or
vibration after the vehicle is locked.

[The alert may operate when there
are metallic or liquid objects in the
vehicle.

5-51
05
Storing Memory Positions
1. Shift to P (Park) while the Engine
Start/Stop button is in the ON
position.
2. Adjust the seat position, side view
mirror position, steering wheel
position and head-up display height/
brightness to the desired position.
3. Press and hold one of the memory
buttons (1, 2 or 3). The system will
beep twice when the memory has
been successfully stored.
‘Settings 1 (2 or 3) saved’ will appear
on the cluster LCD display.
Recalling Memory Positions
1. Shift to P (Park) while the Engine
Start/Stop button is in the ON
position.
2. Press the desired memory button (1,
2 or 3). The system will beep once,
and then the seat position, side
view mirror position, steering wheel
position and head-up display height/
brightness will automatically adjust to
the stored positions.
‘Settings 1 (2 or 3) applied’ will appear
on the cluster LCD display.
If you press the corresponding button
which the setting is being recalled, the
setting will temporarily deactivate. If you
press the other buttons, the setting of
the pressed button will activate.
For example, if you press number 1
button with the number 1 setting in
operation, the setting will temporarily
deactivate. If you press the number
2 button, the number 2 setting will
activate.
If you adjust the seat, side view mirror,
steering wheel or head-up display while
recalling the stored positions, the pre-set
settings will become ineffective.
Information

[Up to 3 memories for front seats and
up to 2 memories for rear seats can be
saved.

[2QO\WKHGULYHU

5-52
Convenience Features

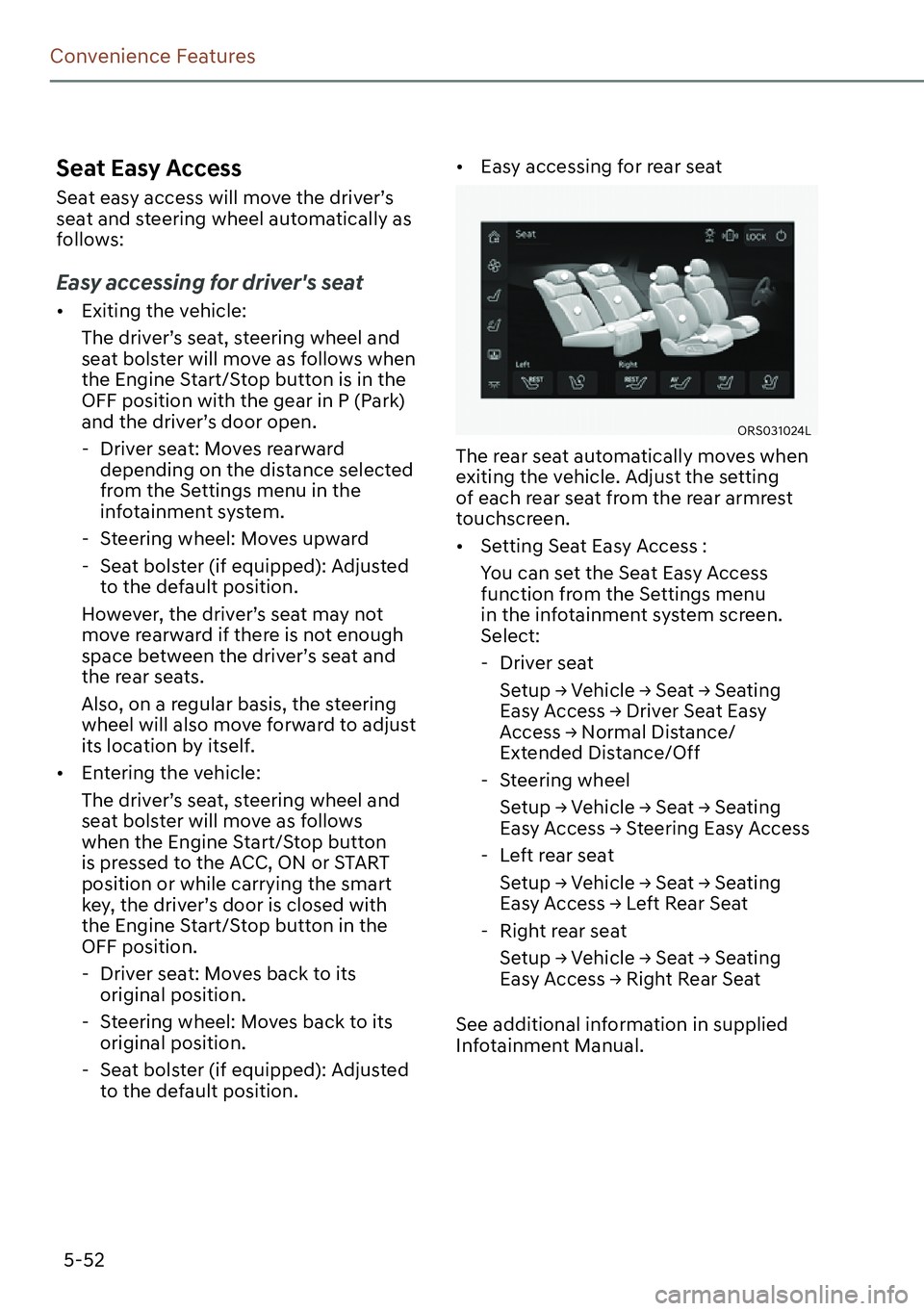

Seat Easy Access
Seat easy access will move the driver’s
seat and steering wheel automatically as
follows:
Easy accessing for driver's seat

[Exiting the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the Engine Start/Stop button is in the
OFF position with the gear in P (Park)
and the driver’s door open.
- Driver seat: Moves rearward
depending on the distance selected
from the Settings menu in the
infotainment system.
- Steering wheel: Moves upward
- Seat bolster (if equipped): Adjusted
to the default position.
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and
the rear seats.
Also, on a regular basis, the steering
wheel will also move forward to adjust
its location by itself.

[Entering the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows
when the Engine Start/Stop button
is pressed to the ACC, ON or START
position or while carrying the smart
key, the driver’s door is closed with
the Engine Start/Stop button in the
OFF position.
- Driver seat: Moves back to its
original position.
- Steering wheel: Moves back to its
original position.
- Seat bolster (if equipped): Adjusted
to the default position.
[Easy accessing for rear seat
ORS031024L
The rear seat automatically moves when
exiting the vehicle. Adjust the setting
of each rear seat from the rear armrest
touchscreen.

[Setting Seat Easy Access :
You can set the Seat Easy Access
function from the Settings menu
in the infotainment system screen.
Select:
- Driver seat
6HWXS

5-53
05
Resetting the System
Take the following procedures to reset
integrated memory system, when one of
the seat does not operate properly.
Resetting integrated memory
system
1. Place the Engine Start/Stop button in
the ON position and the shift the gear
to P (Park). Open the corresponding
door of the seat that does not work
properly.
2. Adjust the corresponding seat and
seatback to the foremost position.
3. Press the number 1 button and push
forward the seat movement switch
over 2 seconds simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification
sound.
2. The corresponding seat and seatback
is adjusted to the rearward position
with the notification sound.
3. The corresponding seat and seatback
is re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.

[The memory button is pressed.

[The seat control switch is operated.

[The gear is shifted out of P (Park).

[The driving speed exceeds
2 mph (3 km/h).

[The driver’s door is closed.
NOTICE

[While integrated memory system
is being reset, if the resetting
and notification sound stops
incompletely, restart the resetting
procedure again.

[Make sure that there is no objects
around the driver’s seat in advance
of resetting the integrated memory
system.
