2023 GENESIS G90 key

5-34
Convenience Features
WARNING
Be careful not to get your fingers or
body caught between the door and
vehicle body when opening or closing
the door. It may lead to injury.
CAUTION

[The door might open again if not
properly closed.

[Do not leave the vehicle unlocked
for a long time. The battery may
discharge, and you will not be able
to open the other doors except the
driver’s door.

[Do not leave the mechanical key in
the vehicle. You will not be able to
open the doors in an emergency.
NOTICE

[The door handle may freeze during
winter. Tap the door handle lightly
or use other methods to warm the
KDQGOHDQGUHPRYHWKHLFH)RUPRUH
details, refer to “Removing Ice from
Door Handle” section in this chapter.

[Do not apply excessive force on the
door handle or use sharp tools to pop
out the door handle. It may damage
the door handle.
Information

[When the battery level is low, the
driver’s door will automatically shift to
emergency mode. If you pull the door
handle, you may hear a click noise.
This is a normal sound due to motor
operation.

[When the door handles do not operate
properly due to battery discharge or
other causes, you can manually pop
out the door handle by pressing the
front part of the door handle. When
it pops out, unlock the door with the
key and pull the handle to open the
door. For more details, refer to “Using
Mechanical Key” section in this
chapter.

[When you shift the gear to R (Reverse)
even when the doors are unlocked, the
outside door handle will return to its
original position.

[If you shift the gear to R (Reverse)
when using the automatic door lock
feature, the outside door handle returns
to its original position and the door will
be locked.

[When the vehicle speed is within 1.8
mph-9 mph (3 km/h-15 km/h) with the
doors unlocked, the doors will remain
unlocked, and only the door handle
will return to its original position. If
the vehicle is stopped in this condition,
the passenger will not have to unlock
the door. The door will be opened when
the door handle pops out by touching
the door lock/unlock sensor (engraved
part) on the outside door handle.

[When the outside door handle goes in
and pops out, a noise may sound from
inside the vehicle.

5-35
05
&DXWLRQVZKHQZDVKLQJWKHYHKLFOH
If touch sensors are equipped, an
unexpected warning may sound, and
the doors might lock or unlock when the
smart key is within the detectable range
and the outside door handle is wet.

[Conditions when using the automatic
car wash
- Prior to wash, keep the Engine
Start/Stop button in ACC or ON
position, stay in N (Neutral) and
enter the automatic car wash. For
details of staying in N (Neutral),
refer to “To Stay in N (Neutral)”
section in chapter 6.
- Enter the automatic car wash with
the doors locked and the outside
door handle in its original position.

[Conditions when self car washing
- Wash your car with the doors locked
and the outside door handle in its
original position.
- If any water or a rag is touching the
door handle lock/unlock sensor, the
door handle will pop out and the
door will be unlocked. To prevent
unintended operation of the door
handle sensor, keep the key over 6.5
ft. (2 m) away from the vehicle.
- Be careful to avoid theft of your
smart key during car wash.
- Make sure to keep your smart key
with you after car wash or keep
the key over 6.5 ft. (2 m) from the
vehicle.
- If an unexpected waring sounds
during car wash, keep the Engine
Start/Stop button in ACC or ON
position and leave the smart key
inside the vehicle.
Using mechanical key
ORS051019
ORS051260
A : Lock,
B : Unlock
Lock or unlock the door with the
mechanical key. Use the mechanical key
according to the following direction.
1. Pull the door handle while pressing
the front part of the outside door
handle M (front side of the vehicle).
Then remove the cover under the rear
part of the door handle.
2. Insert the key into the key hole N and
turn it to lock or unlock the door.
3. After unlocking with the mechanical
key, remove the key.
4. Release the door handle.
5. Press the front part of the door handle
again to manually pop out the handle,
then pull it out to open the door.

5-36
Convenience Features
ORS051286
6. Reinstall the removed cover.
When the door handle or keyhole
freezes, lightly tap or indirectly warm it
(for example, hand temperature, etc.) to
remove ice.
For more details, refer to “Removing
Ice from Door Handle” section in this
chapter.
Locking and unlocking the door multiple
times with the key or lock button or
switch may engage the protection circuit
and temporarily disable the lock/unlock
function. When you exit the vehicle,
engage the parking brake, turn the
engine off, close all windows and lock
the doors.
NOTICE
Do not apply excessive force on the
door and door handle. It may damage
the door and door handle.
Removing ice from door handle
Inner part of the door handle may freeze
during cold winter. Tap the door handle
with the palm side of the fist to remove
the ice.
Follow the instructions below to remove
the ice from the door handle.
ORS051246
1. Tap around the door handle with the
palm side of your fist to remove the
ice inside the door handle.
2. Unlock the door and see if the door
handle pops out. If the handle does
not pop out, continue tapping around
the handle and remove more ice.
3. Hold the door handle, and open and
close the door multiple times to
remove the remaining ice.
CAUTION

[Do not tap the vehicle while wearing
accessories or carrying other objects.
It may damage the painting.

[Do not tap the vehicle with tools
or with excessive force. Vehicle
body may be caved. Tap it with the
strength when knocking on the door.

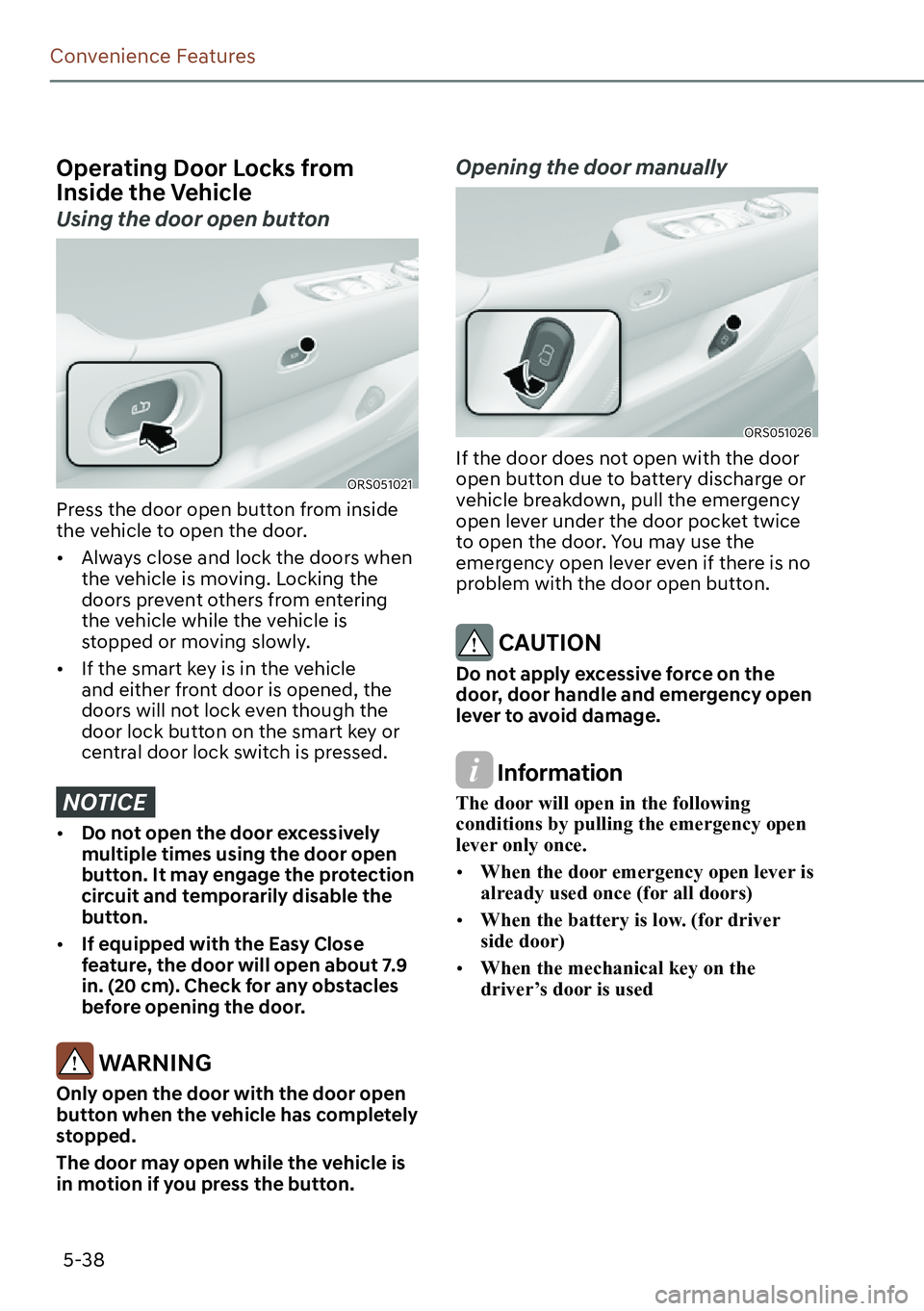

5-38
Convenience Features
Operating Door Locks from
Inside the Vehicle
Using the door open button
ORS051021
Press the door open button from inside
the vehicle to open the door.

[Always close and lock the doors when
the vehicle is moving. Locking the
doors prevent others from entering
the vehicle while the vehicle is
stopped or moving slowly.

[If the smart key is in the vehicle
and either front door is opened, the
doors will not lock even though the
door lock button on the smart key or
central door lock switch is pressed.
NOTICE

[Do not open the door excessively
multiple times using the door open
button. It may engage the protection
circuit and temporarily disable the
button.

[If equipped with the Easy Close
feature, the door will open about 7.9
in. (20 cm). Check for any obstacles
before opening the door.
WARNING
Only open the door with the door open
button when the vehicle has completely
stopped.
The door may open while the vehicle is
in motion if you press the button.
Opening the door manually
ORS051026
If the door does not open with the door
open button due to battery discharge or
vehicle breakdown, pull the emergency
open lever under the door pocket twice
to open the door. You may use the
emergency open lever even if there is no
problem with the door open button.
CAUTION
Do not apply excessive force on the
door, door handle and emergency open
lever to avoid damage.
Information
The door will open in the following
conditions by pulling the emergency open
lever only once.

[When the door emergency open lever is
already used once (for all doors)

[When the battery is low. (for driver
side door)

[When the mechanical key on the
driver’s door is used

5-40
Convenience Features
ORS051029
Rear door lock switch
Press the lock switch M on the rear door
to lock the corresponding door. When
the door is locked, the indicator light on
the switch illuminates.
However, if the door is opened, the door
will not lock.
Note that the doors cannot be unlocked
with the rear door lock switch.
WARNING

[Lock all the doors using the central
door lock switch in the driver's seat
or front passenger's seat before
driving. Especially when children
are in the vehicle. If the vehicle door
accidentally opens while the vehicle
is in motion, it may lead to a serious
injury.

[Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/ Stop button and may
operate power windows, lock the
doors or other controls, or even make
the vehicle move, which could result
in serious injury or death.
Information
If the door is locked with children or
animals in your vehicle, you can unlock
the driver's door the mechanical key. For
more details, refer to "Using Mechanical
Key" section in this chapter.
In case of an emergency
ORS051030L
In case of emergency such as when the
battery is discharged, the only way to
lock the door(s) is with the mechanical
key from the outside key hole.
Doors without an outside key hole can be
locked as follows:
1. Open the door. Then, remove the plug
to use emergency lock.
2. Insert the key into the emergency
door lock hole and turn the key
to the lock position (left door:
counterclockwise, right door:
clockwise).
3. Close the door securely.
Information
If the electrical power door lock switch
does not operate (for example, dead car
battery) and the trunk is closed, you will
not be able to open the trunk until power
is restored.

5-43
05
Information

[The following situations are normal
and may happen when using the easy
close feature.
-Before resetting easy close, opening
and closing the door manually may
require more strength.
-When the door opens about 7.9 in.
(20 cm) and stops, or is automatically
opened or closed, a sound may occur
due to motor rotation.
-If the door is repeatedly opened and
closed manually, a noise may sound
due to the motor brake.
-When the battery is low, starting
the engine while the door is open
may cancel the initial setting of the
easy close feature. When canceled,
manually opening and closing the
door requires more force. Pressing
the door close button or closing the
door manually will normalize the
setting of the easy close feature.

[During cold weather, opening and
closing the door manually may require
more strength due to low lubrication.
If the door can be automatically closed
with the door switch or key, the doors
are working properly.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
Automatic Door Lock and Unlock
)HDWXUHV
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the infotainment system screen.
Auto LOCK Enable on driving
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle exceeds 9 mph (15 km/h).
Auto LOCK Enable on shift
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle is shifted out of P (Park) while the
engine is running.
Auto UNLOCK On shift to P
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is shifted back into P (Park) while
the engine is running.
Auto UNLOCK Upon vehicle Off
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is turned off.
See additional information in supplied
Infotainment Manual.
Additional unlock safety feature air
bag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the air bags to deploy.

5-52
Convenience Features
Seat Easy Access
Seat easy access will move the driver’s
seat and steering wheel automatically as
follows:
Easy accessing for driver's seat

[Exiting the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the Engine Start/Stop button is in the
OFF position with the gear in P (Park)
and the driver’s door open.
- Driver seat: Moves rearward
depending on the distance selected
from the Settings menu in the
infotainment system.
- Steering wheel: Moves upward
- Seat bolster (if equipped): Adjusted
to the default position.
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and
the rear seats.
Also, on a regular basis, the steering
wheel will also move forward to adjust
its location by itself.

[Entering the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows
when the Engine Start/Stop button
is pressed to the ACC, ON or START
position or while carrying the smart
key, the driver’s door is closed with
the Engine Start/Stop button in the
OFF position.
- Driver seat: Moves back to its
original position.
- Steering wheel: Moves back to its
original position.
- Seat bolster (if equipped): Adjusted
to the default position.
[Easy accessing for rear seat
ORS031024L
The rear seat automatically moves when
exiting the vehicle. Adjust the setting
of each rear seat from the rear armrest
touchscreen.

[Setting Seat Easy Access :
You can set the Seat Easy Access
function from the Settings menu
in the infotainment system screen.
Select:
- Driver seat
6HWXS

5-79
05
5HPRWH:LQGRZ2SHQ)HDWXUH
(Remote Window Control) (if
equipped)
ORS051048N
You can open the window remotely with
the smart key.
1. Press and hold the door unlock button
M for over 3 seconds, while the engine
is turned off.

[Rear doors are unlocked and
windows are completely opened.

[If you release the button while the
window is opening, the window will
stop operating.
CAUTION

[If the distance between the vehicle
and your smart key changes while
the window is being opened or
closed, the window may stop
operating. Do not stand too far away
from the vehicle when remotely
opening or closing the window.

[Note that the doors are also unlocked
when you open the window with the
remote opening feature.
