2-8
Vehicle Information, Consumer Information and Reporting Safety Defects
ENGINE COMPARTMENT
The actual engine compartment in the vehicle may differ from the illustration.
ORS092001N
1. Windshield washer fluid reservoir ....... 9-22
2. Jumper terminal ..................................... 8-5
3. Fuse box ................................................ 9-47
4. Engine coolant reservoir .......................9-18
5. Air cleaner ............................................. 9-23
6. Liquid-cooled intercooler coolant
reservoir .................................................9-187. Brake fluid reservoir .............................. 9-21
8. Engine oil dipstick ................................. 9-16
9. Engine oil filler cap ................................ 9-16
10. Cabin air filter ....................................... 9-24

5-135
05
ORS051124
ORS051139L
A : Front seat,
B : Rear seat
Press from the climate control
information screen or armrest
touchscreen to select the desired
fragrance intensity.

[Intensity can be selected among
Strong, Medium and Light. Pressing
the button each time will change
the intensity in the order of Strong,
Medium, Light and Off.

[The fragrance cannot be selected with
the button. Fragrance can only be
selected from the settings menu.
ORS051244
How to replace cartridges
1. Turn the engine off, and open the
glove box.
2. Press the upper part of the diffuser
tray.
3. Replace the cartridge.
Information

[For smooth operation of diffuser, it is
recommended to install 2 cartridges.

[If the cartridge is empty or diffuser
replacement alarm is displayed, replace
with a new cartridge.

[The built-in diffuser may not work if
the cartridge is not installed properly.
&KHFNZKHWKHUWKHFDUWULGJHLVLQVWDOOHG
properly.

8-5
08
Jump Starting Procedure
Information
Your vehicle has a battery in the luggage
compartment, but when you jump start
your vehicle, use the jumper terminal in
the engine compartment.
1. Position the vehicles close enough
that the jumper cables will reach, but
do not allow the vehicles to touch.
2. Avoid fans or any moving parts in the
engine compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as
radios, lights, air conditioning, etc.
Put the vehicles in P (Park) and set the
parking brake. Turn both vehicles OFF.
4. Open the engine hood.
ORS081020ORS081020
A : Negative (-) Terminal,
B : Positive (+) Terminal
5. Remove the engine compartment fuse
box cover.
CAUTION
Before jump starting, make sure to
correctly identify the positive (+) and
negative (-) terminals to avoid reverse
polarity connections.
ORS082003NORS082003N
6. Connect the jumper cables in
the exact sequence shown in the
illustration. First connect one jumper
cable to the red, positive (+) jumper
terminal of your vehicle M.
7. Connect the other end of the jumper
cable to the red, positive (+) battery/
jumper terminal of the assisting
vehicle N.
8. Connect the second jumper cable to
the black, negative (-) battery/jumper
terminal of the assisting vehicle O.
9. Connect the other end of the second
jumper cable to the black, negative (-)
chassis ground of your vehicle P.
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
WARNING
Do not connect the jumper cable to
the negative (-) jumper terminal of the
discharged battery. A spark could cause
the battery to explode and lead to a
personal injury or vehicle damage.
008_RS4_HMA.indd 8-52022-04-18  3:48:05

9-3
09
The actual engine compartment in the vehicle may differ from the illustration.
ORS092001N
1. Windshield washer fluid reservoir
2. Jumper terminal
3. Fuse box
4. Engine coolant reservoir
5. Air cleaner
6. Liquid-cooled intercooler coolant
reservoir7. Brake fluid reservoir
8. Engine oil dipstick
9. Engine oil filler cap
10. Cabin air filter
ENGINE COMPARTMENT

9-30
Maintenance

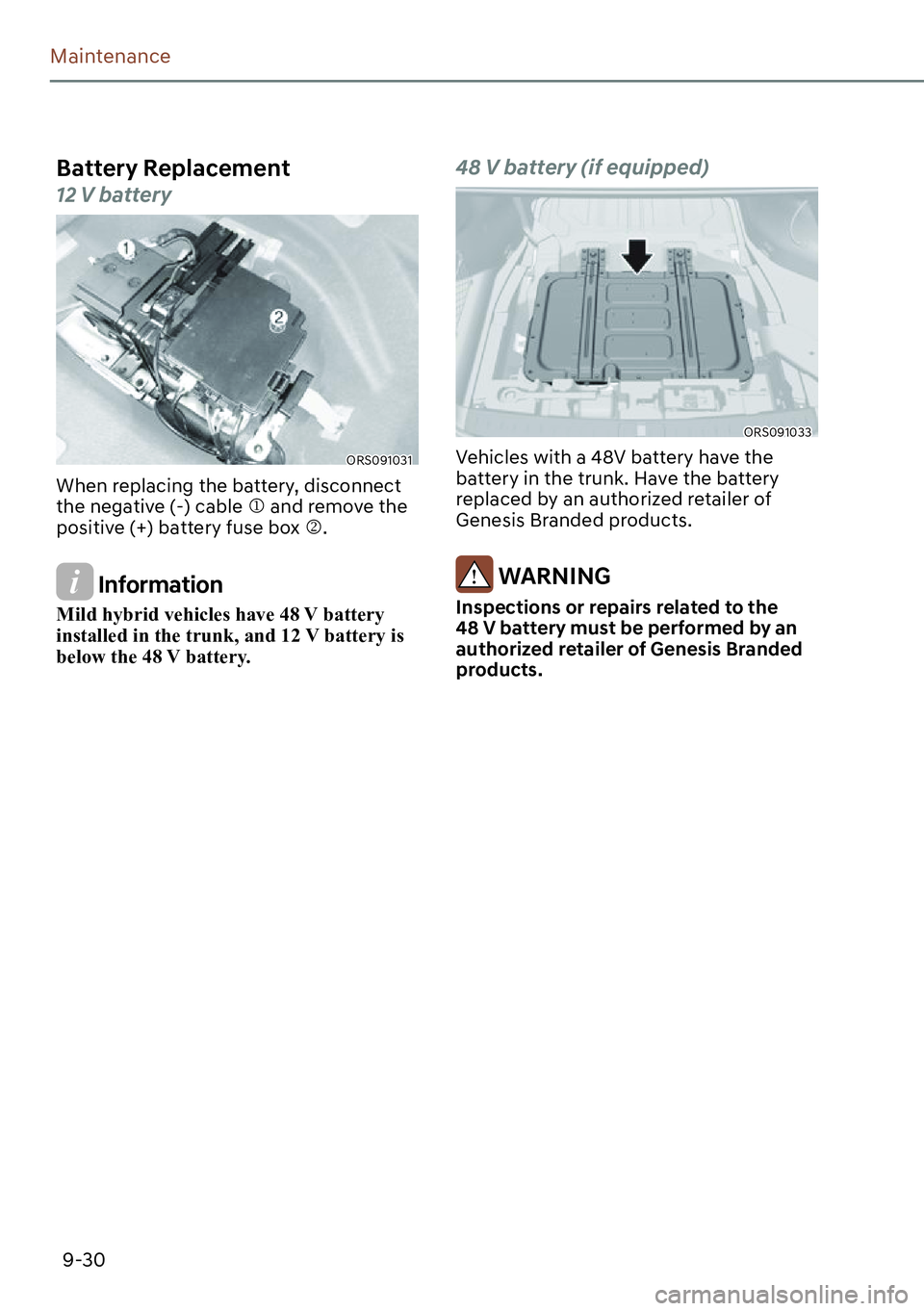

Battery Replacement
12 V battery
ORS091031
When replacing the battery, disconnect
the negative (-) cable M and remove the
positive (+) battery fuse box N.
Information
Mild hybrid vehicles have 48 V battery
installed in the trunk, and 12 V battery is
below the 48 V battery.
48 V battery (if equipped)
ORS091033
Vehicles with a 48V battery have the
battery in the trunk. Have the battery
replaced by an authorized retailer of
Genesis Branded products.
WARNING
Inspections or repairs related to the
48 V battery must be performed by an
authorized retailer of Genesis Branded
products.

9-49
09
Fuse/Relay Panel Description
Instrument panel fuse panel
ORS091023
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
ORS092024N

9-53
09
Engine compartment fuse panel
(Engine room junction block)
ORS091034
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
ORS092059N

9-56
Maintenance
Engine compartment fuse panel
(Engine room junction block)
ORS091051
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
ORS091060
