2023 GENESIS G90 engine

9-20
Maintenance

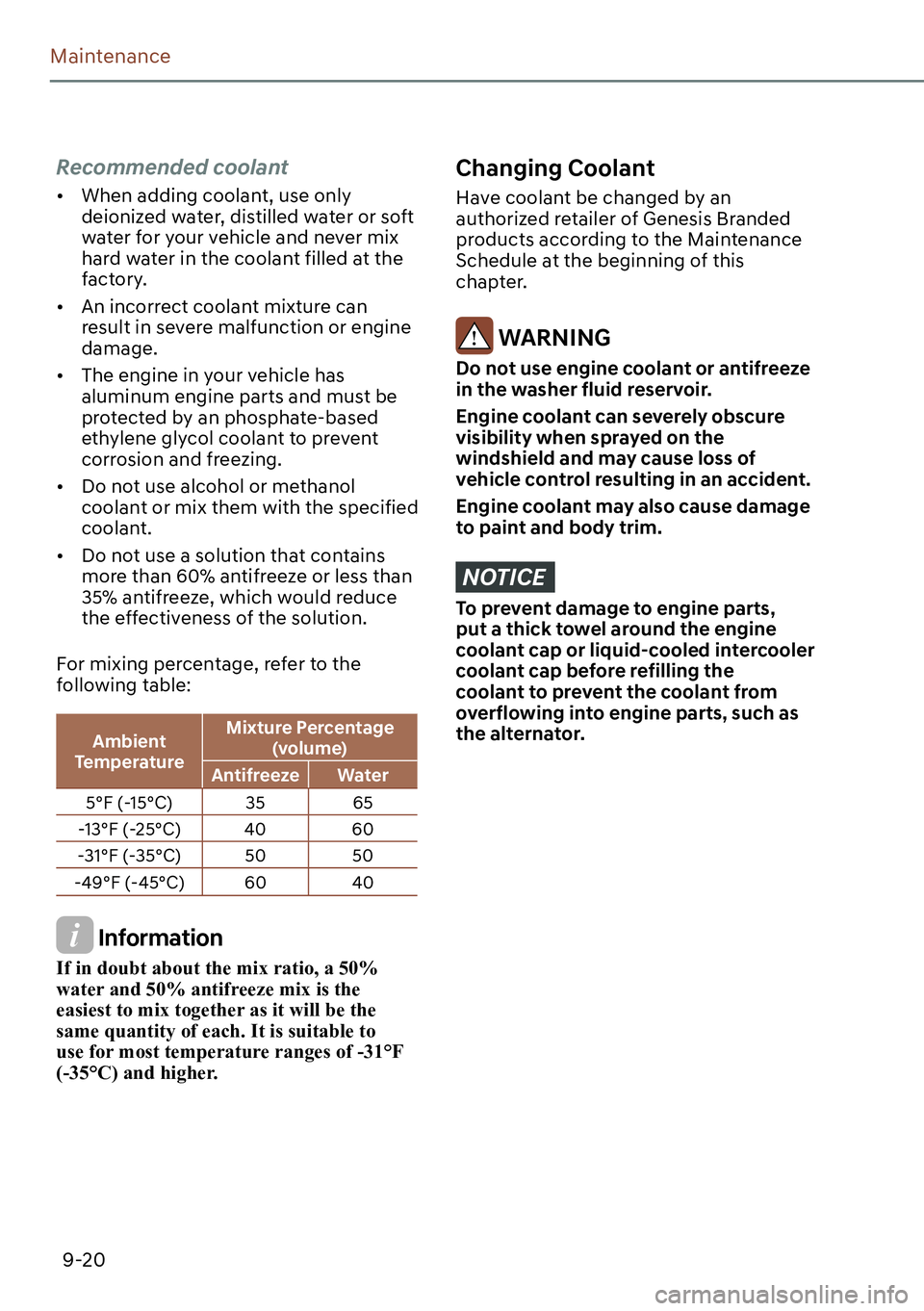

Recommended coolant

[When adding coolant, use only
deionized water, distilled water or soft
water for your vehicle and never mix
hard water in the coolant filled at the
factory.

[An incorrect coolant mixture can
result in severe malfunction or engine
damage.

[The engine in your vehicle has
aluminum engine parts and must be
protected by an phosphate-based
ethylene glycol coolant to prevent
corrosion and freezing.

[Do not use alcohol or methanol
coolant or mix them with the specified
coolant.

[Do not use a solution that contains
more than 60% antifreeze or less than
35% antifreeze, which would reduce
the effectiveness of the solution.
For mixing percentage, refer to the
following table:
Ambient
TemperatureMixture Percentage
(volume)
Antifreeze Water
5°F (-15°C) 35 65
-13°F (-25°C) 40 60
-31°F (-35°C) 50 50
-49°F (-45°C) 60 40
Information
If in doubt about the mix ratio, a 50%
water and 50% antifreeze mix is the
easiest to mix together as it will be the
same quantity of each. It is suitable to
use for most temperature ranges of -31°F
(-35°C) and higher.
Changing Coolant
Have coolant be changed by an
authorized retailer of Genesis Branded
products according to the Maintenance
Schedule at the beginning of this
chapter.
WARNING
Do not use engine coolant or antifreeze
in the washer fluid reservoir.
Engine coolant can severely obscure
visibility when sprayed on the
windshield and may cause loss of
vehicle control resulting in an accident.
Engine coolant may also cause damage
to paint and body trim.
NOTICE
To prevent damage to engine parts,
put a thick towel around the engine
coolant cap or liquid-cooled intercooler
coolant cap before refilling the
coolant to prevent the coolant from
overflowing into engine parts, such as
the alternator.

9-21
09
Checking the Brake Fluid Level
ORS091006
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the side
of the reservoir.
Before removing the reservoir cap and
adding brake fluid, clean the area around
the reservoir cap thoroughly to prevent
brake fluid contamination.
If the level is low, add the specified brake
fluid to the MAX level. The level will fall
with accumulated mileage. This is a
normal condition associated with the
wear of the brake linings. If the fluid level
is excessively low, have the brake system
checked by an authorized retailer of
Genesis Branded products.
WARNING
If the brake system requires frequent
additions of fluid this could indicate
a leak in the brake system. Have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
WARNING
Do not let brake fluid enter into your
eyes. If brake fluid gets in your eyes,
flush your eyes with clean water for
at least 15 minutes and get immediate
medical attention.
NOTICE

[Do not allow brake fluid to contact
the vehicle’s body paint, as it will
result in paint damage.

[NEVER use brake fluid which has
been exposed to open air for an
extended time, as its quality cannot
be guaranteed. It should be disposed
of properly.

[Do not use the wrong type of brake
fluid. A few drops of mineral based
oil such as engine oil in your brake
system can damage brake system
parts.
Information
Use only the specified brake fluid (refer
to “Recommended Lubricants and
Capacities” section in chapter 2).
BRAKE FLUID

9-22
Maintenance
WASHER FLUID
Checking the Washer Fluid Level
ORS091007
Check the fluid level in the washer fluid
reservoir and add fluid if necessary. Plain
water may be used if washer fluid is not
available. However, use washer solvent
with antifreeze characteristics in cold
climates to prevent freezing.
WARNING
To prevent serious injury or death, take
the following safety precautions when
using washer fluid:

[Do not use engine coolant or
antifreeze in the washer fluid
reservoir. Engine coolant can
severely obscure visibility when
sprayed on the windshield and
may cause loss of vehicle control
resulting in an accident or damage to
paint and body trim.

[Do not allow sparks or flame to
contact the washer fluid or the
washer fluid reservoir. Washer fluid
may contain alcohol and can be
flammable.

[Do not drink washer fluid and avoid
contact with skin. Washer fluid is
harmful to humans and animals.

[Keep washer fluid away from
children and animals.

9-23
09
Filter Replacement
ORS092008N
Do not attempt to wash or to rinse it, as
water will damage the filter.
If soiled, the air cleaner filter must be
replaced.
Visit an authorized retailer of Genesis
Branded products to replace air cleaner
filter.
Replace the filter according to the
Maintenance Schedule.
Information
If the vehicle is operated in extremely
dusty or sandy areas, replace the air
cleaner filter more often than the
usual recommended intervals (Refer
to “Maintenance Under Severe Usage
Conditions” section in this chapter).
NOTICE

[Do not drive with the air cleaner filter
removed. This will result in excessive
engine wear.

[When removing the air cleaner filter,
be careful that dust or dirt does not
enter the air intake, or damage may
result.

[We recommend that you use parts
for replacement from an authorized
retailer of Genesis Branded products.
AIR CLEANER

9-25
09
Engine Compartment
ORS091012
ORS092054N
1. Open the engine hood and remove
the cover of the air conditioning
assembly to locate the air filter.
2. Open the engine hood and remove
the cover of air conditioning unit.
3. Press and hold the lock M on the left
side of the cover.
4. Pull out N the cover
5. Replace the cabin air filter.
6. Reassemble in the reverse order of
disassembly.
NOTICE
ORS091061
A : Glove box,
B : Engine compartment
Install a new cabin air filter in the
correct direction to prevent noise and
reduce effectiveness.

[Glove box: Install with the arrow
V\PEROIDFLQJGRZQZDUG

9-26
Maintenance
WIPER BLADES
Blade Inspection
Contamination of either the windshield
or the wiper blades with foreign matter
can reduce the effectiveness of the
windshield wipers.
Common sources of contamination are
insects, tree sap, and hot wax treatments
used by some commercial car washes. If
the blades are not wiping properly, clean
both the window and the blades with a
good cleaner or mild detergent, and rinse
thoroughly with clean water.
NOTICE
To prevent damage to the wiper blades,
arms or other components, do not:

[Use gasoline, kerosene, paint
thinner, or other solvents on or near
them.

[Attempt to move the wipers
manually.

[Use non-specified wiper blades.
Information
Commercial hot waxes applied by
automatic car washes have been known to
make the windshield difficult to clean.
Information
Wiper blades are consumable items.
Normal wear of the wipers may not be
covered by your vehicle warranty.
Blade Replacement
When the wipers no longer clean
adequately, the blades may be worn or
cracked, and require replacement.
NOTICE

[In order to prevent damage to the
hood and the wiper arms, the wiper
arms should only be lifted when in
the top wiping position.

[Always return the wiper arms to the
windshield before driving.
ORS091013
1. Within 20 seconds of turning off the
engine, lift up and hold the wiper
lever to the MIST position for about 2
seconds until the wipers move to the
top wipe position.
2. At this time you can lift the wipers off
the windshield.
Information
This vehicle has a “hidden” wiper design
which means that the wipers cannot be
lifted manually when they are in their
bottom resting position.

9-28
Maintenance
WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present
in battery cells, is highly
combustible, and may explode
if ignited.
Keep batteries out of reach of
children.
Batteries contain sulfuric acid
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you feel
pain or a burning sensation, get medical
attention immediately.
[When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.

[Do not attempt to jump start your
vehicle if your battery is frozen.

[NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.

[The electrical ignition system works
with high voltage. NEVER touch
these components with the engine
running or when the Engine Start/
Stop button is in the ON position.

[Don’t remove the battery vent
hose. When the battery vent hose is
removed, insert it into the vent hole.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Battery posts, terminals, and related
accessories contain lead and lead
compounds, chemicals known to the
State of California to cause cancer,
birth defects and reproductive harm.
Batteries also contain other chemicals
known to the State of California
to cause cancer. Wash hands after
handling.
BATTERY

9-31
09
Battery Recharging
By battery charger
Should your vehicle's battery become
discharged either run the engine for
at least 60 minutes driving or at idle.
Alternatively you may connect a fully
automatic regulated charger to the
engine compartment front jumper posts
or at the battery in the trunk.
CAUTION
Do not use a manual unregulated
charger. It may cause the battery
to overheat and create a potential
hazard.
WARNING
Always follow these instructions when
recharging your vehicle’s battery to
avoid the risk of SERIOUS INJURY or
DEATH from explosions or acid burns:

[Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.

[Keep all flames, sparks, or smoking
materials away from the battery.

[Always work outdoors or in an area
with plenty of ventilation.

[Wear eye protection when checking
the battery during charging.

[The battery must be removed from
the vehicle and placed in a well
ventilated area.

[Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin boiling
violently.

[The negative battery cable must
be removed first and installed last
when the battery is disconnected.
Disconnect the battery charger in the
following order:
1. Turn off the battery charger main
switch.
2. Unhook the negative clamp from
the negative battery terminal.
3. Unhook the positive clamp from
the positive battery terminal.

[Always use a genuine Genesis Part
approved battery when you replace
the battery.
