The actual engine compartment in the vehicle may differ from the illustration.
ORS092001N
1. Windshield washer fluid reservoir
2. Jumper terminal
3. Fuse box
4. Engine coolant reservoir
5. Air cleaner
6. Liquid-cooled intercooler coolant
reservoir7. Brake fluid reservoir
8. Engine oil dipstick
9. Engine oil filler cap
10. Cabin air filter
ENGINE COMPARTMENT

9-5
09
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
retailer of Genesis Branded products.
ALWAYS follow these precautions for
performing maintenance work:

[Park your vehicle on level ground.
Shift the vehicle to P (Park), apply
the parking brake, and press the
Engine Start/Stop button to the OFF
position.

[Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[If you must operate the engine
during maintenance, do so in an
outdoor area or in an area with
plenty of ventilation.

[Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts.
WARNING
Touching metal parts
Do not touch metal parts
(including strut bars) while
the engine is operating or
hot. Doing so could result in
serious personal injury. Turn
the engine off and wait until
the metal parts cool down to
perform maintenance work on
the vehicle.
The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized retailer
of Genesis Branded products at the
frequencies indicated to help ensure
safe, dependable operation of your
vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
OWNER MAINTENANCE

9-6
Maintenance
Owner Maintenance Schedule
When you stop for fuel:

[Check the coolant level in the engine
coolant reservoir or the liquid-cooled
intercooler coolant reservoir.

[Check the windshield washer fluid
level.

[Check for low or under-inflated tires.
WARNING
Be careful when checking your coolant
level if the motor compartment is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
While operating your vehicle:

[Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.

[Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.

[Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.

[When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.

[If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.

[Check the automatic transmission P
(Park) function.

[Check the parking brake.

[Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:

[Check coolant level in the engine
coolant reservoir.

[Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flashers.

[Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.

[Check for loose wheel lug nuts.
At least twice a year: (for example,
every Spring and Autumn)

[Check radiator, heater and air
conditioning hoses for leaks or
damage.

[Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer fluid.

[Check headlight alignment.

[Check muffler, exhaust pipes, shields
and clamps.

[Check the seat belts for wear and
function.
At least once a year:

[Clean body and door drain holes.

[Lubricate door hinges and hood
hinges.

[Lubricate door and hood locks and
latches.

[Lubricate door rubber weather strips.

[Check the air conditioning system.

[Inspect and lubricate automatic
transmission linkage and controls.

[Clean the battery and terminals.

[Check the brake fluid level.

9-7
09
Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the
following conditions apply. If any of the following conditions apply, you must follow the
Maintenance Under Severe Usage Conditions.

[Repeated driving short distance of less than 5 miles (8 km) in normal temperature or less
than 10 miles (16 km) in freezing temperature

[Extensive engine idling or low speed driving for long distances

[Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

[Driving in areas using salt or other corrosive materials or in very cold weather

[Driving in heavy dust conditions

[Driving in heavy traffic area

[Driving on uphill, downhill, or mountain roads

[Using for towing or camping, and driving with loading on the roof

[Driving as a patrol car, taxi, other commercial use of vehicle towing

[Frequently driving under high speed or rapid acceleration/deceleration

[Frequently driving in stop-and-go conditions

[Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower grade
spec, etc.)
If your vehicle is operated under the above conditions, you should inspect, replace or refill more
frequently than the following Normal Maintenance Schedule. After the periods or distance
shown in the chart, continue to follow the semi-synthetic, prescribed maintenance intervals.
NOTICE
After 10 years or 100,000 miles, we recommend to use severe maintenance schedule.
Information

[As it is normal for engine oil to be consumed during driving, the engine oil level should be checked
on regular basis.

[The engine oil change interval for normal operating conditions is based on the use of the
recommended engine specification. If the recommended engine oil specification is not used, then
replace the engine oil according to the maintenance schedule under severe operating conditions.

[<0037004b0048000300590048004b004c0046004f0048000300500044005c0003004500480003004800540058004c00530053004800470003005a004c0057004b00030057004b004800030032004c004f0003002f004c004900480003003000440051004400
4a0048005000480051005700030036005c0056005700480050[ that predicts engine oil life
based on the driver’s driving history and alerts the driver to change engine oil.
-If the deterioration of the engine oil increases depending on the driver’s driving severity,
the remaining oil life alert appears on the instrument cluster before the normal engine oil
replacement interval. Have the engine oil and filter changed by an authorized retailer of Genesis
Branded product.
-Oil Life Management System works when the recommended engine oil is used. So, if
recommended engine oil is not used, replace the engine oil according to the maintenance schedule
under severe usage condition.
Also, check the amount of engine oil regularly as this system assumes that the engine oil is being
filled normally.
-Always reset the remaining engine oil life whenever the engine oil is changed. Otherwise, the
indication of remaining Oil life in the Oil Life Management System may not be accurate.
To reset the Oil Change Reminder, select ‘RESET’ from the infotainment system screen. Then,
select ‘Yes’ when the message “Has the engine oil been changed? Press [Yes] to reset the oil life.”
appears on the screen.
-If there is no alert until the maximum maintenance interval, have the vehicle checked by an
authorized retailer of Genesis Branded product.
SCHEDULED MAINTENANCE SERVICES

9-8
Maintenance
Normal Maintenance Schedule
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104
Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156 169
Engine oil and engine oil filter
*1
RRRRRRRRRRRRR
Fuel additives
*2
Add every 8,000 miles (13,000 km) or 12 months
Air cleaner filterInspect every 8,000 miles (13,000 km) or 12 months,
replace every 24,000 miles (39,000 km) or 36 months
Spark plugsRR
Rotate tires Rotate tires every 8,000 miles (13,000 km) or 12 months
Cabin air filter
(for evaporator and blower unit)RRRRRR
Drive belts
*3
At first, inspect at 48,000 miles (78,000 km) or 72 months,
after that, inspect every 8,000 miles (13,000 km) or 12 months
MHEV (Mild Hybrid Vehicle) belt *
3 (if equipped)Inspect every 6,000 miles (10,000 km) or 12 months
Replace every 60,000 miles (100,000 km) or 48 months
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.*1 :
Requires grade engine oil. If a lower grade engine oil (mineral oil including Semi-
synthetic) is used, then the engine oil and engine oil filter must be replaced as indicated severe maintenance condition.
*2 :
If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized retailer of Genesis Branded products along with information on how to use them. Do not mix other additives.
*3 :
The drive belt should be replaced when cracks occur or tension is reduced.

9-9
09

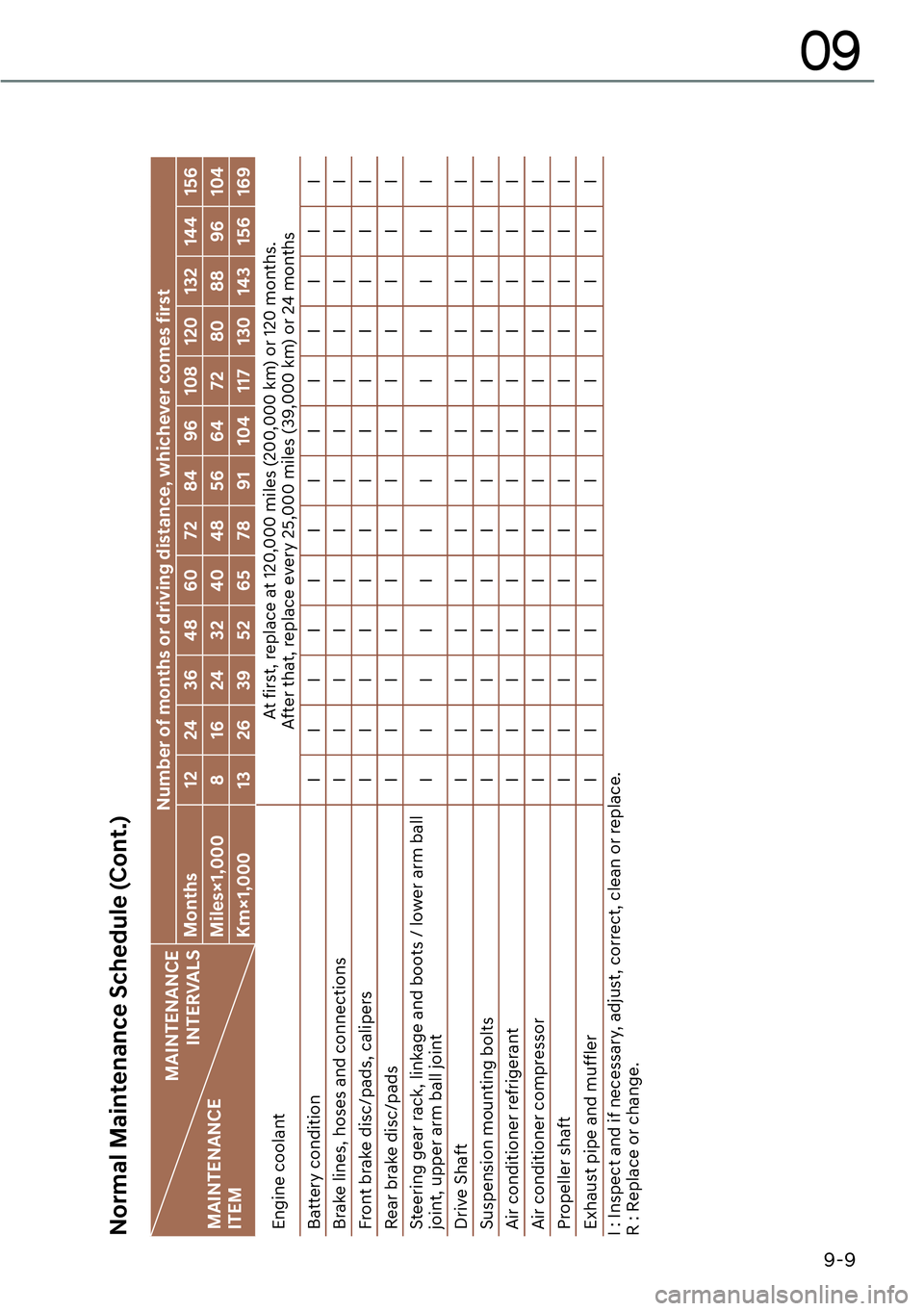

Normal Maintenance Schedule (Cont.)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104
Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156 169
Engine coolantAt first, replace at 120,000 miles (200,000 km) or 120 months.
After that, replace every 25,000 miles (39,000 km) or 24 months
Battery condition I I I I I I I I I I I I I
Brake lines, hoses and connections I I I I I I I I I I I I I
Front brake disc/pads, calipers I I I I I I I I I I I I I
Rear brake disc/pads I I I I I I I I I I I I I
Steering gear rack, linkage and boots / lower arm ball
joint, upper arm ball jointIIIIIIIIIIIII
Drive Shaft I I I I I I I I I I I I I
Suspension mounting bolts I I I I I I I I I I I I I
Air conditioner refrigerant I I I I I I I I I I I I I
Air conditioner compressor I I I I I I I I I I I I I
Propeller shaft I I I I I I I I I I I I I
Exhaust pipe and muffler I I I I I I I I I I I I I
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

9-10
Maintenance
Normal Maintenance Schedule (Cont.)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104
Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156 169
Automatic transmission fluid
*1
No check, No service required
Front (AWD) / rear differential oil
*2
III
Vapor hose, fuel filler cap and fuel tank IIIIII
Fuel tank air filter IIIIII
Fuel lines, hoses and connections IIIIII
Parking brake IIIIII
Brake fluidInspect every 8,000 miles (13,000 km) or 12 months,
Replace every 48,000 miles (78,000 km) or 48 months
Transfer case oil (AWD) No check, No service required
Air suspension I I I I I I I I I I I I I
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1 :
Use only the specified automatic transmission fluid. (Refer to “Recommended lubricants and capacities” section in chapter 2 or
the label in the engine compartment.)
*2 :
Front/rear differential oil should be changed anytime, front/rear differential have been submerged in water. ÃFuel filter is considered to be maintenance free but the quality of fuel used may impact the frequency of maintenance
needed. If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting
problem, etc. replace the fuel filter immediately regardless of maintenance schedule and consult an authorized retailer
of Genesis Branded products for details.
