2023 GENESIS G80 wheel torque

2-8
Vehicle Information, Consumer Information and Reporting Safety Defects
Items in (mm)
Overall length 197.04 (5,005)
Overall width 75.78 (1,925)
Overall height 58.07 (1,475)
TreadTire size Front Rear
245/45R19 64.2 (1,630) -
275/40R19 - 64.4 (1,636)
Wheelbase 118.50 (3,010)
ELECTRIC VEHICLE SPECIFICATIONS
Items 4WD
Motor (Front/Rear)Max. output (kW) 136
Max. torque (Nm) 350
Battery
(Lithium-ion)Capacity (kWh) 87.2
Power output (kW) 307
Voltage (V) 522.7
Charger (OBC) Max. output (kW)5P 10.9
7P 7 (single-phase) / 10.5 (three-phase)
OBC : On-Board Battery Chargers
DIMENSIONS

2-10
Vehicle Information, Consumer Information and Reporting Safety Defects
Items Tire sizeWheel
sizeInflation pressure psi (kPa)
Wheel bolt
torque lbf-ft
(kgf-m, N-m) Normal load Maximum load
Front Rear Front Rear
Full size
tire245/45R19 8.5J X 19 36 (250) - 36 (250) -101~116
(14~16, 137~157)
275/40R19 9.5J X 19 - 36 (250) - 36 (250)
NOTICE

[Ambient temperature affects the tire pressure (about 1 psi (7 kPa) for every
12°F (7°C) change). If colder temperatures are anticipated, it is permissible to
increase cold tire inflation pressure by up to 3 psi (20 kPa) over the specification.
If extreme temperature changes are expected, be sure to check and adjust tire
pressure accordingly.

[Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.

[Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS

6-40
Driving Your Vehicle
Indicator lights

v
ESC indicator light (blinks)

v
ESC OFF indicator light (comes on)
When the Start/Stop button is pressed
to the ON position, the ESC indicator
light illuminates, then goes off if the ESC
system is operating normally.
The ESC indicator light blinks whenever
ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning light
illuminates , have the vehicle checked by
an authorized retailer of Genesis Branded
products as soon as possible.
The ESC OFF indicator light comes on
when ESC is turned off.
WARNING
When ESC is blinking, this indicates ESC
is active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn ESC off while
the ESC indicator light is blinking or you
may lose control of the vehicle resulting
in an accident.
NOTICE
Driving with wheels and tires with
different sizes may cause the ESC
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized wheels and
tires installed.
ESC OFF usage
When Driving
The ESC OFF mode should only be used
briefly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of ESC, to maintain wheel
torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE
To prevent damage to the shift by wire:

[Do not allow wheel(s) of one axle to
spin excessively while the ESC, ABS,
and Parking Brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce motor power and do not spin
the wheel(s) excessively while these
lights are displayed.

[When operating the vehicle
on a dynamometer, make sure
ESC is turned off (ESC OFF light
illuminated).

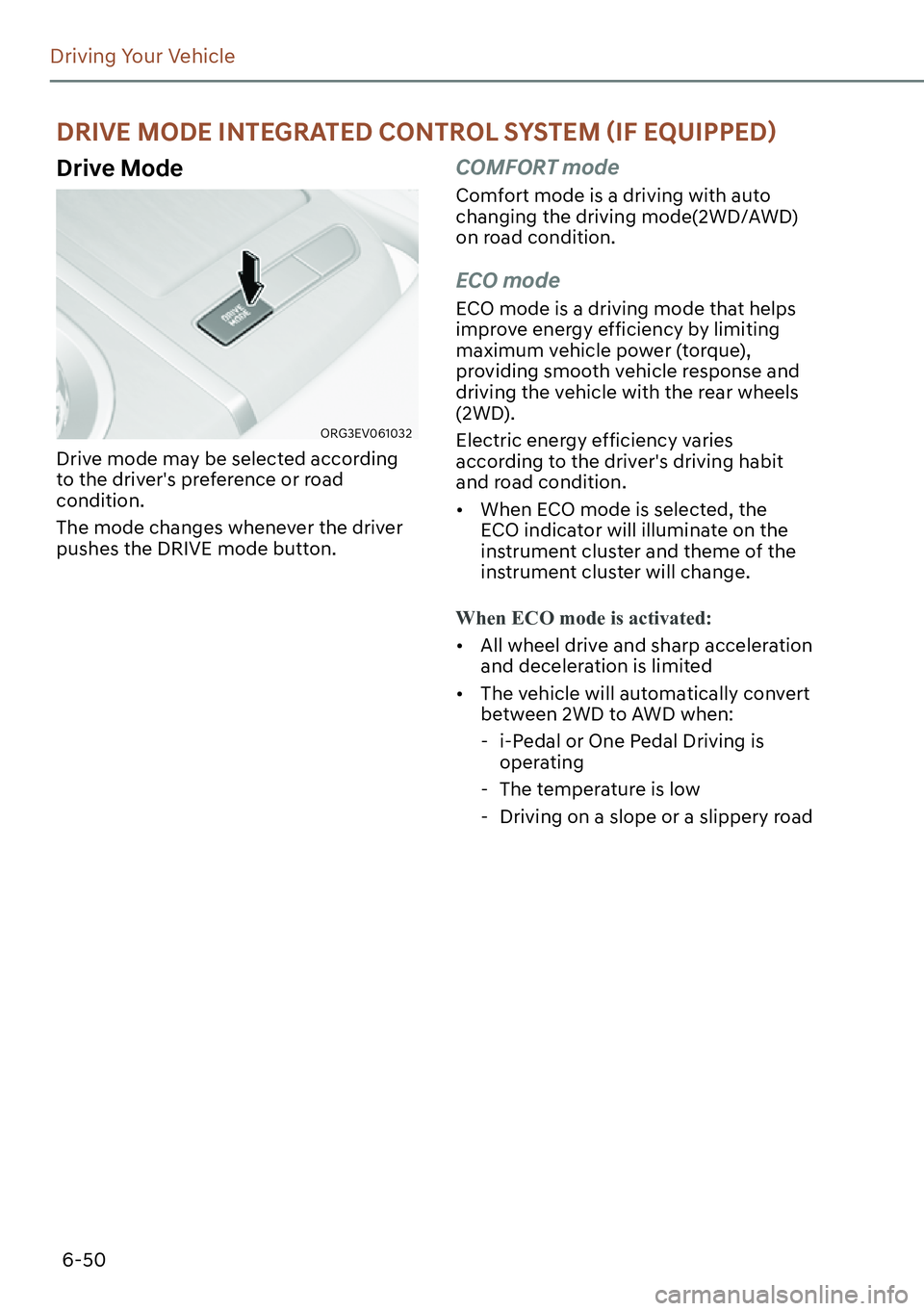

6-50
Driving Your Vehicle
Drive Mode
ORG3EV061032
Drive mode may be selected according
to the driver's preference or road
condition.
The mode changes whenever the driver
pushes the DRIVE mode button.
COMFORT mode
Comfort mode is a driving with auto
changing the driving mode(2WD/AWD)
on road condition.
ECO mode
ECO mode is a driving mode that helps
improve energy efficiency by limiting
maximum vehicle power (torque),
providing smooth vehicle response and
driving the vehicle with the rear wheels
(2WD).
Electric energy efficiency varies
according to the driver's driving habit
and road condition.

[When ECO mode is selected, the
ECO indicator will illuminate on the
instrument cluster and theme of the
instrument cluster will change.
When ECO mode is activated:

[All wheel drive and sharp acceleration
and deceleration is limited

[The vehicle will automatically convert
between 2WD to AWD when:
-i-Pedal or One Pedal Driving is
operating
-The temperature is low
-Driving on a slope or a slippery road
'5,9(02'(,17(*5$7('&21752/6<67(0

9-11
09
Cooling System
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Reduction Gear Fluid
The reduction gear fluid should be
inspected according to the intervals
specified in the maintenance schedule.
Brake Hoses and Lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake Fluid
Check the brake fluid level in the brake
fluid reservoir. The level should be
between the MIN and the MAX marks
on the side of the reservoir. Use only
hydraulic brake fluid conforming to DOT
4 specification.
Brake Discs, Pads, Calipers and
Rotors
Check the pads, the disc, and the rotor
for any excessive wear-out. Inspect
calipers for any fluid leakage.
Suspension Mounting Bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering Gear Box, Linkage &
Boots/Lower Arm Ball Joint
With the vehicle stopped and the vehicle
off, check for excessive free-play in the
steering wheel. Check the linkage for
bends or damage. Check the dust boots
and ball joints for deterioration, cracks,
or damage.
Replace any damaged parts.
Drive Shafts and Boots
Check the drive shafts, boots and clamps
for cracks, deterioration, or damage.
Replace any damaged parts and, if
necessary, repack the grease.
Air Conditioning Refrigerant
Check the air conditioning lines and
connections for leakage and damage.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS

9-26
Maintenance
Tire Rotation
To equalize tread wear, Genesis
Branded Vehicle recommends that
the tires be rotated according to the
maintenance schedule or sooner if
irregular wear develops.
During rotation, check the tires for
correct balance.
When rotating tires, check for
uneven wear and damage. Abnormal
wear is usually caused by incorrect
tire pressure, improper wheel
alignment, out-of-balance wheels,
severe braking or severe cornering.
Look for bumps or bulges in the
tread or side of the tire. Replace
the tire if you find any of these
conditions. Replace the tire if fabric
or cord is visible. After rotation, be
sure to bring the front and rear tire
pressures to specification and check
wheel bolt tightness (proper torque
is 101 ~ 116 lbf·ft (14 ~ 16 kgf·m).
ORG3EV091038
Disc brake pads should be inspected
for wear whenever tires are rotated.
Information
The outside and inside of the
unsymmetrical tire is distinguishable.
When installing an unsymmetrical
tire, be sure to install the side marked
“outside” face the outside. If the side
marked “inside” is installed on the
outside, it will have a negative effect
on vehicle performance.
WARNING

[Do not use the compact spare
tire for tire rotation.

[Do not mix bias ply and radial ply
tires under any circumstances.
This may cause unusual handling
characteristics that may cause
loss of vehicle control resulting in
an accident.
