2023 GENESIS G80 brake sensor

3-65
03

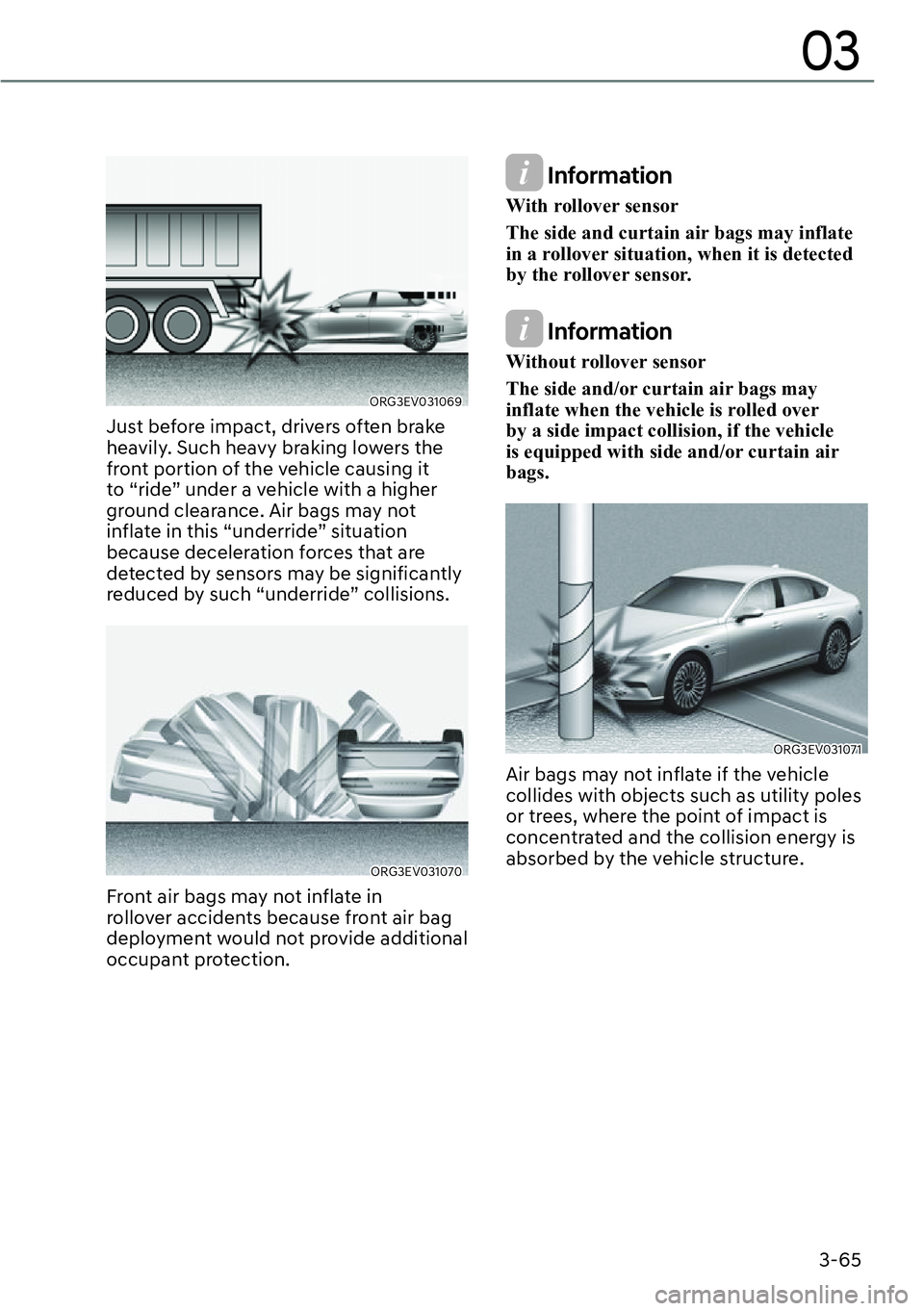

ORG3EV031069
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
ORG3EV031070
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
Information
With rollover sensor
The side and curtain air bags may inflate
in a rollover situation, when it is detected
by the rollover sensor.
Information
Without rollover sensor
The side and/or curtain air bags may
inflate when the vehicle is rolled over
by a side impact collision, if the vehicle
is equipped with side and/or curtain air
bags.
ORG3EV031071
Air bags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.

4-11
04
Regenerative braking level indicator
„8-inch
ORG3EV041071L
„12.3-inch 3D
ORG3EV041010AU
The regenerative brake indicates the
level of the regenerative braking that
you set. And it also indicates Smart
regenerative system’s operation status.
For more details, refer to "Regenerative
Braking System" in chapter 6.
Warning and Indicator Lights
Information
Make sure that all warning lights are OFF
after starting the vehicle. If any light is
still ON, this indicates a situation that
needs attention.
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven.
-ON : Normal driving is possible.
-OFF : Normal driving is not possible,
or a problem has occurred.
-Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. In this case, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.
Service warning light
This warning light illuminates:

[When the START/STOP button is in the
ON position.
-It illuminates for approximately 3
seconds and then goes off.

[When there is a problem with related
parts of the electric vehicle control
system, such as sensors, etc.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have your vehicle inspected
by an authorized retailer of Genesis
Branded products.

5-82
Convenience Features
Exterior Lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OJX1059057
1. OFF position
2. AUTO headlamp position
3. Parking lamp position
4. Headlamp position
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when :

[The headlamps are ON.

[The parking brake is applied.

[The vehicle is turned off.
ORG3EV051070
AUTO headlamp position
The parking lamp and headlamp will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
at the upper end of the windshield glass.
Even with the AUTO headlamp feature
in operation, it is recommended to
manually turn ON the headlamps when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
NOTICE

[Do not cover or spill anything on the
sensor (1) located at the upper end of
the windshield glass.

[Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO
headlamp system may not work
properly.
LIGHTING

6
6. Driving Your Vehicle
Before Driving ................................................................................................... 6-3Before Entering the Vehicle .........................................................................................6-3
Before Starting .............................................................................................................6-3
Start/Stop Button .............................................................................................. 6-4Start/Stop Button Positions .........................................................................................6-5
Starting the Vehicle ..................................................................................................... 6-6
Turning Off the Vehicle ................................................................................................ 6-7
Remote Start ................................................................................................................ 6-8
Reduction Gear (Rotary shifter) ....................................................................... 6-9Reduction gear Operation .......................................................................................... 6-9
LCD Display Messages (Cluster) ................................................................................ 6-14
Good Driving Practices .............................................................................................. 6-15
Regenerative Braking System ......................................................................... 6-17One Pedal Driving....................................................................................................... 6-18
Limitations .................................................................................................................. 6-18
i-Pedal ......................................................................................................................... 6-19
Limitations .................................................................................................................. 6-19
Smart Recuperation System .......................................................................... 6-20Smart Recuperation System Setting ........................................................................ 6-20
To Activate Smart Recuperation System ................................................................. 6-20
Ready to Operate ....................................................................................................... 6-22
How to Operate .......................................................................................................... 6-22
Smart Recuperation System Will Be Temporarily Cancelled When: ....................... 6-23
To Resume Smart Recuperation System .................................................................. 6-23
Vehicle-to-Vehicle Distance Recognition Sensor (Front Radar) ............................. 6-23
System Malfunction ...................................................................................................6-24
Limitations of the System ..........................................................................................6-24
Braking System ................................................................................................6-27Power-Assist Brakes ................................................................................................... 6-27
Disc Brakes Wear Indicator........................................................................................6-28
High performance brake ............................................................................................6-28
Electronic Parking Brake (EPB) ..................................................................................6-29
Auto Hold ....................................................................................................................6-34
Anti-Lock Brake System (ABS) ................................................................................... 6-37
Electronic Stability Control (ESC) ............................................................................ 6-38
Vehicle Stability Management (VSM) ....................................................................... 6-41
Hill-Start Assist Control (HAC) .................................................................................. 6-42
Good Braking Practices ............................................................................................ 6-43

6-23
06
Smart Recuperation System Will
Be Temporarily Cancelled When:

[Cancelled manually
Pulling and holding the right side
paddle shifter for more than 1 second.
The Smart Recuperation System turns
off temporarily and “AUTO” will be
replaced with regenerative braking
level indicator.

[Cancelled automatically
-The vehicle is shifted to N (Neutral),
R (Reverse) or P (Park).
-Smart Cruise Control is in activation.
-The ESC (Electronic Stability
Control) or ABS is operating.
WARNING
When the Smart Recuperation System
is cancelled automatically, adjust the
vehicle speed directly by depressing the
accelerator or brake pedal according to
the road condition ahead and driving
condition.
To Resume Smart Recuperation
System
To re-activate the Smart Recuperation
System while driving, pull and hold the
right side paddle shifter for more than
1 second again. Then, AUTO for the
regenerative braking level will appear on
the cluster.
Vehicle-to-Vehicle Distance
Recognition Sensor (Front
Radar)
ORG3EV061016
[1] : Front radar
In order for the Smart Recuperation
System to operate properly, always make
sure the radar sensor cover is clean and
free of dirt, snow, and debris. Dirt, snow,
or foreign substances on the lens may
adversely affect the sensing performance
of the sensor. In this case, the system
operation may stop temporarily and not
operate normally.

6-25
06
Driving on a curved road
ORG3EV061018
When coasting on the curve, the system
may not detect the vehicle in your lane
and the regenerative braking level will
reduce automatically, making you feel
that the vehicle is accelerating.
Also, if the system suddenly recognizes
the vehicle in front, the regenerative
braking level will increase automatically,
making you feel that the vehicle is
decelerating.
The driver must maintain a safe braking
distance, and if necessary, depress the
brake pedal to reduce your driving speed
in order to maintain a safe distance.
ORG3EV061019
Your vehicle speed can be reduced due
to a vehicle in the adjacent lane.
Apply the accelerator pedal and select
the appropriate speed. Check to be sure
that the road conditions permit safe
operation of the Smart Recuperation
System.
Driving on an inclined road
ORG3EV061021
When coasting on an uphill or downhill,
the system may not detect the vehicle in
your lane and the regenerative braking
level will reduce automatically, making
you feel that the vehicle is accelerating.
Also, if the system suddenly recognizes
the vehicle in front, the regenerative
braking level will increase automatically,
making you feel that the vehicle is
decelerating.
The driver must maintain a safe braking
distance, and if necessary, depress the
brake pedal to reduce your driving speed
in order to maintain a safe distance.
Lane changing
ORG3EV061020

[A vehicle which moves into your lane
from an adjacent lane cannot be
recognized by the sensor until it is in
the sensor's detection range.

[The radar may not detect immediately
when a vehicle cuts in suddenly.
Always pay attention to the traffic,
road and driving conditions.

6-26
Driving Your Vehicle
Vehicle recognition
ORG3EV061022
Some vehicles in your lane cannot be
recognized by the sensor:
-Narrow vehicles such as motorcycles or
bicycles
-Vehicles offset to one side
-Slow-moving vehicles or sudden-
decelerating vehicles
-Stopped vehicles (When the vehicle
ahead drives away, the system may not
detect a stopped vehicle.)
-Vehicles with small rear profile such as
trailers with no loads
A vehicle ahead cannot be recognized
correctly by the sensor if any of following
occurs:
-When the vehicle is pointing upwards
due to overloading in the luggage
compartment.
-While the steering wheel is operating.
-When driving to one side of the lane.
-When driving on narrow lanes or on
curves.
-Apply the brake or accelerator pedal if
necessary.
WARNING
When using the Smart Recuperation
System take the following precautions:

[If an emergency stop is necessary,
you must apply the brakes.

[Keep a safe distance according to
road conditions and vehicle speed. If
the vehicle to vehicle distance is too
close during a high-speed driving, a
serious collision may result.

[Always maintain sufficient braking
distance and decelerate your vehicle
by applying the brakes if necessary.

[The Smart Recuperation System
cannot recognize a stopped vehicle,
pedestrians or an oncoming vehicle.
Always look ahead cautiously to
prevent unexpected and sudden
situations from occurring.

[Vehicles moving in front of you with
a frequent lane changes may cause
a delay in the system's reaction or
may cause the system to react to a
vehicle actually in an adjacent lane.
Always drive cautiously to prevent
unexpected and sudden situations
from occurring.

[The Smart Recuperation System
may not recognize complex driving
situations so always pay attention to
driving conditions and control your
vehicle speed.
NOTICE
The Smart Recuperation System may
not operate temporarily due to:

[Electrical interference

[Modifying the suspension

[Differences of tire abrasion or tire
pressure

[Installing different type of tires

7-33
07
ORG3EV071093
When you are driving forward out of a
parking space, if Blind-Spot Collision-
Avoidance Assist judges that there is
a collision risk with an approaching
vehicle in the blind spot, it can help avoid
collision by applying the brake.
Detecting sensor
ORG3EV071074
ORG3EV071076[1] : Front view camera, [2] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
&$87,21
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[1HYHUGLVDVVHPEOHWKHUHDUFRUQHU
UDGDURUUDGDUDVVHPEO\RUFDXVHDQ\
GDPDJHWRLW

[If the rear corner radar or near
WKHUDGDUKDVEHHQGDPDJHGRU
LPSDFWHGLQDQ\ZD\HYHQWKRXJK
the warning message does not
DSSHDURQWKHFOXVWHU%OLQG6SRW
&ROOLVLRQ$YRLGDQFH$VVLVWPD\QRW
RSHUDWHSURSHUO\+DYHWKHYHKLFOH
LQVSHFWHGE\DQDXWKRUL]HGUHWDLOHURI
*HQHVLV%UDQGHGSURGXFWV
