2023 FORD MUSTANG jump start

Transmission
Manual Transmission.................................163
Automatic Transmission..........................164
Technical Specifications - Mach 1.........168
Rear Axle
Limited Slip Differential............................170
Brakes
General Information.....................................171
Hints on Driving With Anti-Lock Brakes..........................................................................171
Parking Brake.................................................172
Hill Start Assist.............................................173
Traction Control
Principle of Operation................................174
Using Traction Control...............................174
Stability Control
Principle of Operation................................175
Using Stability Control...............................176
Parking Aids
Principle of Operation................................178
Rear Parking Aid...........................................179
Rear View Camera......................................180
Cruise Control
What Is Cruise Control..............................184
Switching Cruise Control On and Off.........................................................................184
Setting the Cruise Control Speed.........184
Canceling the Set Speed..........................185
Resuming the Set Speed..........................185
Cruise Control Indicators..........................185
Using Adaptive Cruise Control...............185
Driving Aids
Driver Alert......................................................192
Lane Keeping System................................193
Blind Spot Information System..............197
Cross Traffic Alert........................................199
Steering..........................................................202
Pre-Collision Assist....................................203
Drive Control - Mach 1...............................207
Drive Control.................................................210
Load Carrying
Load Limit.......................................................214
Towing
Towing a Trailer - Mach 1...........................219
Towing a Trailer............................................219
Recommended Towing Weights..........220
Essential Towing Checks...........................221
Transporting the Vehicle - Mach 1........223
Towing the Vehicle on Four Wheels......227
Convertible Top
Opening the Convertible Top.................228
Closing the Convertible Top...................229
Driving Hints
Reduced Engine Performance...............230
Cold Weather Precautions......................230
Breaking-In....................................................230
Driving Economically.................................230
Driving Through Shallow Water.............231
Floor Mats.......................................................231
Roadside Emergencies
Roadside Assistance.................................233
Hazard Flashers...........................................234
Fuel Shutoff..................................................234
Jump Starting the Vehicle.......................235
Post-Crash Alert System..........................237
Transporting the Vehicle..........................238
4
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTable of Contents

CATALYTIC CONVERTER
WARNING: Do not park, idle ordrive your vehicle on dry grass or otherdry ground cover. The emission systemheats up the engine compartment andexhaust system, creating the risk of fire.
WARNING: The normal operatingtemperature of the exhaust system isvery high. Never work around or attemptto repair any part of the exhaust systemuntil it has cooled. Use special care whenworking around the catalytic converter.The catalytic converter heats up to a veryhigh temperature after only a shortperiod of engine operation and stays hotafter the engine is switched off.
WARNING: Exhaust leaks mayresult in entry of harmful and potentiallylethal fumes into the passengercompartment. If you smell exhaustfumes inside your vehicle, have yourvehicle inspected immediately. Do notdrive if you smell exhaust fumes.
Your vehicle has various emission controlcomponents and a catalytic converter thatenables it to comply with applicableexhaust emission standards.
To make sure that the catalytic converterand other emission control componentscontinue to work properly:
•Do not crank the engine for more than10 seconds at a time.
•Do not run the engine with a spark pluglead disconnected.
•Do not push-start or tow-start yourvehicle. Use booster cables. See JumpStarting the Vehicle (page 235).
•Use only the specified fuel listed.
•Do not switch the ignition off when yourvehicle is moving.
•Avoid running out of fuel.
•Have the items listed in scheduledmaintenance information performedaccording to the specified schedule.
Note:Resulting component damage maynot be covered by the vehicle Warranty.
The scheduled maintenance items listedin scheduled maintenance information areessential to the life and performance ofyour vehicle and to its emissions system.
If you use anything other than Ford,Motorcraft or Ford-authorized parts formaintenance replacements or for serviceof components affecting emission control,such non-Ford parts should be equivalentto genuine Ford Motor Company parts inperformance and durability.
Illumination of the service engine soonindicator, charging system warning light orthe temperature warning light, fluid leaks,strange odors, smoke or loss of enginepower could indicate that the emissioncontrol system is not working properly.
An improperly operating or damagedexhaust system may allow exhaust toenter the vehicle. Have a damaged orimproperly operating exhaust systeminspected and repaired immediately.
Do not make any unauthorized changes toyour vehicle or engine. By law, vehicleowners and anyone who manufactures,repairs, services, sells, leases, tradesvehicles, or supervises a fleet of vehiclesare not permitted to intentionally removean emission control device or prevent itfrom working. Information about yourvehicle’s emission system is on the VehicleEmission Control Information Decallocated on or near the engine. This decalalso lists engine displacement.
Please consult your warranty informationfor complete details.
160
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingEngine Emission Control

ROADSIDE ASSISTANCE
Vehicles Sold in the United States:Getting Roadside Assistance
To fully assist you should you have avehicle concern, Ford Motor Companyoffers a complimentary roadsideassistance program. This program isseparate from the New Vehicle LimitedWarranty.
The service is available:
•24 hours a day, seven days a week.
•For the coverage period supplied withyour vehicle.
Roadside Assistance covers:
•A flat tire change with a good spare(except vehicles supplied with a tireinflation kit).
•Battery jump start.
•Lock-out assistance (key replacementcost is the customer's responsibility).
•Fuel delivery — independent servicecontractors, if not prohibited by state,local or municipal law, shall deliver upto 2 gal (8 L) of gasoline or 5 gal (20 L)of diesel fuel to a disabled vehicle.Roadside Assistance limits fuel deliveryservice to two no-charge occurrenceswithin a 12-month period.
•Winch out — available within 100 ft(30 m) of a paved or countymaintained road, no recoveries.
•Towing — independent servicecontractors, if not prohibited by state,local or municipal law, shall tow Fordeligible vehicles to an authorized dealerwithin 35 mi (56 km) of thedisablement location or to the nearestauthorized dealer. If a memberrequests a tow to an authorized dealerthat is more than 35 mi (56 km) fromthe disablement location, the membershall be responsible for any mileagecosts in excess of 35 mi (56 km).
•Roadside Assistance includes up to$200 for a towed trailer if the disabledeligible vehicle requires service at thenearest authorized dealer. If the towingvehicle is operational but the trailer isnot, then the trailer does not qualify forany roadside services.
Vehicles Sold in the United States:Using Roadside Assistance
Complete the roadside assistanceidentification card and place it in yourwallet for quick reference. This card is inthe Owner's Manual kit.
United States vehicle customers whorequire Roadside Assistance, call1-800-241-3673.
If you need to arrange roadside assistancefor yourself, Ford Motor Companyreimburses a reasonable amount fortowing to the nearest dealership within35 mi (56 km). To obtain reimbursementinformation, United States vehiclecustomers call 1-800-241-3673.Customers need to submit their originalreceipts.
233
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingRoadside Emergencies

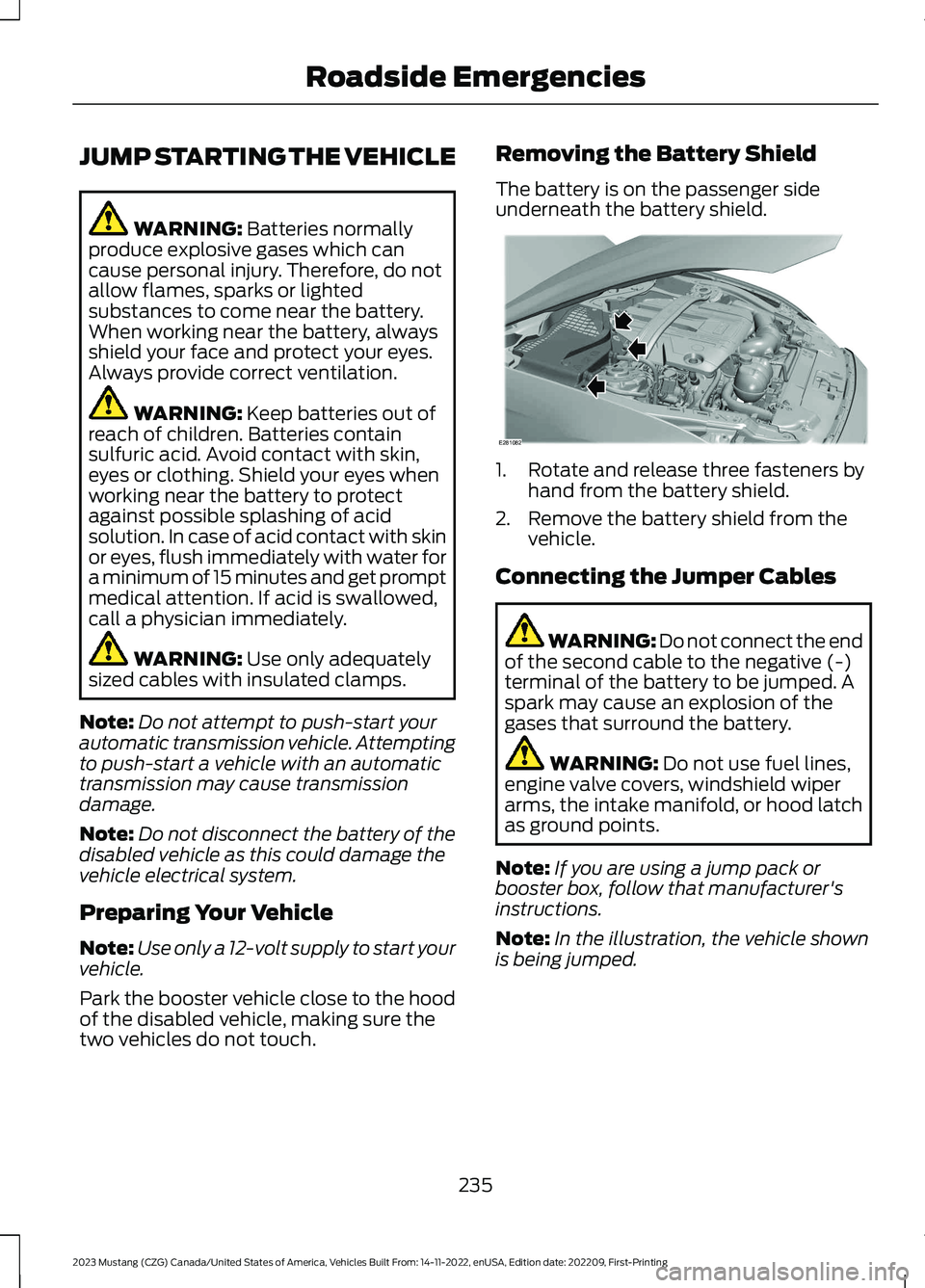

JUMP STARTING THE VEHICLE
WARNING: Batteries normallyproduce explosive gases which cancause personal injury. Therefore, do notallow flames, sparks or lightedsubstances to come near the battery.When working near the battery, alwaysshield your face and protect your eyes.Always provide correct ventilation.
WARNING: Keep batteries out ofreach of children. Batteries containsulfuric acid. Avoid contact with skin,eyes or clothing. Shield your eyes whenworking near the battery to protectagainst possible splashing of acidsolution. In case of acid contact with skinor eyes, flush immediately with water fora minimum of 15 minutes and get promptmedical attention. If acid is swallowed,call a physician immediately.
WARNING: Use only adequatelysized cables with insulated clamps.
Note:Do not attempt to push-start yourautomatic transmission vehicle. Attemptingto push-start a vehicle with an automatictransmission may cause transmissiondamage.
Note:Do not disconnect the battery of thedisabled vehicle as this could damage thevehicle electrical system.
Preparing Your Vehicle
Note:Use only a 12-volt supply to start yourvehicle.
Park the booster vehicle close to the hoodof the disabled vehicle, making sure thetwo vehicles do not touch.
Removing the Battery Shield
The battery is on the passenger sideunderneath the battery shield.
1.Rotate and release three fasteners byhand from the battery shield.
2.Remove the battery shield from thevehicle.
Connecting the Jumper Cables
WARNING: Do not connect the endof the second cable to the negative (-)terminal of the battery to be jumped. Aspark may cause an explosion of thegases that surround the battery.
WARNING: Do not use fuel lines,engine valve covers, windshield wiperarms, the intake manifold, or hood latchas ground points.
Note:If you are using a jump pack orbooster box, follow that manufacturer'sinstructions.
Note:In the illustration, the vehicle shownis being jumped.
235
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingRoadside EmergenciesE281082

Note:In the illustration that follows, thebottom vehicle represents the boostervehicle.
1.Pull the red rubber boot backwards.Connect the positive (+) jumper cableto the positive (+) terminal of thedischarged battery.
2.Connect the other end of the positive(+) jumper cable to the positive (+)terminal of the booster vehicle battery.
3.Connect the negative (-) jumper cableto the negative (-) terminal of thebooster vehicle battery.
4.Make the final connection of thenegative (-) jumper cable to anexposed metal part of the stalledvehicle's engine, as shown in thefollowing illustration, away from thebattery and the fuel injection system,or connect the negative (-) jumpercable to a ground connection point ifavailable.
Starting the Engine
1.Start the engine of the booster vehicleand moderately rev the engine , orgently press the accelerator to keepyour engine speed between 2000 and3000 RPM, as shown in yourtachometer.
2.Start the engine of the disabled vehicle.
3.Once you start the disabled vehicle, runboth vehicle engines for an additionalthree minutes before disconnecting thejumper cables.
Removing the Jumper Cables
Remove the jumper cables in the reverseorder that they were connected.
236
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingRoadside EmergenciesE274298 E281345 E204033

PROTECT YOURSELF FROM THE RISINGCOST OF VEHICLE REPAIRS WITH A FORDPROTECT EXTENDED SERVICE PLAN.
Ford Protect Extended ServicePlans (U.S. Only)
Ford Protect extended service plan meanspeace of mind. It is the extended serviceplan backed by Ford Motor Company, andprovides more protection beyond the NewVehicle Limited Warranty coverage. Whenyou visit your Ford Dealer, Insist on FordProtect extended service plans!
Ford Protect Can Quickly Pay for Itself
One trip to the Service Center could easilyexceed the price of your Ford Protectextended service plan. With Ford Protectextended service plan you minimize yourrisk for unexpected repair bills and risingrepair costs.
Up to 1,000+ Covered VehicleComponents
There are four mechanical Ford Protectextended service plans with different levelsof coverage. Ask your authorized dealer fordetails.
1.PremiumCARE - Our mostcomprehensive coverage. With over1,000 covered components, this planis so complete it is probably easier tolist what is not covered.
2.ExtraCARE - Covers 113 components,and includes many high-tech items.
3.BaseCARE - Covers 84 components.
4.PowertrainCARE - Covers 29 criticalcomponents.
Ford Protect extended service plans arehonored by all authorized Ford dealers inthe U.S., Canada and Mexico.
That means you get:
•Reliable, quality service at any Ford orLincoln dealership.
•Repairs performed by factory trainedtechnicians, using genuine parts.
Rental Car Reimbursement
1st day Rental Benefit
If you bring your car into your dealer forservice, we’ll give you a loaner to use forthe day.
Extended Rental Benefits
If your vehicle is kept overnight for coveredrepairs, you are eligible for rental carcoverage, including warranty repairs, andField Service Actions.
Roadside Assistance
Exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and batteryjump starts.
•Out of fuel and lock-out assistance.
•Travel expense reimbursement forlodging, meals and rental car.
•Assistance for taxi, shuttle, rental carcoverage or other transportation.
Transferable Coverage
If you sell your vehicle before your FordProtect extended service plan coverageexpires, you can transfer any remainingcoverage to the new owner. Which shouldgive you and your potential buyer a littlemore peace of mind.
447
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFord Protect

Hints on Controlling the Interior Climate- Vehicles With: Manual TemperatureControl...........................................................129Hints on Driving With Anti-LockBrakes..............................................................171Hood LockSee: Opening and Closing the Hood...........257Horn......................................................................77How Does the Garage Door OpenerWork...............................................................140
I
In California (U.S. Only)............................240Information Display Control - VehiclesWith: SYNC 3.................................................76Information Display Control - VehiclesWith: SYNC....................................................76Information Displays....................................98General Information - Mach 1..........................98General Information - Vehicles With: 12.3Inch Instrument Cluster DisplayScreen...............................................................108General Information - Vehicles With: 4.2Inch Instrument Cluster DisplayScreen................................................................102Information Messages.................................112Installing Child Restraints - Mach 1..........27Installing Child Restraints - VehiclesWith: GT500 Track Package...................34Installing Child Restraints - VehiclesWithout: GT500 Track Package............28Instrument Cluster........................................90Instrument Lighting Dimmer......................81Instrument Panel............................................23Interior Air Quality.........................................132Interior Lamps.................................................83Interior Luggage CompartmentRelease............................................................72Interior Mirror...................................................88Introduction........................................................9
J
Jump Starting the Vehicle........................235
K
Keyless Starting............................................146Keys and Remote Controls.........................58
L
Lane Keeping System.................................193Lighting Control..............................................80Lighting..............................................................80General Information...........................................80Limited Slip Differential.............................170Load Carrying.................................................214Load Limit........................................................214Locating the Cabin Air Filter......................132Locking and Unlocking.................................67Lug NutsSee: Changing a Road Wheel.......................330
M
Maintenance..................................................257General Information..........................................257Manual Climate Control.............................126Manual Seats.................................................135Manual Transmission Fluid Check -6-Speed Manual Transmission –3160...............................................................269Manual Transmission Fluid Check -6-Speed Manual Transmission –MT82.............................................................270Manual Transmission..................................163Memory Function.........................................136Message CenterSee: Information Displays.................................98MirrorsSee: Windows and Mirrors...............................86Mobile CommunicationsEquipment.....................................................20Motorcraft Parts - 2.3LEcoBoost™.................................................342Motorcraft Parts - 5.0L, Mach 1..............344Motorcraft Parts - 5.0L..............................343MyKey Settings...............................................63Configurable MyKey Settings..........................63Non-Configurable MyKey Settings................63MyKey – Troubleshooting...........................65MyKey – Frequently Asked Questions.........66
528
