2023 FORD F150 torque

UNIQUE FEATURES - 5.2L
Powertrain
•5.2L Supercharged V8 engine.
•10R80 10-speed automatictransmission with paddle shifters andwater to air transmission cooler.
•Torque On Demand™ 2-speed transfercase with 4 Hi-Loc.
•Rear differential capable of locking in4A, 4H and 4L.
•35 spline rear axle shafts for increasedcapability.
•4.10 front and rear axle ratios.
•High flow exhaust with X-pipe andactive valves for acoustic refinement.
•Low temperature radiator fanassembly for greater cooling at lowspeeds.
Chassis
•Cast aluminum lower control arms.
•Forged steel upper control arms.
•Fox Factory 3.1 Live Valve InternalBypass front shocks.
•Fox Factory 3.1 Live Valve InternalBypass Remote Reservoir rear shocks.
•24 inch triple rate rear springs.
•Unique underbody shields.
•Heavy duty fully boxed frame.
•Unique 5 link rear suspension.
•Unique cast aluminum knuckle.
•Ride height sensors at each corner.
•Off-road tuned stabilizer bar andjounce bumpers.
Exterior
•Optional off-road driving lights.
•Modified rear bumper with integratedrear tow hooks.
•Underbody shields plus front towhooks.
•Hood with functional air extractors.
•Front fenders with functional airextractors.
•Front and rear LED marker lamps.
•17 x 8.5 aluminum wheels.
•Optional 17 x 8.5 forged beadlockcompatible wheels.
•LT 315/70R17 BF Goodrich All TerrainTA KO2 tires.
•Optional 37x12.5R17 LT BF Goodrich AllTerrain TA KO2 tires.
Interior
•Unique terrain-mode and trail controlfunctionality plus six auxiliary switches.
•Premium leather and suede seats.
UNIQUE FEATURES - 3.5L
ECOBOOST™
Powertrain
•3.5L EcoBoost engine.
•10R80 10-speed automatictransmission with paddle shifters andwater to air transmission cooler.
•Torque On Demand™ 2-speed transfercase with 4 Hi-Loc.
•Rear differential capable of locking in4A, 4H and 4L.
•35 spline rear axle shafts for increasedcapability.
•4.10 front and rear axle ratios.
•High flow exhaust with X-pipe andactive valves for acoustic refinement.
•Charge air cooler fan assembly forgreater cooling at low speeds.
33
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMAt a Glance - Raptor

4.Install a protective cap on the in-lineconnector portion that remains underthe pickup box.
Note: The protective cap is in the glovecompartment.
5.Partially raise the tailgate. Carefullyfeed the tailgate harness up throughthe gap between the pickup box andthe bumper and place it out of the wayunder the pickup box.
6.Fully lower the tailgate.
7.Remove the retaining screw.
8.Use a screwdriver to gently pry thespring clip on each connector past thehead of the support screw. Disconnectthe cable.
9.Disconnect the other cable.
10.Lift the tailgate to 45 degrees fromthe horizontal position.
11.Lift the right-hand side off its hinge.
12.Lift the tailgate to 80 degrees fromthe horizontal position.
13.Remove the tailgate from theleft-hand side hinge by sliding it tothe right.
14.Install the tailgate in reverse order.
Note:After reinstalling the tailgate it isimportant to reinstall the retaining screw tothe recommended torque,7 lb.ft (10 Nm).Failure to install the retaining screw cancause the tailgate to detach.
TAILGATE STEP (IF EQUIPPED)
ACCESSING THE TAILGATE STEP
Integrated Tailgate Step
1.Lower the tailgate.
2.Push the button in the center of thestep molding. The step pops outslightly.
121
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTailgate - Vehicles With: Power Tailgate E310339 E311529

HOW DOES FOUR-WHEEL
DRIVE WORK - EXCLUDING:
RAPTOR
Using the Electronic Shift On theFly System (If Equipped)
This four-wheel drive system utilizes a2-speed Electronic Shift On the Fly (ESOF)transfer case which is also known as apart-time system. This system offers thedriver two-wheel drive high, four-wheeldrive high, and four-wheel drive low asavailable modes of operation. When eitherfour-wheel drive high or four-wheel drivelow are selected, the system providesmechanically locked four-wheel drivepower to both the front and rear wheelsfor use in off-road or slippery conditionssuch as deep snow, sand or mud. Selectingfour-wheel drive low also providesadditional gearing for increased torquemultiplication for conditions like deepsand, steep slopes, or pulling heavyobjects. Additionally, the system is capableof recreational flat towing by putting thetransfer case into neutral (N). SeeRecreationally Towing Your Vehicle(page 485).
There is further information on driving inunique driving conditions. See Off-RoadDriving (page 466).
Using the 2-Speed AutomaticFour-Wheel Drive System (If Equipped)
The 2-speed automatic four-wheel drivesystem utilizes an electronically controlledon-demand 2-speed transfer case. Thissystem monitors various vehicle sensoryinputs to provide an increased level ofperformance. This system offers the drivertwo-wheel drive high, four-wheel driveauto, four-wheel drive high, and four-wheeldrive low as available modes of operation.When four-wheel drive auto is selected,the system continuously varies power to
the front wheels for optimum performancefor all on-road conditions. When eitherfour-wheel drive high or four-wheel drivelow are selected, the system provideselectronically or mechanically lockedpower to the front and rear wheels for usein off-road or slippery conditions such asdeep snow, sand or mud. Selectingfour-wheel drive low also providesadditional gearing for increased torquemultiplication for conditions like deepsand, steep slopes, or pulling heavyobjects. Additionally, the system is capableof recreational flat towing by putting thetransfer case into neutral (N). SeeRecreationally Towing Your Vehicle(page 485).
There is further information on driving inunique driving conditions. See Off-RoadDriving (page 466).
HOW DOES FOUR-WHEEL
DRIVE WORK - RAPTOR
The 2-speed automatic four-wheel drivesystem utilizes an electronically controlledon-demand 2-speed transfer case. Thissystem monitors various vehicle sensoryinputs to provide an increased level ofperformance. This system offers the drivertwo-wheel drive high, four-wheel driveauto, four-wheel drive high, and four-wheeldrive low as available modes of operation.When four-wheel drive auto is selected,the system continuously varies power tothe front wheels for optimum performancefor all on-road conditions. When eitherfour-wheel drive high or four-wheel drivelow are selected, the system providesmechanically locked power to the frontand rear wheels for use in off-road orslippery conditions such as deep snow,sand or mud. Selecting four-wheel drivelow also provides additional gearing forincreased torque multiplication for
274
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMFour-Wheel Drive (If Equipped)

•Additional noise from the transfer caseor other drive components.
•Difficulty shifting out of a mechanicallylocked four-wheel drive mode.
Use of a dissimilar spare wheel and tireassembly can lead to impairment of thefollowing:
•Comfort and noise.
•Winter weather driving capability.
•Wet driving capability.
•Four-wheel drive capability.
Mechanical Shift Blocking
On four-wheel drive vehicles with amechanically locked four-wheel drive highmode, the transfer case distributes torqueto the front wheels by mechanicallyinterlocking the front and rear driveshaftstogether. Various external factors canaffect shifting performance of this type ofsystem including, but not limited to:
•Vehicle acceleration.
•Dissimilar tire sizes.
•Steering input.
If the system detects a mechanical shiftblockage at speed after you selecttwo-wheel drive high, the message "4x4Unable to Disengage See Manual", coulddisplay momentarily. If this messagedisplays, one or more of the followingactions can relieve the mechanical shiftblock:
•Momentary acceleration.
•Momentary braking.
•Bringing the vehicle to a stop.
•Shifting the transmission to neutral andback to drive.
•Shifting the transmission to reverseand back to drive.
•Driving the vehicle around a tight turnat a slow speed.
SELECTING A FOUR-WHEEL
DRIVE MODE - EXCLUDING:
RAPTOR
The four-wheel drive mode control is onthe instrument panel.
276
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMFour-Wheel Drive (If Equipped)E308146 E323655

FOUR-WHEEL DRIVE AUTO (If
Equipped)
Four-wheel drive auto provideselectronically controlled four-wheel drivepower to both the front and rear wheels,as required, for increased traction in varyingon-road conditions. The four-wheel driveauto tuning varies based on selected DriveMode. See Selecting a Drive Mode (page363).
Note:Four-wheel drive auto can turn on oroff automatically based on Drive Modeselection. See Selecting a Drive Mode(page 363).
FOUR-WHEEL DRIVE HIGH -EXCLUDING: RAPTOR
Four-wheel drive high provideselectronically or mechanically lockedfour-wheel drive power to both the frontand rear wheels for use in off-road orwinter conditions such as deep snow, sandor mud. This mode is not for use on drypavement.
Note:Four-wheel drive high can turn on oroff automatically based on Drive Modeselection. See Selecting a Drive Mode(page 363).
FOUR-WHEEL DRIVE HIGH -RAPTOR
Four-wheel drive high providesmechanically locked four-wheel drivepower to both the front and rear wheelsfor use in off-road or winter conditionssuch as deep snow, sand or mud. Thismode is not for use on dry pavement.
Note:Four-wheel drive high can turn on oroff automatically based on Drive Modeselection. See Selecting a Drive Mode(page 363).
FOUR-WHEEL DRIVE LOW -EXCLUDING: RAPTOR
Four-wheel drive low provideselectronically or mechanically lockedfour-wheel drive power to both the frontand rear wheels for use on low tractionsurfaces, but does so with additionalgearing for increased torque multiplication.This mode is only for off-road conditionssuch as deep sand, steep slopes, or pullingheavy objects.
Note:Four-wheel drive low can turn on oroff automatically based on drive modeselection. See Selecting a Drive Mode(page 363).
FOUR-WHEEL DRIVE LOW -RAPTOR
Four-Wheel Drive Low providesmechanically locked four-wheel drivepower to both the front and rear wheelsfor use on low traction surfaces, but doesso with additional gearing for increasedtorque multiplication. The intent of thismode is only for off-road conditions suchas deep sand, steep slopes, or pullingheavy objects.
Note:Four-wheel drive low can turn on oroff automatically based on drive modeselection. See Selecting a Drive Mode(page 363).
FOUR-WHEEL DRIVE
INDICATORS
Two-wheel Drive High
Momentarily illuminates whentwo-wheel drive high is selected.
279
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMFour-Wheel Drive (If Equipped)E181778

WHAT IS THE ELECTRIC
PARKING BRAKE
The electric parking brake is used to holdyour vehicle on slopes and flat roads.
APPLYING THE ELECTRIC
PARKING BRAKE
WARNING: Apply the parkingbrake, shift into park (P), switch theignition off and remove the key beforeyou leave your vehicle. Failure to followthis instruction could result in personalinjury or death.
WARNING: If you drive extendeddistances with the parking brake applied,you could cause damage to the brakesystem.
WARNING: The electric parkingbrake does not operate if the vehiclebattery has run out of charge.
The switch is on the lower partof the instrument panel.
Pull the switch up to apply the electricparking brake. The red warning lampflashes, then steadily illuminates when theparking brake is applied.
Note:You can apply the electric parkingbrake when the ignition is off.
Note:The electric parking brake couldautomatically apply when park (P) isselected. See Park (P) (page 264).
APPLYING THE ELECTRIC
PARKING BRAKE IN AN
EMERGENCY
You can use the electric parking brake toslow or stop your vehicle in an emergency.
Pull the switch up and hold it.
The red warning lamp illuminates, a tonesounds and the stoplamps turn on whenyou use the electric parking brake in anemergency.
The electric parking brake continues toslow your vehicle down unless you releasethe switch.
Note:Do not apply the electric parkingbrake when your vehicle is moving, exceptin an emergency. If you repeatedly use theelectric parking brake to slow or stop yourvehicle, you could cause damage to thebrake system.
MANUALLY RELEASING THE
ELECTRIC PARKING BRAKE
1.Switch the ignition on.
2.Press and hold the brake pedal.
3.Push the switch down.
The red warning lamp turns off.
Pulling Away on a Hill When Towing aTrailer
1.Press and hold the brake pedal.
2.Pull the switch upward and hold it.
3.Shift into gear.
4.Press the accelerator pedal until enginehas developed sufficient torque toprevent your vehicle from rolling downthe hill.
5.Release the switch and pull away in anormal manner.
294
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMElectric Parking BrakeE267156

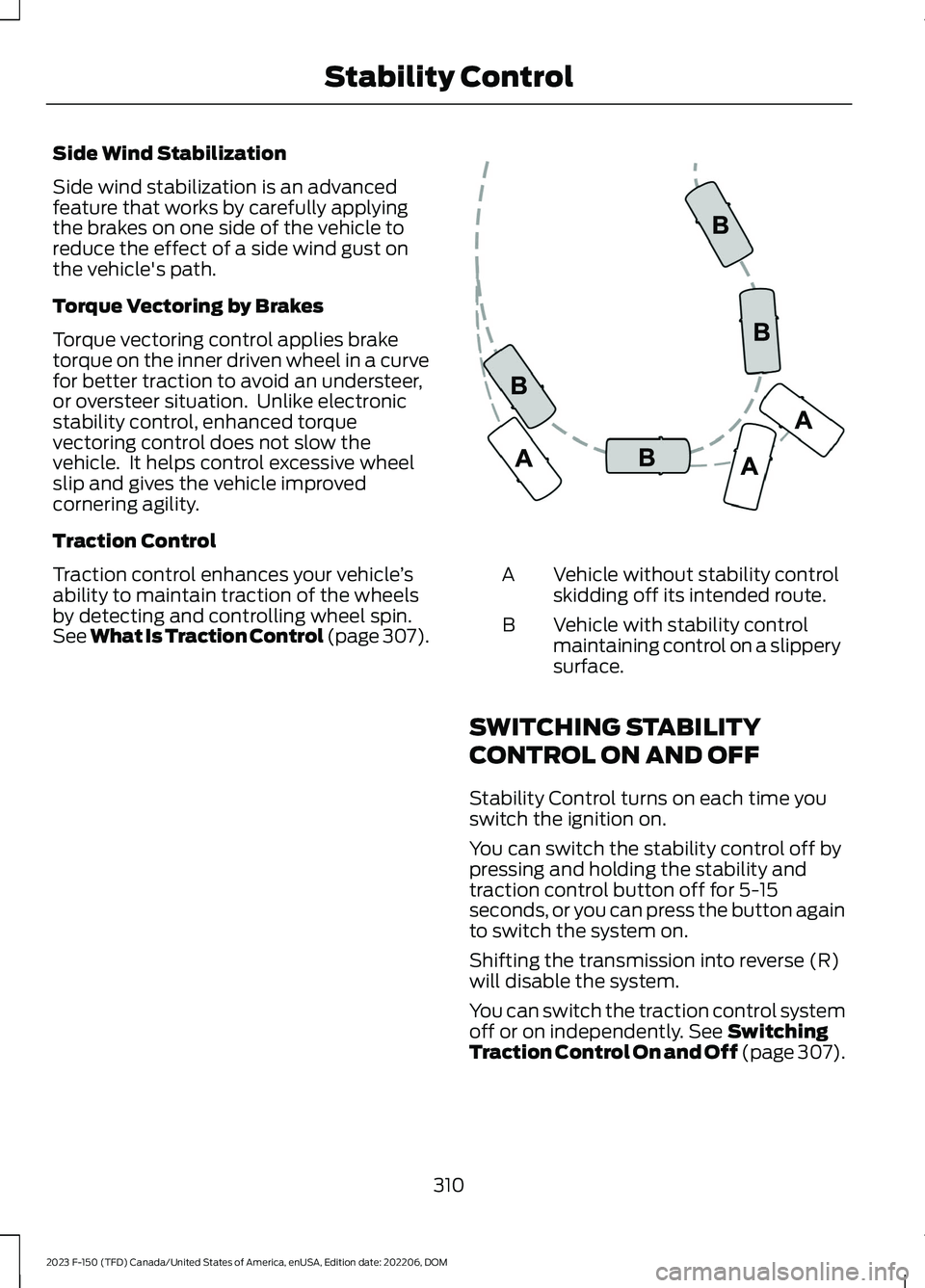

Side Wind Stabilization
Side wind stabilization is an advancedfeature that works by carefully applyingthe brakes on one side of the vehicle toreduce the effect of a side wind gust onthe vehicle's path.
Torque Vectoring by Brakes
Torque vectoring control applies braketorque on the inner driven wheel in a curvefor better traction to avoid an understeer,or oversteer situation. Unlike electronicstability control, enhanced torquevectoring control does not slow thevehicle. It helps control excessive wheelslip and gives the vehicle improvedcornering agility.
Traction Control
Traction control enhances your vehicle’sability to maintain traction of the wheelsby detecting and controlling wheel spin.See What Is Traction Control (page 307).
Vehicle without stability controlskidding off its intended route.A
Vehicle with stability controlmaintaining control on a slipperysurface.
B
SWITCHING STABILITY
CONTROL ON AND OFF
Stability Control turns on each time youswitch the ignition on.
You can switch the stability control off bypressing and holding the stability andtraction control button off for 5-15seconds, or you can press the button againto switch the system on.
Shifting the transmission into reverse (R)will disable the system.
You can switch the traction control systemoff or on independently. See SwitchingTraction Control On and Off (page 307).
310
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMStability ControlE72903

Lane Centering may not correctly operatein any of the following conditions:
•The lane is too narrow or wide.
•The system does not detect at leastone lane marking or when lanes mergeor split.
•Limited steering torque input is applied.
•Areas under construction or newinfrastructure.
•When modifications to the steeringsystem have been made.
•When using a spare tire.
•In high wind conditions.
Note:The driving assistance torque islimited and may not be sufficient for alldriving situations such as driving throughtight curves or driving through curves at highspeeds.
Note:In exceptional conditions, such asinclement weather or direct sunlight, thesystem could deviate from the center lineor could cancel.
SWITCHING LANE CENTERING ONAND OFF
Keep your hands on the steering wheel atall times.
The controls are on the steering wheel.
Press the button.
The indicator appears in the instrumentcluster display. When the system is on, thecolor of the indicator changes to indicatethe system status.
You can override the system at any timeby steering your vehicle.
Note:The correct requirements must bemet before you can switch the system on.See Lane Centering Requirements (page349).
Enabling and Disabling LaneCentering
1.Press Features on the touchscreen.
2.Press Driver Assistance.
3.Press Cruise Control.
4.Press Lane Centering Assist.
LANE CENTERING ALERTS
You must keep your hands on the steeringwheel at all times.
When the system is active and detects nosteering activity for a period of time, thesystem alerts you to put your hands on thesteering wheel. If you do not react to thewarnings the system cancels and slowsyour vehicle down to idle speeds whilemaintaining steering control. See LaneCentering Automatic Cancellation(page 350).
The system also alerts you if your vehiclecrosses lane markings without detectedsteering activity.
Note:The system could detect a light gripor touch on the steering wheel as hands-offdriving.
LANE CENTERING AUTOMATICCANCELLATION
When an external condition cancels thesystem, for example, no lane line markingsavailable, a tone sounds and a messageappears in the instrument cluster display.
If your vehicle starts to slowdown after system cancellation,you must take full control of thevehicle. To re-enable adaptive cruisecontrol with lane centering aftercancellation, press and release the resumebutton.
350
