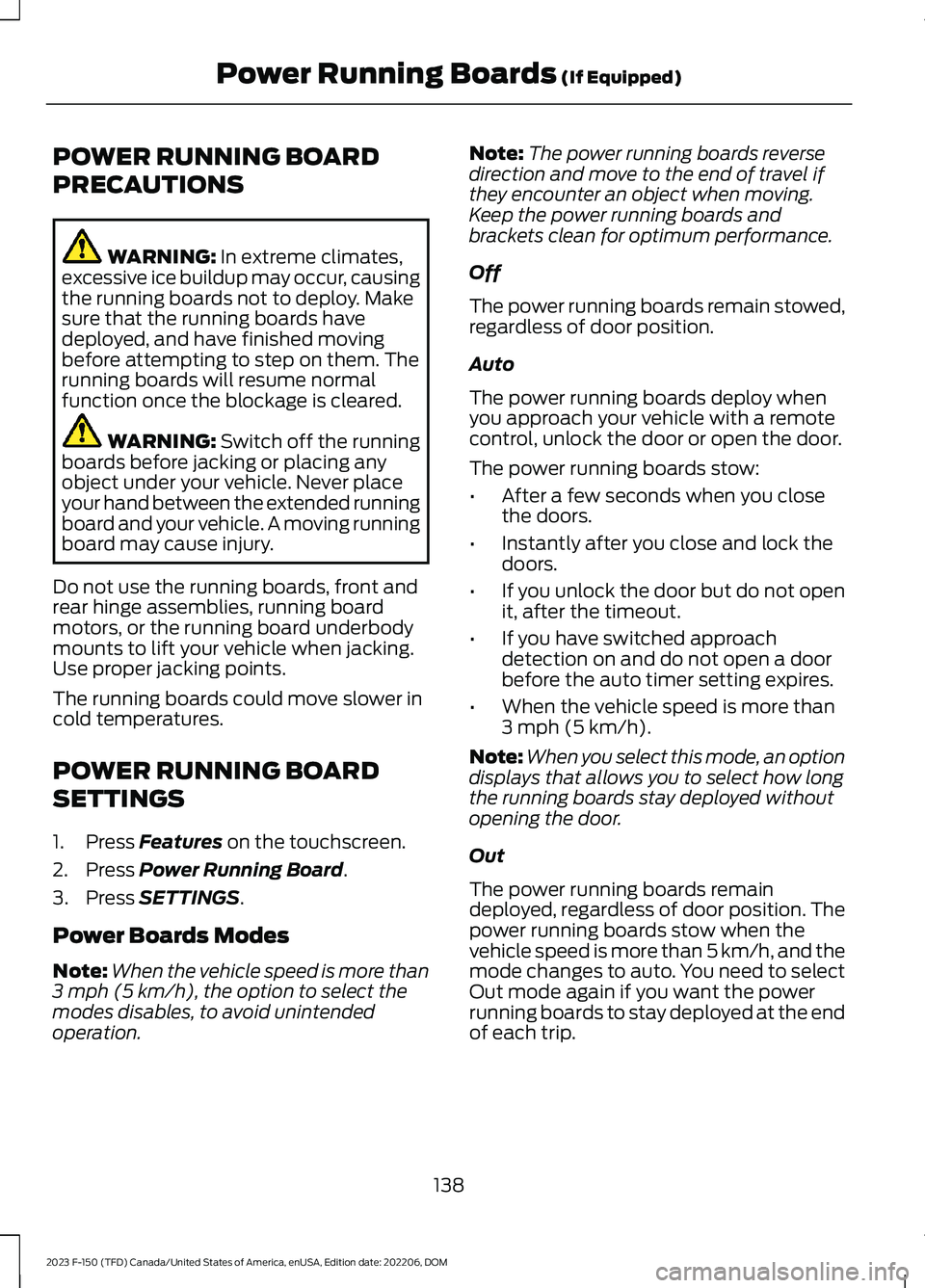

POWER RUNNING BOARD
PRECAUTIONS
WARNING: In extreme climates,excessive ice buildup may occur, causingthe running boards not to deploy. Makesure that the running boards havedeployed, and have finished movingbefore attempting to step on them. Therunning boards will resume normalfunction once the blockage is cleared.
WARNING: Switch off the runningboards before jacking or placing anyobject under your vehicle. Never placeyour hand between the extended runningboard and your vehicle. A moving runningboard may cause injury.
Do not use the running boards, front andrear hinge assemblies, running boardmotors, or the running board underbodymounts to lift your vehicle when jacking.Use proper jacking points.
The running boards could move slower incold temperatures.
POWER RUNNING BOARD
SETTINGS
1.Press Features on the touchscreen.
2.Press Power Running Board.
3.Press SETTINGS.
Power Boards Modes
Note:When the vehicle speed is more than3 mph (5 km/h), the option to select themodes disables, to avoid unintendedoperation.
Note:The power running boards reversedirection and move to the end of travel ifthey encounter an object when moving.Keep the power running boards andbrackets clean for optimum performance.
Off
The power running boards remain stowed,regardless of door position.
Auto
The power running boards deploy whenyou approach your vehicle with a remotecontrol, unlock the door or open the door.
The power running boards stow:
•After a few seconds when you closethe doors.
•Instantly after you close and lock thedoors.
•If you unlock the door but do not openit, after the timeout.
•If you have switched approachdetection on and do not open a doorbefore the auto timer setting expires.
•When the vehicle speed is more than3 mph (5 km/h).
Note:When you select this mode, an optiondisplays that allows you to select how longthe running boards stay deployed withoutopening the door.
Out
The power running boards remaindeployed, regardless of door position. Thepower running boards stow when thevehicle speed is more than 5 km/h, and themode changes to auto. You need to selectOut mode again if you want the powerrunning boards to stay deployed at the endof each trip.
138
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMPower Running Boards (If Equipped)

Tire Change Procedure
WARNING: To help prevent yourvehicle from moving when changing awheel, shift the transmission into park(P), set the parking brake and use anappropriate block or wheel chock tosecure the wheel diagonally opposite tothe wheel being changed. For example,when changing the front left wheel,place an appropriate block or wheelchock on the right rear wheel.
WARNING: The jack supplied withthis vehicle is only intended for changinga flat tire in an emergency. Do notattempt to do any other work on yourvehicle when it is supported by the jack,as your vehicle could slip off the jack.Failure to follow this instruction couldresult in personal injury or death.
WARNING: Do not attempt tochange a tire on the side of the vehicleclose to moving traffic. Pull far enoughoff the road to not obstruct the flow oftraffic and avoid the danger of being hitwhen operating the jack or changing thewheel.
WARNING: Only use the jackprovided as original equipment with yourvehicle.
WARNING: Do not get under avehicle that is supported by a jack.
WARNING: The jack should beused on level firm ground whereverpossible.
WARNING: Never place anythingbetween the vehicle jack and the ground.
WARNING: Never place anythingbetween the vehicle jack and yourvehicle.
WARNING: It is recommended thatthe wheels of the vehicle be chocked,and that no person should remain in avehicle that is being jacked.
WARNING: Switch off the runningboards before jacking or placing anyobject under your vehicle. Never placeyour hand between the extended runningboard and your vehicle. A moving runningboard may cause injury.
WARNING: Only use the specifiedjacking points. If you use any otherlocations you could damage vehiclecomponents, such as brake lines.
Park on a level surface, activate the hazardflashers and set the parking brake. Placethe transmission in park (P) and turn theengine off.
Note:Only use the spare tire carrier to stowthe tire and wheel combination providedwith your vehicle. Other tire and wheelcombinations can cause the tire carrier tofail.
Note:Do not use impact tools or powertools operating at over 200 RPM on thespare tire carrier, this could cause a winchmalfunction and prevent a secure fit.
Note:Passengers should not remain in thevehicle when the vehicle is being jacked.
Removing the Vehicle Jack andTool Bag
The vehicle jack and tool bag are on therear passenger side of your vehicle, behindthe passenger seat.
562
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road Wheel

Front Jacking Points
Note:Use the frame rail as the front jackinglocation point, not the control arm. There isan arrow marked on the frame rail.
Rear Jacking Points
Note:Jack at the specified locations toavoid damage to the vehicle.
1.Place the vehicle jack at the jackingpoint next to the tire you are changing.
2.Reassemble the jack handle, includingthe S-hook, to the lug wrench. Insertthe S-hook into the eyelet of the jackand turn the jack handle clockwise untilthe wheel is completely off the ground.
3.Remove the wheel nuts with the lugwrench.
565
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road Wheel E327652 E323397 E376830

WARNING: Never place anythingbetween the vehicle jack and yourvehicle.
WARNING: It is recommended thatthe wheels of the vehicle be chocked,and that no person should remain in avehicle that is being jacked.
WARNING: Switch off the runningboards before jacking or placing anyobject under your vehicle. Never placeyour hand between the extended runningboard and your vehicle. A moving runningboard may cause injury.
WARNING: Only use the specifiedjacking points. If you use any otherlocations you could damage vehiclecomponents, such as brake lines.
Park on a level surface, activate the hazardflashers and set the parking brake. Placethe transmission in park (P) and turn theengine off.
Note:Only use the spare tire carrier to stowthe tire and wheel combination providedwith your vehicle. Other tire and wheelcombinations can cause the tire carrier tofail.
Note:Do not use impact tools or powertools operating at over 200 RPM on thespare tire carrier, this could cause a winchmalfunction and prevent a secure fit.
Note:Passengers should not remain in thevehicle when the vehicle is being jacked.
Removing the Vehicle Jack andTool Bag
The vehicle jack and tool bag are in the rearpassenger side of your vehicle, behind thepassenger seat.
1.Turn the wing bolt on the jack bracketcounterclockwise to release the jackand tool bag from the jack bracket.
2.Remove the jack and tool bag from thejack bracket.
3.Release the jack tool bag straps.
570
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road WheelE323384 E327650 E323386

5.Block both the front and rear of thewheel diagonally opposite the flat tire.For example, if the left front tire is flat,block the right rear wheel.
6.Obtain the spare tire and vehicle jackfrom their storage locations.
7.Remove the wheel trim with the wheelnut trim remover provided on the endof the wheel nut wrench.
8.Loosen each wheel nut on the affectedflat tire one-half turn counterclockwisebut do not remove.
Jacking the Vehicle
Front Jacking Points
Note:Use the frame rail as the front jackinglocation point, not the control arm. There isan arrow marked on the frame rail.
572
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road WheelE175447 E376828 E166722 E363810 E363124

Rear Jacking Points
Note:Jack at the specified locations toavoid damage to the vehicle.
Extension Block1.
Wing bolt2.
1.Place the vehicle jack at the jackingpoint next to the tire you are changing.
2.When jacking the vehicle to service afront wheel/tire, remove the wing boltholding the extension block to the jackstowage bracket and reuse wing boltto attach extension block to jackingsurface.
Note:Do not use the extension block whenjacking the rear tire position.
Note:If servicing a rear tire position, theextension block is not needed.
3.Reassemble the jack handle, includingthe S-hook, to the lug wrench. Insertthe S-hook into the eyelet of the jackand turn the jack handle clockwise untilthe wheel is completely off the ground.
573
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMChanging a Road WheelE323397 12E363809 12E363808
