2023 CITROEN C4 display

265
MyCitroën Drive Plus
13Press this button on the touch screen to
send an automatic message indicating
that you are driving.
Making a call
Using the telephone is strongly
discouraged while driving.
Park the vehicle.
Making a call using the numeric
keypad
Press the "Phone" application.
In the list, select the “Keypad” tab then dial the
number.
Press this button to make the call.
Making a call using the list of recent
calls
Press the "Phone" application.
In the list, select the "Calls" tab.
Or
Briefly press...
...the telephone button on the steering-
mounted controls.
Select and call one of the most recent numbers
called in the list.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Calling a contact
Press the "Phone" application.
In the list, select the "Contacts” tab.
Select the desired contact in the displayed list.
Call the contact by selecting one of the
contact's phone numbers.
Organising the contact list
Press the "Phone" application.
In the list, select the “Settings” tab to display the
telephone-related settings.
Choose to list the contacts starting with
their first or last name.
Connecting two phones
The system allows two phones to be connected simultaneously:
–

2 via
Bluetooth
® connection.
or
–

1 via


Bluetooth
® connection and 1 via Mirror
Screen® connection.
Display and content priority is given to the last
phone used.
To change the priority of the phone:
Press the "Phone" application.
Press this button to change the priority of
the phone.
Settings
Configuring the screen
display
Press the "Settings" application.
In the list, select the "Customization" tab.
It is possible to configure:
–

the screen colours associated with the interior
ambient lighting. Refer to the "Ease of use and
comfort" section.
–


the sound ambience.
–


the visual welcome and goodbye animations.
–


the screen transition animations.
Managing the system
connectivity
Press the "Settings" application.
In the list, select the "Connectivity" tab.
It is possible to manage:
–

The Bluetooth® connection.
–
The Mirror Screen® smartphone connections
(Apple®CarPlay®/Android Auto).
–
The Wi-Fi connection.
–

The privacy mode.

266
MyCitroën Drive Plus

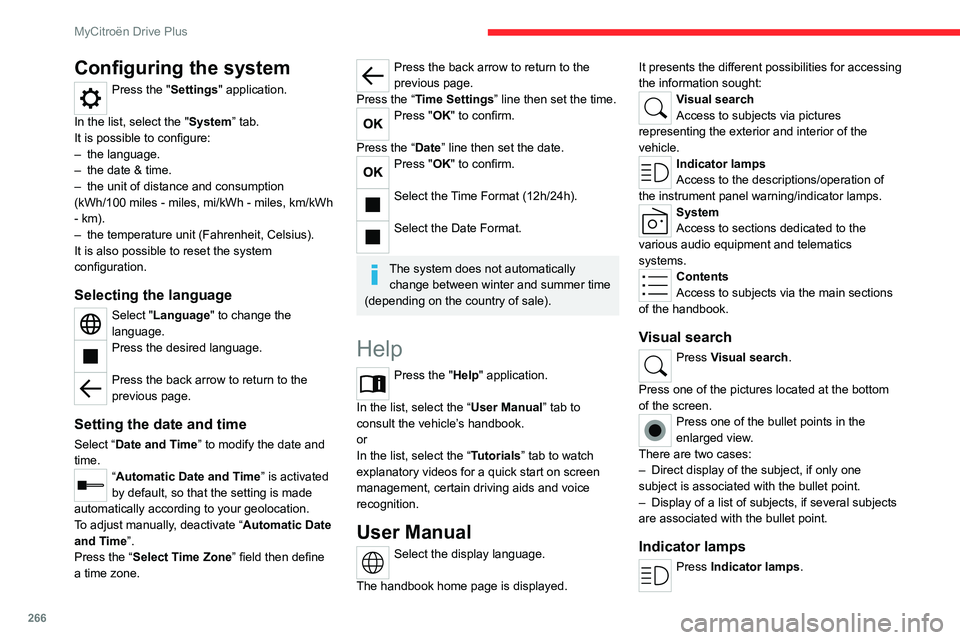

Configuring the system
Press the "Settings" application.
In the list, select the "System” tab.
It is possible to configure:
–

the language.
–


the date & time.
–


the unit of distance and consumption
(kWh/100 miles - miles, mi/kWh - miles, km/kWh
- km).
–


the temperature unit (Fahrenheit, Celsius).
It is also possible to reset the system
configuration.
Selecting the language
Select "Language" to change the
language.
Press the desired language.
Press the back arrow to return to the
previous page.
Setting the date and time
Select “Date and Time” to modify the date and
time.
“Automatic Date and Time” is activated
by default, so that the setting is made
automatically according to your geolocation.
To adjust manually, deactivate “Automatic Date
and Time”.
Press the “Select Time Zone” field then define
a time zone.
Press the back arrow to return to the
previous page.
Press the “Time Settings” line then set the time.
Press "OK" to confirm.
Press the “Date” line then set the date.
Press "OK" to confirm.
Select the Time Format (12h/24h).
Select the Date Format.
The system does not automatically change between winter and summer time
(depending on the country of sale).
Help
Press the "Help" application.
In the list, select the “User Manual” tab to
consult the vehicle’s handbook.
or
In the list, select the “Tutorials” tab to watch
explanatory videos for a quick start on screen
management, certain driving aids and voice
recognition.
User Manual
Select the display language.
The handbook home page is displayed. It presents the different possibilities for accessing
the information sought:
Visual search
Access to subjects via pictures
representing the exterior and interior of the
vehicle.
Indicator lamps
Access to the descriptions/operation of
the instrument panel warning/indicator lamps.
System
Access to sections dedicated to the
various audio equipment and telematics
systems.
Contents
Access to subjects via the main sections
of the handbook.
Visual search
Press Visual search.
Press one of the pictures located at the bottom
of the screen.
Press one of the bullet points in the
enlarged view.
There are two cases:
–

Direct display of the subject, if only one
subject is associated with the bullet point.
–


Display of a list of subjects, if several subjects
are associated with the bullet point.
Indicator lamps
Press Indicator lamps.

267
MyCitroën Drive Plus
13The mosaic of warning/indicator lamps is
displayed.
The warning/indicator lamps are sorted by
colour.
Press the warning/indicator lamp concerned; the
corresponding content is displayed.
Back to the mosaic of warning/indicator
lamps.
System
Press System.
The list of audio and telematics systems is
displayed.
Press on the section concerned; the list of
subjects is displayed.
Press on the subject concerned;
the

corresponding content is displayed.
If the subject has more than one page,
drag horizontally.
Back to the list of subjects.
Contents
Press Contents.
The list of sections is displayed.
Press on the section concerned;
the list of
subjects is displayed.
Press on the subject concerned;
the

corresponding content is displayed.
If the subject has more than one page,
drag horizontally.
Back to the list of subjects.

268
Vehicle data recording and privacy
Vehicle data recording
and privacy
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display). –

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–
Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.

272
Alphabetical index
Charger, wireless 60
Charging cable
157
Charging cable (Electric)

156
Charging connector (Electric)

155, 160,
162–163
Charging flap (Electric)

155, 160, 162–163
Charging system (Electric)

5, 9, 28, 153, 171
Charging the traction battery
(Electric)

23, 153, 157, 160, 162–163
CHECK

24
Checking the engine oil level

20
Checking the levels

171–172
Checking tyre pressures
(using the kit)

181, 183
Checks

170, 173–175
Checks, routine

173–174
Child lock

92
Children

81, 87–89
Children (safety)

92
Child seats

81, 84–87
Child seats, conventional

87, 90–91
Child seats, i-Size

89–91
Child seats, ISOFIX

87–91
Cleaning (advice)

154, 177–179
Closing the boot

36, 40
Closing the doors

35–36, 39
Collision Risk Alert

132–134
Configuration, vehicle

11, 28–29
Connected applications

239
Connection, Android Auto

221, 239
Connection, Apple CarPlay

221, 238Connection, Bluetooth 208–209, 218–219,
239–240, 244–245, 260–261
Connection, Wi-Fi network

240
Connectivity

238, 265
Consumptions

29–30
Container, AdBlue®

176
Control, emergency boot release

40
Control, emergency door

37
Control, heated seats

47, 50–51
Controls, steering mounted

102–103
Control stalk, lighting

65–66
Control stalk, wipers

70–72
Control unit

156–157
Courtesy lamps

62–63
Cruise control

113–114, 116–118
Cruise control, adaptive

113–114, 118–119
Cruise control by speed limit
recognition

113–114
D
DAB (Digital Audio Broadcasting) -
Digital radio
207, 217, 242
Date (setting)

224, 247, 266
Daytime running lamps

66, 188
Deactivating the passenger airbag

83, 86
Deadlocking

33, 36
Deferred charging

30
Deferred charging (Electric)

28, 30,
155, 160, 163
Deferred charging (Rechargeable hybrid)

30
Defrosting 48, 57
Defrosting, front
57
Defrosting, rear screen

58
Demisting

48, 57
Demisting, front

57
Demisting, rear

58
Diagnosis, vehicle

24
Dials and gauges

10
Digital instrument panel

11
Dimensions

202
Dipstick

20, 171
Direction indicators (turn signals)

66, 188–189
Display, head-up

12
Display screen, instrument panel

10
Domestic charging
(Electric)

157, 162–163, 201
Doors

39
Drive, electric

5, 9, 23, 28, 30,
153, 164, 171, 192, 195, 201
Driver’s attention warning

136–137
Drive selector (Electric)

103, 174
Driving

93–94
Driving aids camera (warnings)

11 0
Driving aid shortcuts

111
Driving aids (recommendations)

109
Driving economically

8
Driving modes

104–105
Dynamic stability control (DSC)

78

273
Alphabetical index
E
EBFD 77
Eco-driving (advice)
8
ECO mode

105
Electric windows

42
Electronic brake force distribution (EBFD)

77
Emergency braking assistance (EBA)

78
Emergency call

75–76
Emergency switching off

97–98
Emergency warning lamps

74, 180
Emissions control system, SCR

22, 175
Energy economy (mode)

168
Energy economy mode

168
Energy flows

23, 28, 30
Energy recovery

23, 104
Engine

175
Engine compartment

170
Engine, Diesel

152, 170, 180, 200
Engine, petrol

170, 198
Engines

197–198, 200
Environment

8, 38, 94
ESC (electronic stability control)

77
Expanded traffic sign recognition

11 4
Exterior lighting

68
F
Fatigue detection 136–137
Favourite driving functions
111
Filling the AdBlue® tank

173, 176
Filling the fuel tank 152–153
Filter, air
173
Filter, oil

173
Filter, particle

173
Filter, passenger compartment

51, 173
Fitting a wheel

185–186
Fitting roof bars

167–168
Fittings, boot

63
Fittings, interior

59
Flap, fuel filler

152–153
Flashing indicators

66, 188
Floor, boot, adjustable

63
Fluid, brake

172
Fluid, engine coolant

172
Foglamp, rear

65, 190
Foglamps, front

65, 70, 189
Foglamps, rear

191
Folding the rear seats

49–50
Frequency (radio)

241, 263
Fuel

8, 152
Fuel consumption

8
Fuel level, low

152
Fuel (tank)

152–153
Fuses

191
G
Gauge, fuel 152
Gearbox, automatic
101–103, 105, 174, 192
Gearbox, manual

101, 105, 174
Gear lever, manual gearbox

101
Gear shift indicator 106
Glove box
59
G.P.S.

235
H
Hazard warning lamps 74, 180
Headlamps (adjustment)
67
Headlamps, automatic dipping

69–70
Headlamps, automatic operation

67
Headlamps, dipped beam

188
Headlamps, halogen

67, 188
Headlamps, main beam

69, 188
Head restraints, front

45
Head restraints, rear

49–50
Head-up display

12
Heated steering wheel

47
Heating

51–52
Heating, programmable

30, 58
Hi-Fi system

61
High voltage

153
Highway Driver Assist

11 8
Hill start assist

105–106
Histogramme, fuel consumption

29–30
Horn

75
I
Ignition 97, 245, 265
Ignition on
97
