2023 CHEVROLET TRAILBLAZER Owners Manual

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
16263960) - 2023 - CRC - 2/23/22
264 Vehicle Care
High-beam Headlamp and Front Turn
Signal Lamps
Driver Side Shown, Passenger Side Similar
1. Front Turn Signal Lamp
2. High-beam Headlamp
High-Beam Headlamp 1. Remove the headlamp bulb access cover.
2. Turn the bulb counterclockwise and pull straight back.
3. Disconnect the wiring harness connector from the bulb.
4. Install the new bulb in the headlamp assembly by turning clockwise.
5. Reconnect the wiring harness connector. 6. Install the headlamp bulb access cover.
Front Turn Signal Lamp 1. Remove the bulb socket from the headlamp assembly.
2. Remove the old bulb from the bulb socket by pulling it straight out.
3. Insert a new bulb into the bulb socket.
4. Install the bulb socket into the taillamp assembly.
Sidemarker
The vehicle has an LED sidemarker lamp.
Fog Lamps
Front Fog Lamp
The vehicle has LED front fog lamps.
Taillamps, Turn Signal,
Sidemarker, Stoplamps, and
Back-Up Lamps (Base Level)
Caution
Improper lamp assembly removal and
installation can cause le aks and water
intrusion which may cause damage to
(Continued)

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
16263960) - 2023 - CRC - 2/23/22
Vehicle Care 265
Caution (Continued)
the taillamp. Do not remove the taillamp
assembly to replace a bulb. Use the
tailgate opening to access the bulb.
Tailgate Inboard Taillamp
Driver Side Shown, Passenger Side Similar
1. Taillamp
2. Back-up lamp
1. Remove the bulb access door on tailgate.
2. Remove two nuts and pull the taillampassembly to detach it from vehicle body.
Take care that the cable duct remains in
place.
3. Remove the bulb from the bulb socketand replace with a new bulb.
4. Insert the bulb socket and attach the plug connector.
5. Reassemble the cover.

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
16263960) - 2023 - CRC - 2/23/22
266 Vehicle Care

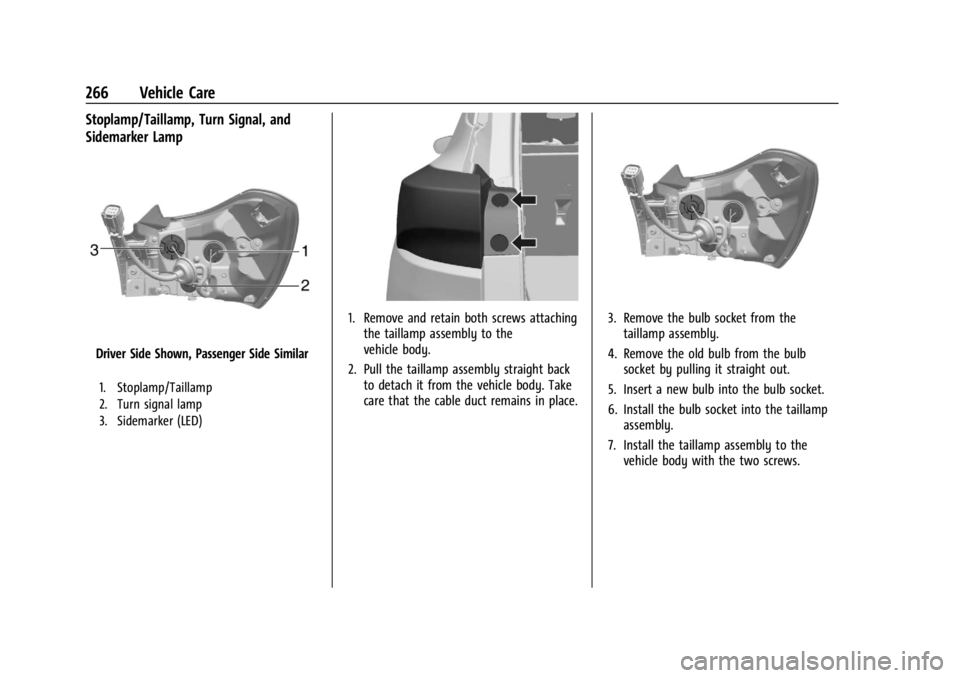

Stoplamp/Taillamp, Turn Signal, and
Sidemarker Lamp
Driver Side Shown, Passenger Side Similar
1. Stoplamp/Taillamp
2. Turn signal lamp
3. Sidemarker (LED)
1. Remove and retain both screws attachingthe taillamp assembly to the
vehicle body.
2. Pull the taillamp assembly straight back to detach it from the vehicle body. Take
care that the cable duct remains in place.3. Remove the bulb socket from thetaillamp assembly.
4. Remove the old bulb from the bulb socket by pulling it straight out.
5. Insert a new bulb into the bulb socket.
6. Install the bulb socket into the taillamp assembly.
7. Install the taillamp assembly to the vehicle body with the two screws.

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
16263960) - 2023 - CRC - 2/23/22
Vehicle Care 267
Taillamps, Turn Signal,
Sidemarker, Stoplamps, and
Back-Up Lamps (Uplevel)
Caution
Improper lamp assembly removal and
installation can cause le aks and water
intrusion which may cause damage to
the taillamp. Do not remove the taillamp
assembly to replace a bulb. Use the
tailgate opening to access the bulb.
Tailgate Inboard Taillamp
The taillamps are LED. To replace, see your
dealer.
Driver Side Shown, Passenger Side Similar
1. Taillamp (LED)
2. Back-up lamp
1. Remove the bulb access door on tailgate.
2. Remove two nuts and pull the taillampassembly to detach it from vehicle body.
Take care that the cable duct remains in
place.

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
16263960) - 2023 - CRC - 2/23/22
268 Vehicle Care
3. Remove the bulb from the bulb socketand replace with a new bulb.
4. Insert the bulb socket and attach the plug connector.
5. Reassemble the cover.
Stoplamp/Taillamp, Turn Signal, and
Sidemarker Lamp
The Stoplamps and taillamps are LED. To
replace, see your dealer.
Driver Side Shown, Passenger Side Similar
1. Stoplamp/Taillamp (LED)
2. Turn signal lamp
1. Remove and retain both screws attaching the taillamp assembly to the
vehicle body.
2. Pull the taillamp assembly straight back to detach it from the vehicle body. Take
care that the cable duct remains in place.
3. Remove the bulb socket from the
taillamp assembly.
4. Remove the old bulb from the bulb socket by pulling it straight out.
5. Insert a new bulb into the bulb socket.
6. Install the bulb socket into the taillamp assembly.
7. Install the taillamp assembly to the vehicle body with the two screws.

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
16263960) - 2023 - CRC - 2/23/22
Vehicle Care 269
Electrical System
Electrical System Overload
The vehicle has fuses and circuit breakers to
protect against an electrical system
overload.
When the current electrical load is too
heavy, the circuit breaker opens and closes,
protecting the circuit until the current load
returns to normal or the problem is fixed.
This greatly reduces the chance of circuit
overload and fire caused by electrical
problems.
Fuses and circuit breakers protect power
devices in the vehicle.
If there is a problem on the road and a fuse
needs to be replaced, the same amperage
fuse can be borrowed. Choose some feature
of the vehicle that is not needed to use and
replace it as soon as possible.
To check a fuse, look at the band inside the
fuse. If the band is broken or melted,
replace the fuse. Be sure to replace a bad
fuse with a fuse of the identical size and
rating.
Replacing a Blown Fuse
1. Turn off the vehicle.
2. Locate the fuse puller in the enginecompartment fuse block.
3. Use the fuse puller to remove the fusefrom the top or side, as shown above.

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
16263960) - 2023 - CRC - 2/23/22
270 Vehicle Care
4. If the fuse must be replacedimmediately, borrow a replacement fuse
with the same amperage from the fuse
block. Choose a vehicle feature that is
not needed to safely operate the vehicle.
Repeat Steps 2-3.
5. Insert the replacement fuse into the empty slot of the blown fuse.
At the next opportunity, see your dealer to
replace the blown fuse.
Headlamp Wiring
An electrical overload may cause the lamps
to go on and off, or in some cases to
remain off. Have the headlamp wiring
checked right away if the lamps go on and
off or remain off.
Windshield Wipers
If the wiper motor overheats due to heavy
snow or ice, the windshield wipers will stop
until the motor cools and will then restart.
Although the circuit is protected from
electrical overload, overload due to heavy
snow or ice may cause wiper linkage
damage. Always clear ice and heavy snow
from the windshield before using the
windshield wipers. If the overload is caused by an electrical
problem and not snow or ice, be sure to get
it fixed.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit breakers.
This greatly reduces the chance of damage
caused by electrical problems.
{Danger
Fuses and circuit breakers are marked
with their ampere rating. Do not exceed
the specified amperage rating when
replacing fuses and circuit breakers. Use
of an oversized fuse or circuit breaker can
result in a vehicle fire. You and others
could be seriously injured or killed.
{Warning
Installation or use of fuses that do not
meet GM’s original fuse specifications is
dangerous. The fuses could fail, and result
in a fire. You or others could be injured
or killed, and the vehicle could be
damaged.
See Accessories and Modifications 0239 and
General Information 0239.
To check or replace a blown fuse, see
Electrical System Overload 0269.
Where To Find Fuse Maps for
Your Vehicle
A detailed fuse map and fuse locations for
the vehicle are on the inside of the cover of
the fuse compartments. For the location of
fuse blocks, see Engine Compartment Fuse
Block 0271, Instrument Panel Fuse Block
0 273, and Rear Compartment Fuse Block
0 275.

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
16263960) - 2023 - CRC - 2/23/22
Vehicle Care 271
To view the fuse maps online, scan the QR
code on the back of the printed Owner’s
Manual or visit:
For the United States :
www.mychevrolet.com
For Canada :mychevrolet.ca
The maps are in the same order as the fuse
compartment locations described in your
Owner’s Manual. The number/letter label
prefix is for technician purposes only.Engine Compartment Fuse Block
To remove the fuse block cover, squeeze the
clip and lift it up.
Caution
Spilling liquid on any electrical
component on the vehicle may damage
it. Always keep the covers on any
electrical component.
The vehicle may not be equipped with all of
the fuses, relays, and features shown.
