Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22

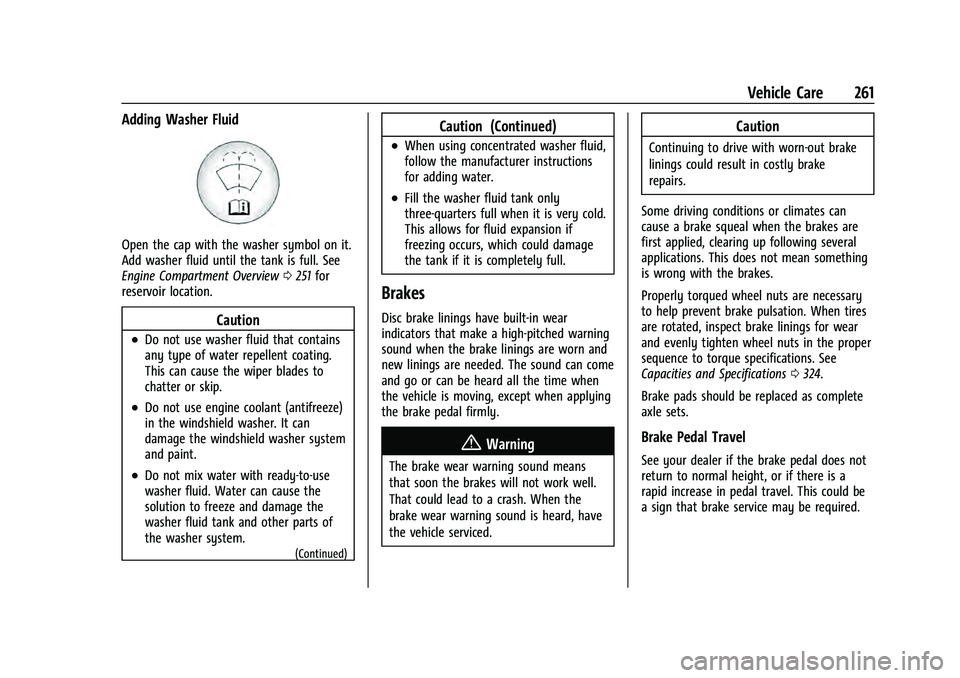

Vehicle Care 261
Adding Washer Fluid
Open the cap with the washer symbol on it.
Add washer fluid until the tank is full. See
Engine Compartment Overview0251 for
reservoir location.
Caution
.Do not use washer fluid that contains
any type of water repellent coating.
This can cause the wiper blades to
chatter or skip.
.Do not use engine coolant (antifreeze)
in the windshield washer. It can
damage the windshield washer system
and paint.
.Do not mix water with ready-to-use
washer fluid. Water can cause the
solution to freeze and damage the
washer fluid tank and other parts of
the washer system.
(Continued)
Caution (Continued)
.When using concentrated washer fluid,
follow the manufacturer instructions
for adding water.
.Fill the washer fluid tank only
three-quarters full when it is very cold.
This allows for fluid expansion if
freezing occurs, which could damage
the tank if it is completely full.
Brakes
Disc brake linings have built-in wear
indicators that make a high-pitched warning
sound when the brake linings are worn and
new linings are needed. The sound can come
and go or can be heard all the time when
the vehicle is moving, except when applying
the brake pedal firmly.
{Warning
The brake wear warning sound means
that soon the brakes will not work well.
That could lead to a crash. When the
brake wear warning sound is heard, have
the vehicle serviced.
Caution
Continuing to drive with worn-out brake
linings could result in costly brake
repairs.
Some driving conditions or climates can
cause a brake squeal when the brakes are
first applied, clearing up following several
applications. This does not mean something
is wrong with the brakes.
Properly torqued wheel nuts are necessary
to help prevent brake pulsation. When tires
are rotated, inspect brake linings for wear
and evenly tighten wheel nuts in the proper
sequence to torque specifications. See
Capacities and Specifications 0324.
Brake pads should be replaced as complete
axle sets.
Brake Pedal Travel
See your dealer if the brake pedal does not
return to normal height, or if there is a
rapid increase in pedal travel. This could be
a sign that brake service may be required.
Page 318 of 360
Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
Service and Maintenance 317
Reset the oil life system when the oil is
changed. SeeEngine Oil Life System
0 254.
.When the REPLACE AT NEXT OIL CHANGE
message displays, the engine air filter
should be replaced at the next engine oil
change. When the REPLACE ENGINE AIR
FILTER SOON message displays, the
engine air filter should be replaced at the
earliest convenience. Reset the engine air
filter life system after the engine air filter
is replaced. See Engine Air Filter Life
System 0255.
Every 36 000 km (22,500 mi)
.Passenger compartment air filter
replacement (or every 24 months,
whichever occurs first). More frequent
replacement may be needed if the vehicle
is driven in areas with heavy traffic, poor
air quality, areas with high dust levels or
are sensitive to environmental allergens.
Filter replacement may also be needed if
you notice reduced airflow, windows
fogging up, or odors. Your local GM
Service location can help you determine
when it is the right time to replace your
filter. Every 96 000 km (60,000 mi)
.Replace spark plugs. Inspect spark plug
wires and/or boots.
Every 161 000 km (100,000 mi)
.Replace hood and/or body lift support gas
struts. Or every 10 years, whichever
comes first. See Gas Strut(s)0265.
Every 240 000 km (150,000 mi)
.Change rear axle fluid, if equipped with
AWD. Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water can
overcome the seals and contaminate the
transfer case fluid. Contaminated fluid will
decrease the life of the transfer case and/
or axles and should be replaced.
.Drain and fill engine cooling system. Or
every six years, whichever comes first.
See Cooling System 0257.
Severe Conditions Requiring More
Frequent Maintenance*
.Public service, military, or commercial use
vehicles to include the following:
‐ Ambulances, police cars, and
emergency rescue vehicles. ‐
Civilian vehicles such as light duty
pick-up trucks, SUVs, and passenger
cars that are used in military
applications.
‐ Recovery vehicles such as tow trucks
and flatbed single vehicle carriers or
any vehicle that is consistently used in
towing trailers or other loads.
‐ High use commercial vehicles such as
courier delivery vehicles, private
security patrol vehicles, or any vehicles
that operate on a 24–hour basis.
‐ Any vehicle consistently operated in a
high sand or dust environment such as
those used on oil pipelines and similar
applications.
.Vehicles that are regularly used for short
trips of 6 km (4 mi) or less.
The oil life indicator will show you when
to change the oil and filter. Under severe
conditions the indicator may come on
before 12 000 km (7,500 mi).
* Footnote: Under extreme driving
conditions listed above, it may be
necessary to replace your spark plugs at
more frequent intervals. For further
assistance in determining the most
Page 352 of 360
Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22

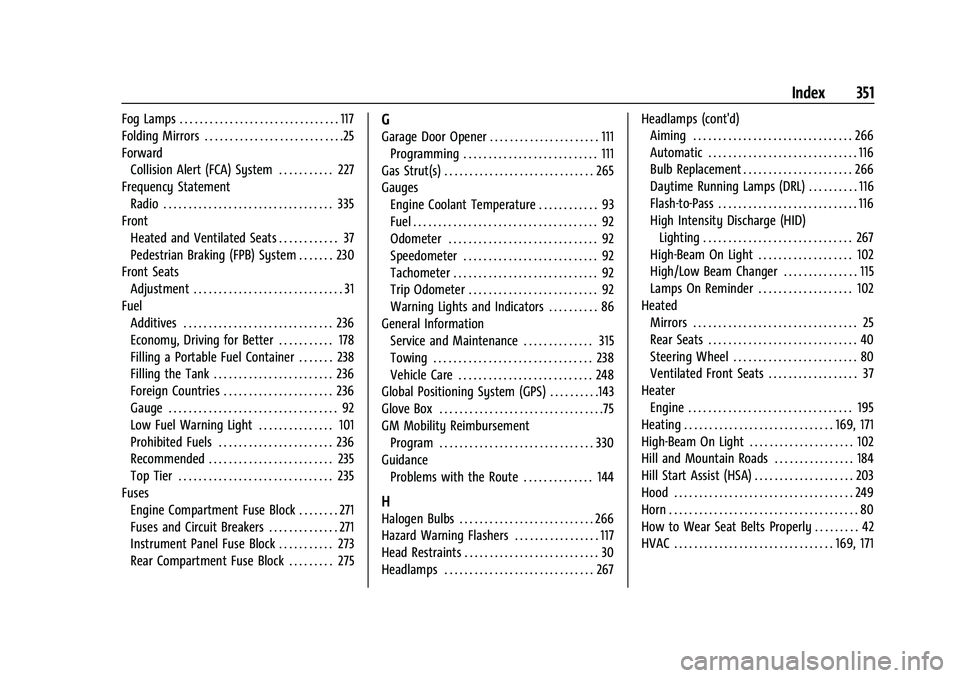

Index 351
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ForwardCollision Alert (FCA) System . . . . . . . . . . . 227
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Front
Heated and Ventilated Seats . . . . . . . . . . . . 37
Pedestrian Braking (FPB) System . . . . . . . 230
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Economy, Driving for Better . . . . . . . . . . . 178
Filling a Portable Fuel Container . . . . . . . 238
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 236
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 236
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Low Fuel Warning Light . . . . . . . . . . . . . . . 101
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 236
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 235
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Fuses Engine Compartment Fuse Block . . . . . . . . 271
Fuses and Circuit Breakers . . . . . . . . . . . . . . 271
Instrument Panel Fuse Block . . . . . . . . . . . 273
Rear Compartment Fuse Block . . . . . . . . . 275G
Garage Door Opener . . . . . . . . . . . . . . . . . . . . . . 111Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Gauges Engine Coolant Temperature . . . . . . . . . . . . 93
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Warning Lights and Indicators . . . . . . . . . . 86
General Information Service and Maintenance . . . . . . . . . . . . . . 315
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Global Positioning System (GPS) . . . . . . . . . .143
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Guidance Problems with the Route . . . . . . . . . . . . . . 144
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Hazard Warning Flashers . . . . . . . . . . . . . . . . . 117
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267 Headlamps (cont'd)
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 266
Daytime Running Lamps (DRL) . . . . . . . . . . 116
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
High Intensity Discharge (HID)
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
High-Beam On Light . . . . . . . . . . . . . . . . . . . 102
High/Low Beam Changer . . . . . . . . . . . . . . . 115
Lamps On Reminder . . . . . . . . . . . . . . . . . . . 102
Heated
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 80
Ventilated Front Seats . . . . . . . . . . . . . . . . . . 37
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169, 171
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . 102
Hill and Mountain Roads . . . . . . . . . . . . . . . . 184
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . 203
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
How to Wear Seat Belts Properly . . . . . . . . . 42
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169, 171
Page 353 of 360
Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
352 Index
I
If the System Needs Service . . . . . . . . . . . . . 144
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 190
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
IndicatorPedestrian Ahead . . . . . . . . . . . . . . . . . . . . . . . 99
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Indicators Warning Lights and Gauges . . . . . . . . . . . . . 86
Infants and Young Children, Restraints . . . . 59
Information
Publication Ordering . . . . . . . . . . . . . . . . . . . 334
Infotainment Using the System . . . . . . . . . . . . . . . . . . . . . . 124
Infotainment System . . . . . . . . . . . . . . . . . . . . 338
Inspection Multi-Point Vehicle . . . . . . . . . . . . . . . . . . . . 318
Instrument Cluster . . . . . . . . . . . . . . . . . . . . 87, 90
Instrument Panel Overview . . . . . . . . . . . . . . . . .5
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . 26
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 121
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Jump Starting - North America . . . . . . . . . . . . . . . 300
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Operation . . . . . . . . . . . . . . . . . . . . . . . 8
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 278
LampsCourtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Daytime Running (DRL) . . . . . . . . . . . . . . . . . 116
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . . 114
Exterior Lighting Battery Saver . . . . . . . . 120
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Fog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Front Turn Signal and Fog Lamps . . . . . . 268
High/Low Beam Changer . . . . . . . . . . . . . . . 115
License Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Malfunction Indicator (CheckEngine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Taillamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Lane
Change Alert (LCA) . . . . . . . . . . . . . . . . . . . . . 232
Keep Assist (LKA) . . . . . . . . . . . . . . . . . . . . . . 233
Keep Assist Light . . . . . . . . . . . . . . . . . . . . . . . 99
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 44 LATCH System
Replacing Parts after a Crash . . . . . . . . . . . 69
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Illumination Control . . . . . . . . . . . . . . . . . . . . 118
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 94
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Brake System Warning . . . . . . . . . . . . . . . . . 97
Charging System . . . . . . . . . . . . . . . . . . . . . . . 95
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Cruise Control Light . . . . . . . . . . . . . . . . . . . . 103
Electric Parking Brake . . . . . . . . . . . . . . . . . . . 98
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . 101
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . 102
Gauges and Indicators . . . . . . . . . . . . . . . . . . 86
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . 102
Lane Keep Assist . . . . . . . . . . . . . . . . . . . . . . . . 99
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . 101
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 94
Page 354 of 360
Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22

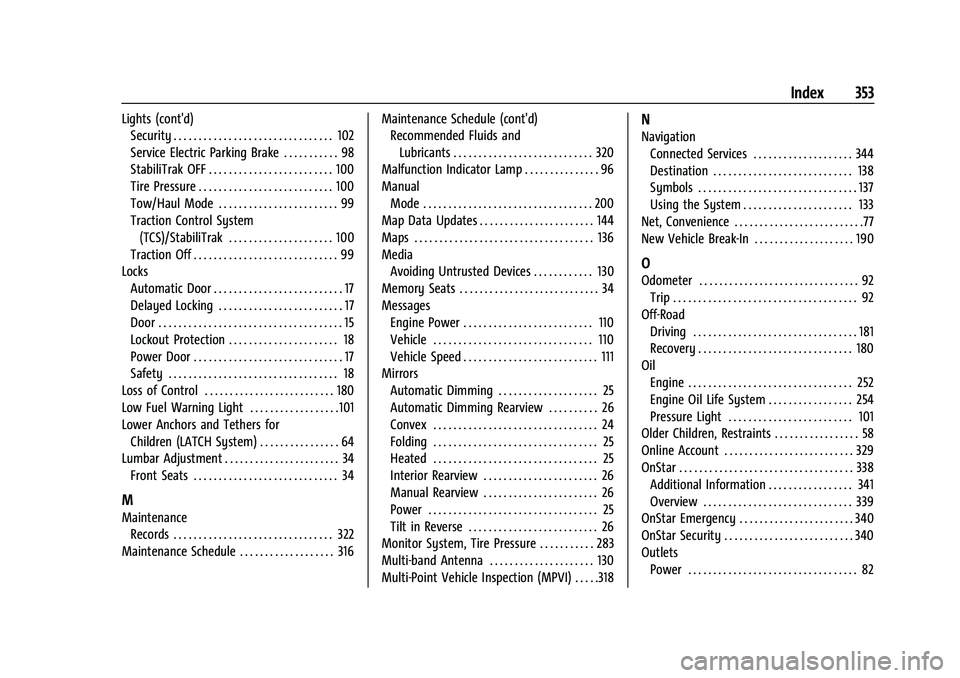

Index 353
Lights (cont'd)Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Service Electric Parking Brake . . . . . . . . . . . 98
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . 100
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . 99
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . 100
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 17
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 18
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Low Fuel Warning Light . . . . . . . . . . . . . . . . . .101
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 64
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 34
Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 316 Maintenance Schedule (cont'd)
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 96
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Map Data Updates . . . . . . . . . . . . . . . . . . . . . . . 144
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Media
Avoiding Untrusted Devices . . . . . . . . . . . . 130
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Mirrors
Automatic Dimming . . . . . . . . . . . . . . . . . . . . 25
Automatic Dimming Rearview . . . . . . . . . . 26
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Interior Rearview . . . . . . . . . . . . . . . . . . . . . . . 26
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 26
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Monitor System, Tire Pressure . . . . . . . . . . . 283
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . 130
Multi-Point Vehicle Inspection (MPVI) . . . . .318
N
Navigation
Connected Services . . . . . . . . . . . . . . . . . . . . 344
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Using the System . . . . . . . . . . . . . . . . . . . . . . 133
Net, Convenience . . . . . . . . . . . . . . . . . . . . . . . . . .77
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . 190
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Off-Road Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Engine Oil Life System . . . . . . . . . . . . . . . . . 254
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 101
Older Children, Restraints . . . . . . . . . . . . . . . . . 58
Online Account . . . . . . . . . . . . . . . . . . . . . . . . . . 329
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Additional Information . . . . . . . . . . . . . . . . . 341
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 340
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
