Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
254 Vehicle Care
Caution
Do not use anything other than a mix of
DEX-COOL coolant that meets GM
Standard GMW3420 and clean, drinkable
water. Anything else can cause damage
to the engine cooling system and the
vehicle, which would not be covered by
the vehicle warranty.
Never dispose of engine coolant by putting
it in the trash, pouring it on the ground,
or into sewers, streams, or bodies of water.
Have the coolant changed by an authorized
service center, familiar with legal
requirements regarding used coolant
disposal. This will help protect the
environment and your health.
If ambient temperatures are anticipated
below −28 °C (−18 °F), make sure a proper
mixture ratio of 50% DEX-COOL coolant and
50% clean, drinkable water is used.
Checking Coolant
Be sure the cooling system is cool and that
the vehicle is on a level surface.
Check to see if coolant is visible in the
coolant surge tank. If the coolant inside the
coolant surge tank is boiling, do not do anything else until it cools down. If coolant
is visible but the coolant level is not at or
above the cold fill line, add a mixture of
40% DEX-COOL coolant and 60% clean,
drinkable water at the coolant recovery
tank, but be sure the cooling system is cool
before this is done. See
Engine Overheating
0 255.
The surge tank is in the engine
compartment. See Engine Compartment
Overview 0235.When the engine is cold, the coolant level
should be at the COLD FILL indicator in the
coolant surge tank. When the engine is hot, the level could be
higher than the COLD FILL indicator. If the
coolant is below the COLD FILL indicator
when the engine is hot, there could be a
leak in the cooling system.
If the coolant is low, add the coolant or take
the vehicle to your dealer for service.
How to Add Coolant to the Coolant
Surge Tank
{Warning
Spilling coolant on hot engine parts can
burn you. Coolant contains ethylene
glycol and it will burn if the engine parts
are hot enough.
{Warning
Steam and scalding liquids from a hot
cooling system are under pressure.
Turning the pressure cap, even a little,
can cause them to come out at high
speed and you could be burned. Never
turn the cap when the cooling system,
including the pressure cap, is hot. Wait
for the cooling system and pressure cap
to cool.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22

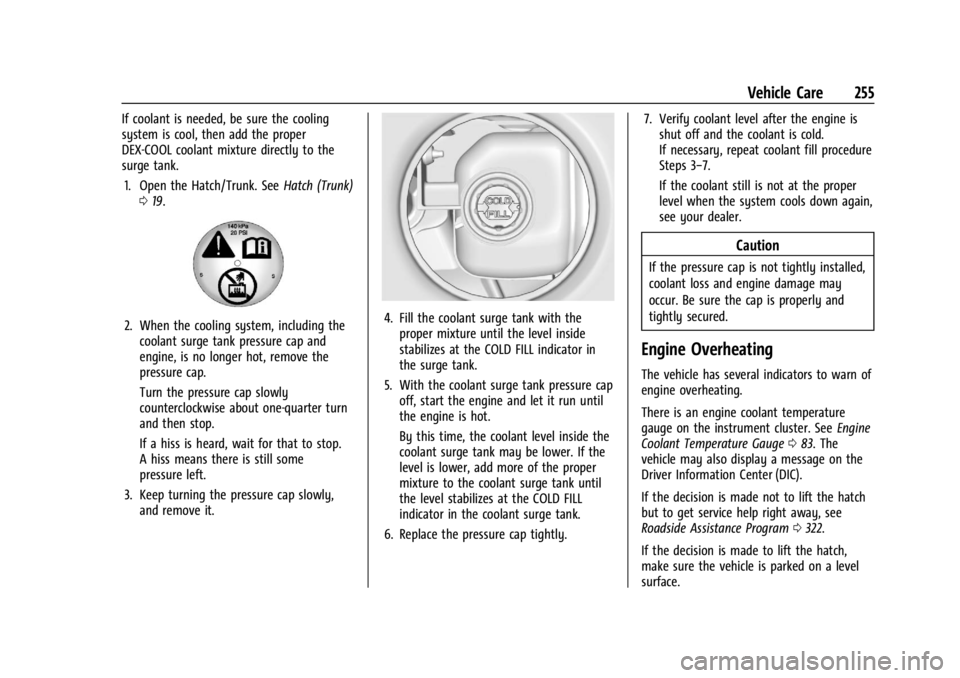

Vehicle Care 255
If coolant is needed, be sure the cooling
system is cool, then add the proper
DEX-COOL coolant mixture directly to the
surge tank.1. Open the Hatch/Trunk. See Hatch (Trunk)
0 19.
2. When the cooling system, including the
coolant surge tank pressure cap and
engine, is no longer hot, remove the
pressure cap.
Turn the pressure cap slowly
counterclockwise about one-quarter turn
and then stop.
If a hiss is heard, wait for that to stop.
A hiss means there is still some
pressure left.
3. Keep turning the pressure cap slowly, and remove it.4. Fill the coolant surge tank with theproper mixture until the level inside
stabilizes at the COLD FILL indicator in
the surge tank.
5. With the coolant surge tank pressure cap off, start the engine and let it run until
the engine is hot.
By this time, the coolant level inside the
coolant surge tank may be lower. If the
level is lower, add more of the proper
mixture to the coolant surge tank until
the level stabilizes at the COLD FILL
indicator in the coolant surge tank.
6. Replace the pressure cap tightly. 7. Verify coolant level after the engine is
shut off and the coolant is cold.
If necessary, repeat coolant fill procedure
Steps 3−7.
If the coolant still is not at the proper
level when the system cools down again,
see your dealer.
Caution
If the pressure cap is not tightly installed,
coolant loss and engine damage may
occur. Be sure the cap is properly and
tightly secured.
Engine Overheating
The vehicle has several indicators to warn of
engine overheating.
There is an engine coolant temperature
gauge on the instrument cluster. See Engine
Coolant Temperature Gauge 083. The
vehicle may also display a message on the
Driver Information Center (DIC).
If the decision is made not to lift the hatch
but to get service help right away, see
Roadside Assistance Program 0322.
If the decision is made to lift the hatch,
make sure the vehicle is parked on a level
surface.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
Vehicle Care 257

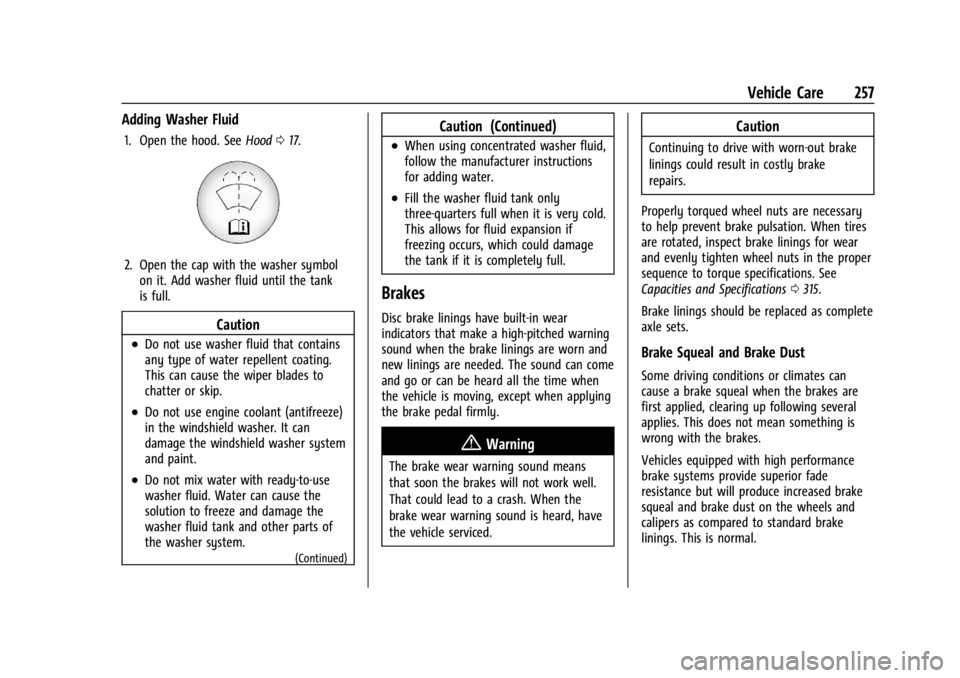

Adding Washer Fluid
1. Open the hood. SeeHood017.
2. Open the cap with the washer symbol
on it. Add washer fluid until the tank
is full.
Caution
.Do not use washer fluid that contains
any type of water repellent coating.
This can cause the wiper blades to
chatter or skip.
.Do not use engine coolant (antifreeze)
in the windshield washer. It can
damage the windshield washer system
and paint.
.Do not mix water with ready-to-use
washer fluid. Water can cause the
solution to freeze and damage the
washer fluid tank and other parts of
the washer system.
(Continued)
Caution (Continued)
.When using concentrated washer fluid,
follow the manufacturer instructions
for adding water.
.Fill the washer fluid tank only
three-quarters full when it is very cold.
This allows for fluid expansion if
freezing occurs, which could damage
the tank if it is completely full.
Brakes
Disc brake linings have built-in wear
indicators that make a high-pitched warning
sound when the brake linings are worn and
new linings are needed. The sound can come
and go or can be heard all the time when
the vehicle is moving, except when applying
the brake pedal firmly.
{Warning
The brake wear warning sound means
that soon the brakes will not work well.
That could lead to a crash. When the
brake wear warning sound is heard, have
the vehicle serviced.
Caution
Continuing to drive with worn-out brake
linings could result in costly brake
repairs.
Properly torqued wheel nuts are necessary
to help prevent brake pulsation. When tires
are rotated, inspect brake linings for wear
and evenly tighten wheel nuts in the proper
sequence to torque specifications. See
Capacities and Specifications 0315.
Brake linings should be replaced as complete
axle sets.
Brake Squeal and Brake Dust
Some driving conditions or climates can
cause a brake squeal when the brakes are
first applied, clearing up following several
applies. This does not mean something is
wrong with the brakes.
Vehicles equipped with high performance
brake systems provide superior fade
resistance but will produce increased brake
squeal and brake dust on the wheels and
calipers as compared to standard brake
linings. This is normal.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
260 Vehicle Care
How to Disable the Brake Pad Life
System
The brake pad life system can be turned off.
This may be necessary if aftermarket brake
pads without wear sensors are installed.
When the system is turned off, the front
and rear brake pad life percentages will not
display. However, the built-in wear
indicators that make a high-pitched warning
sound when the brake pads are worn can
still determine when the pads should be
replaced. SeeBrakes0257.
To turn off the brake pad life system: 1. Display Brake Pad Life on the DIC. See Driver Information Center (DIC) 092.
2. Select the Brake Pad Life menu.
3. Select DISABLE.
To turn the brake pad life system back on,
follow the above steps but select ENABLE in
Step 2.
Electronic Brake Pad Sensor System
(Z06/Z07 with J57 Carbon Ceramic Brake
Rotors)
The brake pads have electronic brake pad
wear sensors, when the brake pads need to
be replaced, a message displays in the
Driver Information Center (DIC) which says
“Service Brakes Worn”.
When the message displays, install new
brake pads and brake pad wear sensors on
the vehicle.
When the ignition is turned on after new
brake pads and brake pad wear sensors are
installed, the message should no longer
display.
The brake pad sensor system can only be
reset by replacing the brake pads and brake
pad wear sensors.
Brake Fluid
The brake master cylinder reservoir is filled
with GM approved DOT 4 brake fluid as
indicated on the reservoir cap. See
Underhood Compartment Overview 0234 for
the location of the reservoir.
Checking Brake Fluid
With the vehicle in P (Park) on a level
surface, the brake fluid level should be
between the minimum and maximum marks
on the brake fluid reservoir.
There are only two reasons why the brake
fluid level in the reservoir may go down:
.Normal brake lining wear. When new
linings are installed, the fluid level goes
back up.
.A fluid leak in the brake hydraulic system.
Have the brake hydraulic system fixed.
With a leak, the brakes will not
work well.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
Index 343
Fuel (cont'd)Management, Active . . . . . . . . . . . . . . . . . . . 194
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 227
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 227
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Fuses Fuses and Circuit Breakers . . . . . . . . . . . . . 266
Instrument Panel Fuse Block . . . . . . . . . . . 266
Rear Compartment Fuse Block . . . . . . . . . 268
G
Garage Door Opener . . . . . . . . . . . . . . . . . . . . . . 99
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Gauges Engine Coolant Temperature . . . . . . . . . . . . 83
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Transmission Temperature . . . . . . . . . . . . . . 83
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Warning Lights and Indicators . . . . . . . . . . 78
General Information Service and Maintenance . . . . . . . . . . . . . . 305
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Global Positioning System (GPS) . . . . . . . . . . 132 Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Guidance Problems with the Route . . . . . . . . . . . . . . 132
H
Hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Hazard Warning Flashers . . . . . . . . . . . . . . . . 104
HD Radio Technology . . . . . . . . . . . . . . . . . . . . . 116
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Head-Up Display (HUD) . . . . . . . . . . . . . . . . . . . 95
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Daytime Running Lamps (DRL) . . . . . . . . . 103
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
High-Beam On Light . . . . . . . . . . . . . . . . . . . . 92
High/Low Beam Changer . . . . . . . . . . . . . . 102
Lamps On Reminder . . . . . . . . . . . . . . . . . . . . 92
Leveling Control . . . . . . . . . . . . . . . . . . . . . . . 104
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 73
Ventilated Front Seats . . . . . . . . . . . . . . . . . . 43
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . . 92
High-Speed Operation . . . . . . . . . . . . . . . . . . . 279 Hill
Rollback Control . . . . . . . . . . . . . . . . . . . . . . . 208
Hill and Mountain Roads . . . . . . . . . . . . . . . . 184
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . 205
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
How to Wear Seat Belts Properly . . . . . . . . . 45
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
I
If the System Needs Service . . . . . . . . . . . . . . 133
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 190
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Indicators Warning Lights and Gauges . . . . . . . . . . . . . 78
Infants and Young Children, Restraints . . . . 62
Information Publication Ordering . . . . . . . . . . . . . . . . . . . 327
Infotainment Using the System . . . . . . . . . . . . . . . . . . . . . . . 112
Infotainment System . . . . . . . . . . . . . . . . . . . . 330
Inspection
Multi-Point Vehicle . . . . . . . . . . . . . . . . . . . . 308
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . 79
Instrument Panel Overview . . . . . . . . . . . . . . . . 4
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . 26
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 108

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
344 Index
J
JackAuxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Jump Starting - North America . . . . . . . . . . . . . . . 290
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Operation . . . . . . . . . . . . . . . . . . . . . . . 7
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 274
LampsCourtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Daytime Running (DRL) . . . . . . . . . . . . . . . . 103
Engine Compartment . . . . . . . . . . . . . . . . . . 106
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . 102
Exterior Lamps Off Reminder . . . . . . . . . . 102
Exterior Lighting Battery Saver . . . . . . . . 107
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
High/Low Beam Changer . . . . . . . . . . . . . . 102
Malfunction Indicator (CheckEngine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 47
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Leveling Control
Headlamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Lifting the Vehicle, Tires . . . . . . . . . . . . . . . . . 232
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Illumination Control . . . . . . . . . . . . . . . . . . . 105
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 84
Antilock Brake System (ABS)
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Brake System Warning . . . . . . . . . . . . . . . . . 87
Charging System . . . . . . . . . . . . . . . . . . . . . . . 85
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Cruise Control Light . . . . . . . . . . . . . . . . . . . . . 92
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Driver Mode Control . . . . . . . . . . . . . . . . . . . . 90
Electric Parking Brake . . . . . . . . . . . . . . . . . . . 88
Electronic Stability Control (ESC), Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 91
Front Lift System . . . . . . . . . . . . . . . . . . . . . . . 87
Gauges and Indicators . . . . . . . . . . . . . . . . . . 78
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 84 Lights (cont'd)
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Service Electric Parking Brake . . . . . . . . . . . 88
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Traction Control System
(TCS)/Electronic Stability Control
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Limited-Slip Differential . . . . . . . . . . . . . . 218, 219
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . 16
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 16
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 16
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Low-Profile Tires . . . . . . . . . . . . . . . . . . . . . . . . . 273
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 66
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 40 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 306 Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 86

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
Index 345
ManualMode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Map Data Updates . . . . . . . . . . . . . . . . . . . . . . . . 133
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Media Avoiding Untrusted Devices . . . . . . . . . . . . . 118
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Messages
Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . . . . . 25
Automatic Dimming Rearview . . . . . . . . . . 26
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Interior Rearview . . . . . . . . . . . . . . . . . . . . . . . 26
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 26
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Mode Driver Control . . . . . . . . . . . . . . . . . . . . . . . . . 208
Monitor System, Tire Pressure . . . . . . . . . . . 280
Multi-Point Vehicle Inspection (MPVI) . . . . 308N
Navigation
Connected Services . . . . . . . . . . . . . . . . . . . . 336
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Using the System . . . . . . . . . . . . . . . . . . . . . . 122
Net, Convenience . . . . . . . . . . . . . . . . . . . . . . . . . . 71
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . 189
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242, 245
Engine Oil Life System . . . . . . . . . . . . . . . . . 248
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Older Children, Restraints . . . . . . . . . . . . . . . . . .61
Online Account . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330 Additional Information . . . . . . . . . . . . . . . . . 333
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 332
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Overheating, Engine . . . . . . . . . . . . . . . . . . . . . 255
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . 4
P
Panel, Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
ParkAssist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223, 225
Shifting Into . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Shifting Out of . . . . . . . . . . . . . . . . . . . . . . . . 193
Parking Brake and P (Park) Mechanism
Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Over Things That Burn . . . . . . . . . . . . . . . . . 194
Parking or Backing Assistance Systems . . . . . . . . . . . . . . . . . . . . 223
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . 85
Compartment Air Filter . . . . . . . . . . . . . . . . 166
Sensing System . . . . . . . . . . . . . . . . . . . . . . . . . 56
Perchlorate Materials Requirements, California . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Performance Data Recorder (PDR) . . . . . . . . . . . . . . . . . . . 138
Transmission Active . . . . . . . . . . . . . . . . . . . . . 89
