2023 CADILLAC XT6 mirror controls
[x] Cancel search: mirror controlsPage 9 of 507
Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
8 Keys, Doors, and Windows
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Key . . . . . . . . . . . . . . . . . . . . . 9
Remote Key Operation . . . . . . 9
Remote Vehicle Start . . . . . . . 19
Door Locks . . . . . . . . . . . . . . . . . . . . 20
Power Door Locks . . . . . . . . . . 23
Delayed Locking . . . . . . . . . . . . . 23
Automatic Door Locks . . . . . 23
Lockout Protection . . . . . . . . . 24
Safety Locks . . . . . . . . . . . . . . . . . 24
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 25
Vehicle Security
Vehicle Security . . . . . . . . . . . . . 33
Vehicle Alarm System . . . . . . 33
Steering Column Lock . . . . . 35
Immobilizer . . . . . . . . . . . . . . . . . . . . 35
Immobilizer Operation . . . . . 35
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . 37
Power Mirrors . . . . . . . . . . . . . . . . 37
Folding Mirrors . . . . . . . . . . . . . . . 37
Heated Mirrors . . . . . . . . . . . . . . 38Automatic Dimming
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . 38
Reverse Tilt Mirrors . . . . . . . . 38
Interior Mirrors
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . 39
Automatic Dimming Rearview Mirror . . . . . . . . . . . . 39
Rear Camera Mirror . . . . . . . . 39
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . 41
Power Windows . . . . . . . . . . . . . 42
Sun Visors . . . . . . . . . . . . . . . . . . . . . 44
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 44
Keys and Locks
Keys
{Warning
Leaving children in a vehicle
with a remote key is
dangerous and children or
others could be seriously
injured or killed. They could
operate the power windows
or other controls or make
the vehicle move. The
windows will function with
the remote key in the
vehicle, and children or
others could be caught in
the path of a closing
window. Do not leave
children in a vehicle with a
remote key.
Page 39 of 507
Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
38 Keys, Doors, and Windows
Power Folding Mirrors
If equipped, press{to power
fold the mirrors. Press
{again
to unfold.
Resetting the Power
Folding Mirrors
Reset the power folding
mirrors if:
.The mirrors are accidentally
obstructed while folding.
.They are accidentally
manually folded/unfolded.
.The mirrors do not stay in
the unfolded position.
.The mirrors vibrate at
normal driving speeds.
Fold and unfold the mirrors
one time using the mirror
controls to reset them to their
normal position. A noise may
be heard during the resetting
of the power folding mirrors.
This sound is normal after a
manual folding operation.
Remote Mirror Folding
If equipped, press and holdQ
on the remote key for
approximately one second to
remotely fold the exterior
mirrors. Press and hold
Kon
the remote key for
approximately one second to
unfold. See Remote Key
Operation 09.
This feature is turned on or off
through vehicle settings. To
view available settings for this
feature, touch the Settings
icon on the infotainment home
page. Select “Vehicle”to display the list of available
options and select
“Comfort
and Convenience”.
Heated Mirrors
K: Press to heat the mirrors.
See “Rear Window Defogger”
under Dual Automatic Climate
Control System 0228.
Automatic Dimming
Mirror
If the vehicle has the
automatic dimming mirror, the
driver outside mirror
automatically adjusts for the
glare of headlamps
behind you.
Reverse Tilt Mirrors
If equipped with reverse tilt
mirrors and memory seats, the
passenger and/or driver
mirror tilts to a preselected
position when the vehicle is in
R (Reverse). This allows the
curb to be seen when parallel
parking.
Page 122 of 507
Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Instruments and Controls 121

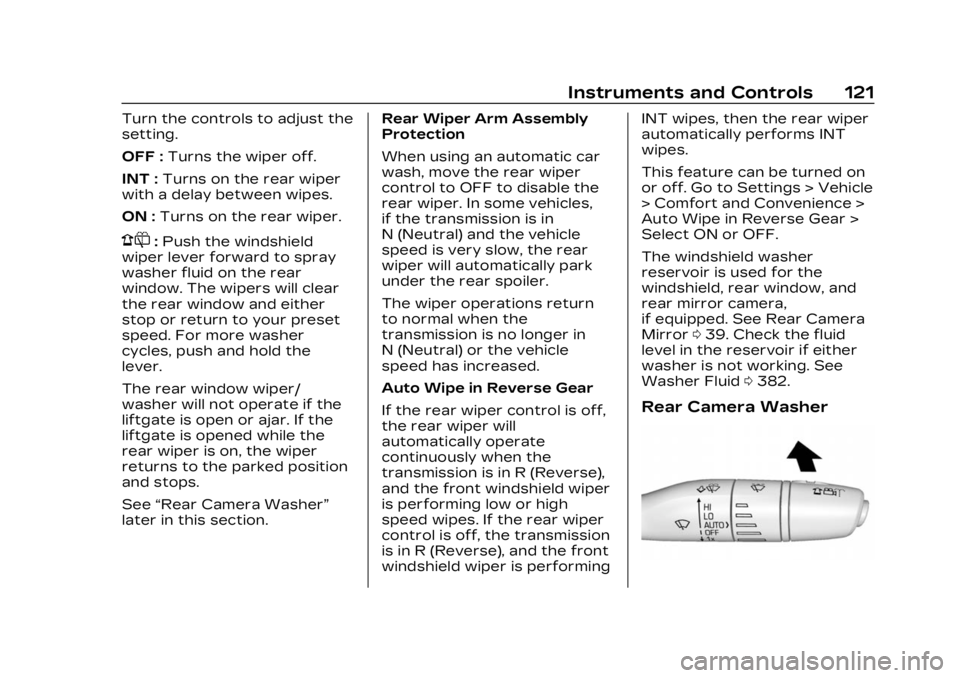

Turn the controls to adjust the
setting.
OFF :Turns the wiper off.
INT : Turns on the rear wiper
with a delay between wipes.
ON : Turns on the rear wiper.
1:Push the windshield
wiper lever forward to spray
washer fluid on the rear
window. The wipers will clear
the rear window and either
stop or return to your preset
speed. For more washer
cycles, push and hold the
lever.
The rear window wiper/
washer will not operate if the
liftgate is open or ajar. If the
liftgate is opened while the
rear wiper is on, the wiper
returns to the parked position
and stops.
See “Rear Camera Washer”
later in this section. Rear Wiper Arm Assembly
Protection
When using an automatic car
wash, move the rear wiper
control to OFF to disable the
rear wiper. In some vehicles,
if the transmission is in
N (Neutral) and the vehicle
speed is very slow, the rear
wiper will automatically park
under the rear spoiler.
The wiper operations return
to normal when the
transmission is no longer in
N (Neutral) or the vehicle
speed has increased.
Auto Wipe in Reverse Gear
If the rear wiper control is off,
the rear wiper will
automatically operate
continuously when the
transmission is in R (Reverse),
and the front windshield wiper
is performing low or high
speed wipes. If the rear wiper
control is off, the transmission
is in R (Reverse), and the front
windshield wiper is performingINT wipes, then the rear wiper
automatically performs INT
wipes.
This feature can be turned on
or off. Go to Settings > Vehicle
> Comfort and Convenience >
Auto Wipe in Reverse Gear >
Select ON or OFF.
The windshield washer
reservoir is used for the
windshield, rear window, and
rear mirror camera,
if equipped. See Rear Camera
Mirror
039. Check the fluid
level in the reservoir if either
washer is not working. See
Washer Fluid 0382.
Rear Camera Washer
Page 123 of 507
Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
122 Instruments and Controls
If equipped, push the
windshield wiper lever forward
to spray washer fluid on the
rear camera lens. The lever
returns to its starting position
when released. See Rear
Camera Mirror039.
Activating the Rear Camera
Washer also cleans the rear
window and the Night Vision
Camera, if equipped. See Night
Vision System 0333.
Compass
The vehicle may have a
compass display on the Driver
Information Center (DIC). The
compass receives its heading
and other information from
the Global Positioning
System (GPS) antenna,
StabiliTrak/Electronic Stability
Control (ESC), and vehicle
speed information.
The compass system is
designed to operate for a
certain number of miles or
degrees of turn before
needing a signal from the GPS satellites. When the compass
display shows CAL, drive the
vehicle for a short distance in
an open area where it can
receive a GPS signal. The
compass system will
automatically determine when
a GPS signal is restored and
provide a heading again.
Clock
Set the time and date using
the infotainment system. See
"Time/Date" under Settings
0
210.
Power Outlets
Power Outlets 12-Volt Direct
Current
The vehicle has two 12-volt
outlets that can be used to
plug in electrical equipment,
such as a cell phone or MP3
player.
The power outlets are located:
.Under the front of the
center console.
.In the rear cargo area.
Lift the cover to access the
outlet and replace when not
in use.
{Warning
Power is always supplied to
the rear cargo power outlet.
Do not leave electrical
equipment plugged in when
the vehicle is not in use (Continued)
Page 233 of 507
Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
232 Climate Controls
Ionizer :If equipped, this
feature helps to clean the air
inside the vehicle and remove
contaminants such as pollen,
odors, and dust. If the climate
control system is on and the
ionizer is enabled, the ionizer
status indicator will be lit on
the climate control display. To
turn Ionizer off or on, select
Settings > Climate and Air
Quality > Ionizer > Select ON
or OFF.
Rear Window Defogger
K: Press to turn the rear
window defogger on or off. An
indicator light on the button
comes on to show that the
rear window defogger is on.
The defogger only works
when the vehicle is on. The
defogger turns off if the
vehicle is off or in
accessory mode.
The rear window defogger can
be set to automatic operation.
To turn Auto Defog off or on,
select Settings > Climate and Air Quality > Auto Rear Defog
> Select ON or OFF. When
Auto Rear Defog is selected,
the rear window defogger
turns on automatically when
the interior temperature is
cold and the outside
temperature is about 4 °C
(40 °F) and below.
The upper grid lines on the
rear window are antenna lines
and are not intended to heat
when the defogger is
activated.
The heated outside mirrors
turn on when the rear window
defogger button is on and help
to clear fog or frost from the
surface of the mirrors.
Caution
Do not try to clear frost or
other material from the
inside of the front
windshield and rear window
with a razor blade or
anything else that is sharp.
This may damage the rear
(Continued)
Caution (Continued)
window defogger grid and
affect the radio's ability to
pick up stations clearly. The
repairs would not be
covered by the vehicle
warranty.
Driver and Passenger
Heated and Ventilated Seats
(If Equipped) : Press
MorLto
heat the driver or passenger
seat cushion.
Press
Cor{to ventilate the
driver or passenger seat. See
Heated and Ventilated Front
Seats 054.
Auto Heated and Ventilated
Seats : When the vehicle is on,
this feature will automatically
activate the heated or
ventilated seats at the level
required by the vehicle's
interior temperature. The
active high, medium, low, or off
heated or ventilated seat level
will be indicated by the manual
heated and ventilated seat
Page 495 of 507
Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
494 INDEX
Capacities andSpecifications . . . . . . . . . . . . . . . 463
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . 265
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 25
Winter Driving . . . . . . . . . . . . . . 250
Cargo
Cover . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Management System . . . . . 113
Tie-Downs . . . . . . . . . . . . . . . . . . . . 113
Caution, Danger, and
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Center Console Storage . . . . . . . . . . . . . . . . . . . . . . . 109
Chains, Tire . . . . . . . . . . . . . . . . . . . 424
Charging System Light . . . . . . . . . . . . . . . . 134
Wireless . . . . . . . . . . . . . . . . . . . . . . . 123
Check Engine Light (Malfunction Indicator) . . . . 134
Child Restraints
Infants and YoungChildren . . . . . . . . . . . . . . . . . . . . . . . 86
Lower Anchors and Tethers for Children . . . . . . 92
Older Children . . . . . . . . . . . . . . . . 85
Securing . . . . . . . . . . . . . . . 102, 104
Systems . . . . . . . . . . . . . . . . . . . . . . . . 89 Child Safety Locks . . . . . . . . . . . . 24
Circuit Breakers . . . . . . . . . . . . . . 391
Cleaning
Exterior Care . . . . . . . . . . . . . . . 440
Interior Care . . . . . . . . . . . . . . . . 446
Climate Control Systems Dual Automatic . . . . . . . . . . . . . 228
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Cluster, Instrument . . . . . . . . . . 127
Collision Damage Repair . . . . . . . . . . . . . . . . . . . . . . . . . 474
Compact Spare Tire . . . . . . . . 433
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 108
Compass . . . . . . . . . . . . . . . . . . . . . . . . 122
Connected Services
Connections . . . . . . . . . . . . . . . . 490
Diagnostics . . . . . . . . . . . . . . . . . . . 491
Navigation . . . . . . . . . . . . . . . . . . . 489
Connections
Connected Services . . . . . . 490
Control Traction andElectronic Stability . . . . . . . 276
Control of a Vehicle . . . . . . . . . 241
Controls Steering Wheel . . . . . . . . . . . . . 167 Convenience Net . . . . . . . . . . . . . .114
Convex Mirrors . . . . . . . . . . . . . . . . 37
Coolant
Engine TemperatureGauge . . . . . . . . . . . . . . . . . . . . . . . . 131
Cooling . . . . . . . . . . . . . . . . . . .228, 234
Cooling System . . . . . . . . . . . . . . 376
Cornering Lamps . . . . . . . . . . . . . .161
Courtesy Lamps . . . . . . . . . . . . . . .161
Courtesy Transportation
Program . . . . . . . . . . . . . . . . . . . . . . 473
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Coverage Explanations . . . . . 194
Cruise Control . . . . . . . . . . . . . . . . 280 Adaptive . . . . . . . . . . . . . . . . . . . . . 283
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Super . . . . . . . . . . . . . . . . . . . . . . . . . 294
Cupholders . . . . . . . . . . . . . . . . . . . . . 108
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . . . . 468
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . . 469
Customer Information
Publications OrderingInformation . . . . . . . . . . . . . . . . 476
Page 497 of 507
Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
496 INDEX
EmergencyOnStar . . . . . . . . . . . . . . . . . . . . . . . . 483
Engine Air Cleaner/Filter . . . . . . . . . . 375
Air Filter Life System . . . . . 374
Check Light(Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 134
Compartment Overview . . . . . . . . . . . . . . . . . . . 367
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 131
Cooling System . . . . . . . . . . . . 376
Drive Belt Routing . . . . . . . . . 465
Exhaust . . . . . . . . . . . . . . . . . . . . . . 265
Heater . . . . . . . . . . . . . . . . . . . . . . . . . 261
Oil Life System . . . . . . . . . . . . . 373
Oil Pressure Light . . . . . . . . . . 142
Overheating . . . . . . . . . . . . . . . . . . 381
Power Messages . . . . . . . . . . . 151
Running While Parked . . . 266
Starting . . . . . . . . . . . . . . . . . . . . . . 258
Entry Lighting . . . . . . . . . . . . . . . . . 162
Equipment, Towing . . . . . . . . . 356
Event Data Recorders . . . . . 480
Exit Lighting . . . . . . . . . . . . . . . . . . . 163
Extended Parking . . . . . . . . . . . 265
Extender, Seat Belt . . . . . . . . . . . 70 Exterior
Lamp Controls . . . . . . . . . . . . . . 156
Lamps Off Reminder . . . . . . 158
Lighting Battery Saver . . . 163
F
Filter
Engine Air Cleaner . . . . . . . . 375
Flash-to-Pass . . . . . . . . . . . . . . . . . . 158
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . . . . . . . 160
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 425
Changing . . . . . . . . . . . . . . . . . . . . . 426
Floor Mats . . . . . . . . . . . . . . . . . . . . . 450
Fluid AutomaticTransmission . . . . . . . . . . . . . . 374
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 384
Washer . . . . . . . . . . . . . . . . . . . . . . . 382
Folding Mirrors . . . . . . . . . . . . . . . . . 37
Forward Collision Alert (FCA)System . . . . . . . . . . . . . . . . . . . . . . 326
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 477
Front
Heated and VentilatedSeats . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Front (cont'd)
Pedestrian Braking
(FPB) System . . . . . . . . . . . . . 330
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 344
Economy, Driving forBetter . . . . . . . . . . . . . . . . . . . . . . . 239
Filling a Portable Fuel Container . . . . . . . . . . . . . . . . . . 346
Filling the Tank . . . . . . . . . . . . . 344
Foreign Countries . . . . . . . . . 344
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Management, Active . . . . . . 264
Prohibited Fuels . . . . . . . . . . . 344
Recommended . . . . . . . . . . . . . 343
Top Tier . . . . . . . . . . . . . . . . . . . . . . 342
Fuses Engine CompartmentFuse Block . . . . . . . . . . . . . . . . . 392
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . . . . 391
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . 396
Rear Compartment
Fuse Block . . . . . . . . . . . . . . . . . 398
Page 499 of 507
Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
498 INDEX
Instrument PanelOverview . . . . . . . . . . . . . . . . . . . . . . . . . 5
Interior Rearview Mirrors . . . 39
Introduction . . . . . . . . . . . . . . . . . 2, 164
J
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . 434
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Operation . . . . . . . . . . . . 9
L
Labeling, Tire Sidewall . . . . . 402
Lamps
Cornering . . . . . . . . . . . . . . . . . . . . . 161
Courtesy . . . . . . . . . . . . . . . . . . . . . . 161
DaytimeRunning (DRL) . . . . . . . . . . . . . 159
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Exterior Controls . . . . . . . . . . . 156
Exterior Lamps Off
Reminder . . . . . . . . . . . . . . . . . . . . 158
Exterior Lighting Battery Saver . . . . . . . . . . . . . . 163
Flash-to-Pass . . . . . . . . . . . . . . . . 158 Lamps (cont'd)
High/Low Beam
Changer . . . . . . . . . . . . . . . . . . . . . 158
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 134
On Reminder . . . . . . . . . . . . . . . . . 143
Reading . . . . . . . . . . . . . . . . . . . . . . . 162
Lane Change Alert (LCA) . . . . . . . 336
Keep Assist (LKA) . . . . . . . . . 338
Keep Assist Light . . . . . . . . . . 139
Lap-Shoulder Belt . . . . . . . . . . . . . 66
LATCH System
Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . 101
LATCH, Lower Anchors
and Tethers for
Children . . . . . . . . . . . . . . . . . . . . . . . . . 92
LED Lighting . . . . . . . . . . . . . . . . . . 390
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Illumination Control . . . . . . . . 161
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
Lights
Airbag Readiness . . . . . . . . . . . 132
All-Wheel-Drive . . . . . . . . . . . . . 138 Lights (cont'd)
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . 138
Brake System Warning . . . . . . . . . . . . . . . . . . . . . 136
Charging System . . . . . . . . . . . 134
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 134
Cruise Control Light . . . . . . . 143
Door Ajar . . . . . . . . . . . . . . . . . . . . . . 144
Driver Mode Control . . . . . . . 141
Electric Parking Brake . . . . 137
Engine Oil Pressure . . . . . . . . 142
Gauges and Indicators . . . . 126
High-Beam On . . . . . . . . . . . . . . . 143
Lane Keep Assist . . . . . . . . . . . 139
Low Fuel Warning . . . . . . . . . . 142
Performance Shifting . . . . . 138
Seat Belt Reminders . . . . . . 132
Security . . . . . . . . . . . . . . . . . . . . . . . 142
Service Electric Parking Brake . . . . . . . . . . . . . . 137
StabiliTrak OFF . . . . . . . . . . . . . 140
Tire Pressure . . . . . . . . . . . . . . . . 141
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . 140
