Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

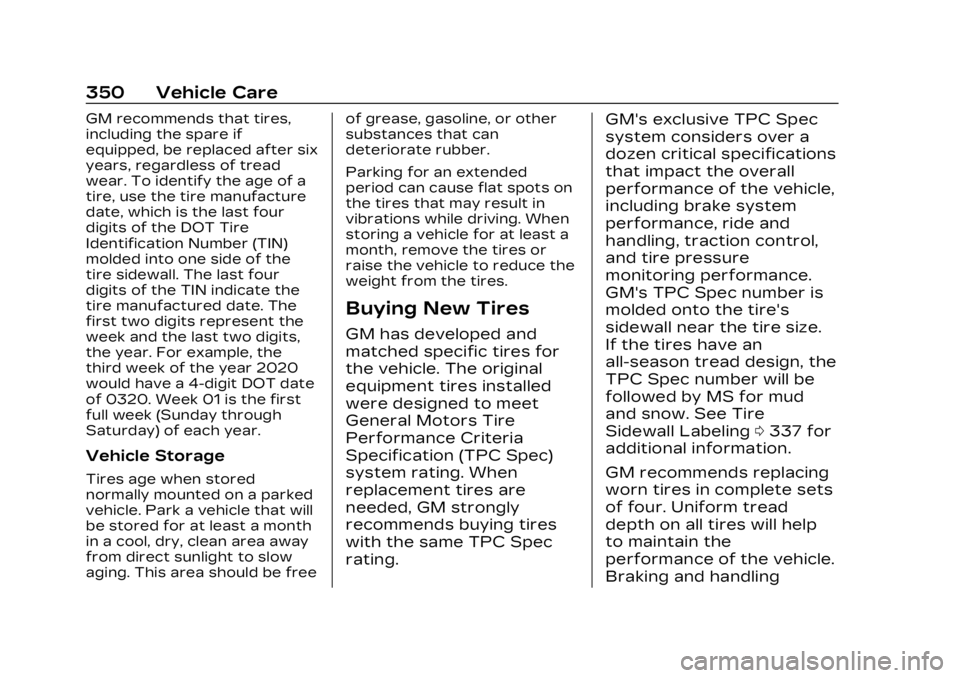

350 Vehicle Care
GM recommends that tires,
including the spare if
equipped, be replaced after six
years, regardless of tread
wear. To identify the age of a
tire, use the tire manufacture
date, which is the last four
digits of the DOT Tire
Identification Number (TIN)
molded into one side of the
tire sidewall. The last four
digits of the TIN indicate the
tire manufactured date. The
first two digits represent the
week and the last two digits,
the year. For example, the
third week of the year 2020
would have a 4-digit DOT date
of 0320. Week 01 is the first
full week (Sunday through
Saturday) of each year.
Vehicle Storage
Tires age when stored
normally mounted on a parked
vehicle. Park a vehicle that will
be stored for at least a month
in a cool, dry, clean area away
from direct sunlight to slow
aging. This area should be freeof grease, gasoline, or other
substances that can
deteriorate rubber.
Parking for an extended
period can cause flat spots on
the tires that may result in
vibrations while driving. When
storing a vehicle for at least a
month, remove the tires or
raise the vehicle to reduce the
weight from the tires.
Buying New Tires
GM has developed and
matched specific tires for
the vehicle. The original
equipment tires installed
were designed to meet
General Motors Tire
Performance Criteria
Specification (TPC Spec)
system rating. When
replacement tires are
needed, GM strongly
recommends buying tires
with the same TPC Spec
rating.
GM's exclusive TPC Spec
system considers over a
dozen critical specifications
that impact the overall
performance of the vehicle,
including brake system
performance, ride and
handling, traction control,
and tire pressure
monitoring performance.
GM's TPC Spec number is
molded onto the tire's
sidewall near the tire size.
If the tires have an
all-season tread design, the
TPC Spec number will be
followed by MS for mud
and snow. See Tire
Sidewall Labeling
0337 for
additional information.
GM recommends replacing
worn tires in complete sets
of four. Uniform tread
depth on all tires will help
to maintain the
performance of the vehicle.
Braking and handling

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
352 Vehicle Care
Different Size Tires
and Wheels
If wheels or tires are installed
that are a different size than
the original equipment wheels
and tires, vehicle performance,
including its braking, ride and
handling characteristics,
stability, and resistance to
rollover may be affected. If the
vehicle has electronic systems
such as antilock brakes,
rollover airbags, traction
control, electronic stability
control, or All-Wheel Drive, the
performance of these systems
can also be affected.
{Warning
If different sized wheels are
used, there may not be an
acceptable level of
performance and safety if
tires not recommended for
those wheels are selected.
This increases the chance of
a crash and serious injury.(Continued)
Warning (Continued)
Only use GM specific wheel
and tire systems developed
for the vehicle, and have
them properly installed by a
GM certified technician.
See Buying New Tires 0350
and Accessories and
Modifications 0308.
Uniform Tire Quality
Grading
The following information
relates to the system
developed by the United
States National Highway
Traffic Safety
Administration (NHTSA),
which grades tires by
treadwear, traction, and
temperature performance.
This applies only to
vehicles sold in the United
States. The grades are
molded on the sidewalls of
most passenger car tires. The Uniform Tire Quality
Grading (UTQG) system
does not apply to deep
tread, winter tires, compact
spare tires, tires with
nominal rim diameters of
10 to 12 inches
(25 to 30 cm), or to some
limited-production tires.
While the tires available on
General Motors passenger
cars and light trucks may
vary with respect to these
grades, they must also
conform to federal safety
requirements and
additional General Motors
Tire Performance Criteria
(TPC) standards.
Quality grades can be
found where applicable on
the tire sidewall between
tread shoulder and
maximum section width.
For example:

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

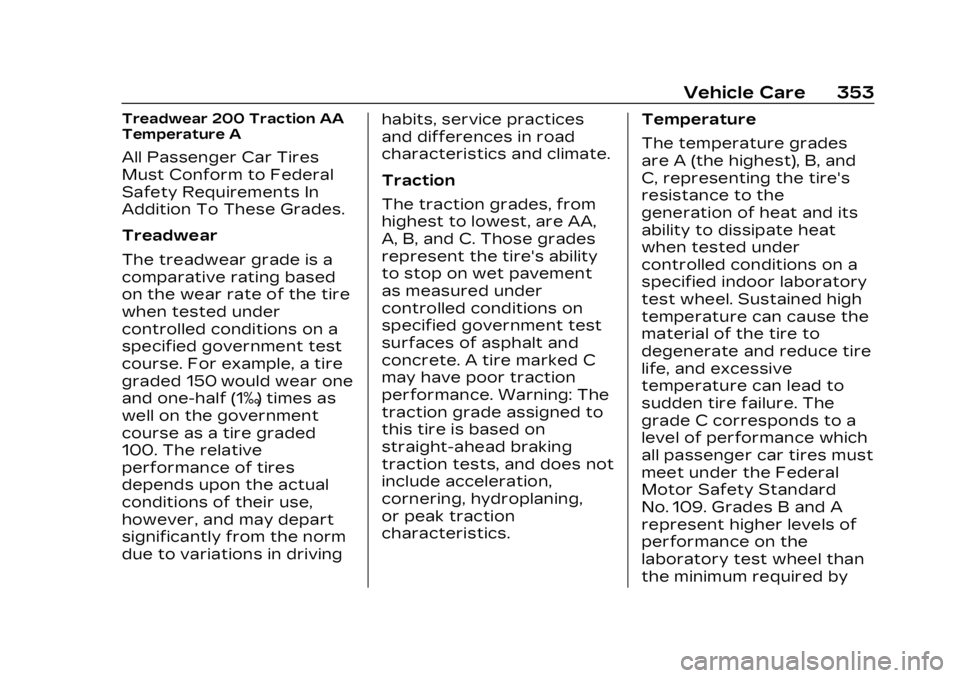

Vehicle Care 353
Treadwear 200 Traction AA
Temperature A
All Passenger Car Tires
Must Conform to Federal
Safety Requirements In
Addition To These Grades.
Treadwear
The treadwear grade is a
comparative rating based
on the wear rate of the tire
when tested under
controlled conditions on a
specified government test
course. For example, a tire
graded 150 would wear one
and one-half (1½) times as
well on the government
course as a tire graded
100. The relative
performance of tires
depends upon the actual
conditions of their use,
however, and may depart
significantly from the norm
due to variations in drivinghabits, service practices
and differences in road
characteristics and climate.
Traction
The traction grades, from
highest to lowest, are AA,
A, B, and C. Those grades
represent the tire's ability
to stop on wet pavement
as measured under
controlled conditions on
specified government test
surfaces of asphalt and
concrete. A tire marked C
may have poor traction
performance. Warning: The
traction grade assigned to
this tire is based on
straight-ahead braking
traction tests, and does not
include acceleration,
cornering, hydroplaning,
or peak traction
characteristics.
Temperature
The temperature grades
are A (the highest), B, and
C, representing the tire's
resistance to the
generation of heat and its
ability to dissipate heat
when tested under
controlled conditions on a
specified indoor laboratory
test wheel. Sustained high
temperature can cause the
material of the tire to
degenerate and reduce tire
life, and excessive
temperature can lead to
sudden tire failure. The
grade C corresponds to a
level of performance which
all passenger car tires must
meet under the Federal
Motor Safety Standard
No. 109. Grades B and A
represent higher levels of
performance on the
laboratory test wheel than
the minimum required by

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
412 INDEX
CaliforniaPerchlorate Materials
Requirements . . . . . . . . . . . . . 308
California Proposition 65 Warning . . . . . . . . . . . . . . . . 1, 356
Camera Rear Vision (RVC) . . . . . . . . . . 257
Canadian Vehicle Owners . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . 383
Car Wash Mode . . . . . . . . . . . . . . . .211
Carbon Monoxide
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Winter Driving . . . . . . . . . . . . . . . 201
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Management System . . . . . . 97
Tie-Downs . . . . . . . . . . . . . . . . . . . . . 97
Caution, Danger, and Warning . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Center Console
Storage . . . . . . . . . . . . . . . . . . . . . . . . 95
Chains, Tire . . . . . . . . . . . . . . . . . . . 355
Charge Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Charge Cord Connected Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Charging . . . . . . . . . . . . . . . . . . . . . . . . 123 Charging (cont'd)
Delay Override . . . . . . . . . . . . . 289
Plug-In . . . . . . . . . . . . . . . . . . . . . . . . 285
Status Feedback . . . . . . . . . . 289
System Light . . . . . . . . . . . . . . . . 114
Utility Interruption . . . . . . . . 294
Wireless . . . . . . . . . . . . . . . . . . . . . . . 104
Child Restraints Infants and YoungChildren . . . . . . . . . . . . . . . . . . . . . . . 75
Lower Anchors and Tethers for Children . . . . . . 80
Older Children . . . . . . . . . . . . . . . . 73
Securing . . . . . . . . . . . . . . . . . . 88, 90
Systems . . . . . . . . . . . . . . . . . . . . . . . . 77
Child Safety Locks . . . . . . . . . . . . 20
Circuit Breakers . . . . . . . . . . . . . 325
Cleaning
Exterior Care . . . . . . . . . . . . . . . 364
Interior Care . . . . . . . . . . . . . . . . 369
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . 185
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Cluster, Instrument . . . . . . . . . . 108
Collision Damage Repair . . . . . . . . . . . . . . . . . . . . . . . . . 392
Compartment Underhood . . . . . . . . . . . . . . . . . . . 312 Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . . 94
Compass . . . . . . . . . . . . . . . . . . . . . . . . 102
Connected Services Connections . . . . . . . . . . . . . . . . 407
Diagnostics . . . . . . . . . . . . . . . . . . 409
Navigation . . . . . . . . . . . . . . . . . . . 407
Connections Connected Services . . . . . . 407
Control Traction and
Electronic Stability . . . . . . . 221
Control of a Vehicle . . . . . . . . . 196
Controls Steering Wheel . . . . . . . . . . . . . 152
Convex Mirrors . . . . . . . . . . . . . . . . 28
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Cooling System . . . . . . . . . . . . . . . 313
Cornering Lamps . . . . . . . . . . . . . 146
Courtesy Transportation
Program . . . . . . . . . . . . . . . . . . . . . . . 391
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Cruise Control
Adaptive . . . . . . . . . . . . . . . . . . . . . 225
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Super . . . . . . . . . . . . . . . . . . . . . . . . . 236

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
416 INDEX
Lamps (cont'd)Exterior Lamps Off
Reminder . . . . . . . . . . . . . . . . . . . . 142
Exterior Lighting Battery Saver . . . . . . . . . . . . . . 149
Flash-to-Pass . . . . . . . . . . . . . . . . 142
High/Low Beam Changer . . . . . . . . . . . . . . . . . . . . . 142
On Reminder . . . . . . . . . . . . . . . . . 122
Reading . . . . . . . . . . . . . . . . . . . . . . . 147
Lane Change Alert (LCA) . . . . . . . . 277
Keep Assist (LKA) . . . . . . . . . 280
Keep Assist Light . . . . . . . . . . . 117
Lap-Shoulder Belt . . . . . . . . . . . . . 54
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . . 88
LATCH, Lower Anchors and Tethers for
Children . . . . . . . . . . . . . . . . . . . . . . . . . 80
LED Lighting . . . . . . . . . . . . . . . . . . 323
Leveling Control Headlamp . . . . . . . . . . . . . . . . . . . . . 145
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Lighting Adaptive Forward . . . . . . . . . . 143
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 Lighting (cont'd)
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Illumination Control . . . . . . . . 146
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Lights Airbag Readiness . . . . . . . . . . . . 112
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 117
Automatic Emergency Braking (AEB)
Disabled . . . . . . . . . . . . . . . . . . . . . 118
Automatic Vehicle Hold . . . . 117
Battery Fault . . . . . . . . . . . . . . . . 115
Brake System Warning . . . 115
Charge Cord Connected . . . . . . . . . . . . . . . . . . 114
Charging System . . . . . . . . . . . 114
Cruise Control Light . . . . . . . 122
Door Ajar . . . . . . . . . . . . . . . . . . . . . . 122
Driver Mode Control . . . . . . . 120
Electric Parking Brake . . . . 116
Gauges and Indicators . . . . 108
High-Beam On . . . . . . . . . . . . . . . . 121
Lane Keep Assist . . . . . . . . . . . . 117
Low State of Charge . . . . . . 114
One-Pedal Driving . . . . . . . . . . . 121
Seat Belt Reminders . . . . . . . 112
Security . . . . . . . . . . . . . . . . . . . . . . . . 121 Lights (cont'd)
Service Electric
Parking Brake . . . . . . . . . . . . . . 116
Service Vehicle Soon . . . . . . 115
StabiliTrak OFF . . . . . . . . . . . . . 119
Tire Pressure . . . . . . . . . . . . . . . . 120
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . 119
Traction Off . . . . . . . . . . . . . . . . . . 119
Vehicle Ready . . . . . . . . . . . . . . . . 121
Locks
Automatic Door . . . . . . . . . . . . . . . 19
Delayed Locking . . . . . . . . . . . . . . 18
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Lockout Protection . . . . . . . . . . 19
Power Door . . . . . . . . . . . . . . . . . . . . 18
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loss of Control . . . . . . . . . . . . . . . 198
Low State of Charge Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Low-Profile Tires . . . . . . . . . . . . 337
Lower Anchors and Tethers for Children
(LATCH System) . . . . . . . . . . . . . 80
Lumbar Adjustment . . . . . . . . . . . 41
Front Seats . . . . . . . . . . . . . . . . . . . . 41

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
INDEX 421
Tires (cont'd)Inspection . . . . . . . . . . . . . . . . . . . 347
Low-Profile . . . . . . . . . . . . . . . . . . 337
Pressure . . . . . . . . . . . . . . . . . . . . . 342
Pressure Light . . . . . . . . . . . . . . 120
Pressure Monitor
Operation . . . . . . . . . . . . . . . . . . 344
Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 343
Rotation . . . . . . . . . . . . . . . . . . . . . . 348
Self-Sealing . . . . . . . . . . . . . . . . . 336
Sidewall Labeling . . . . . . . . . . 337
Terminology and Definitions . . . . . . . . . . . . . . . . . 339
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 352
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . 354
Wheel Replacement . . . . . . 354
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . 349
Winter . . . . . . . . . . . . . . . . . . . . . . . . 336
Towing DrivingCharacteristics . . . . . . . . . . . 296
Equipment . . . . . . . . . . . . . . . . . . . 303
General Information . . . . . . 295
Recreational Vehicle . . . . . 362 Towing (cont'd)
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . 299
Trailer Sway
Control (TSC) . . . . . . . . . . . . . 304
Traction Control System(TCS)/StabiliTrak
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Control/Electronic Stability Control . . . . . . . . . . . 221
Off Light . . . . . . . . . . . . . . . . . . . . . . 119
Trademarks and
License Agreements . . . . . . . 182
Trailer Sway Control (TSC) . . . . . . . 304
Towing . . . . . . . . . . . . . . . . . . . . . . . . 299
Transportation Program, Courtesy . . . . . . . . . 391
Transporting a Disabled Vehicle . . . . . . . . . 359
Trip Odometer . . . . . . . . . . . . . . . . 110
TTY Users
Customer Assistance . . . . 387
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . . 146U
UnderhoodCompartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . . 326
Compartment
Overview . . . . . . . . . . . . . . . . . . . . 312
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . . . 352
Universal Remote System . . . . . . . . . . . . . . . . . . . . . . . . . 136
Operation . . . . . . . . . . . . . . . . . . . . . 138
Programming . . . . . . . . . . . . . . . . 136
Updates Software . . . . . . . . . . . . . . . . . . . . . . 155
USB Port . . . . . . . . . . . . . . . . . . . . . . . . 160
Using Infotainment System . . . . . . 153
Navigation System . . . . . . . . . 162
This Manual . . . . . . . . . . . . . . . . . . . . . 2
Utility Interruption of Charging . . . . . . . . . . . . . . . . . . . . . . 294
V
VehicleAhead Indicator . . . . . . . . . . . . . 118
Alarm System . . . . . . . . . . . . . . . . . 26
Automatic Hold . . . . . . . . . . . . . 219
Automatic Hold Light . . . . . . 117
