Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
30 Keys, Doors, and Windows
Lane Change Alert (LCA)
The vehicle may have LCA.
See Lane Change Alert (LCA)
0277.
Side Blind Zone Alert
The vehicle may have Side
Blind Zone Alert. See Side
Blind Zone Alert (SBZA) 0277.
Turn Signal Indicator
The vehicle may have a turn
signal indicator on the mirror
housings. The indicator will
flash when a turn signal or the
hazard warning flashers
are used.
Heated Mirrors
If equipped with heated
mirrors,
0will be present on
both side mirrors. The symbol
does not illuminate when the
heated mirrors are active.
The rear window defogger
also heats the outside mirrors.
K: Press to heat the outside
rearview mirrors. See “Rear
Window Defogger” under Dual
Automatic Climate Control
System 0185.
Interior Mirrors
Interior Rearview
Mirrors
Adjust the rearview mirror for
a clear view of the area behind
your vehicle.
Do not spray glass cleaner
directly on the mirror. Use a
soft towel dampened with
water.
Manual Rearview
Mirror
If equipped, push the tab
forward for daytime use and
pull it for nighttime use to
avoid glare from the
headlamps from behind.
Automatic Dimming
Rearview Mirror
If equipped, automatic
dimming reduces the glare of
headlamps from behind. The
dimming feature comes on
when the vehicle is started.
Rear Camera Mirror
If equipped, this automatic
dimming mirror provides a
wide angle camera view of the
area behind the vehicle.
Pull the tab to turn on the
display. Push the tab to turn it
off. When off, the mirror is

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Keys, Doors, and Windows 31
automatic dimming. Adjust the
mirror for a clear view of the
area behind the vehicle while
the display is off.
PressVto scroll through the
adjustment options.
Press
tanduto adjust the
settings using the indicators
on the mirror. The indicators
will remain visible for
five seconds after the last
button activation, and the
settings will remain saved.
The adjustment options are:
.Brightness
.Zoom
.Tilt

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
32 Keys, Doors, and Windows
{Warning
The Rear Camera Mirror
(RCM) has a limited view.
Portions of the road,
vehicles, and other objects
may not be seen. Do not
drive or park the vehicle
using only this camera.
Objects may appear closer
than they are. Check the
outside mirrors or glance
over your shoulder when
making lane changes or
merging. Failure to use
proper care may result in
injury, death, or vehicle
damage.
Troubleshooting
See your dealer for service if a
blue screen and
3are
displayed in the mirror, and
the display shuts off. Also,
push the tab as indicated to
return to the automatic
dimming mode.
The Rear Camera Mirror may
not work properly or display a
clear image if:
.There is glare from the sun
or headlamps. This may
obstruct objects from view.
If needed, push the tab to
turn off the display.
.Dirt, snow, or other debris
blocks the camera lens. To
clean the rear camera, see
Windshield Wiper/Washer
0 100 or clean the lens with
a soft damp cloth.
.The camera’s mounting on
the vehicle has been
damaged, and/or the
position or the mounting
angle of the camera has
changed.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Keys, Doors, and Windows 33
Windows{
Warning
Never leave a child, a
helpless adult, or a pet alone
in a vehicle, especially with
the windows closed in warm
or hot weather.
They can be overcome by
the extreme heat and suffer
permanent injuries or even
death from heat stroke.
The vehicle aerodynamics are
designed to improve electric
range performance. This may result in a pulsing sound when
either rear window is down
and the front windows are up.
To reduce the sound, open a
front window.
Power Windows
{Warning
Children could be seriously
injured or killed if caught in
the path of a closing
window. Never leave the
remote key in a vehicle with
children. When there are
children in the rear seat, use
the window lockout switch
to prevent operation of the
windows. See Keys
07.
Press the switch to open the
window. Pull the front of the
switch up to close it.
The window switches on the
driver door control all
windows.
The power windows only
operate with the vehicle on or
in Service Mode, or when
Retained Accessory Power
(RAP) is active.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
34 Keys, Doors, and Windows
Express Window
Operation
The windows have an express
feature which allows the
windows to be lowered or
raised without holding the
switch. To automatically raise
or lower the window, pull a
window switch up or press it
down all the way and release.
Stop the window by pressing
or pulling the switch in the
same direction a second time,
or by briefly operating the
switch to the first position in
either direction.
Remote Window
Operation
If equipped, this feature allows
all the windows to be opened
remotely. If enabled in vehicle
personalization, press and
hold
Kon the remote key. To
view available settings for this
feature, touch the Settings
icon on the infotainment home
page. Select “Vehicle”to display the list of available
options and select
“Remote
Lock, Unlock, Start”.
Safety Function
This is for vehicles with the
express-up feature. If any
object is in the path of the
window when the express-up
feature is active, the window
will stop and auto-reverse to a
preset position. Weather
conditions may cause the
window to auto-reverse. The
window switch may be held up
to the second position to close
the window. The window will
return to normal operation
once the obstruction or
condition is removed.
Safety Function Override
This is for vehicles with the
express-up feature. If the
battery on the vehicle has
been recharged or
disconnected, or is not
working, the windows will need
to be reprogrammed for the
express-up feature to work. Before reprogramming,
replace or recharge the
vehicle's battery.
To program the driver window:
1. Close all doors with the vehicle on or in
Service Mode.
2. Press and hold the power window switch until the
window is fully open.
3. Pull the power window switch up until the window
is fully closed.
4. Continue holding the switch up for approximately
two seconds after the
window is completely
closed.
Window Lockout
This feature prevents the rear
passenger windows from
operating, except from the
driver position.
There is a button on the
infotainment display used to
enable or disable this feature.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Keys, Doors, and Windows 35
Sun Visors
Pull the sun visor down to
block glare. Detach the sun
visor from the center mount to
pivot to the side window or,
if equipped, extend along
the rod.
Visor Vanity Mirror
The vehicle may have vanity
mirrors and card holders on
the back of the sun visors.
Swing down the sun visor to
expose the vanity mirror.
Roof
Sunroof
1. Sunroof Switch
2. Sunshade Switch
If equipped, the sunroof only
operates when the vehicle is
on or in Service Mode or when
Retained Accessory Power
(RAP) is active. See Retained
Accessory Power (RAP)0209 Sunroof Switch
Express-Open/
Express-Close :
To
express-open the sunroof,
fully press and release
j(1).
Press the switch again to stop
it. To express-close the
sunroof, fully press and
release
g(1). Press the
switch again to stop it.
Open/Close (Manual Mode) :
To open the sunroof, press
and hold
j(1) until the
sunroof reaches the desired
position. Press and hold
g(1)
to close it.
Vent : From the closed
position, press
j(1) to vent
the sunroof.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
36 Keys, Doors, and Windows

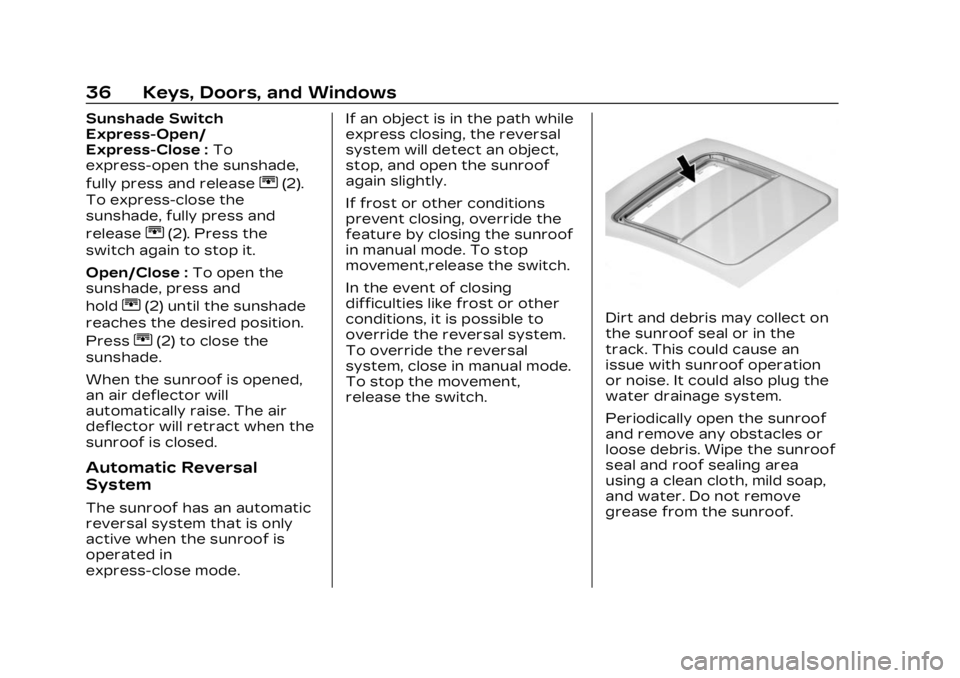

Sunshade Switch
Express-Open/
Express-Close :To
express-open the sunshade,
fully press and release
r(2).
To express-close the
sunshade, fully press and
release
r(2). Press the
switch again to stop it.
Open/Close : To open the
sunshade, press and
hold
r(2) until the sunshade
reaches the desired position.
Press
r(2) to close the
sunshade.
When the sunroof is opened,
an air deflector will
automatically raise. The air
deflector will retract when the
sunroof is closed.
Automatic Reversal
System
The sunroof has an automatic
reversal system that is only
active when the sunroof is
operated in
express-close mode. If an object is in the path while
express closing, the reversal
system will detect an object,
stop, and open the sunroof
again slightly.
If frost or other conditions
prevent closing, override the
feature by closing the sunroof
in manual mode. To stop
movement,release the switch.
In the event of closing
difficulties like frost or other
conditions, it is possible to
override the reversal system.
To override the reversal
system, close in manual mode.
To stop the movement,
release the switch.
Dirt and debris may collect on
the sunroof seal or in the
track. This could cause an
issue with sunroof operation
or noise. It could also plug the
water drainage system.
Periodically open the sunroof
and remove any obstacles or
loose debris. Wipe the sunroof
seal and roof sealing area
using a clean cloth, mild soap,
and water. Do not remove
grease from the sunroof.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
42 Seats and Restraints
.Pressyorzto adjust
massage type.
.TorSto adjust the
intensity.
.To turn massage off or to
activate massage at last
massage type and intensity
settings, press the center of
the control.
The massage feature will turn
off after approximately
20 minutes. Press the center
of the control to restart the
massage feature.
Memory Seats
Overview
If equipped, the memory seat
feature allows drivers to save
their unique driving positions
and a shared exit position. See
“Saving Seating Positions”
later in this section. The saved
positions can be recalled
manually by all drivers. See
“Manually Recalling Seating
Positions” later in this section.
Drivers with remote key 1 and
2 can also recall them
automatically. See “Auto Seat
Entry Memory Recall” or“Auto
Seat Exit Memory Recall” later
in this section. To enable
automatic recalls, turn on Seat
Entry Memory and/or Seat
Exit Memory. See “Enabling
Automatic Recalls” later in this
section. The memory recalls
may be cancelled at any time
during the recall. See “Cancel
Memory Seating Recalls” later
in this section. Identifying Driver Number
The vehicle identifies the
current driver by their remote
key number 1–8. The current
remote key number may be
identified by Driver
Information Center (DIC)
welcome message,
“You are
driver x for memory recalls.”
This message is displayed the
first few times the vehicle is
turned on when a different
remote key is used. For Seat
Entry Memory to work
properly, save positions to the
1 or 2 memory button
matching the driver number of
this welcome message. To aid
in identifying remote key IDs, it
is recommended to only carry
one remote key when entering
the vehicle. Perform the
following if the welcome
message is not displayed:
1. Move all remote keys away from the vehicle.
2. Turn the vehicle on with another remote key. A DIC
welcome message should
