Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
212 Driving and Operating
The vehicle will not shift into
P (Park) if it is moving too fast.
Stop the vehicle and shift into
P (Park).
To shift in and out of P (Park),
see Shifting Into Park0209
and Shifting out of Park 0210.
R : Use this gear to back up.
If the vehicle is shifted from
either R (Reverse) to D (Drive)
or D (Drive) to R (Reverse)
while the speed is too high,
the vehicle may shift to
N (Neutral). Reduce the vehicle
speed and try the shift again.
To shift into R (Reverse): 1. Bring the vehicle to a complete stop.
2. From the center position, move the shift lever
rearward toward you, and
then up. R is illuminated
in red.
3. After releasing the shift lever, it will return to the
center position. To shift out of R (Reverse):
1. Bring the vehicle to a complete stop.
2. Shift to the desired gear.
3. After releasing the shift lever, it will return to the
center position.
At low vehicle speeds,
R (Reverse) can be used to
rock the vehicle back and forth
to get out of snow, ice, or sand
without damaging the electric
drive unit. See If the Vehicle Is
Stuck 0202.
N : In this position, the
propulsion system is inactive.
If the vehicle is moving and
turned off, restart the
propulsion system in
N (Neutral) only.
Caution
The vehicle is not designed
to stay in N (Neutral) for
extended periods of time.
It will automatically shift into
P (Park). To shift into N (Neutral):
1. Move the shift lever rearward toward the driver.
.If the vehicle is in P (Park),
apply the brake pedal
while moving the shift
lever rearward.
.The N indicator will
illuminate red.
2. After releasing the shift lever, it will return to the
center position.
To shift out of N (Neutral): 1. Bring the vehicle to a complete stop.
2. Hold the brake pedal down
3. Shift into the desired gear.
If the brake pedal is not
applied, the vehicle may
remain in N (Neutral).
Car Wash Mode
This vehicle includes a Car
Wash Mode that allows the
vehicle to remain in N (Neutral)
for use in automatic car
washes.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
218 Driving and Operating
If the EPB fails to apply, block
the rear wheels to prevent
vehicle movement.
EPB Release
To release the EPB:1. Turn the vehicle on.
2. Apply and hold the brake pedal.
3. Press the EPB switch momentarily.
The EPB is released when the
red parking brake status light
is off.
If the amber service parking
brake warning light is on,
release the EPB by pressing
and holding the EPB switch.
Continue to hold the switch
until the red parking brake
status light is off. If either light
stays on after release is
attempted, see your dealer.
Caution
Driving with the parking
brake on can overheat the
brake system and cause
premature wear or damage
to brake system parts. Make
sure that the parking brake
is fully released and the
brake warning light is off
before driving.
Automatic EPB Release
The EPB will automatically
release if the vehicle is
running, placed into gear, and
an attempt is made to drive
away. Avoid rapid acceleration
when the EPB is applied, to
preserve parking brake
lining life.
Brake Assist
Brake Assist detects rapid
brake pedal applications due
to emergency braking
situations and provides
additional braking to activate
the Antilock Brake System (ABS) if the brake pedal is not
pushed hard enough to
activate ABS normally. Minor
noise, brake pedal pulsation,
and/or pedal movement during
this time may occur. Continue
to apply the brake pedal as
the driving situation dictates.
Brake Assist disengages when
the brake pedal is released.
Hill Start Assist (HSA)
{Warning
Do not rely on the HSA
feature. HSA does not
replace the need to pay
attention and drive safely.
You may not hear or feel
alerts or warnings provided
by this system. Failure to
use proper care when
driving may result in injury,
death, or vehicle damage.
See Defensive Driving
0196.
When the vehicle is stopped
on a grade, Hill Start Assist
(HSA) prevents the vehicle

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 221
If the vehicle is brought to a
complete stop while the
Regen on Demand paddle is
applied, the vehicle will not
creep forward when the
paddle is released. The
accelerator pedal must be
pressed to move the vehicle
forward.
If the vehicle is on a steep
grade, the brake pedal must
be used to hold the vehicle.
When available regenerative
braking power is limited, the
hydraulic brakes may be
applied to make up the
difference.
Cruise control will turn off and
the brake lamps may come on
when this feature is activated.
Avoid using Regen on Demand
under slippery road conditions.
Use the brake pedal as the
primary braking device.Ride Control
Systems
Traction Control/
Electronic Stability
Control
System Operation
The vehicle has a Traction
Control System (TCS) and
StabiliTrak/Electronic Stability
Control (ESC). These systems
help limit wheel spin and assist
the driver in maintaining
control, especially on slippery
road conditions.
TCS activates if it senses any
of the drive wheels are
spinning or beginning to lose
traction. When this happens,
TCS applies the brakes to the
spinning wheels and reduces
vehicle power to limit
wheel spin.
StabiliTrak/ESC activates
when the vehicle senses a
difference between the
intended path and thedirection the vehicle is actually
traveling. StabiliTrak/ESC
selectively applies braking
pressure to one or more of
the vehicle wheel brakes to
assist the driver in keeping the
vehicle on the intended path.
Trailer Sway Control (TSC) is
also on automatically when the
vehicle is started. See Trailer
Sway Control (TSC)
0304.
If cruise control is being used
and traction control or
StabiliTrak/ESC begins to limit
wheel spin, cruise control will
disengage. Cruise control may
be turned back on when road
conditions allow.
Both systems come on
automatically when the vehicle
is started and begins to move.
The systems may be heard or
felt while they are operating
or while performing diagnostic
checks. This is normal and
does not mean there is a
problem with the vehicle.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
222 Driving and Operating
It is recommended to leave
both systems on for normal
driving conditions, but it may
be necessary to turn TCS off
if the vehicle gets stuck in
sand, mud, ice, or snow. See If
the Vehicle Is Stuck0202 and
“Turning the Systems Off and
On” later in this section.
The indicator light for both
systems is in the instrument
cluster. This light:
.Flashes when TCS is limiting
wheel spin
.Flashes when StabiliTrak/
ESC is activated
.Turns on and stay on when
either system is not working
See Traction Control System
(TCS)/StabiliTrak Light 0119. If either system fails to turn on
or to activate, a message
displays in the Driver
Information Center (DIC), and
dcomes on and stays on to
indicate that the system is
inactive and is not assisting
the driver in maintaining
control. Adjust driving
accordingly.
If
dcomes on and stays on:
1. Stop the vehicle.
2. Turn the vehicle off and wait 15 seconds.
3. Start the vehicle.
4. Drive the vehicle.
If
dcomes on and stays on,
see your dealer as soon as
possible.
Turning the Systems Off
and On
Caution
Do not repeatedly brake or
accelerate heavily when TCS
is off. The vehicle driveline
could be damaged.
To turn Traction (TCS) on and
off, in the virtual controls app
on the infotainment home
screen, select Virtual Controls
> DRIVE & PARK > Traction
Control. To turn StabiliTrak/
ESC on or off, select
Tnext to
the Traction Control menu.
The following options appear:
.Traction Control Off
.Traction Control and
ESC Off
.Traction Control and
ESC On
The traction off light
i
displays in the instrument
cluster when the traction
control is turned off. When the
traction control is turned back

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

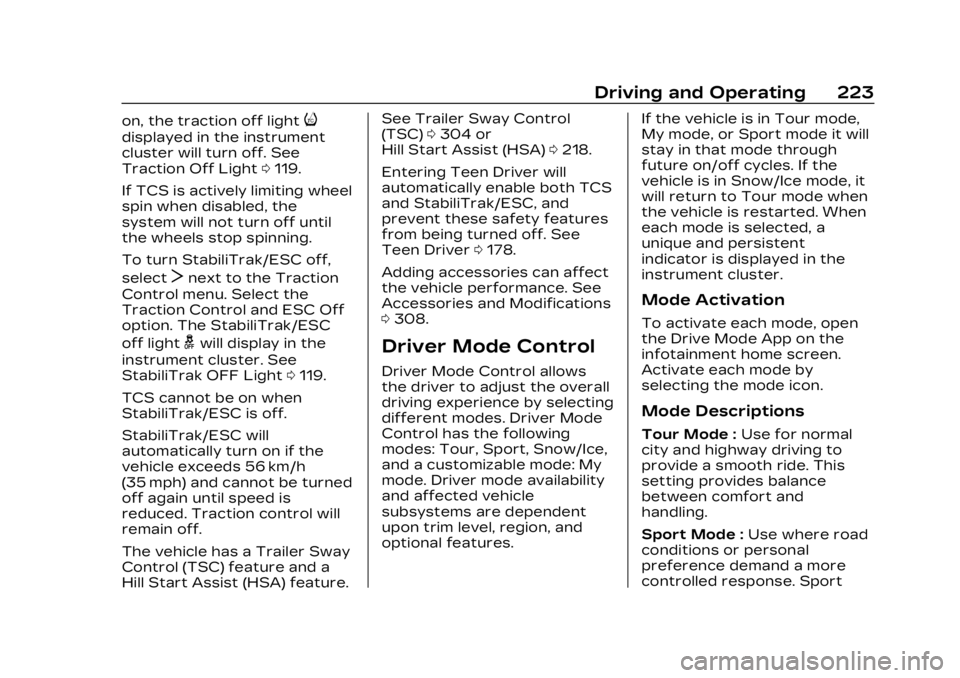

Driving and Operating 223
on, the traction off lighti
displayed in the instrument
cluster will turn off. See
Traction Off Light0119.
If TCS is actively limiting wheel
spin when disabled, the
system will not turn off until
the wheels stop spinning.
To turn StabiliTrak/ESC off,
select
Tnext to the Traction
Control menu. Select the
Traction Control and ESC Off
option. The StabiliTrak/ESC
off light
gwill display in the
instrument cluster. See
StabiliTrak OFF Light 0119.
TCS cannot be on when
StabiliTrak/ESC is off.
StabiliTrak/ESC will
automatically turn on if the
vehicle exceeds 56 km/h
(35 mph) and cannot be turned
off again until speed is
reduced. Traction control will
remain off.
The vehicle has a Trailer Sway
Control (TSC) feature and a
Hill Start Assist (HSA) feature. See Trailer Sway Control
(TSC)
0304 or
Hill Start Assist (HSA) 0218.
Entering Teen Driver will
automatically enable both TCS
and StabiliTrak/ESC, and
prevent these safety features
from being turned off. See
Teen Driver 0178.
Adding accessories can affect
the vehicle performance. See
Accessories and Modifications
0 308.Driver Mode Control
Driver Mode Control allows
the driver to adjust the overall
driving experience by selecting
different modes. Driver Mode
Control has the following
modes: Tour, Sport, Snow/Ice,
and a customizable mode: My
mode. Driver mode availability
and affected vehicle
subsystems are dependent
upon trim level, region, and
optional features. If the vehicle is in Tour mode,
My mode, or Sport mode it will
stay in that mode through
future on/off cycles. If the
vehicle is in Snow/Ice mode, it
will return to Tour mode when
the vehicle is restarted. When
each mode is selected, a
unique and persistent
indicator is displayed in the
instrument cluster.
Mode Activation
To activate each mode, open
the Drive Mode App on the
infotainment home screen.
Activate each mode by
selecting the mode icon.
Mode Descriptions
Tour Mode :
Use for normal
city and highway driving to
provide a smooth ride. This
setting provides balance
between comfort and
handling.
Sport Mode : Use where road
conditions or personal
preference demand a more
controlled response. Sport

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
266 Driving and Operating
to the left or right of the
vehicle up to the sensors’
ranges of 1.5 m (5 ft). To
choose or change the parking
mode or side, make a selection
in the infotainment display.
After completely passing an
eligible parking spot, a beep
sounds and a notification to
stop the vehicle is displayed in
the driver information center.
Generally, Remote Auto
Parking selects the nearest
empty parking spot behind the
vehicle, but under some
conditions may select a space
that is further back. Slow
down and bring the vehicle to
a complete stop to begin.
Follow the instructions in the
vehicle’s infotainment display.
Select the option to supervise
the maneuver remotely. When
prompted, check all your
belongings and exit the
vehicle. Press and hold the
authorization button on the
myCadillac app to allow the
maneuver to complete. As thevehicle automatically steers,
brakes, accelerates, and shifts
gears into the parking spot,
stay in close proximity of the
vehicle, and check
surroundings. Be prepared to
release the authorization
button, or cancel the
maneuver, to avoid vehicles,
pedestrians, or objects.
Once automatic parking is
finished and the vehicle has
come to a full stop, a message
will be displayed indicating
parking is complete.
How to Activate Remote
Unparking
To activate the unparking
maneuver remotely, launch
Remote Auto Parking from
myCadillac app. A screen will
be displayed for unparking
options. Similar to automatic
parking, follow the displayed
instructions, press and hold
the authorization button,
check surroundings as the
vehicle unparks.
Once automatic unparking is
finished and the vehicle has
come to a full stop, a message
will be displayed indicating
unparking is complete. The
vehicle is now positioned such
that the path to exit the
parking spot is free of
obstructions. Enter the vehicle
to start driving away.
How to Cancel Remote
Automatic Parking or
Automatic Unparking
To cancel automatic parking or
automatic unparking at any
time, press the cancel button
on the myCadillac app. Remote
Auto Parking applies the
parking brake and shifts into
P (Park) to hold the vehicle.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
278 Driving and Operating
the vehicle and goes back 5 m
(16 ft). Drivers are also warned
of vehicles rapidly
approaching from up to 70 m
(230 ft) behind the vehicle.
How the System Works
The LCA symbol lights up in
the side mirrors when the
system detects a moving
vehicle in the next lane over
that is in the side blind zone or
rapidly approaching that zone
from behind. A lit LCA symbol
indicates it may be unsafe to
change lanes. Before making a
lane change, check the LCA
display, check mirrors, glance
over your shoulder, and use
the turn signals.
Left Side
Mirror DisplayRight Side
Mirror Display When the vehicle is started,
both outside mirror LCA
displays will briefly come on to
indicate the system is
operating. When the vehicle is
in a forward gear, the left or
right side mirror display will
light up if a moving vehicle is
detected in the next lane over
in that blind zone or rapidly
approaching that zone. If the
turn signal is activated in the
same direction as a detected
vehicle, this display will flash
as an extra warning not to
change lanes.
LCA can be disabled through
vehicle personalization.To view
available settings from the
infotainment screen, touch
Settings > Vehicle > Collision/
Detection Systems. If LCA is
disabled by the driver, the LCA
mirror displays will not light up.
When the System Does
Not Seem to Work
Properly
The LCA system requires
some driving for the system to
calibrate to maximum
performance. This calibration
may occur more quickly if the
vehicle is driven on a straight
highway road with traffic and
roadside objects (e.g.,
guardrails, barriers).
LCA displays may not come on
when passing a vehicle quickly
or for a stopped vehicle. LCA
may alert to objects attached
to the vehicle, such as a
bicycle, or object extending
out to either side of the
vehicle. Attached objects may
also interfere with the
detection of vehicles. This is
normal system operation; the
vehicle does not need service.
LCA may not always alert the
driver to vehicles in the next
lane over, especially in wet
conditions or when driving on
sharp curves. The system

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
284 Driving and Operating
Video List :Touch to display a
list of the most recent and
saved videos. Touch the
delete button next to the
name to delete a saved video.
Rewind : Touch to rewind the
video. Touch again up to three
times to increase speed.
Touch a fourth time to stop
rewinding.
Play/Pause : Touch to play or
pause a recorded video.
Fast Forward : Touch to fast
forward the video. Touch
again up to three times to
increase speed. Touch a
fourth time to stop fast
forward.
Save : Touch to save a video.
This protects the video from
being erased. Once the SD
card is full, the oldest files will
be overwritten unless they
have been saved.
Camera Views : When
opening the Video Recorder,
the previous file will show all
camera views and can be played. Icons in the upper right
corner of each view indicate
which camera. Touch one of
the views to zoom to only that
camera view. Touch again to
return to all camera views.
Press X at any time to exit the
video recorder app.
The latest recorded video file
can be played. In addition:
.The recorded video is stored
in five-minute-long files.
.All files can be viewed on the
playback app or when the
SD card is read by a
personal computer (PC).
.Once the SD card is full, the
oldest files will be
overwritten.
To Delete Data : Remove the
SD card from the vehicle and
insert into a PC to manually
delete the file.
Error messages can occur if:
.No SD card is present.
.An empty SD card is present.
.The video files are the
wrong format.
.The video files are corrupt.
.The SD card is full.
.There is a system error.
Other files should not be
stored on the same SD card as
the surround vision recorder
files. Storing other files on the
same card may increase
recording start up and
playback time or result in a
loss of data. An error message
may be displayed if no
surround vision recorded
video file is available for
playback.
Charging
When to Charge
When the high voltage battery
is low, the following charging
messages may display on the
Driver Information
Center (DIC):
CHARGE VEHICLE SOON :
The battery needs to be
charged soon.
