Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
374 Vehicle Care
Different Size Tires andWheels . . . . . . . . . . . . . . . . . . . . . . 439
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 439
Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . . 441
Wheel Replacement . . . . . . . 441
Tire Chains . . . . . . . . . . . . . . . . . . 442
If a Tire Goes Flat . . . . . . . . . 443
Tire Sealant and Compressor Kit . . . . . . . . . . 444
Storing the Tire Sealant and Compressor Kit . . . . . 451
Jump Starting
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . 452
Towing the Vehicle
Transporting a Disabled
Vehicle . . . . . . . . . . . . . . . . . . . . . . 455
Recreational Vehicle Towing . . . . . . . . . . . . . . . . . . . . . . 457
Appearance Care
Exterior Care . . . . . . . . . . . . . . . 457
Interior Care . . . . . . . . . . . . . . . . 463
Floor Mats . . . . . . . . . . . . . . . . . . . 467
General
Information
For service and parts needs,
visit your dealer. You will
receive genuine GM parts and
GM-trained and supported
service people.
Genuine GM parts have one of
these marks:
California Perchlorate
Materials
Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt
pretensioners, and lithium
batteries contained in
electronic keys, may contain
perchlorate materials.
Perchlorate Material –special
handling may apply. See
www.dtsc.ca.gov/
hazardouswaste/perchlorate.
Accessories and
Modifications
Adding non-dealer accessories
or making modifications to the
vehicle can affect vehicle
performance and safety,
including such things as
airbags, braking, stability, ride
and handling, emissions
systems, aerodynamics,
durability, Driver Assistance
Systems, and electronic
systems like antilock brakes,

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 413
Fuses Usage
1 Long Range RadarFront Sensor
2 Park/Daytime Running Lamps
3 Exterior Lighting Module 4
4 Exterior Lighting Module 7
5 Headlamp Level
6 –
Fuses Usage
7 Electronic Brake
Control Module
8 Washer Pump
9 –
10 –
11 –
12 Horn
13 Front Wiper
Fuses Usage
14 Exterior Lighting Module 6
15 Exterior Lighting Module 1
16 Exterior Lighting Module 5
17 Exterior Lighting Module 3
18 Aero Shutter
19 –
20 –
21 Virtual Key System/ Power Sounder
Module
22 Engine Control Module Battery
23 Transmission Control Module
24 Active Engine Mount
25 –
26 Engine Control Module
27 Injectors/Ignition 2
28 Charged Air Cooler/ Not Used
29 Transmission Aux Oil Pump/Transmission
Reverse Lock Out

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 415
Fuses Usage
1–
2 Heating, Ventilation, and Air Conditioning
Blower
3 –
4 –
5 Theft Deterrent/ Universal Garage Door
Opener/Overhead
Console/Rain Sensor
6 –
Fuses Usage
7 Air Quality Ionizer
8 Heated Steering Wheel
9 –
10 Electronic Steering Column Lock 1
11 –
12 –
13 –
Fuses Usage
14–
15 –
16 –
17 –
18 Display/Infotainment/ USB/Multi-function
Control Module
19 Sensing and Diagnostic Module/
Automatic Occupant
Sensing/Data Link
Connection/Wireless
Charging Module/
Virtual Key Module
20 Power Steering Column Module/
Electronic Steering
Column Lock 2
21 Driver Monitor System/Performance
Data Recorder
22 –
23 –
24 –
25 USB
26 –
27 –
28 –

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22

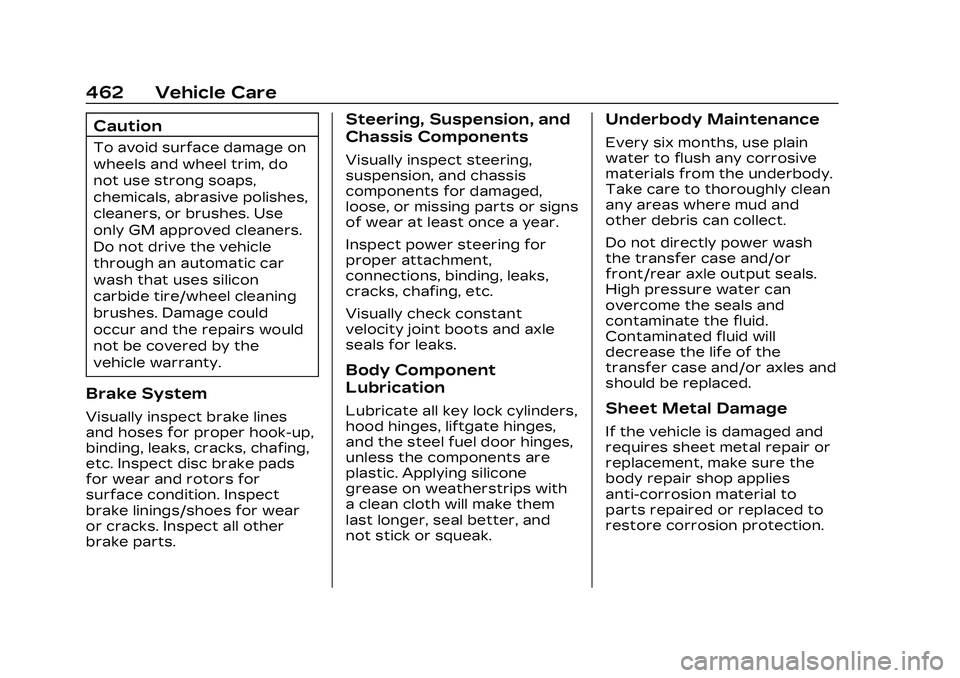

462 Vehicle Care
Caution
To avoid surface damage on
wheels and wheel trim, do
not use strong soaps,
chemicals, abrasive polishes,
cleaners, or brushes. Use
only GM approved cleaners.
Do not drive the vehicle
through an automatic car
wash that uses silicon
carbide tire/wheel cleaning
brushes. Damage could
occur and the repairs would
not be covered by the
vehicle warranty.
Brake System
Visually inspect brake lines
and hoses for proper hook-up,
binding, leaks, cracks, chafing,
etc. Inspect disc brake pads
for wear and rotors for
surface condition. Inspect
brake linings/shoes for wear
or cracks. Inspect all other
brake parts.
Steering, Suspension, and
Chassis Components
Visually inspect steering,
suspension, and chassis
components for damaged,
loose, or missing parts or signs
of wear at least once a year.
Inspect power steering for
proper attachment,
connections, binding, leaks,
cracks, chafing, etc.
Visually check constant
velocity joint boots and axle
seals for leaks.
Body Component
Lubrication
Lubricate all key lock cylinders,
hood hinges, liftgate hinges,
and the steel fuel door hinges,
unless the components are
plastic. Applying silicone
grease on weatherstrips with
a clean cloth will make them
last longer, seal better, and
not stick or squeak.
Underbody Maintenance
Every six months, use plain
water to flush any corrosive
materials from the underbody.
Take care to thoroughly clean
any areas where mud and
other debris can collect.
Do not directly power wash
the transfer case and/or
front/rear axle output seals.
High pressure water can
overcome the seals and
contaminate the fluid.
Contaminated fluid will
decrease the life of the
transfer case and/or axles and
should be replaced.
Sheet Metal Damage
If the vehicle is damaged and
requires sheet metal repair or
replacement, make sure the
body repair shop applies
anti-corrosion material to
parts repaired or replaced to
restore corrosion protection.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
476 Service and Maintenance
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name or specification, including fluids or lubricants not
listed here, can be obtained from your dealer.Usage Fluid/Lubricant
Automatic Transmission DEXRON ULV Automatic Transmission Fluid.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant. See
Cooling System 0392.
Engine Oil –2.0L L4 Turbo (LSY) and
3.0L V6 Twin Turbo (LGY) Engines Engine oil meeting the dexos1 specification of the proper SAE viscosity grade.
ACDelco dexos1 full synthetic is recommended. See Engine Oil
0383.
Engine Oil –6.2L V8 (LT4) Engine Engine oil meeting the dexosR specification of the proper SAE viscosity grade.
Mobil 1 dexosR full synthetic is recommended. See Engine Oil 0383.
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Hydraulic Brake System DOT 4 Hydraulic Brake Fluid.
Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube. See your dealer.
Manual Transmission DEXRON III Automatic Transmission Fluid.
Rear Axle/Front Axle (All-Wheel Drive) See your dealer. Transfer Case (All-Wheel Drive) See your dealer.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection
requirements.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
502 OnStar
Press=to:
.Open the OnStar app on the
infotainment display.
If equipped, the infotainment
system has OnStar controls
in the embedded OnStar app
on the Home Page. Most
OnStar functions that can be
performed with the buttons
can be done using the app.
To open the app, touch the
OnStar icon on the Home
Page. App updates require a
corresponding service plan.
Features vary by region and
model. Features are subject
to change. For more
information, see
my.cadillac.com/learn or
press
Q.
Or
.Give OnStar Turn-by-Turn
Navigation voice commands.
.Obtain and customize the
Wi-Fi hotspot name or SSID
and password, if equipped. Press
Qto connect to an
Advisor to:
.Verify account information
or update contact
information.
.Get driving directions.
.Receive a Diagnostic check
of the vehicle's key
operating systems.
.Receive Roadside
Assistance.
.Manage Wi-Fi Settings,
if equipped.
Press
>to get a priority
connection to an OnStar
Advisor available 24/7 to:
.Get help for an emergency.
.Be a Good Samaritan or
respond to an AMBER Alert.
.Get assistance in severe
weather or other crisis
situations and find
evacuation routes.
OnStar Services
Emergency
Emergency Services require
an active safety and security
plan. With Automatic Crash
Response, built-in sensors can
automatically alert a specially
trained OnStar Advisor who is
immediately connected in to
the vehicle to help.
Press
>for a priority
connection to an OnStar
Advisor who can contact
emergency service providers,
direct them to your exact
location, and relay important
information.
With OnStar Crisis Assist,
specially trained Advisors are
available 24 hours a day,
7 days a week, to provide a
central point of contact,
assistance, and information
during a crisis.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
510 Connected Services
vehicles, Wi-Fi can also be
managed from the Wi-Fi
Hotspot menu.
MyCadillac Mobile App
(If Available)
Download the myCadillac
mobile app to compatible
Apple and Android
smartphones. Cadillac users
can access the following
services from a smartphone:
.Remotely start/stop the
vehicle, if factory-equipped.
.Lock/unlock doors,
if equipped with automatic
locks.
.Activate the horn and lamps.
.Check the vehicle fuel level,
oil life, or tire pressure,
if factory-equipped with the
Tire Pressure Monitor
System.
.Send destinations to the
vehicle.
.Locate the vehicle on a map
(U.S. market only).
.Turn the vehicle's Wi-Fi
hotspot on/off, manage
settings, and monitor data
consumption, if equipped.
.Locate a dealer and
schedule service.
.Request Roadside
Assistance.
.Set a parking reminder with
pin drop, take a photo, make
a note, and set a timer.
.Connect with Cadillac on
social media.
Features are subject to
change. For myCadillac mobile
app information and
compatibility, see
my.cadillac.com.
An active OnStar or
connected service plan may be
required. A compatible device,
factory-installed remote start,
and power locks are required.
Data rates apply. See
www.onstar.com for details
and system limitations.
Remote Services
Contact an OnStar Advisor to
unlock the doors or sound the
horn and flash the lamps.
Marketplace
OnStar Advisors can provide
offers from restaurants and
retailers on your route, help
locate hotels, or book a room.
These services vary by
market.
Diagnostics
By monitoring and reporting
on the vehicle’s key systems,
OnStar Advanced Diagnostics,
if equipped, provides a way to
keep up on maintenance.
Capabilities vary by model. See
www.onstar.com for details
and system limitations.
Features are subject to
change. For updates on
feature capabilities, see
my.cadillac.com. Message and
data rates may apply.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/11/22
INDEX 517
Hill Start Assist (HSA) . . . . . . 289
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
How to Wear Seat BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . . 57
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Hydraulic Clutch . . . . . . . . . . . . . 388
I
If the System Needs Service . . . . . . . . . . . . . . . . . . . . . . . . . 192
Ignition Positions . . . . . . . . . . . . .267
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . 31
Indicator
Pedestrian Ahead . . . . . . . . . . 130
Vehicle Ahead . . . . . . . . . . . . . . . 130
Indicators
Warning Lights andGauges . . . . . . . . . . . . . . . . . . . . . . . . 112
Infants and Young Children, Restraints . . . . . . . . . . 81
Information Publication Ordering . . . . . 496
Infotainment Using the System . . . . . . . . . . 165
Infotainment System . . . . . . . 500
Inspection
Multi-Point Vehicle . . . . . . . . 474 Instrument Cluster . . . . . . 113, 115
Instrument Panel
Overview . . . . . . . . . . . . . . . . . . . . . . . . . 5
Interior Rearview Mirrors . . . 35
Introduction . . . . . . . . . . . . . . . . . 2, 162
J
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . 452
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Operation . . . . . . . . . . . . 9
L
Labeling, Tire Sidewall . . . . . 422
LampsCornering . . . . . . . . . . . . . . . . . . . . . 156
Courtesy . . . . . . . . . . . . . . . . . . . . . . 157
DaytimeRunning (DRL) . . . . . . . . . . . . . 154
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Exterior Controls . . . . . . . . . . . 152
Exterior Lamps Off Reminder . . . . . . . . . . . . . . . . . . . . 154
Exterior Lighting
Battery Saver . . . . . . . . . . . . . . 160 Lamps (cont'd)
Flash-to-Pass . . . . . . . . . . . . . . . . 154
High/Low Beam
Changer . . . . . . . . . . . . . . . . . . . . . 154
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 125
On Reminder . . . . . . . . . . . . . . . . . 135
Reading . . . . . . . . . . . . . . . . . . . . . . . 157
Lane Change Alert (LCA) . . . . . . . 353
Keep Assist (LKA) . . . . . . . . . 356
Keep Assist Light . . . . . . . . . . 129
Lap-Shoulder Belt . . . . . . . . . . . . . 60
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . . 93
LATCH, Lower Anchors and Tethers for
Children . . . . . . . . . . . . . . . . . . . . . . . . . 87
LED Lighting . . . . . . . . . . . . . . . . . . 409
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Illumination Control . . . . . . . . 157
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Lights
Airbag Readiness . . . . . . . . . . . 123
