Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 453
2.0L L4 Engine Shown, 3.0L
V6 Engine and 6.2L DI Engine Similar
Connection Points and
Sequence
1. Discharged Battery Positive (+) Terminal
2. Good Battery Positive (+) Terminal
3. Good Battery Negative (−) Terminal
4. Discharged Battery Negative Grounding (−)
Terminal
The jump start positive
terminal (+) and negative post
(−) are on the battery of the
vehicle providing the jump
start.
The jump start remote positive
terminal (+) and the remote
negative grounding terminal (−)
for the discharged battery are
on the passenger side of the
vehicle.
The positive jump start
connection for the discharged
battery is under a cover. Lift
the cover to expose the
terminal.
1. Check the other vehicle. It must have a 12-volt
battery with a negative
ground system.
Caution
If the other vehicle does not
have a 12-volt system with a
negative ground, both
vehicles can be damaged.
Only use a vehicle that has a
(Continued)
Caution (Continued)
12-volt system with a
negative ground for jump
starting.
2. Position the two vehicles so that they are not
touching.
3. Set the parking brake firmly and put the vehicle
in P (Park) with an
automatic transmission,
or Neutral with a manual
transmission.
Caution
If any accessories are left on
or plugged in during the
jump starting procedure,
they could be damaged. The
repairs would not be
covered by the vehicle
warranty. Whenever
possible, turn off or unplug
all accessories on either
vehicle when jump starting.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
454 Vehicle Care
4. Turn the ignition off. Turnoff all lights and
accessories in both
vehicles, except the hazard
warning flashers if needed.
{Warning
An electric fan can start up
even when the engine is not
running and can injure you.
Keep hands, clothing, and
tools away from any
underhood electric fan.
{Warning
Using a match near a
battery can cause battery
gas to explode. People have
been hurt doing this, and
some have been blinded.
Use a flashlight if you need
more light.
Battery fluid contains acid
that can burn you. Do not
get it on you. If you
accidentally get it in your
(Continued)
Warning (Continued)
eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving engine
parts can injure you badly.
Keep your hands away from
moving parts once the
engine is running.
5. Connect one end of the red positive (+) cable to the
remote positive (+)
terminal on the discharged
battery.
6. Connect the other end of the red positive (+) cable to
the positive (+) terminal of
the good battery.
7. Connect one end of the black negative (–) cable to
the negative (–) terminal of
the good battery. Do not let the other end
touch anything until the
next step. The other end of
the negative (–) cable does
not go to the dead battery.
It goes to a heavy,
unpainted metal
engine part.
8. Connect the other end of the black negative (–) cable
to the negative (–)
grounding point for the
discharged battery.
9. Start the engine in the vehicle with the good
battery and run the engine
at idle speed for at least
four minutes.
10. Try to start the vehicle that had the dead battery.
If it will not start after a
few tries, it probably needs
service.
Jumper Cable Removal
Reverse the sequence exactly
when removing the jumper
cables.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22

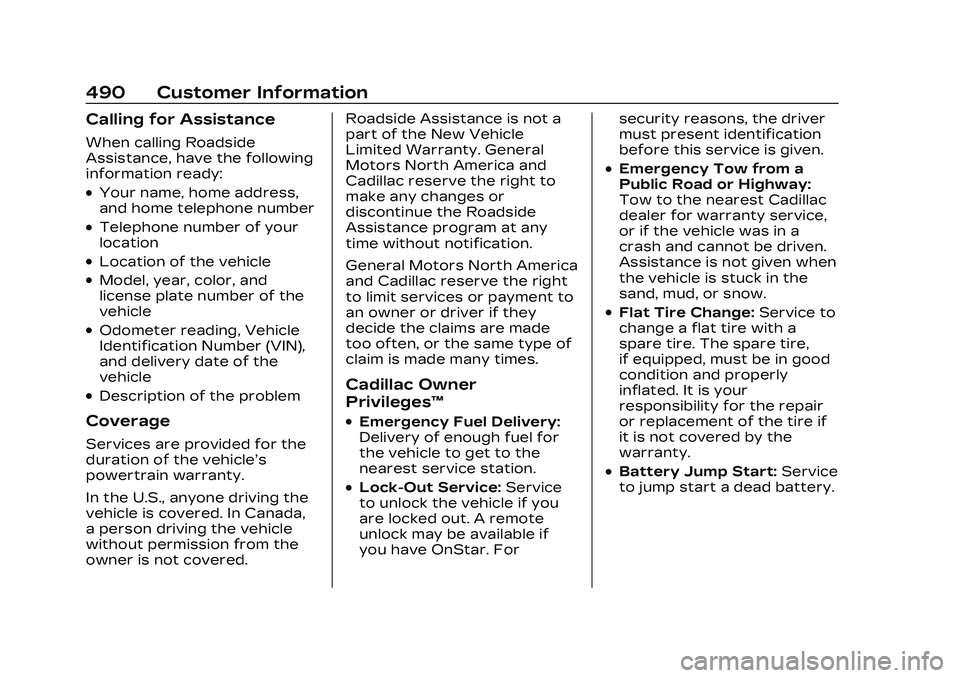

490 Customer Information
Calling for Assistance
When calling Roadside
Assistance, have the following
information ready:
.Your name, home address,
and home telephone number
.Telephone number of your
location
.Location of the vehicle
.Model, year, color, and
license plate number of the
vehicle
.Odometer reading, Vehicle
Identification Number (VIN),
and delivery date of the
vehicle
.Description of the problem
Coverage
Services are provided for the
duration of the vehicle’s
powertrain warranty.
In the U.S., anyone driving the
vehicle is covered. In Canada,
a person driving the vehicle
without permission from the
owner is not covered.Roadside Assistance is not a
part of the New Vehicle
Limited Warranty. General
Motors North America and
Cadillac reserve the right to
make any changes or
discontinue the Roadside
Assistance program at any
time without notification.
General Motors North America
and Cadillac reserve the right
to limit services or payment to
an owner or driver if they
decide the claims are made
too often, or the same type of
claim is made many times.
Cadillac Owner
Privileges™
.Emergency Fuel Delivery:
Delivery of enough fuel for
the vehicle to get to the
nearest service station.
.Lock-Out Service:
Service
to unlock the vehicle if you
are locked out. A remote
unlock may be available if
you have OnStar. For security reasons, the driver
must present identification
before this service is given.
.Emergency Tow from a
Public Road or Highway:
Tow to the nearest Cadillac
dealer for warranty service,
or if the vehicle was in a
crash and cannot be driven.
Assistance is not given when
the vehicle is stuck in the
sand, mud, or snow.
.Flat Tire Change:
Service to
change a flat tire with a
spare tire. The spare tire,
if equipped, must be in good
condition and properly
inflated. It is your
responsibility for the repair
or replacement of the tire if
it is not covered by the
warranty.
.Battery Jump Start: Service
to jump start a dead battery.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
OnStar 503
With Roadside Assistance,
Advisors can locate a nearby
service provider to help with a
flat tire, a battery jump, or an
empty gas tank.
Security
If equipped, OnStar provides
these services:
.With Stolen Vehicle
Assistance, OnStar Advisors
can use GPS to pinpoint the
vehicle and help authorities
quickly recover it.
.With Remote Ignition Block,
if equipped, OnStar can
block the vehicle from being
restarted.
.With Stolen Vehicle
Slowdown, if equipped,
OnStar can work with law
enforcement to gradually
slow the vehicle down.
Theft Alarm Notification
If equipped, if the doors are
locked and the vehicle alarm
sounds, a notification by text,
e-mail, or phone call will besent. If the vehicle is stolen, an
OnStar Advisor can work with
authorities to recover the
vehicle.
OnStar Additional
Information
In-Vehicle Audio
Messages
Audio messages may play
important information at the
following times:
.Prior to vehicle purchase.
Press
Qto set up an
account.
.After change in ownership
and at 90 days.
Transferring Service
PressQto request account
transfer eligibility information.
The Advisor can cancel or
change account information.
Selling/Transferring the
Vehicle
Call 1-888-4ONSTAR
(1-888-466-7827) immediately
to terminate your OnStar or
connected services if the
vehicle is disposed of, sold,
transferred, or if the
lease ends.
Reactivation for
Subsequent Owners
PressQand follow the
prompts to speak to an
Advisor as soon as possible.
The Advisor will update vehicle
records and explain OnStar or
connected service options.
How OnStar Service
Works
Automatic Crash Response,
Emergency Services, Crisis
Assist, Stolen Vehicle
Assistance, Remote Services,
and Roadside Assistance are
available on most vehicles. Not
all OnStar services are
available everywhere or on all

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
OnStar 505
OnStar Personal
Identification
Number (PIN)
A PIN is needed to access
some OnStar services. The
PIN will need to be changed
the first time when speaking
with an Advisor. To change the
OnStar PIN, contact an
OnStar Advisor by pressing
Q
or calling 1-888-4ONSTAR.
Warranty
OnStar equipment may be
warranted as part of the
vehicle warranty.
Languages
The vehicle can be
programmed to respond in
multiple languages. Press
Q
and ask for an Advisor.
Advisors are available in
English, Spanish, and French.
Available languages may vary
by country.
Potential Issues
OnStar cannot perform
Remote Door Unlock or Stolen
Vehicle Assistance after the
vehicle has been off
continuously for an extended
period of time without an
ignition cycle. To find out the
duration of time that applies
for the vehicle, contact an
OnStar Advisor by pressing
Q
or calling 1-888-4ONSTAR.
If the vehicle has not been
started for an extended period
of time, OnStar can contact
Roadside Assistance or a
locksmith to help gain access
to the vehicle.
Global Positioning
System (GPS)
.Obstruction of the GPS can
occur in a large city with tall
buildings; in parking garages;
around airports; in tunnels
and underpasses; or in an
area with very dense trees.
If GPS signals are not
available, the OnStar system
should still operate to callOnStar. However, OnStar
could have difficulty
identifying the exact
location.
.In emergency situations,
OnStar can use the last
stored GPS location to send
to emergency responders.
A temporary loss of GPS can
cause loss of the ability to
send a Turn-by-Turn
Navigation route. The Advisor
may give a verbal route or may
ask for a call back after the
vehicle is driven into an
open area.
Cellular and GPS
Antennas
Cellular reception is required
for OnStar to send remote
signals to the vehicle. Do not
place items over or near the
antenna to prevent blocking
cellular and GPS signal
reception.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
510 Connected Services
vehicles, Wi-Fi can also be
managed from the Wi-Fi
Hotspot menu.
MyCadillac Mobile App
(If Available)
Download the myCadillac
mobile app to compatible
Apple and Android
smartphones. Cadillac users
can access the following
services from a smartphone:
.Remotely start/stop the
vehicle, if factory-equipped.
.Lock/unlock doors,
if equipped with automatic
locks.
.Activate the horn and lamps.
.Check the vehicle fuel level,
oil life, or tire pressure,
if factory-equipped with the
Tire Pressure Monitor
System.
.Send destinations to the
vehicle.
.Locate the vehicle on a map
(U.S. market only).
.Turn the vehicle's Wi-Fi
hotspot on/off, manage
settings, and monitor data
consumption, if equipped.
.Locate a dealer and
schedule service.
.Request Roadside
Assistance.
.Set a parking reminder with
pin drop, take a photo, make
a note, and set a timer.
.Connect with Cadillac on
social media.
Features are subject to
change. For myCadillac mobile
app information and
compatibility, see
my.cadillac.com.
An active OnStar or
connected service plan may be
required. A compatible device,
factory-installed remote start,
and power locks are required.
Data rates apply. See
www.onstar.com for details
and system limitations.
Remote Services
Contact an OnStar Advisor to
unlock the doors or sound the
horn and flash the lamps.
Marketplace
OnStar Advisors can provide
offers from restaurants and
retailers on your route, help
locate hotels, or book a room.
These services vary by
market.
Diagnostics
By monitoring and reporting
on the vehicle’s key systems,
OnStar Advanced Diagnostics,
if equipped, provides a way to
keep up on maintenance.
Capabilities vary by model. See
www.onstar.com for details
and system limitations.
Features are subject to
change. For updates on
feature capabilities, see
my.cadillac.com. Message and
data rates may apply.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/11/22
INDEX 517
Hill Start Assist (HSA) . . . . . . 289
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
How to Wear Seat BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . . 57
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Hydraulic Clutch . . . . . . . . . . . . . 388
I
If the System Needs Service . . . . . . . . . . . . . . . . . . . . . . . . . 192
Ignition Positions . . . . . . . . . . . . .267
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . 31
Indicator
Pedestrian Ahead . . . . . . . . . . 130
Vehicle Ahead . . . . . . . . . . . . . . . 130
Indicators
Warning Lights andGauges . . . . . . . . . . . . . . . . . . . . . . . . 112
Infants and Young Children, Restraints . . . . . . . . . . 81
Information Publication Ordering . . . . . 496
Infotainment Using the System . . . . . . . . . . 165
Infotainment System . . . . . . . 500
Inspection
Multi-Point Vehicle . . . . . . . . 474 Instrument Cluster . . . . . . 113, 115
Instrument Panel
Overview . . . . . . . . . . . . . . . . . . . . . . . . . 5
Interior Rearview Mirrors . . . 35
Introduction . . . . . . . . . . . . . . . . . 2, 162
J
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . 452
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Operation . . . . . . . . . . . . 9
L
Labeling, Tire Sidewall . . . . . 422
LampsCornering . . . . . . . . . . . . . . . . . . . . . 156
Courtesy . . . . . . . . . . . . . . . . . . . . . . 157
DaytimeRunning (DRL) . . . . . . . . . . . . . 154
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Exterior Controls . . . . . . . . . . . 152
Exterior Lamps Off Reminder . . . . . . . . . . . . . . . . . . . . 154
Exterior Lighting
Battery Saver . . . . . . . . . . . . . . 160 Lamps (cont'd)
Flash-to-Pass . . . . . . . . . . . . . . . . 154
High/Low Beam
Changer . . . . . . . . . . . . . . . . . . . . . 154
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 125
On Reminder . . . . . . . . . . . . . . . . . 135
Reading . . . . . . . . . . . . . . . . . . . . . . . 157
Lane Change Alert (LCA) . . . . . . . 353
Keep Assist (LKA) . . . . . . . . . 356
Keep Assist Light . . . . . . . . . . 129
Lap-Shoulder Belt . . . . . . . . . . . . . 60
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . . 93
LATCH, Lower Anchors and Tethers for
Children . . . . . . . . . . . . . . . . . . . . . . . . . 87
LED Lighting . . . . . . . . . . . . . . . . . . 409
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Illumination Control . . . . . . . . 157
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Lights
Airbag Readiness . . . . . . . . . . . 123

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/11/22
520 INDEX
Performance (cont'd)Shifting Light . . . . . . . . . . . . . . . . 129
Phone Apple CarPlay andAndroid Auto . . . . . . . . . . . . . . . 212
Bluetooth . . . . . . . . . . . . . 206, 207
Port
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Positioning Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 191
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 21
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Outlets . . . . . . . . . . . . . . . . . . . . . . . . 108
Protection, Battery . . . . . . . . 160
Retained
Accessory (RAP) . . . . . . . . . . 273
Seat Adjustment . . . . . . . . . . . . . 44
Windows . . . . . . . . . . . . . . . . . . . . . . . 38
Pregnancy, Using Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Privacy Vehicle DataRecording . . . . . . . . . . . . . . . . . . 498
Problems with Route Guidance . . . . . . . . . . . . . . . . . . . . . . 192 Program
Courtesy
Transportation . . . . . . . . . . . 492
Prohibited Fuels . . . . . . . . . . . . . . 361
Proposition 65 Warning California . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Proposition
65 Warning, California . . . 452
Publication Ordering Information . . . . . . . . . . . . . . . . . . 496
R
Radiator . . . . . . . . . . . . . . . . . . . . . . . . 392
RadioAM-FM Radio . . . . . . . . . . . . . . . . 169
Data System (RDS) . . . . . . . . . 172
Frequency Statement . . . . 496
HD Radio Technology . . . . . . 171
Reception . . . . . . . . . . . . . . . . . . . . . 173
Satellite . . . . . . . . . . . . . . . . . . . . . . . 172
Reading Lamps . . . . . . . . . . . . . . . 157
Rear
Camera Mirror . . . . . . . . . . . . . . . . 35
Cross Traffic Alert(RCTA) System . . . . . . . . . . . 346
Pedestrian Alert . . . . . . . . . . . 344
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Vision Camera (RVC) . . . . . 336 Rearview Mirrors . . . . . . . . . . . . . . 35
Automatic Dimming . . . . . . . . . 35
Reclining Seatbacks . . . . . . . . . . 45
Recognition Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . 360, 361
Recommended Fluids and Lubricants . . . . . . . . . . . . . 476
Recorder Surround Video . . . . . . . . . . . . 358
Records Maintenance . . . . . . . . . . . . . . . . 479
Recreational Vehicle Towing . . . . . . . . . . . . . . . . . . . . . . . . 457
Reimbursement
Program, GM Mobility . . . . 489
Remote Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Key Operation . . . . . . . . . . . . . . . . . . 9
Vehicle Start . . . . . . . . . . . . . . . . . . . 16
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 78
Maintenance . . . . . . . . . . . . . . . . . 477
Replacing
Airbag System . . . . . . . . . . . . . . . 78
LATCH System PartsAfter a Crash . . . . . . . . . . . . . . . 93
