2023 CADILLAC CT4 headlamp

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 335
.Front and rear bumpers and
the area below the bumpers
.Front grille and headlamps
.Front camera lens in the
front grille or near the front
emblem
.Front side and rear side
panels
.Outside of the windshield in
front of the rearview mirror
.Side camera lens on the
bottom of the outside
mirrors
.Rear side corner bumpers
.Rear Vision Camera above
the license plateRadio Frequency
This vehicle may be equipped
with driver assistance systems
that operate using radio
frequency. See Radio
Frequency Statement
0494.
Assistance Systems
for Parking or
Backing
If equipped, the Rear Vision
Camera (RVC), Rear Park
Assist (RPA), Front Park Assist
(FPA), Surround Vision,
Reverse Automatic Braking
(RAB) and Backing Warning
System, and Rear Cross
Traffic Alert (RCTA) may help
the driver park or avoid
objects. Always check around
the vehicle when parking or
backing.
Rear Vision
Camera (RVC)
When the vehicle is shifted
into R (Reverse), the RVC
displays an image of the area behind the vehicle in the
infotainment display. The
previous screen displays when
the vehicle is shifted out of
R (Reverse) after a short delay.
To return to the previous
screen sooner, press Home or
Back on the infotainment
system, shift into P (Park),
or reach a vehicle speed of
approximately 12 km/h (8 mph)
while in D (Drive).
1. View Displayed by the
Camera

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 343
feature, touch the Settings
icon on the infotainment home
page. Select“Vehicle”to
display the list of available
options and select “Collision/
Detection Systems”.
Detecting the Vehicle
Ahead
FCA warnings will not occur
unless the FCA system
detects a vehicle ahead. When
a vehicle is detected, the
vehicle ahead indicator will
display green. Vehicles may
not be detected on curves,
highway exit ramps, or hills,
due to poor visibility; or if a
vehicle ahead is partially
blocked by pedestrians or
other objects. FCA will not
detect another vehicle ahead
until it is completely in the
driving lane.
{Warning
FCA does not provide a
warning to help avoid a
crash, unless it detects a
vehicle. FCA may not detect
a vehicle ahead if the FCA
sensor is blocked by dirt,
snow, or ice, or if the
windshield is damaged.
It may also not detect a
vehicle on winding or hilly
roads, or in conditions that
can limit visibility such as
fog, rain, or snow, or if the
headlamps or windshield are
not cleaned or in proper
condition. Keep the
windshield, headlamps, and
FCA sensors clean and in
good repair. Collision Alert
With Head-Up Display
Without Head-Up Display
When your vehicle approaches
another detected vehicle too
rapidly, the red FCA display
will flash on the windshield.
Also, eight rapid high-pitched
beeps will sound from the
front, or both sides of the
Safety Alert Seat will pulse
five times. When this Collision
Alert occurs, the brake system
may prepare for driver braking
to occur more rapidly which
can cause a brief, mild

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 345
.Clean the headlamps.
Automatic Emergency
Braking (AEB)
If equipped, the AEB system
may help avoid or reduce the
harm caused by front-end
crashes. AEB also includes
Intelligent Brake Assist (IBA).
When the system detects a
vehicle in the path ahead that
is traveling in the same
direction, and that you may
crash into, it can provide a
boost to braking,
or automatically brake the
vehicle. This can help avoid or
lessen the severity of crashes
when driving in a forward gear.
Depending on the situation,
the vehicle may automatically
brake moderately or hard. This
Automatic Emergency Braking
can only occur if a vehicle is
detected. Vehicle detection is
shown by the Forward
Collision Alert (FCA) vehicle
ahead indicator being lit. See
Forward Collision Alert (FCA)
System0342. The system works when
driving in a forward gear
between 8 km/h (5 mph) and
80 km/h (50 mph), or on
vehicles with Adaptive Cruise
Control (ACC), above 4 km/h
(2 mph). It can detect vehicles
up to approximately 60 m
(197 ft).
{Warning
AEB is an emergency crash
preparation feature and is
not designed to avoid
crashes. Do not rely on AEB
to brake the vehicle. AEB will
not brake outside of its
operating speed range and
only responds to detected
vehicles.
AEB may not:
.Detect a vehicle ahead on
winding or hilly roads.
.Detect all vehicles,
especially vehicles with a
trailer, tractors, muddy
vehicles, etc.
(Continued)
Warning (Continued)
.Detect a vehicle when
weather limits visibility,
such as in fog, rain,
or snow.
.Detect a vehicle ahead if it
is partially blocked by
pedestrians or other
objects.
Complete attention is
always required while
driving, and you should be
ready to take action and
apply the brakes and/or
steer the vehicle to avoid
crashes.
AEB may slow the vehicle to a
complete stop to try to avoid a
potential crash. If this
happens, AEB may engage the
Electric Parking Brake (EPB)
to hold the vehicle at a stop.
Release the EPB or firmly
press the accelerator pedal.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 347
crashes with nearby
pedestrians when driving in a
forward gear. FPB displays an
amber indicator,
~, when a
nearby pedestrian is detected
ahead. When approaching a
detected pedestrian too
quickly, FPB provides a red
flashing alert on the
windshield and rapidly beeps
or pulses the driver seat. FPB
can provide a boost to braking
or automatically brake the
vehicle. This system includes
Intelligent Brake Assist (IBA),
and the Automatic Emergency
Braking (AEB) System may
also respond to pedestrians.
See Automatic Emergency
Braking (AEB) 0345.
The FPB system can detect
and alert to pedestrians in a
forward gear at speeds
between 8 km/h (5 mph) and
80 km/h (50 mph). During
daytime driving, the system
detects pedestrians up to a
distance of approximately 40 m (131 ft). During nighttime
driving, system performance is
very limited.
{Warning
FPB does not provide an
alert or automatically brake
the vehicle, unless it detects
a pedestrian. FPB may not
detect pedestrians, including
children:
.When the pedestrian is
not directly ahead, fully
visible, or standing upright,
or when part of a group.
.Due to poor visibility,
including nighttime
conditions, fog, rain,
or snow.
.If the FPB sensor is
blocked by dirt, snow,
or ice.
.If the headlamps or
windshield are not cleaned
or in proper condition.
(Continued)
Warning (Continued)
Be ready to take action and
apply the brakes. For more
information, see Defensive
Driving0235. Keep the
windshield, headlamps, and
FPB sensor clean and in
good repair.
FPB can be set to Off, Alert,
or Alert & Brake through
vehicle personalization. To
view available settings for this
feature, touch the Settings
icon on the infotainment home
page. Select “Vehicle”to
display the list of available
options and select “Collision/
Detection Systems”.
Detecting the Pedestrian
Ahead

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
352 Driving and Operating
be overridden by turning the
steering wheel. If the system
detects you are steering
intentionally across a lane
marker, the LDW will not be
given. Do not expect the LDW
to occur when you are
intentionally crossing a lane
marker.
{Warning
The LKA system does not
continuously steer the
vehicle. It may not keep the
vehicle in the lane or give a
Lane Departure Warning
(LDW) alert, even if a lane
marking is detected.
The LKA and LDW systems
may not:
.Provide an alert or enough
steering assist to avoid a
lane departure or crash.
.Detect lane markings
under poor weather or
visibility conditions. This
can occur if the windshield(Continued)
Warning (Continued)
or headlamps are blocked
by dirt, snow, or ice; if they
are not in proper
condition; or if the sun
shines directly into the
camera.
.Detect road edges.
.Detect lanes on winding or
hilly roads.
If LKA only detects lane
markings on one side of the
road, it will only assist or
provide an LDW alert when
approaching the lane on the
side where it has detected a
lane marking. Even with LKA
and LDW, you must steer
the vehicle. Always keep
your attention on the road
and maintain proper vehicle
position within the lane,
or vehicle damage, injury,
or death could occur. Always
keep the windshield,
headlamps, and camera (Continued)
Warning (Continued)
sensors clean and in good
repair. Do not use LKA in
bad weather conditions or
on roads with unclear lane
markings, such as
construction zones.
{Warning
Using LKA on slippery roads
could cause loss of control
of the vehicle and a crash.
Turn the system off.
{Warning
LKA will not alert the driver
if a towed trailer crosses
into an adjacent lane of
travel. Serious injury or
property damage may occur
if the trailer moves into
another lane. Always
monitor the trailer position(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
368 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . 369
California PerchlorateMaterials
Requirements . . . . . . . . . . . . . 370
Accessories and Modifications . . . . . . . . . . . . . 370
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . 370
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . 373
Engine Oil . . . . . . . . . . . . . . . . . . . . 378
Engine Oil Life System . . . 381
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Manual Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Hydraulic Clutch . . . . . . . . . . . 383
Engine Air Filter Life System . . . . . . . . . . . . . . . . . . . . . . 383
Engine Air Cleaner/ Filter . . . . . . . . . . . . . . . . . . . . . . . . . 384
Cooling System . . . . . . . . . . . . 386
Engine Overheating . . . . . . . 391 Washer Fluid . . . . . . . . . . . . . . . . 393
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 393
Brake Pad Life System (If
Equipped) . . . . . . . . . . . . . . . . . . 396
Brake Fluid . . . . . . . . . . . . . . . . . . 398
Battery - North
America . . . . . . . . . . . . . . . . . . . . . 399
All-Wheel Drive . . . . . . . . . . . . 400
Park Brake and P (Park) Mechanism Check . . . . . . . 400
Wiper Blade Replacement . . . . . . . . . . . . . . 401
Windshield Replacement . . . . . . . . . . . . . . 401
Gas Strut(s) . . . . . . . . . . . . . . . . . 402
Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . . 403
Bulb Replacement
Bulb Replacement . . . . . . . . 403
Halogen Bulbs . . . . . . . . . . . . . . 403
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . 403
LED Lighting . . . . . . . . . . . . . . . . 403
Front Turn Signal Lamps . . . . . . . . . . . . . . . . . . . . . . . 404
Electrical System
Electrical SystemOverload . . . . . . . . . . . . . . . . . . . 404
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . . 406
Engine Compartment
Fuse Block . . . . . . . . . . . . . . . . . 407
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 409
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . 411
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
All-Season Tires . . . . . . . . . . . . 414
Winter Tires . . . . . . . . . . . . . . . . . 414
Run-Flat Tires . . . . . . . . . . . . . . . 415
Self-Sealing Tires . . . . . . . . . . 415
Low-Profile Tires . . . . . . . . . . 416
Summer Tires . . . . . . . . . . . . . . . 416
Tire Sidewall Labeling . . . . 417
Tire Designations . . . . . . . . . . 418
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 419
Tire Pressure . . . . . . . . . . . . . . . 422
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . 423
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 424

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22

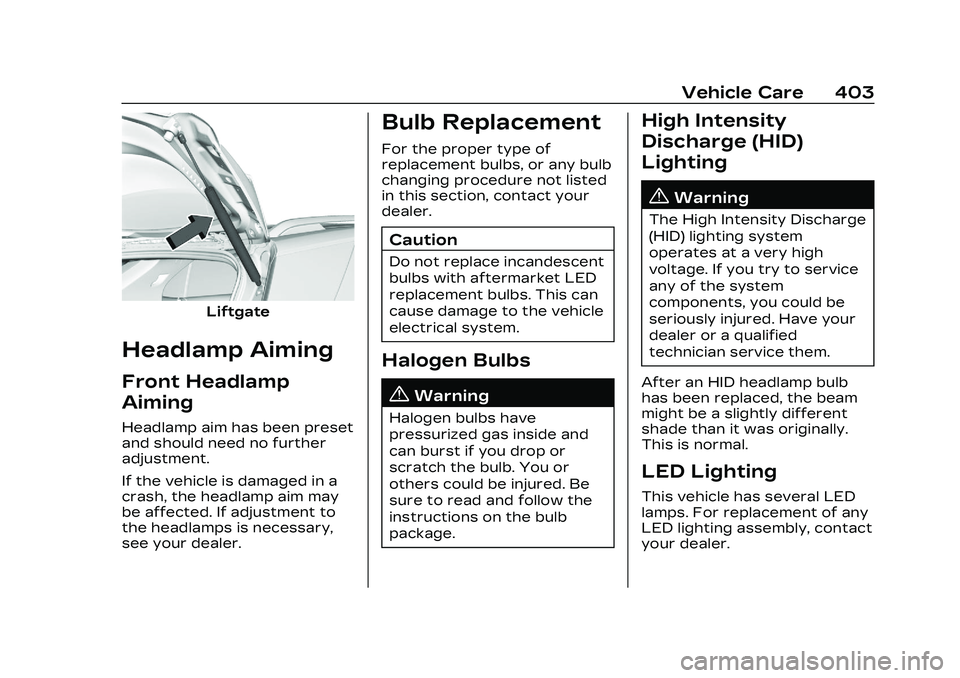

Vehicle Care 403
Liftgate
Headlamp Aiming
Front Headlamp
Aiming
Headlamp aim has been preset
and should need no further
adjustment.
If the vehicle is damaged in a
crash, the headlamp aim may
be affected. If adjustment to
the headlamps is necessary,
see your dealer.
Bulb Replacement
For the proper type of
replacement bulbs, or any bulb
changing procedure not listed
in this section, contact your
dealer.
Caution
Do not replace incandescent
bulbs with aftermarket LED
replacement bulbs. This can
cause damage to the vehicle
electrical system.
Halogen Bulbs
{Warning
Halogen bulbs have
pressurized gas inside and
can burst if you drop or
scratch the bulb. You or
others could be injured. Be
sure to read and follow the
instructions on the bulb
package.
High Intensity
Discharge (HID)
Lighting
{Warning
The High Intensity Discharge
(HID) lighting system
operates at a very high
voltage. If you try to service
any of the system
components, you could be
seriously injured. Have your
dealer or a qualified
technician service them.
After an HID headlamp bulb
has been replaced, the beam
might be a slightly different
shade than it was originally.
This is normal.
LED Lighting
This vehicle has several LED
lamps. For replacement of any
LED lighting assembly, contact
your dealer.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
404 Vehicle Care
Front Turn Signal
Lamps
Uplevel
See your dealer for turn signal
replacement.
Base level
To replace one of these lamps:1. Open the hood.
2. If your vehicle is equipped with a beauty cover,
remove the beauty cover
to get access to the bulb.
3. Turn the bulb socketcounterclockwise to
remove it from the
headlamp assembly.
4. Unplug the electrical connector from the bulb by
releasing the clip on the
connector.
5. Replace the bulb and reverse Steps 1–4 to
reinstall.
Electrical System
Electrical System
Overload
The vehicle has fuses and
circuit breakers to protect
against an electrical system
overload.
When the current electrical
load is too heavy, the circuit
breaker opens and closes,
protecting the circuit until the
current load returns to normal
or the problem is fixed. This greatly reduces the chance of
circuit overload and fire
caused by electrical problems.
Fuses and circuit breakers
protect power devices in the
vehicle.
If there is a problem on the
road and a fuse needs to be
replaced, the same amperage
fuse can be borrowed. Choose
some feature of the vehicle
that is not needed to use and
replace it as soon as possible.
To check a fuse, look at the
band inside the fuse. If the
band is broken or melted,
replace the fuse. Be sure to
replace a bad fuse with a fuse
of the identical size and rating.
