2023 ACURA INTEGRA Owners Manual

103
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Green/
Gray)
●Lights up in green when Road Departure
Mitigation system, CMBSTM, Low Speed
Braking Control*, blind spot information
system and parking sensor system* are on.●Lights up in green and gray when Road
Departure Mitigation system, CMBSTM, Low
Speed Braking Control*, blind spot
information system, parking sensor system*
or any two, three or four of these systems
are off.
●Lights up in gray when Road Departure
Mitigation system, CMBSTM, Low Speed
Braking Control*, blind spot information
system and parking sensor system* are off.
2 Road Departure Mitigation System P. 566
2 Blind Spot Information System P. 474
2 Low Speed Braking Control
* P. 493, 499
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 481
2 Parking Sensor System* P. 598
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 103 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

104
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, fuel gauge, and other related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
■Speedometer1Speedometer
You can set the speedometer and the displayed
measurements to read in either km/h or mph.
2 Speed/Distance Units P. 123
2 Vehicle Settings
* P. 126
2 Customized Features P. 359
If you change the unit from miles and mph to km and
km/h, the current vehicle speed in mph appears next
to the digital speedometer.
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
U.S. models
Vehicle Speed in mph
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 104 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

Continued105
uuGauges and Displays uGauges
Instrument Panel
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Tachometer
■Fuel Gauge
■Temperature Gauge
■Odometer
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge reading in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 697
23 ACURA INTEGRA-313S56000_03.book 105 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuGauges and Displays uGauges
106
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature readi ng by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Shows certain detected traffic signs while driving.
The indicator blinks when the maximum spee d of the traffic sign detected by the
Traffic Sign Recognitio n System is exceeded.
2Traffic Sign Recognition System P. 574
■Outside Temperature
■Traffic Sign Recognition System
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
You can adjust the temperature reading.
2 Vehicle Settings
* P. 126
2 Customized Features P. 359
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 106 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

107
uuGauges and Displays uGauges
Instrument Panel
Shows the current mode for ACC with Low Speed Follow*, LKAS, and Traffic Jam
Assist*.
2 Adaptive Cruise Control (ACC) with Low Speed Follow* P. 504
2 Adaptive Cruise Control (ACC)* P. 525
2 Lane Keeping Assist System (LKAS) P. 545
2 Traffic Jam Assist
* P. 557
■Current Mode for ACC with Low Speed Follow*, the LKAS,
and Traffic Jam Assist*
1 Current Mode for ACC with Low Speed Follow*, the LKAS, and
Traffic Jam Assist*
When you set speed for A CC with Low Speed Follow*
or cruise control, a set sp eed mark will be displayed
on the speedometer.
Set
Speed
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 107 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

108
uuGauges and Displays uDriver Information Interface (Left Side Area)
Instrument Panel
Driver Information Interface (Left Side Area)
Shows the current mode for audio and phone information, etc.
2 Audio Remote Controls P. 230
2 Bluetooth ® HandsFreeLink ® P. 383, 403
Shows the clock.
■Clock1 Clock
You can adjust the time manually and change the
clock display to show the 12 hour clock or 24 hour
clock. 2 Clock P. 142
You can choose whether the clock is displayed on the
driver information interface. 2 Customize Display P. 109
23 ACURA INTEGRA-313S56000_03.book 108 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

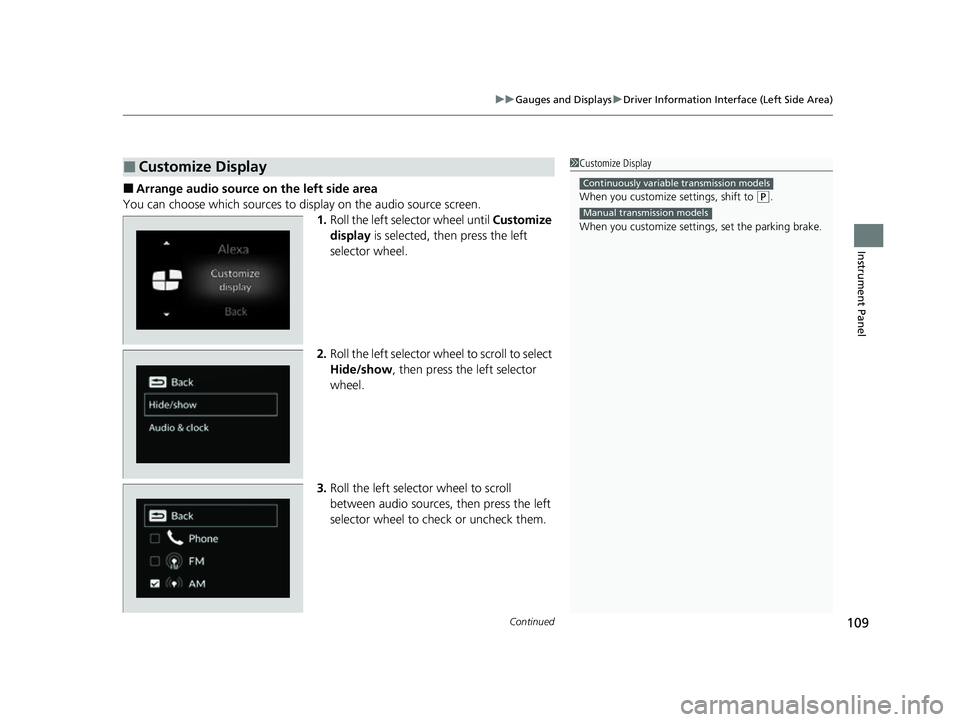

Continued109
uuGauges and Displays uDriver Information Interface (Left Side Area)
Instrument Panel
■Arrange audio source on the left side area
You can choose which sources to display on the audio source screen. 1.Roll the left selector wheel until Customize
display is selected, then press the left
selector wheel.
2. Roll the left selector wheel to scroll to select
Hide/show , then press the left selector
wheel.
3. Roll the left selector wheel to scroll
between audio sources, then press the left
selector wheel to check or uncheck them.
■Customize Display1Customize Display
When you customize settings, shift to
(P.
When you customize setti ngs, set the parking brake.
Continuously variable transmission models
Manual transmission models
23 ACURA INTEGRA-313S56000_03.book 109 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

110
uuGauges and Displays uDriver Information Interface (Left Side Area)
Instrument Panel
■Turn the displaying on the left side area on and off
You can select whether the current audio information and clock appear on the left
side area. 1.Roll the left selector wheel until Customize
display is selected, then press the left
selector wheel.
2. Roll the left selector wheel to scroll to select
Audio & clock , then press the left selector
wheel.
3. Roll the left selector wheel to scroll to select
your desired settings, then press the left
selector wheel.
23 ACURA INTEGRA-313S56000_03.book 110 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
