2022 YAMAHA GRIZZLY 700 Owners Manual

11-2
11
Displacement:686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Starting system:
Electric starterEngine oil:Recommended brand:
SAE viscosity grades:5W-30, 10W-30, 10W-40, 15W-40, 20W-40, 20W-50 Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Quantity: Oil change:2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter removal: 2.10 L (2.22 US qt, 1.85 Imp.qt)
Final gear oil:Type:Yamaha Friction Modified Plus Shaft Drive Oil (Part No.:
ACC-SHAFT-PL-32) or SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)Differential gear oil:Type:
Yamaha Friction Modified Plus Shaft Drive Oil (Part No.: ACC-SHAFT-PL-32) or SAE 80 API GL-4 Hypoid gear oil0 10 30 50 70 90 110 130 °F
–20 –10 0 10 20 30 40 50 °CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
UBLT60E0.book Page 2 Tuesday, July 13, 2021 9:16 AM

11-3
11
Quantity:0.21 L (0.23 US qt, 0.19 Imp.qt)Coolant quantity:Radiator (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)
Coolant reservoir (up to the maximum level mark): 0.24 L (0.25 US qt, 0.21 Imp.qt)Fuel:Recommended fuel:
Regular unleaded gasoline (Gasohol [E10] acceptable)
Minimum research octane: 91
Fuel tank capacity: 18 L (4.8 US gal, 4.0 Imp.gal)
Fuel reserve amount:
4.0 L (1.06 US gal, 0.88 Imp.gal)Throttle body:ID mark:B4F1Front tire:Size:AT26 x 8-12 (BLT5, BLT8)
AT27 x 10-14 (BLTE)
Manufacturer/model: MAXXIS/MU01Y (BLTE)
MAXXIS/MU05Y (BLT5, BLT8)Rear tire:Size:AT26 x 10-12 (BLT5, BLT8)
AT27 x 10-14 (BLTE) Manufacturer/model:
MAXXIS/MU01Y (BLTE)
MAXXIS/MU06Y (BLT5, BLT8)
Front brake:Type:Hydraulic disc brakeRear brake:Type:Hydraulic disc brakeFront suspension:Type:
Double wishboneRear suspension:Type:Double wishboneElectrical system:System voltage:12 VBattery:Model:
YTX20L-BS
Voltage, capacity: 12 V, 18.0 AhLights:Headlight:
LED
Handlebar-mounted light: T15H, 35.0 W/36.5 W
Brake/tail light: LED
UBLT60E0.book Page 3 Tuesday, July 13, 2021 9:16 AM

11-4
11
EBU30403Noise and vibration levels statement (for Eu-
rope)
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.EBU38670CO2 emissions levels statement (for Europe)
This CO2 measurement results from testing over a
fixed test cycle under laboratory conditions a(n)
(parent) engine representative of the engine type(engine family) and shall not imply or express any
guarantee of the performance of a particular en-
gine.UBLT60E0.book Page 4 Tuesday, July 13, 2021 9:16 AM

12-1
12
EBU26004
CONSUMER INFORMATION
EBU38690Emissions Certification label (for Eu-
rope)This engine conforms to the Non-Road Mobile
Machinery (NRMM) regulation(s) in effect at the
time of manufacture.
The NRMM regulation limits gaseous and particu-
late pollution emissions for internal combustion
engines of non-road mobile machinery.Your Yamaha engine was designed and tested to
give an optimal blend of performance without ex-
cessive emissions. Therefore, do not attempt to
alter the engine specifications or tamper with the
intake, engine, or exhaust systems.
NOTICEECB03790Tampering with the engine or emissions con-
trol system will void the European Union type-
approval of this engine.
1. Emissions Certification label
1
UBLT60E0.book Page 1 Tuesday, July 13, 2021 9:16 AM

13-1
13
INDEX
AAccessories and loading ................................................ 7-5
Accessories, DC jack ................................................... 5-29
Air filter element, cleaning ........................................... 9-37
Axle boots .................................................................... 9-48BBattery ......................................................................... 9-52
Battery voltage warning light ......................................... 5-3
Brake fluid, changing ................................................... 9-45
Brake fluid level, checking ........................................... 9-44
Brake lever, front ......................................................... 5-17
Brake levers, checking and lubricating ........................ 9-49
Brake pads, checking the front and rear ..................... 9-43
Brake pedal and rear brake lever ................................. 5-17
Brake pedal, checking and lubricating ........................ 9-50
Brake pedal free play, adjusting .................................. 9-47
Brakes .......................................................................... 9-42
Brakes, front and rear .................................................... 6-4
Brake/tail light .............................................................. 9-61CCables, checking and lubricating ................................ 9-49
Carrier, front ................................................................. 5-26
Carrier, rear .................................................................. 5-26
Chassis fasteners .......................................................... 6-8
Cleaning ....................................................................... 10-1
Coolant .................................................................6-4, 9-29
Coolant temperature warning light ................................ 5-3DDifferential gear oil ................................................6-4, 9-27Drive select lever ......................................................... 5-18
Drive select lever and driving in reverse ........................ 7-2
EEmissions Certification label (for
Europe) .................... 12-1
Engine break-in .............................................................. 7-4
Engine oil ....................................................................... 6-4
Engine oil and oil filter cartridge .................................. 9-20
Engine stop switch ...................................................... 5-11
Engine trouble warning light .......................................... 5-3
EPS warning light .......................................................... 5-4FFinal gear oil ......................................................... 6-4, 9-25
Four-wheel drive/differential gear lock icon .................. 5-4
Four-wheel drive switch (On-Command 4WD) ............ 5-13
Front and rear brake lever free play, checking ............ 9-46
Fuel ....................................................................... 5-20, 6-4
Fuel tank cap ............................................................... 5-19
Fuses, replacing .......................................................... 9-56HHandlebar switches ..................................................... 5-11
Headlight beam, adjusting ........................................... 9-60
Headlight bulb, replacing ............................................. 9-58
High beam indicator light ............................................... 5-2
High-range indicator light .............................................. 5-2
Horn switch .................................................................. 5-12IIdentification numbers ................................................... 1-1
Indicator lights and warning lights ................................. 5-2
Instruments, lights and switches ................................... 6-8
UBLT60E0.book Page 1 Tuesday, July 13, 2021 9:16 AM

13-2
13
LLabel locations ............................................................... 2-1
Light switch .................................................................. 5-12
Low-range indicator light ............................................... 5-2MMain switch .................................................................... 5-1
Maintenance chart, emission control system ................ 9-3
Maintenance chart, general maintenance and lubrication .................................................................... 9-5
Model label ..................................................................... 1-1
Multi-function display .....................................................5-5NNeutral indicator light .....................................................5-2OOn-Command drive switch “4WD/LOCK” ................... 5-14
Override switch ............................................................ 5-12
Owner’s Manuals and Tool Kit ....................................... 9-2PPanels, removing and installing ................................... 9-10
Park indicator light ......................................................... 5-2
Parking ........................................................................... 7-4
Parking on a slope ......................................................... 7-5
Part locations ................................................................. 4-1RRear knuckle pivots, lubricating ................................... 9-51
Reverse indicator light ................................................... 5-2
Riding your ATV ............................................................. 8-1SSafety information .......................................................... 3-1
Seat .............................................................................. 5-21 Shock absorber assemblies, adjusting the front and
rear ............................................................................. 5-26
Spark arrester, cleaning ............................................... 9-40
Spark plug, checking ................................................... 9-18
Specifications .............................................................. 11-1
Speed limiter ................................................................ 5-16
Stabilizer bushes, checking ......................................... 9-51
Starting the engine ......................................................... 7-1
Start switch .................................................................. 5-12
Steering shaft, lubricating ............................................ 9-52
Storage ........................................................................ 10-2
Storage compartments ................................................ 5-22
TThrottle lever ........................................................ 5-16, 6-5
Throttle lever free play, adjusting ................................. 9-42
Tires ............................................................................... 6-5
Trailer hitch .................................................................. 5-28
Troubleshooting ........................................................... 9-63
Troubleshooting charts ................................................ 9-64VValve clearance ............................................................ 9-42
V-belt case drain plug .................................................. 9-41
Vehicle identification number ......................................... 1-1WWheel hub bearings, checking ..................................... 9-51
Wheel, installing ........................................................... 9-62
Wheel, removing .......................................................... 9-61
Winch ........................................................................... 5-28
Winch switch ................................................................ 5-12YYamalube ..................................................................... 9-24
UBLT60E0.book Page 2 Tuesday, July 13, 2021 9:16 AM

UBLT60E0.book Page 3 Tuesday, July 13, 2021 9:16 AM

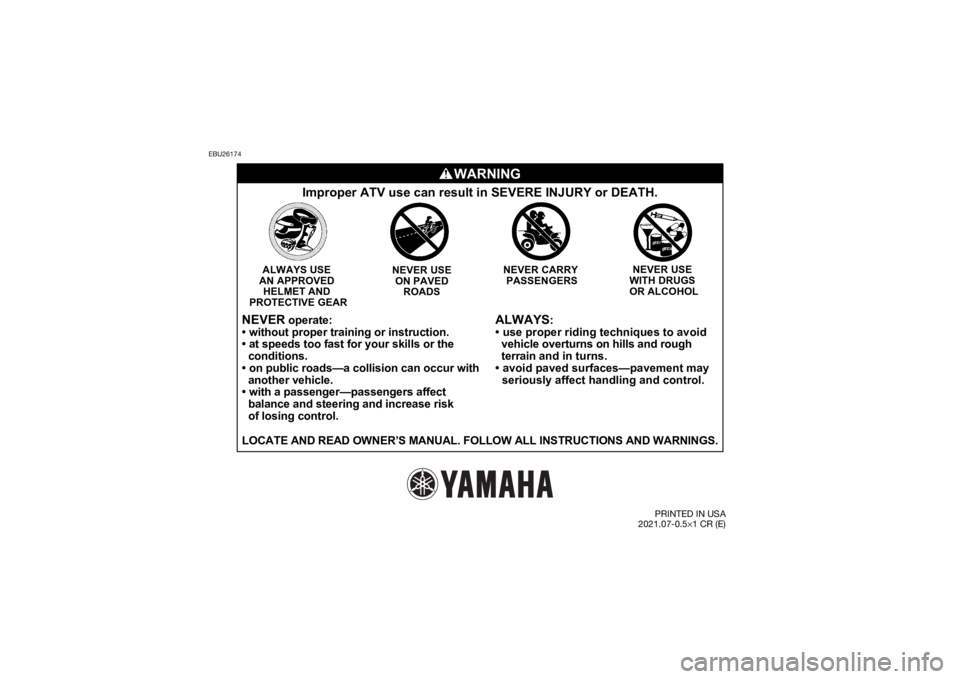

EBU26174
WARNING
ALWAYS
:
• use proper riding techniques to avoid
vehicle overturns on hills and rough
terrain and in turns.
• avoid paved surfaces—pavement may
seriously affect handling and control.
Improper ATV use can result in SEVERE INJURY or DEATH.
NEVER USE
WITH DRUGS
OR ALCOHOL
ALWAYS USE
AN APPROVED HELMET AND
PROTECTIVE GEAR NEVER USE
ON PAVED ROADS NEVER CARRY
PASSENGERS
NEVER
operate:
• without proper training or instruction.
• at speeds too fast for your skills or the
conditions.
• on public roads—a collision can occur with
another vehicle.
• with a passenger—passengers affect
balance and steering and increase risk
of losing control.
LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.
PRINTED IN USA
2021.07-0.R× 1 CR (E)
