2022 VOLKSWAGEN ID.5 trailer

(0 mph), 5 km/h (3 mph) or 10 km/h (5 mph)
abo
ve the permitted speed.
Trailer mode
In vehicles with a factory-fitted towing
bracket and a trailer with an electrical con-
nection to the vehicle, the display of road
signs that may apply to the vehicle when
towing a trailer, e.g. applicable speed limits
and no-overtaking signs, can be activated or
deactivated in the vehicle settings in the In-
fotainment system

x

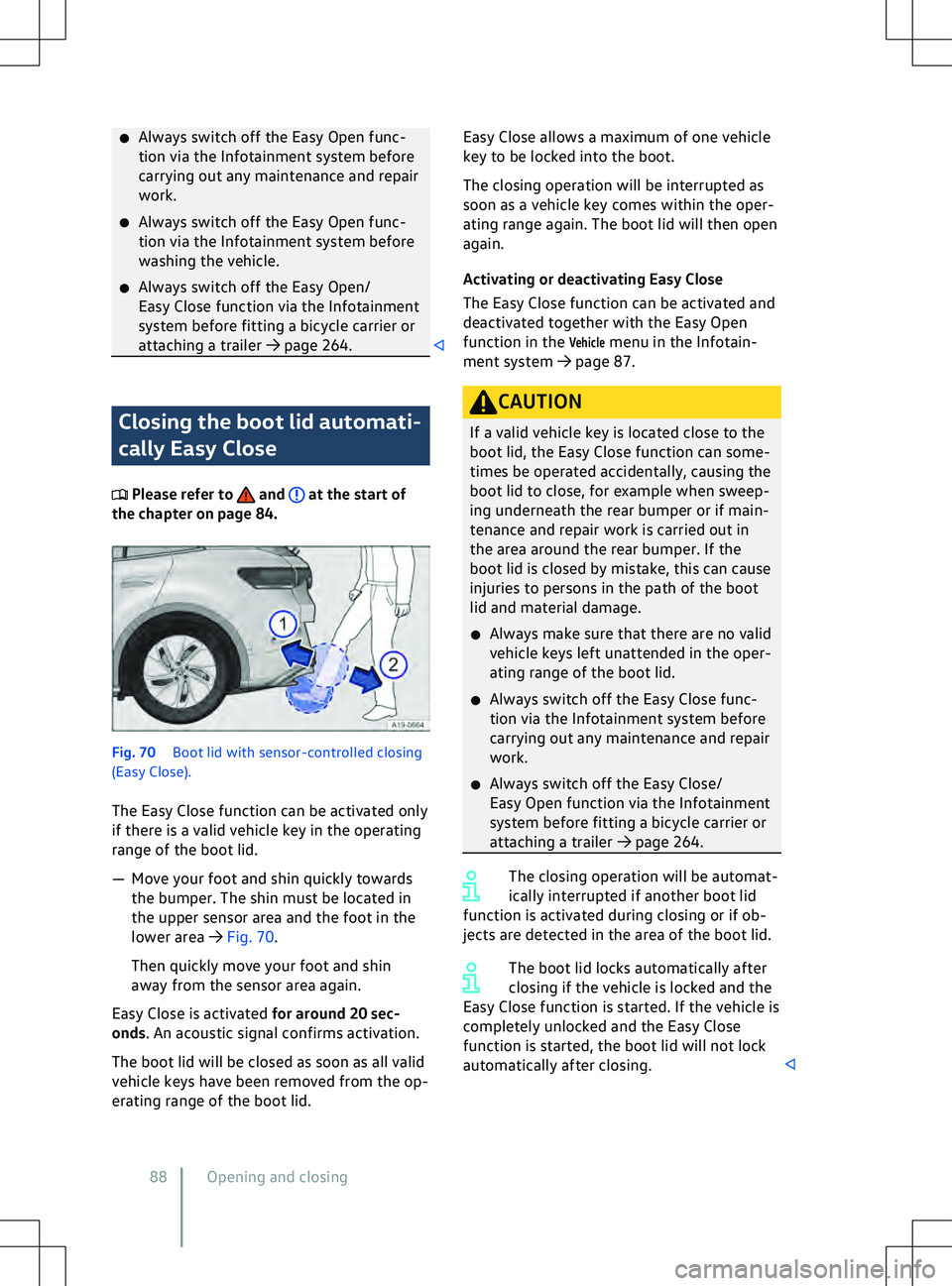

Always switch off the Easy Open func-
tion via the Inf
otainment system before
carrying out any maintenance and repair
work.
x Always switch off the Easy Open func-
tion via the Infotainment system before
washing the vehicle.
x Always switch off the Easy Open/
Easy Close function via the Infotainment
system before fitting a bicycle carrier or
attaching a trailer

Adaptive Cruise Control
(ACC)
Introduction to the topic
The Adaptive Cruise Control (ACC) main-
tains a constant speed that you ha
ve set.
If the vehicle approaches a vehicle in
front, the ACC automatically adapts the
speed so that a distance you have selec-
ted is maintained.
Does the vehicle have ACC?
The vehicle is equipped with ACC if you can
adjust settings for ACC in the Assist systems
menu in the Infotainment system.
Speed range
You can set the speed between 20 km/h
(15 mph) and the maximum speed.
Driving with ACC
You can override the active ACC system at
any time. Cruise control will be stopped if you
brake. If you accelerate, cruise control will be
interrupted while you are accelerating and
then resumed.
The intervention by the ACC system is less
dynamic when towing a trailer.
Driver intervention prompt
If automatic deceleration by the ACC
system is not sufficient or the system
limits have been reached, the ACC
system will request you to also brake
by a corresponding message on the
instrument cluster. In addition, the
red warning lamp lights up and an
acoustic warning is given. Take over
control of the vehicle and be prepared
to brake.
Radar sensor
ACC detects driving situations using a radar
sensor at the front of the vehicle. The range of the radar sensor is up to approximately
160 m (

around 520 ft). Special driving situations
Please refer to at the start of the chap-
ter on page 151.
Predictiv

e cruise control system
If the vehicle is equipped with the Dynamic
Road Sign Display function and an Infotain-
ment system with navigation, ACC can pre-
dictively adapt the vehicle speed to detected
speed limits and the course of the road ahead
Adaptive Cruise Control 151
11A012720AB

The yellow indicator lamp flashes if a pos-
sible critical situation is detected when you
indicate in the direction of the detected v
ehi-
cle.
The faster another vehicle approaches, the
earlier there is a corresponding display in the
exterior mirror.
Lane change system “Side Assist Plus”
If the vehicle is equipped with a lane keeping
system (Lane Assist) and the system is
switched on, the driver is warned by a correc-
tive steering intervention when changing
lanes during a possible critical situation (in-
formation level, warning level). The steering
intervention also occurs when the turn signal
is activated for the corresponding direction. If
the steering intervention is overridden by the
driver, the steering wheel vibrates to give an
additional warning. For this, steering wheel
vibration must be activated in the Assist sys-
tems menu in the Infotainment system.
Automatic deactivation
The lane change system will switch off auto-
matically if the radar sensors are permanent-
ly covered. This can be caused by a layer of
ice or snow in front of the radar sensor, for
example.
A text message will be shown on the instru-
ment cluster display.
If you use the factory-fitted trailer towing
coupling and have set up the necessary elec-
trical connection, the lane change system
switches off automatically. After you have
disconnected the electrical connection, the
lane change system is switched back on au-
tomatically.
If the trailer towing coupling is not factory-
fitted, you must manually switch off the lane
change system and then switch it back on
again.
Brightness
The brightness of the visual display will
change automatically depending on the am-
bient light levels. You can adjust the basic brightness of the
display in the Assist systems menu in the In-
f
otainment system. The lane change system
is not active during the setting procedure. Troubleshooting
Please refer to at the start of the chap-
ter on page 172. Lane change system fault.
The indicator lamp lights up yellow. The yel-
low central warning lamp also lights up.

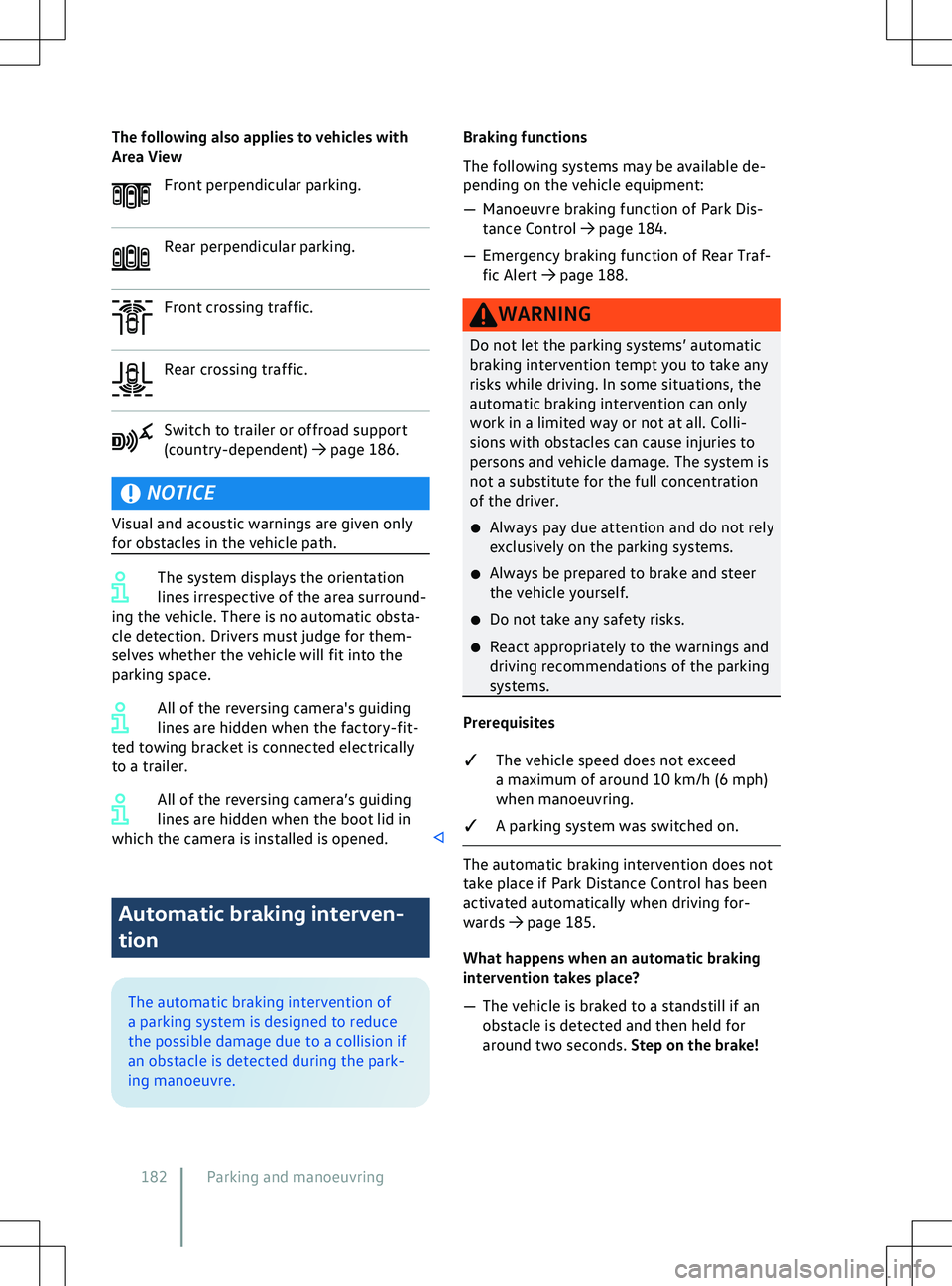

The following also applies to vehicles with
Area View
F
ront perpendicular parking. Rear perpendicular parking.
Front crossing traffic.
Rear crossing traffic.
Switch to trailer or offroad support
(
country-dependent)

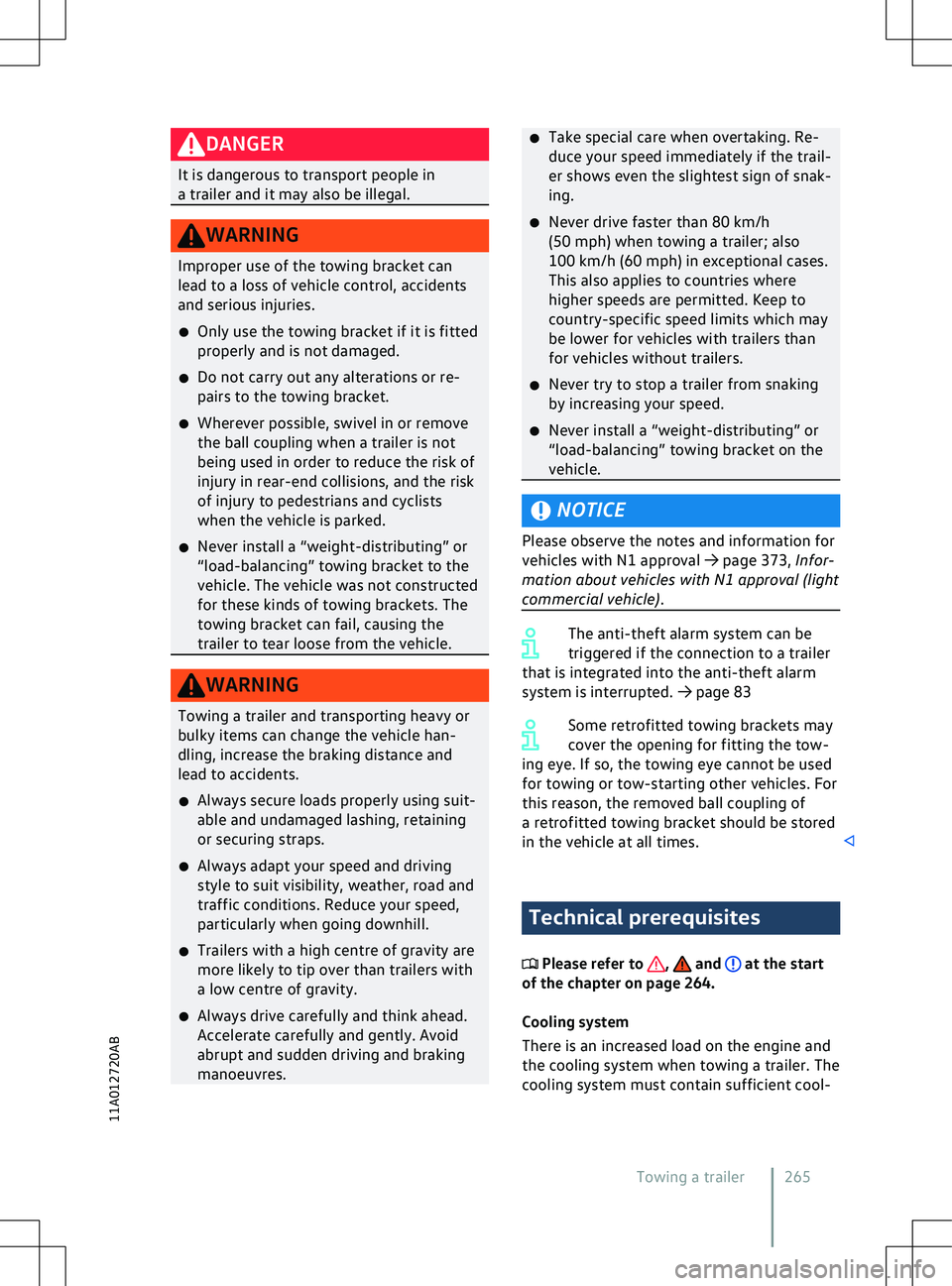

DANGER
It is dangerous to transport people in
a trailer and it may also be illegal. NOTICE
Please observe the notes and information for
v ehicles with N1 approval

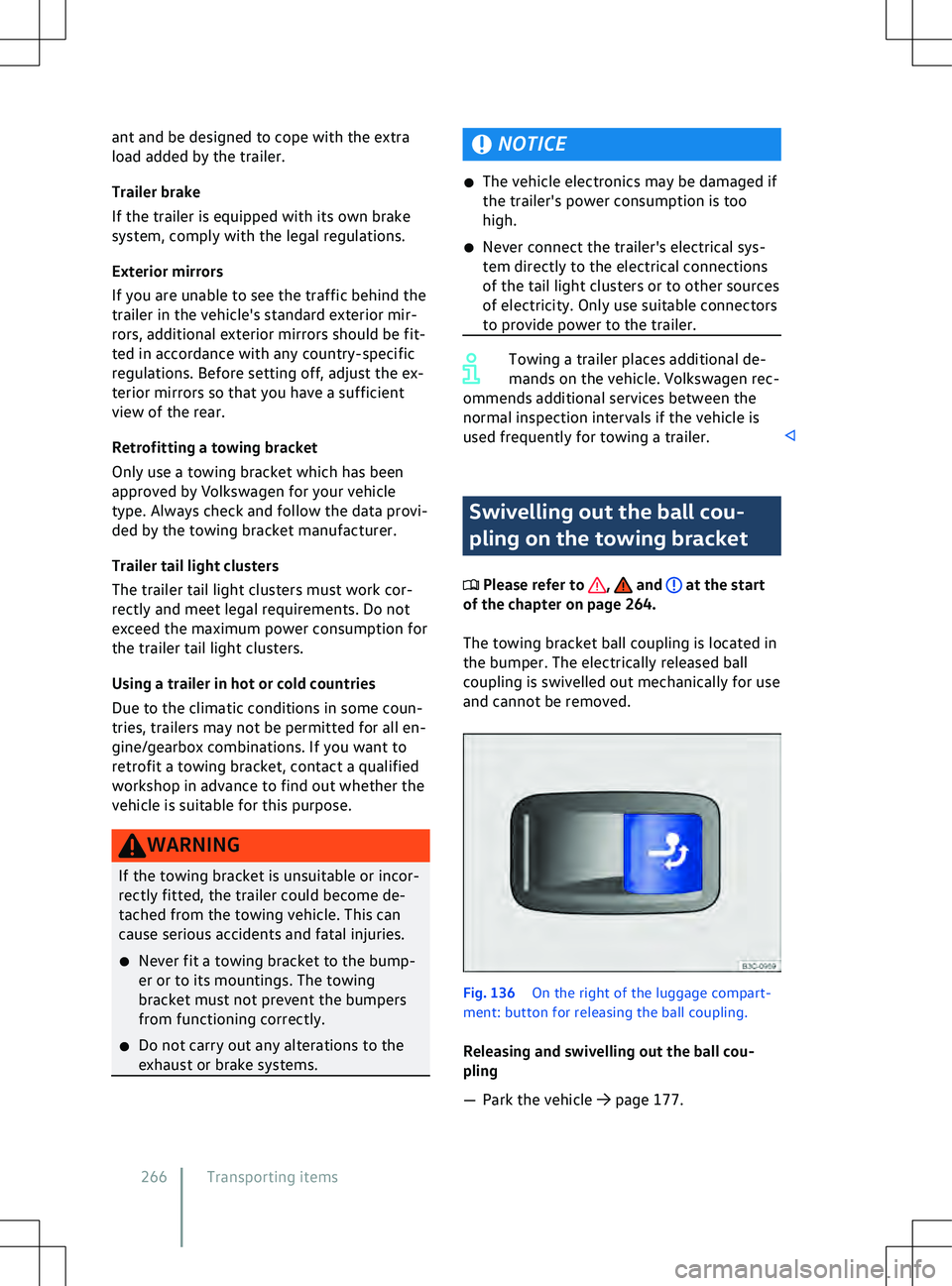

ant and be designed to cope with the extra
load added by the trailer.
Trailer brake
If the trailer is equipped with its own brake
system, comply with the legal regulations.
Exterior mirrors
If you are unable to see the traffic behind the
trailer in the v
ehicle

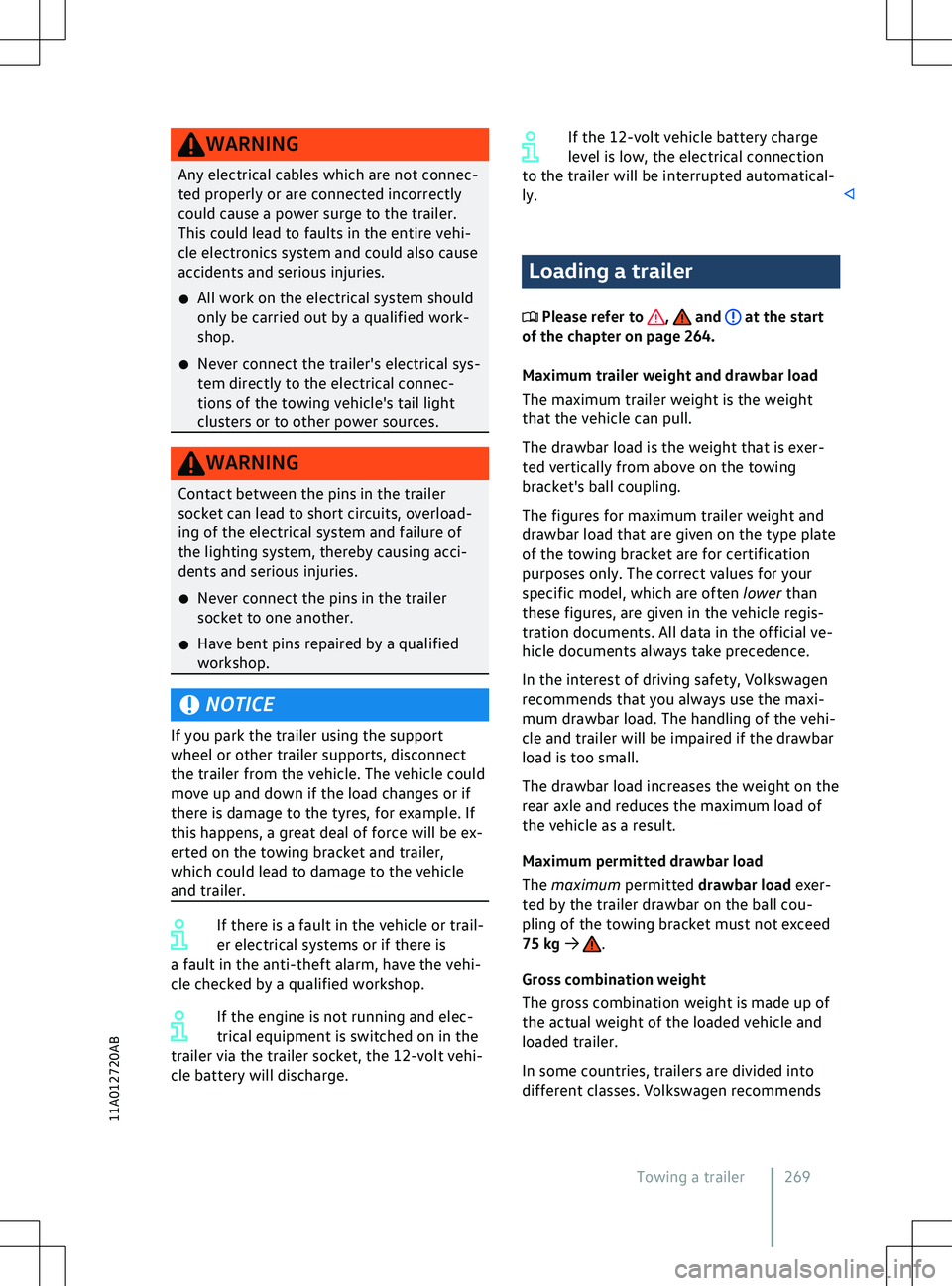

WARNING
Any electrical cables which are not connec-
ted properly or are connected incorrectly
could cause a power surge to the trailer.
This could lead to faults in the entire v
ehi-
cle electronics system and could also cause
accidents and serious injuries.
x All work on the electrical system should
only be carried out by a qualified work-
shop.
x Never connect the trailer
