2022 VOLKSWAGEN ID.5 radio

Radio mode
Introduction to the topic
In radio mode, you can receiv e available radio
stations on different frequency bands and
store your favourites to station buttons for
quick access.
The available reception types and frequency
bands depend on the equipment and country.
Frequency bands may be discontinued, deac-
tivated or no longer offered in individual
countries.
Opening the
Radio menu .
Opening settings
Radio Equipment scope and radio
symbols
Please refer to and on page 218.

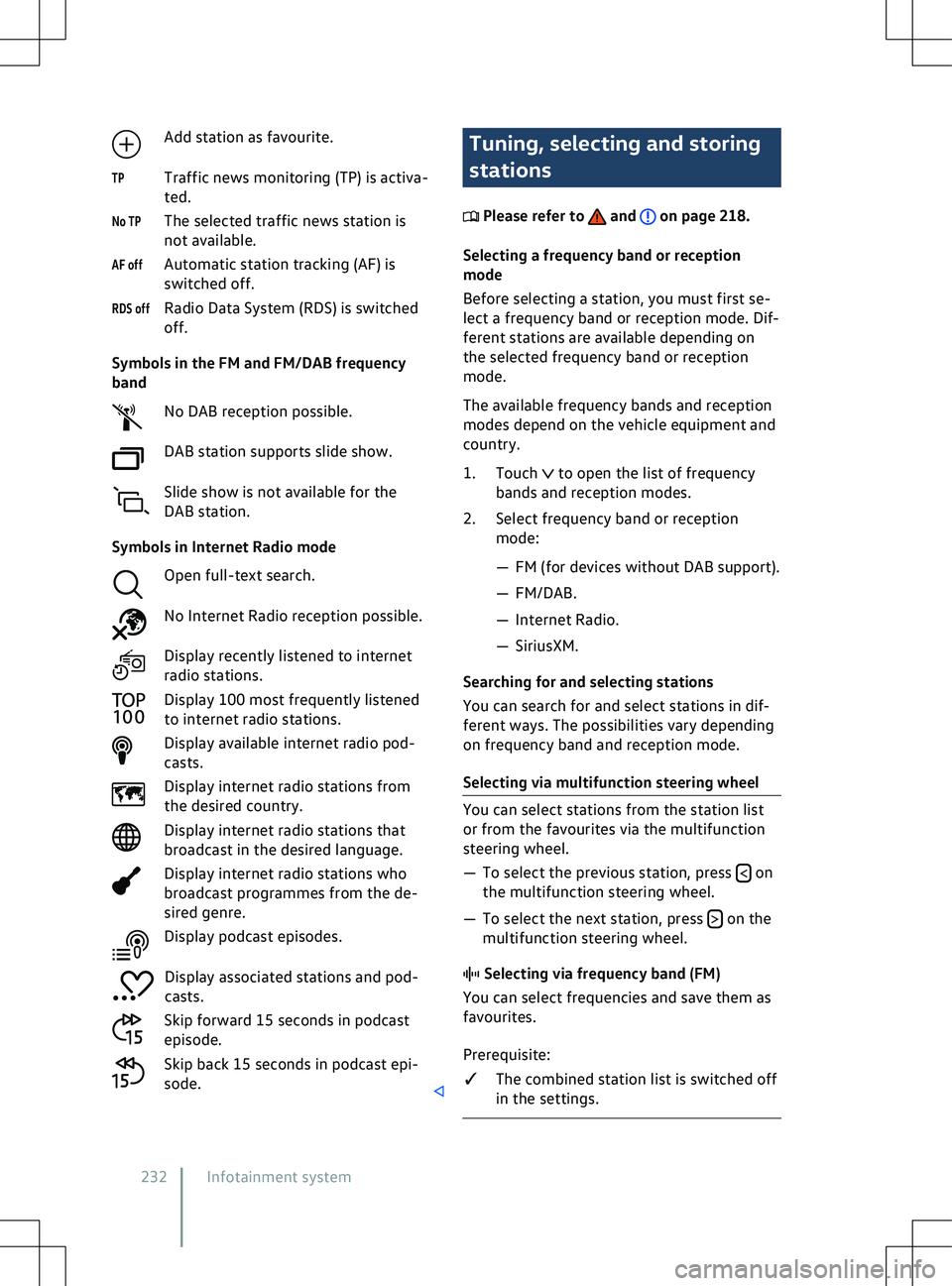

Radio
The a

vailable functions and the possible re-
ception modes and frequency band depend
on the vehicle equipment and country.

Add station as favourite.
Traffic news monitoring (TP) is activ a-
ted.
The selected traffic news station is
not available.
Automatic station tracking (AF) is
switched off.
Radio Data System (RDS) is switched
off.
Symbols in the FM and FM/DAB frequency
band No DAB reception possible.
DAB station supports slide show.
Slide show is not available for the
DAB station.
Symbols in Internet Radio mode Open full-text search.
No Internet Radio reception possible.
Display recently listened to internet
radio stations.
Display 100 most frequently listened
to internet radio stations.
Display available internet radio pod-
casts.
Display internet radio stations from
the desired country.
Display internet radio stations that
broadcast in the desired language.
Display internet radio stations who
broadcast programmes from the de-
sired genre.
Display podcast episodes.
Display associated stations and pod-
casts.
Skip forward 15 seconds in podcast
episode.
Skip back 15 seconds in podcast epi-
sode. Tuning, selecting and storing
stations
Please refer to and on page 218.
Selecting a frequency band or reception
mode
Bef

ore selecting a station, you must first se-
lect a frequency band or reception mode. Dif-
ferent stations are available depending on
the selected frequency band or reception
mode.
The available frequency bands and reception
modes depend on the vehicle equipment and
country.
1. Touch to open the list of frequency
bands and reception modes.
2.

Select frequency band or reception
mode:

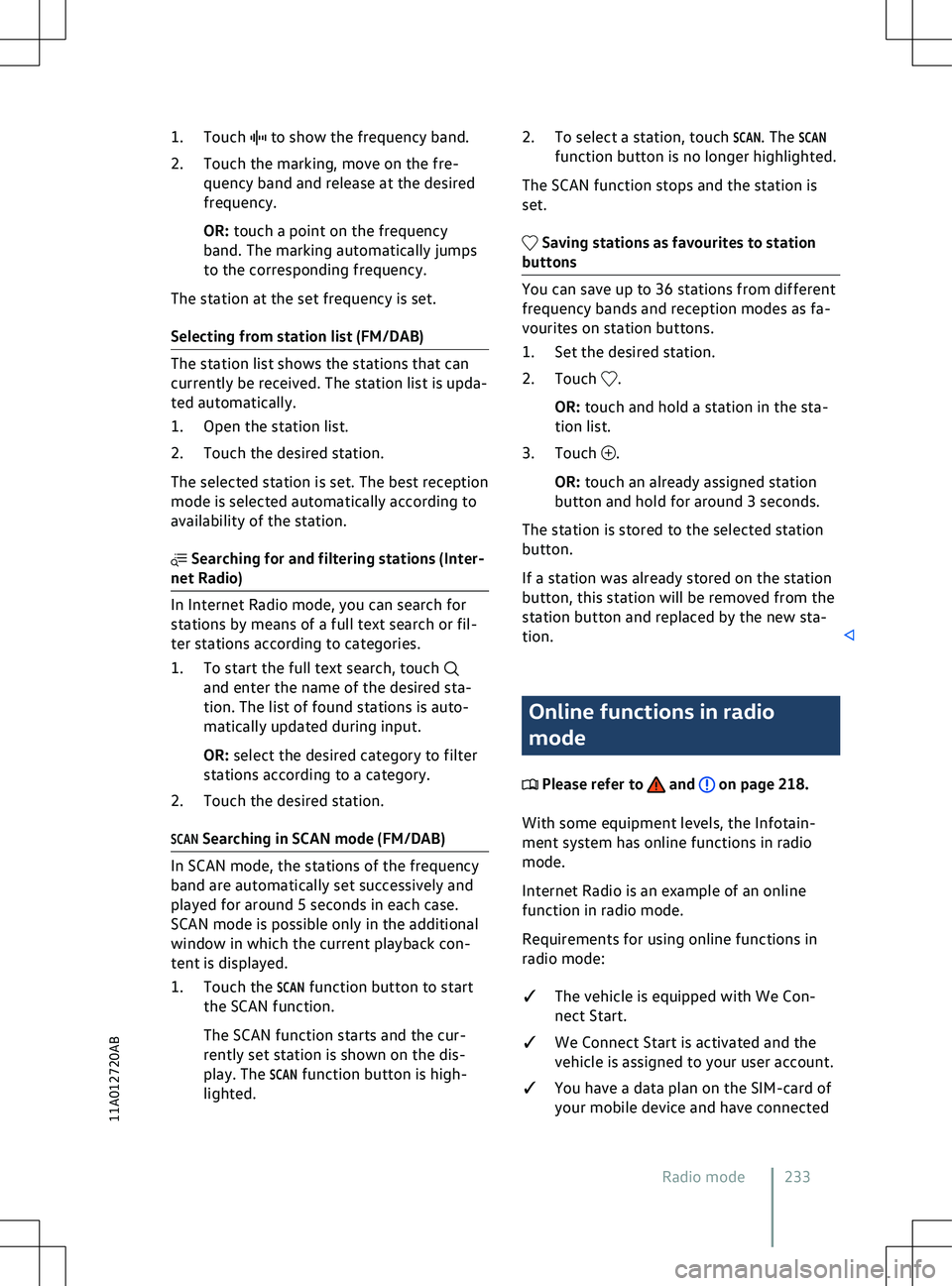

1. Touch to show the frequency band.
2.
Touch the marking, move on the fre-
quency band and release at the desired
frequency.
OR: touch a point on the frequency
band. The marking automatically jumps
to the corresponding frequency.
The station at the set frequency is set.
Selecting from station list (FM/DAB) and enter the name of the desired sta-
tion. The list of f

ound stations is auto-
matically updated during input.
OR: select the desired category to filter
stations according to a category.
2. Touch the desired station.
SCAN Searching in SCAN mode (FM/DAB) .
OR: touch and hold a station in the sta-
tion list.
3.

Touch .
OR: touch an already assigned station
button and hold f

or around 3 seconds.
The station is stored to the selected station
button.
If a station was already stored on the station
button, this station will be removed from the
station button and replaced by the new sta-
tion. Online functions in radio
mode
Please refer to and on page 218.
With some equipment le

vels, the Infotain-
ment system has online functions in radio
mode.
Internet Radio is an example of an online
function in radio mode.
Requirements for using online functions in
radio mode:
q The vehicle is equipped with We Con-
nect Start.
q We Connect Start is activated and the
vehicle is assigned to your user account.
q You have a data plan on the SIM-card of
your mobile device and have connected
Radio mode 233
11A012720AB

If the vehicle exceeds the gross vehicle
weight rating or the rear axle load, the v
ehi-
cle speed must not exceed 80 km/h when
towing a trailer. This also applies to countries
where higher speeds are permitted. Observe
local speed limits. These may be lower for ve-
hicles with trailers than for vehicles without
trailers.
Any permitted excess loads for the vehicle
are entered in the vehicle documents. If no
excess load has been entered, it is possible to
drive up to 100 km/h, although local regula-
tions must be observed.
Technical data
Technical data can be found in the vehicle
documents. Declaration of conformity
f
or radio systems in Eu-
rope Simplified declaration of con-
f

ormity
Your vehicle is equipped with various radio
systems. The manufacturers of these radio
systems declare that this equipment com-
plies with Directive 2014/53/EU where re-
quired by law.
The complete text of the EU declaration of
conformity is available at the following inter-
net address:
www.volkswagen.com/generalinfo Manufacturers

GERMANY
Radio remote control (
auxiliary heater), aux-
iliary heating (transmitter/receiver unit)
Digades GmbH

6C0.035.501.Q, 6C0.035.577, 6R0.035.501, 6R0.035.501.A,6R0.035.501.C, 6R0.035.501.D, 6R0.035.501.F,6R0.035.501.L, 6V6.035.577.A, 6V6.035.577.B,6V9.035.577.A, 6V9.035.577.B, 7C0.035.501, 7C0.035.501.C,7C0.035.501.D, 7C0.035.501.F, 7C0.035.501.G, 7E0.035.503,7E0.035.503.A, 7E0.035.503.B, 7E0.035.503.C,7E0.035.503.D, 7E0.035.503.E, 7E0.035.510, 7E0.035.510.A,7H0.035.507.E, 7N0.035.507.A, 7N0.035.507.B,7N0.035.552.K, 7N0.035.552.J, 7N0.035.552.Q, 7P6.035.552,7P6.035.552.A, 7P6.035.552.M, 760.035.577.T,8S7.035.503.B, 8W9.035.225.H.
920 105 105, 920 105 110, 920 211 072, 920 211 172, 920
211 201, 920 211 202, 920 213 172, 920 286 002, 920 286
005, 920 286 009, 920 286 010, 920 286 011, 920 286 012,920 286 013, 920 286 015, 920 286 313, 920 286 323, 920
286 343, 920 286 351, 920 286 352, 920 286 353, 920 286
354, 920 286 362, 920 286 382, 920 286 383, 920 286 385,920 286 386, 920 301 022, 920 301 030, 920 301 031, 920
301 041, 920 301 042, 920 304 022, 920 336 003, 920 336
005, 920 336 006, 920 336 007, 920 336 008, 920 336 010,920 336 011, 920 336 012, 920 336 013, 920 336 014, 920
355 001, 920 417 007, 920 417 010, 920 437 003, 920 437
023, 920 437 035, 920 437 303, 920 437 323, 920 437 335,920 460 003, 920 460 009, 920 460 018, 920 460 025, 920
460 028, 920 460 042, 920 460 047, 920 460 069, 920 460
303, 920 460 318, 920 460 325, 920 460 328, 920 460 342,920 460 347, 920 460 369, 920 461 001, 920 461 002, 920
461 003, 920 461 004, 920 461 005, 920 481 002, 920 481
003, 920 481 004, 920 481 012, 920 481 013, 920 481 014,920 554 001, 920 554 002, 920 554 003, 920 554 004, 920
611 001, 920 611 002, 920 611 011, 920 611 012, 920 615
001, 920 615 002, 920 627 003, 920 627 007, 920 627 023,920 627 024, 920 627 048, 920 627 049, 920 639 001, 920

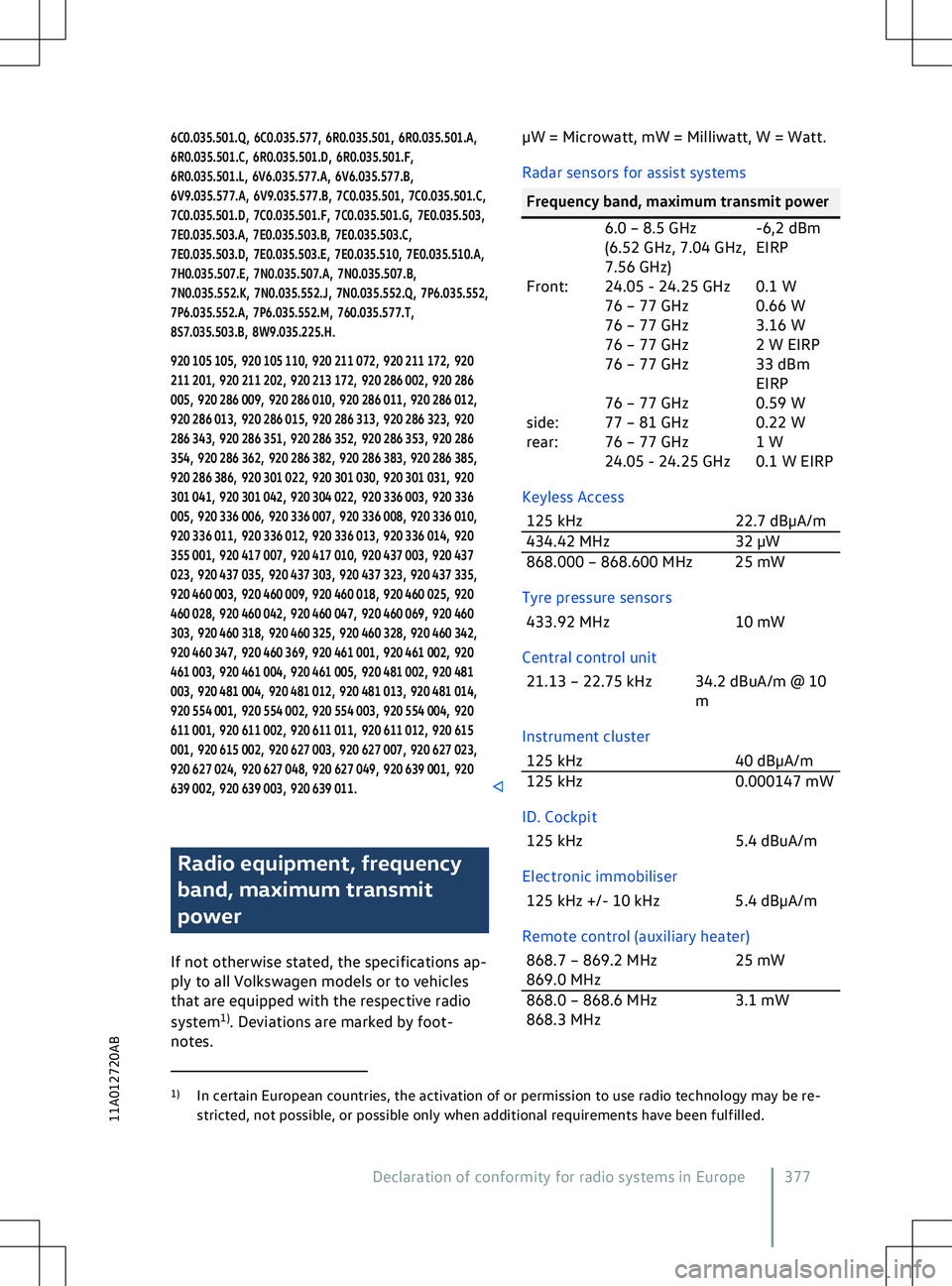

639 002, 920 639 003, 920 639 011. Radio equipment, frequency
band, maximum transmit
power
If not otherwise stated, the specifications ap-
ply to all V

olkswagen models or to vehicles
that are equipped with the respective radio
system 1)
. Deviations are marked by foot-
notes.

Declaration of conformity for radio systems in coun-
tries outside of Europe 1
Argentina. The manufacturer hereby declares that the
f
ollowing radio systems are in compliance
with the basic requirements and other rele-
vant regulations and laws at the time of pro-
duction of the vehicle:
The following radio systems are not available
in every market and not in every vehicle.

Europe and countries that approve radio
equipment according to European Directiv
es:
See EU Declarations of Conformities at
www.volkswagen.com/generalinfo.
Ghana
1R3-1M-7E1-160, 1R3-1M-7E1-0B7, 6X6-4H-7EO-OF3
BR3-1M-GE2-087, BR3-1M-GE2-088, BR3-1M-GE2-089,BR3-1M-GE2-0AF, BR3-1M-GE2-0BA, BR3-1M-GE2-0BB,BR3-1M-GE2-0BC, BR3-1M-GE2-0B0, BR3-1M-GE2-0B3,BR3-1M-GE2-0B4, BR3-1M-GE2-0B7, BR3-1M-GE2-0D2,BR3-1M-GE2-0BA, BR3-1M-GE2-0BC, BR3-1M-GE2-0EC,BR3-1M-GE2-0ED, BR3-1M-GE2-0EE, BR3-1M-GE2-10A,BR3-1M-GE2-10B, BR3-1M-GE2-130, EX6-6M-GE2-17B,ZRO-M8-7E3-X90, ZRO-M8-7E3-X92, ZRO-1H-7E3-14E,ZR0-M8-7E3-20B, ZRO-M8-7E3-27B.
Hong Kong
US0031800001, HK0011902060, HK0011902061
India
ETA-1609/17-RLO(NE), ETA-SD-20190500531, ETA-
SD-20190500547, ETA-SD-20190702496, ETA-
SD-20190702597, ETA-SD-20190702602, NR-ETA/7218-
RLO(NR), NR-ETA/7219-RLO(NR), NR-ETA/7220-RLO(NR).
Indonesia
Certificates are a
vailable at the following In-
ternet address www.volkswagen.com/gener-
alinfo.
34539/I/SDPPI/2017, PLG ID: 4211, 38132/I/SDPPI/2017,
PLG ID: 2130, 47817/SDPPI/2016, PLG ID: 6094, 50459/
SDPPI/2017, PLG ID: 6051, 53856/SDPPI/2017, PLG ID:
4211, 55438/SDPPI/2018, PLG ID: 6051, 55776/SDPPI/
2018, PLG ID: 7205, 56625/SDPPI/2018, PLG ID: 7708,57406/SDPPI/2018, PLG ID: 7708, 57647/SDPPI/2018, PLG
ID: 7708, 57687/SDPPI/2018, PLG ID: 7708, 58206/SDPPI/
2018, PLG ID: 5834, 62361/SDPPI/2019, PLG ID: 8837
PLG ID: 4334:58849/SDPPI/2018, 60924/SDPPI/2019, 61642/SDPPI/
2019, 62637/SDPPI/2019, 62638/SDPPI/2019, 62825/
SDPPI/2019, 62826/SDPPI/2019, 62827/SDPPI/2019,62828/SDPPI/2019, 63076/SDPPI/2019, 63077/SDPPI/
2019, 63078/SDPPI/2019, 63079/SDPPI/2019, 63080/
SDPPI/2019, 63081/SDPPI/2019, 63082/SDPPI/2019,63128/SDPPI/2019, 63129/SDPPI/2019, 63130/SDPPI/
2019, 63131/SDPPI/2019, 63132/SDPPI/2019, 63133/
SDPPI/2019, 63134/SDPPI/2019, 63135/SDPPI/2019,63136/SDPPI/2019, 63137/SDPPI/2019, 63138/SDPPI/
2019, 63139/SDPPI/2019, 63140/SDPPI/2019, 63147/ SDPPI/2019
, 63160/SDPPI/2019, 63161/SDPPI/2019,63162/SDPPI/2019, 63577/SDPPI/2019, 63578/SDPPI/
2019, 63579/SDPPI/2019, 63580/SDPPI/2019, 63581/
SDPPI/2019, 63582/SDPPI/2019, 63583/SDPPI/2019,64639/SDPPI/2019, 64640/SDPPI/2019, 66074/SDPPI/
2020, 67149/SDPPI/2020, 67154/SDPPI/2020, 67359/
SDPPI/2020, 67495/SDPPI/2020, 67512/SDPPI/2020.
Iran
Iran_Kombiinstrument_MDE_VIS_1710
Israel
51-63653, 51-69416, 51-69417, 63-63304.
Jamaica
FCC ID: 2AA98A, Kombiinstrument-1, -2, -3
Jordan TRC/LPD/:
2014/248, 2016/584, 2017/254, 2018/1, 2018/381,2019/153, 2019/233, 2019/234.
TRC No.:
T/4/11/11/3680, T/4/11/11/3681, T/4/11/11/9851
Columbia
2018300044, 2019802791, 2019802792
Kuwait
Ref 2410, 3399, 3421.
Lebanon
2665/E&M/2018, 11372
Malaysia
CIDF15000490, CIDF15000578, CIDF17000143,HIDF1500019, MRR14F, ARS4-B
382 Customer information
