2022 VOLKSWAGEN ID.4 Owners Manual

Driver information
Symbols in the instru-
ment cluster
The warning and indicator lamps can light up
individually or in combination and indicate
warnings, faults or certain functions. Some
warning and indicator lamps light up when
the ignition is switched on and should go out
after a while.
F
or details on indicator lamps that light up in
the light switch, see Chapter “Lights”

Symbol Meaning
High-voltage battery empty

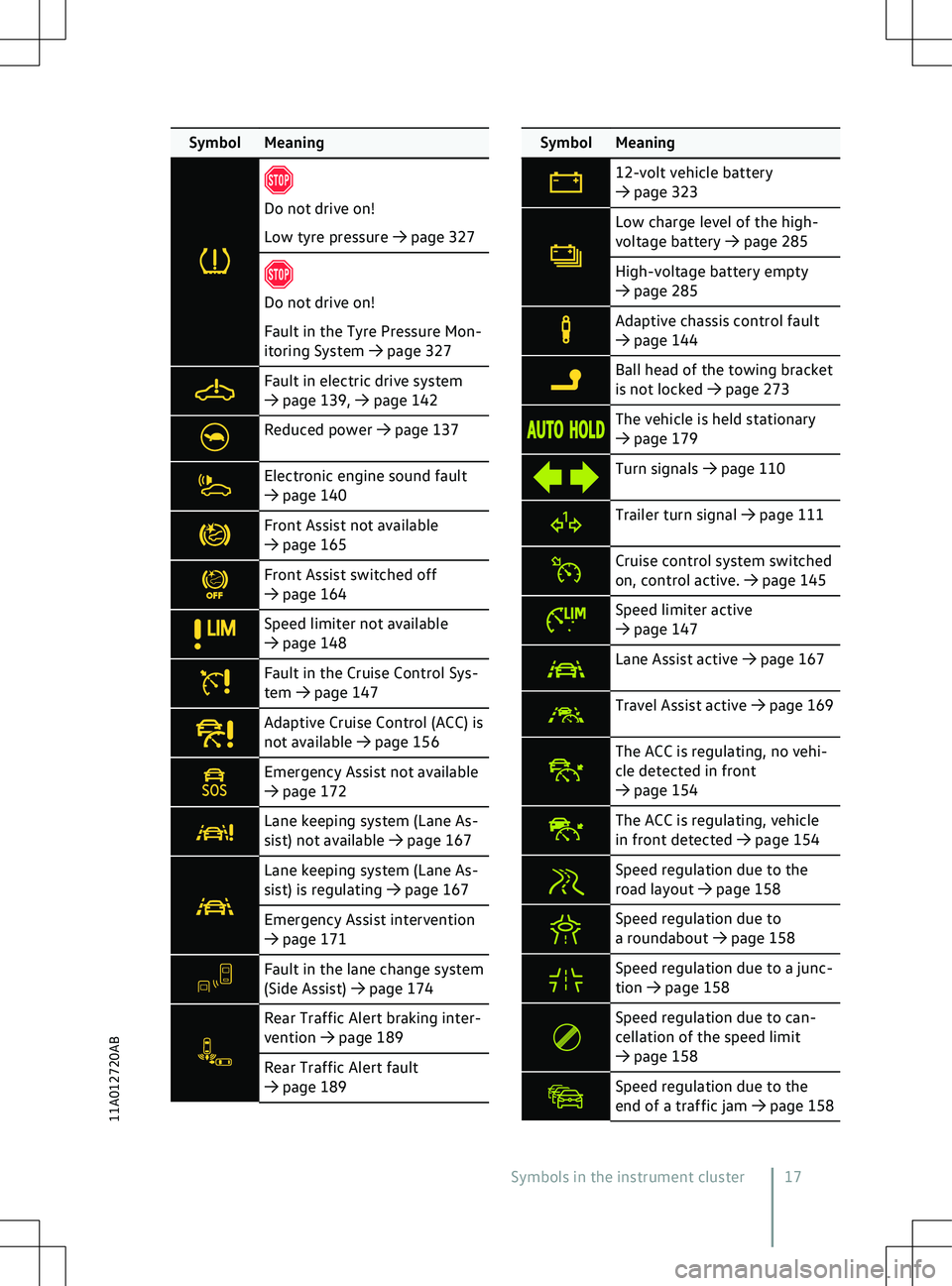

Symbol Meaning
Do not drive on!
F
ault in the Tyre Pressure Mon-
itoring System

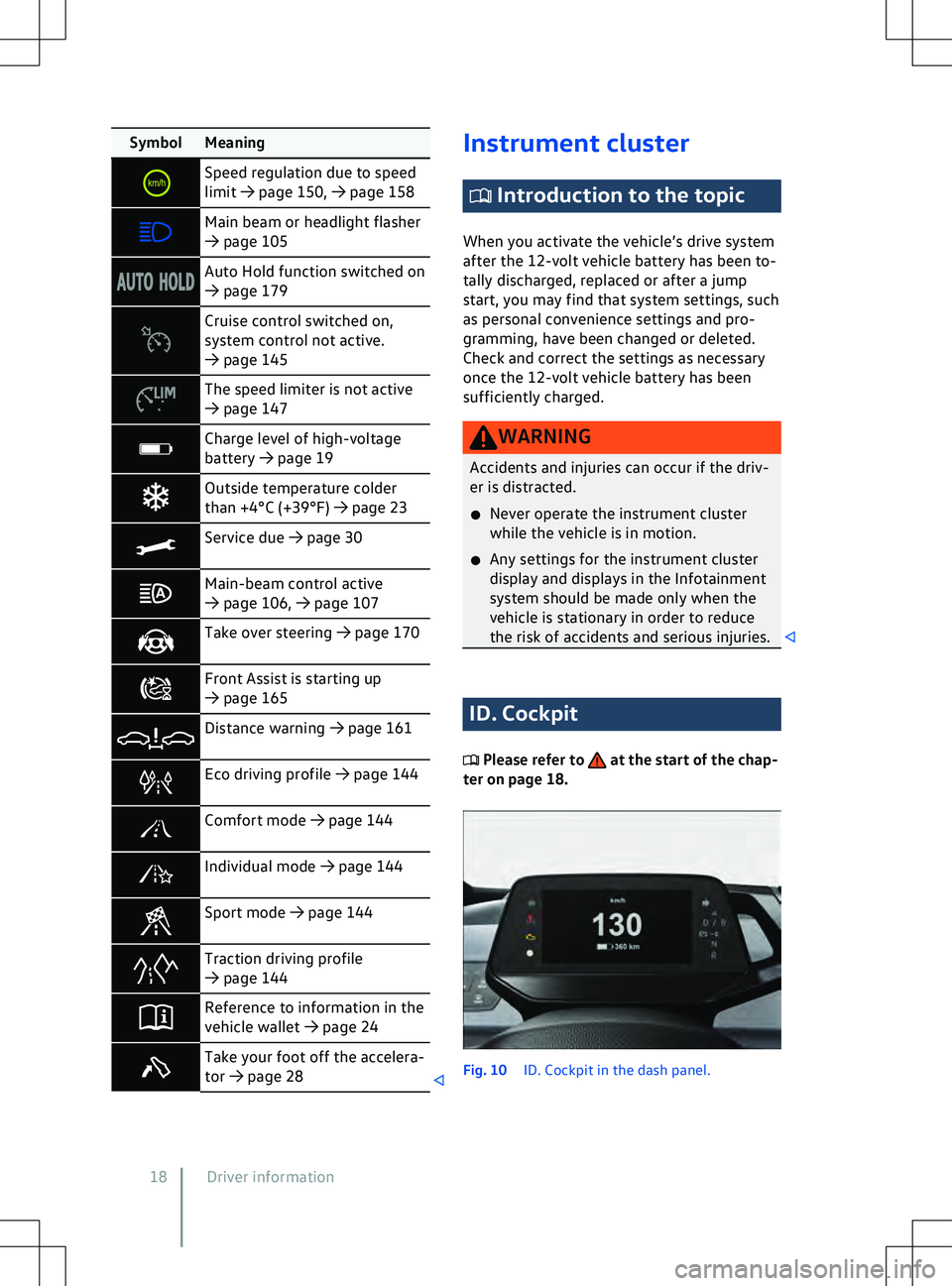

Symbol Meaning
Main beam or headlight flasher

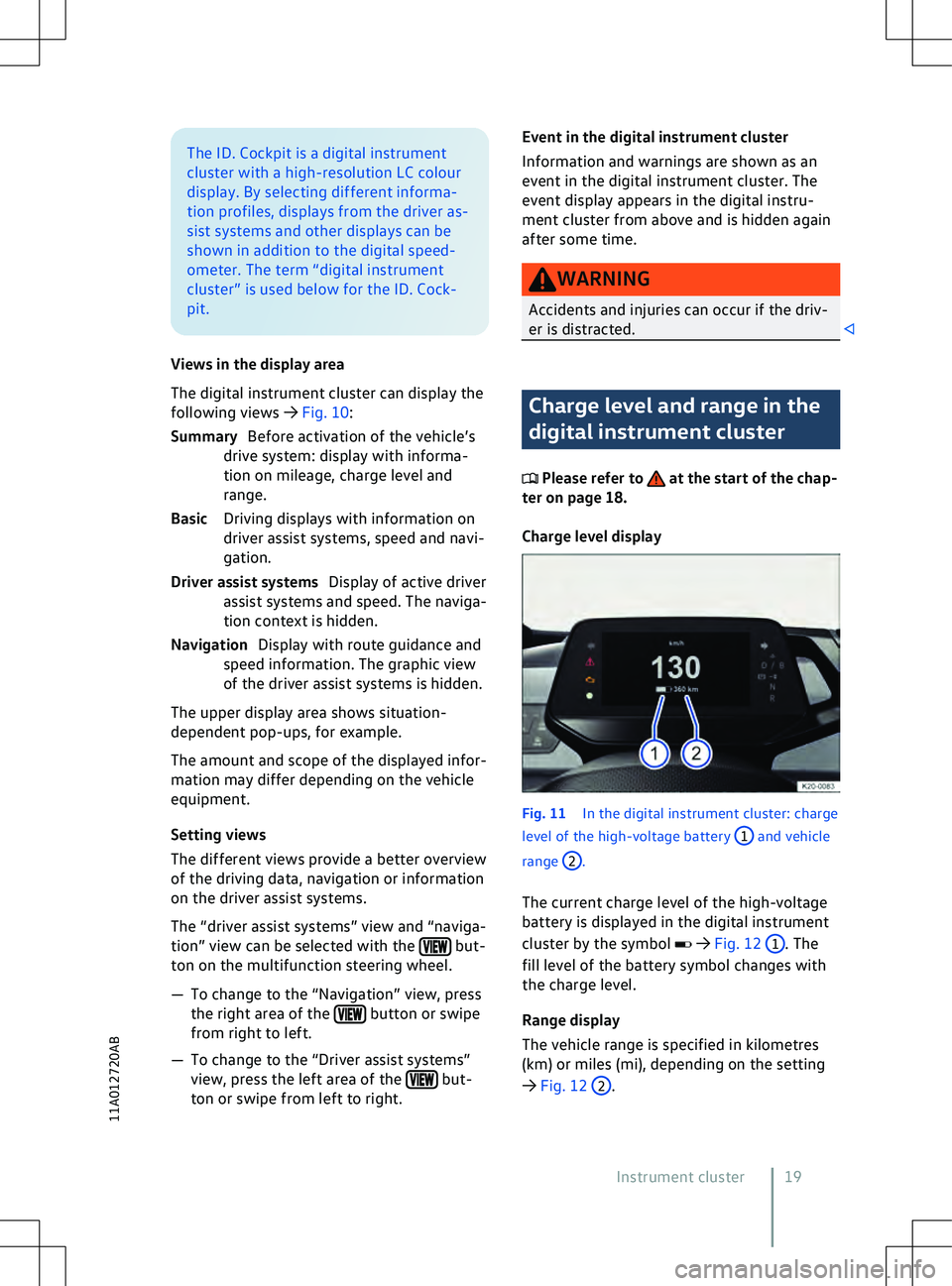

The ID. Cockpit is a digital instrument
cluster with a high-resolution LC colour
display. By selecting diff
erent informa-
tion profiles, displays from the driver as-
sist systems and other displays can be
shown in addition to the digital speed-
ometer. The term “digital instrument
cluster” is used below for the ID. Cock-
pit.
Views in the display area
The digital instrument cluster can display the
following views

The displayed value is calculated and updated
depending on the driving style and ambient
conditions. The range can theref
ore also vary
even for a fully charged high-voltage battery.
Reserve range Fig. 12
In the digital instrument cluster: range
and reserv
e capacity display.1
Charge level and range. When the red reserve range of the high-volt-
age battery is reached, the symbol
is dis-
played together with a colour percentage v
al-
ue

The power display shows the current
perf
ormance capability of the electric
drive and the current drive power.
Display concept
Using the bar divided in the middle, the pow-
er display continuously shows the availability
of brake energy recuperation

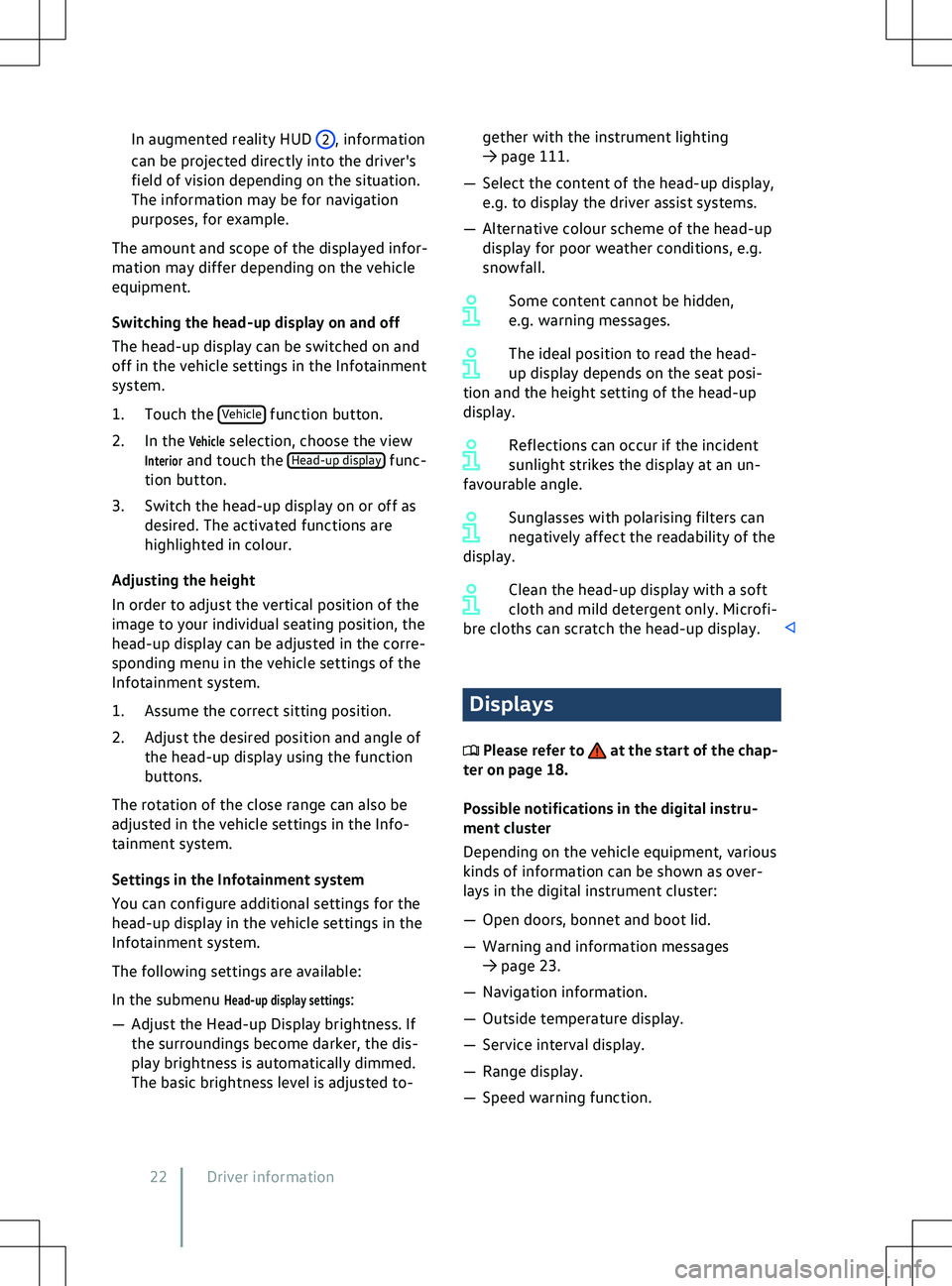

In augmented reality HUD
display
Displays
Please refer to at the start of the chap-
ter on page 18.
P
ossible notifications in the digital instru-
ment cluster
Depending on the vehicle equipment, various
kinds of information can be shown as over-
lays in the digital instrument cluster:
