2022 TOYOTA PROACE VERSO Owners Manual

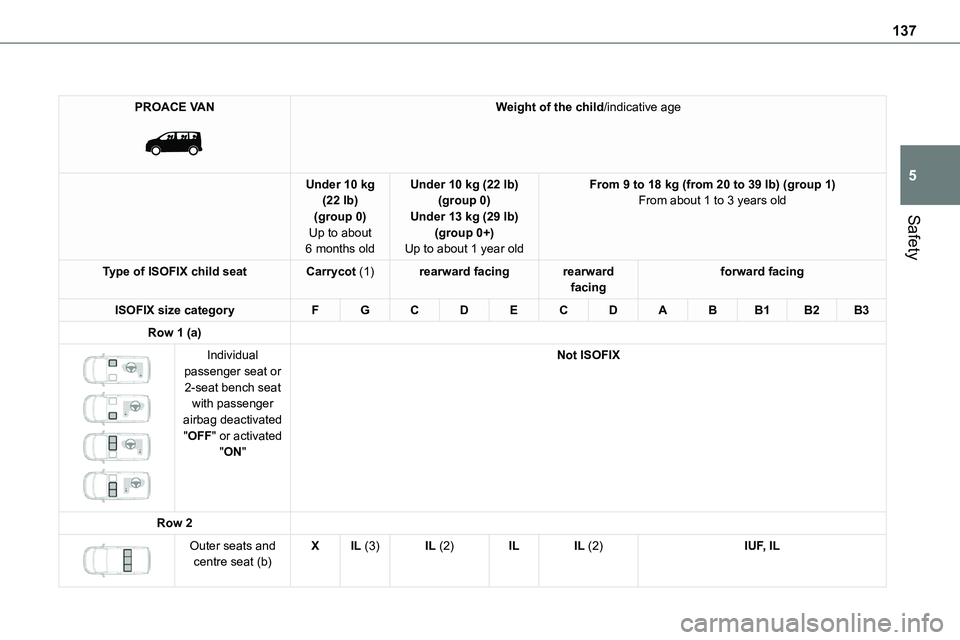

137
Safety
5
PROACE VAN

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)
Up to about 6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)
(group 0+)Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)

Individual passenger seat or 2-seat bench seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Outer seats and centre seat (b)XIL (3)IL (2)ILIL (2)IUF, IL

138
PROACE VAN

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about
6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)
Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 3

Fixed one-piece bench seat, outer seats and centre seat (b)
XIUF, ILX


Seat and fixed rear bench seat, outer seats and centre seat (b)
XIUF, ILX

139
Safety
5
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about
6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)
Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)


Individual passenger seat or 2-seat bench seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Rear seatsXIL (1-3)IL (2)ILIL (2)IUF, IL

140
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about
6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)
Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 3

Fixed one-piece bench seat, rear seats
XIUF, ILX


Seat and fixed rear bench seat, rear seats
XIUF, ILX

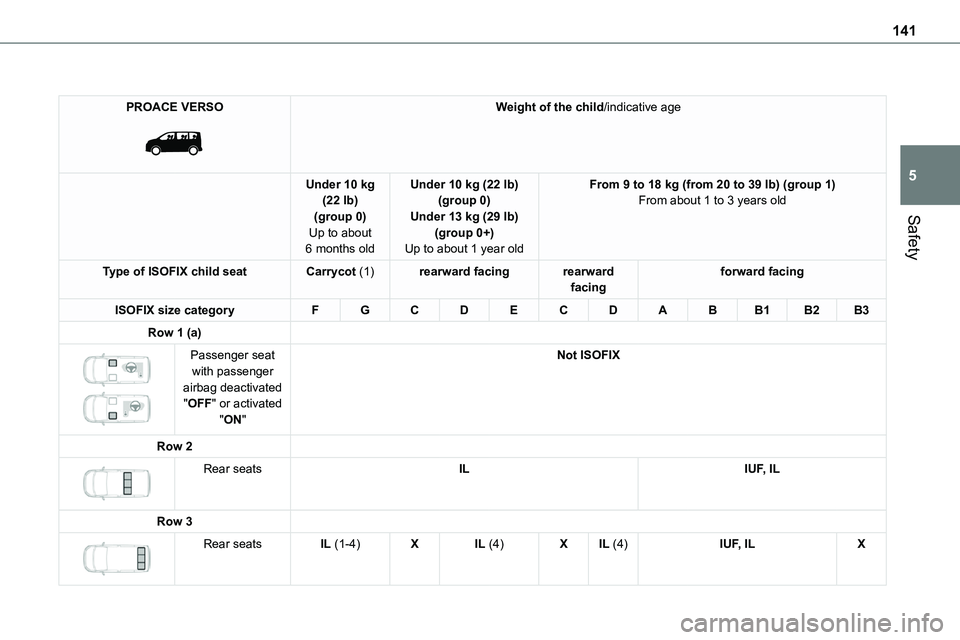

141
Safety
5
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)
Up to about 6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)
(group 0+)Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)

Passenger seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Rear seatsILIUF, IL
Row 3

Rear seatsIL (1-4)XIL (4)XIL (4)IUF, ILX

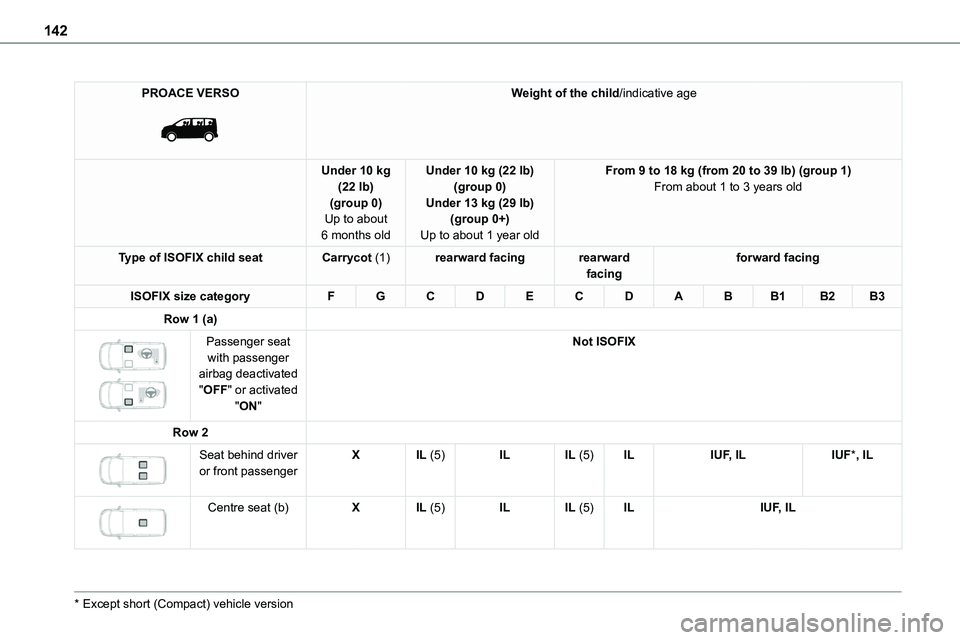

142
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about
6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)
Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)

Passenger seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Seat behind driver or front passengerXIL (5)ILIL (5)ILIUF, ILIUF*, IL


Centre seat (b)XIL (5)ILIL (5)ILIUF, IL
* Except short (Compact) vehicle version

143
Safety
5
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about
6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)
Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3

Rear seatsIL (1-5)ILILIUF, IL
Row 3

Outer seatsXIL (4)ILIL (4)IUF, IL


Centre seat (b)XIL (4)ILIL (4)IUF, IL


Rear seatsIL (1-4)XIL (4)XIL (4)IUF, ILX

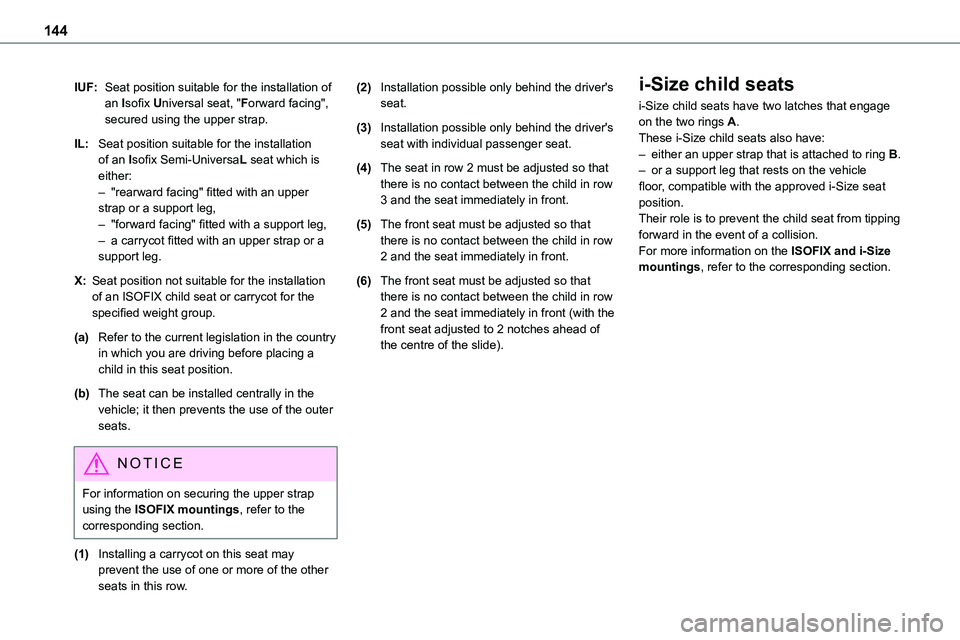

144
IUF:Seat position suitable for the installation of an Isofix Universal seat, "Forward facing", secured using the upper strap.
IL:Seat position suitable for the installation of an Isofix Semi-UniversaL seat which is either:– "rearward facing" fitted with an upper strap or a support leg,– "forward facing" fitted with a support leg,– a carrycot fitted with an upper strap or a support leg.
X:Seat position not suitable for the installation of an ISOFIX child seat or carrycot for the specified weight group.
(a)Refer to the current legislation in the country in which you are driving before placing a child in this seat position.
(b)The seat can be installed centrally in the vehicle; it then prevents the use of the outer seats.
NOTIC E
For information on securing the upper strap using the ISOFIX mountings, refer to the corresponding section.
(1)Installing a carrycot on this seat may prevent the use of one or more of the other seats in this row.
(2)Installation possible only behind the driver's seat.
(3)Installation possible only behind the driver's seat with individual passenger seat.
(4)The seat in row 2 must be adjusted so that there is no contact between the child in row 3 and the seat immediately in front.
(5)The front seat must be adjusted so that there is no contact between the child in row 2 and the seat immediately in front.
(6)The front seat must be adjusted so that there is no contact between the child in row 2 and the seat immediately in front (with the front seat adjusted to 2 notches ahead of the centre of the slide).
i-Size child seats
i-Size child seats have two latches that engage on the two rings A.These i-Size child seats also have:– either an upper strap that is attached to ring B.– or a support leg that rests on the vehicle floor, compatible with the approved i-Size seat position.Their role is to prevent the child seat from tipping
forward in the event of a collision.For more information on the ISOFIX and i-Size mountings, refer to the corresponding section.
