3054-5. Opening and closing the windows
4
Operation of each component
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QDoor lock linked window operation
OThe power windows can be opened and closed using the mechanical key.
*
(P. 693)
OThe power windows can be opened and closed using the wireless remote
control.
* (P. 273)
*: These settings must be customized at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
QWhen the 12-volt battery is disconnected
The window lock switch is disabled. If necessary, press the window lock
switch after reconnecting the 12-volt battery.
QPower window open reminder function
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the power switch is turned off and the driver’s
door is opened with the power windows open.
QCustomization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: P. 724)

3064-5. Opening and closing the windows
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
Observe the following precautions.
Failing to do so may result in death or serious injury.
Q Closing the windows
O The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental op eration,
especially by a child, do not let a child operate the power win dows. It is
possible for children and other passengers to have body parts c aught in
the power window. Also, when riding with a child, it is recomme nded to use
the window lock switch. ( P. 303)
O When using the wireless remote control or mechanical key and operating
the power windows, operate the power window after checking to m ake
sure that there is no possibility of any passenger having any o f their body
parts caught in the side window. Also do not let a child operat e side win-
dow by the wireless remote control or mechanical key. It is pos sible for
children and other passengers to get caught in the power window .
O When exiting the vehicle, turn the power switch off, carry the key and exit
the vehicle along with the child. There may be accidental opera tion, due to
mischief, etc., that may possibly lead to an accident.
Q Jam protection function
O Never use any part of your body to intentionally activate the jam protection
function.
O The jam protection function may not work if something gets jammed just
before the side window is fully closed. Be careful not to get a ny part of
your body jammed in the side window.
Q Catch protection function
O Never use any part of your body or clothing to intentionally activate the
catch protection function.
O The catch protection function may not work if something gets caught just
before the side window is fully opened. Be careful not to get a ny part of
your body or clothing caught in the side window.
O Check to make sure that all passengers
do not have any part of their body in a
position where it could be caught when
a side window is being operated.

3165-1. Before driving
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q When the vehicle is parked
O Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may le ad to a
fire.
• The temperature inside the vehicle may cause the plastic lense s and
plastic material of glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray ov er the
interior of the vehicle, and may also cause a short circuit in the vehicle’s
electrical components.
O Do not leave cigarette lighters in the vehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit acci dentally when
luggage is loaded or the seat is adjusted, causing a fire.
O Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or da shboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehi-
cle.
O Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one. Reflected sunligh t may cause
the glass to act as a lens, causing a fire.
O Always apply the parking brake, shift the shift position to P, stop the hybrid
system and lock the vehicle.
Do not leave the vehicle unattended while the “READY” indicator is illumi-
nated.
If the vehicle is parked with the shift position in P but the p arking brake is
not set, the vehicle may start to move, possibly leading to an accident.
O Do not touch the exhaust pipe while the “READY” indicator is illuminated
or immediately after turning the hybrid system off.
Doing so may cause burns.

3585-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QTo avoid malfunction of the front camera
Observe the following precautions.
Otherwise, the front camera may not operate properly, possibly leading to
an accident resulting in death or serious injury.
O Keep the windshield clean at all times.
• If the windshield is dirty or covered with an oily film, water droplets,
snow, etc., clean the windshield.
• If a glass coating agent is applied to the windshield, it will still be neces-
sary to use the windshield wipers to remove water droplets, etc . from
the area of the windshield in front of the front camera.
• If the inner side of the windshield where the front camera is installed is
dirty, contact any authorized Toyota retailer or Toyota authori zed
repairer, or any reliable repairer.
O If the part of the windshield in front of the front camera is fogged up or cov-
ered with condensation, or ice, use the windshield defogger to remove the
fog, condensation, or ice. ( P. 527)
O If water droplets cannot be properly removed from the area of the wind-
shield in front of the front camera by the windshield wipers, r eplace the
wiper insert or wiper blade.
O Do not attach window tint to the windshield.
O Replace the windshield if it is damaged or cracked.
After replacing the windshield, the front camera must be recali brated. Con-
tact any authorized Toyota retailer or Toyota authorized repair er, or any
reliable repairer for details.
O Do not allow liquids to contact the front camera.
O Do not allow bright lights to shine into the front camera.
ODo not attach objects, such as stickers,
transparent stickers, etc., to the outer
side of the windshield in front of the
front camera (shaded area in the illus-
tration).
A: From the top of the windshield to
approximately 1 cm (0.4 in.) below the
bottom of the front camera
B: Approximately 20 cm (7.9 in.)
(Approximately 10 cm [4.0 in.] to the
right and left from the center of the front
camera)

5165-6. Driving tips
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Winter driving tips
OUse fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
OHave a service technician inspect the condition of the 12-volt bat-
tery.
OHave the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
ODo not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
OTo ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
OCheck for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
ORemove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

5236-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features
QFan speed setting
Move the fan speed setting
knob upwards to increase the
fan speed and downwards to
decrease the fan speed.
The fan speed is shown on the
display. (7 levels)
Press to turn the fan off.
QChange the airflow mode
Move the airflow change knob
upwards or downwards to
change the airflow mode.
The air outlets used are
switched each time the knob is
operated.
Air flows to the upper body
Air flows to the upper body
and feet
Air flows to the feet
Air flows to the feet and the
windshield defogger oper-
ates
QOther functions
O Switching between outside air and recirculated air modes
( P. 526)
O Defogging the windshield (P. 5 2 7 )
O Defogging the rear window and outside rear view mirrors
( P. 527)
Fan speed
setting knob
Airflow change
knob
1
2
3
4

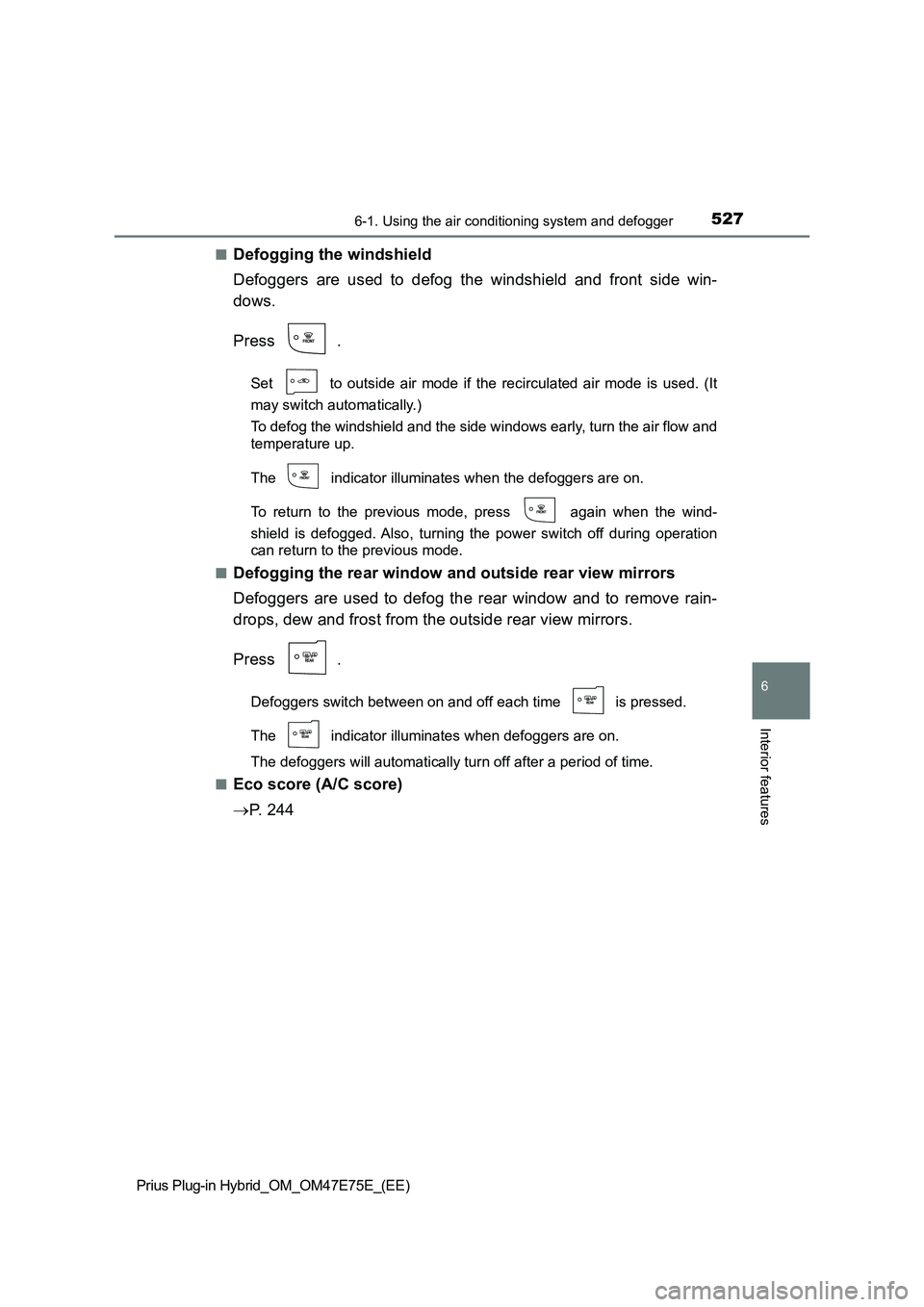

5276-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features
QDefogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
Set to outside air mode if the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
The indicator illuminates when the defoggers are on.
To return to the previous mode, press again when the wind-
shield is defogged. Also, turning the power switch off during operation
can return to the previous mode.
Q
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
Defoggers switch between on and off each time is pressed.
The indicator illuminates when defoggers are on.
The defoggers will automatically turn off after a period of time.
Q
Eco score (A/C score)
P. 2 4 4

5316-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features
QChanging settings using the multi-information display
The air conditioning system settings can be changed on the screen
of the multi-information display. (P. 2 4 2 )
QFogging up of the windows
OThe windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the
windshield effectively.
OIf you turn off, the windows may fog up more easily.
OThe windows may fog up if the recirculated air mode is used.
QWindshield fog detection function
When automatic mode is set, the humidity sensor (P. 534) detects fog on
the windshield and controls the air conditioning system to prevent fog.
QWhen driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehi-
cle after closing the windows, it is recommended that the air intake mode be
set to outside air mode and the fan speed to any setting except off.
QOutside/recirculated air mode
OSetting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
OOutside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
QFresh air intake system while parking
When parking, the system automatically switches to outside air mode to
encourage better air circulation throughout the vehicle, helping to reduce
odors that occur when starting the vehicle.
