2022 TOYOTA PRIUS PLUG-IN HYBRID display

7179-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

7249-2. Customization
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Customizable features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the parking brake set and the shift position in P.
QChanging using the multi-information display
Press or of the meter control switches, select .
Press or of the meter control switches, select
(“Vehicle Settings”), and then press .
Press or of the meter control switches, select the item,
and then press .
Press or of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, the
navigation system, or at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Customizing vehicle features
1
2
3
4

7259-2. Customization
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
QChanging using the navigation system
Press the “SETUP” button.
Select “Vehicle” on the “Setup” screen and select “Vehicle cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Settings that can be changed using the multi-information display
Settings that can be changed using the navigation system
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – = Not available
QInstrument cluster (P. 194)
Customizable features
1
2
1
2
3
FunctionDefault
settingCustomized
setting
Sensor sensitivity for darken-
ing the brightness of the
instrument cluster depending
on the outside brightness
Standard-2 to 2––O
Sensor sensitivity for returning
the brightness of the instru-
ment cluster to the original
level depending on the outside
brightness
Standard-2 to 2––O
123

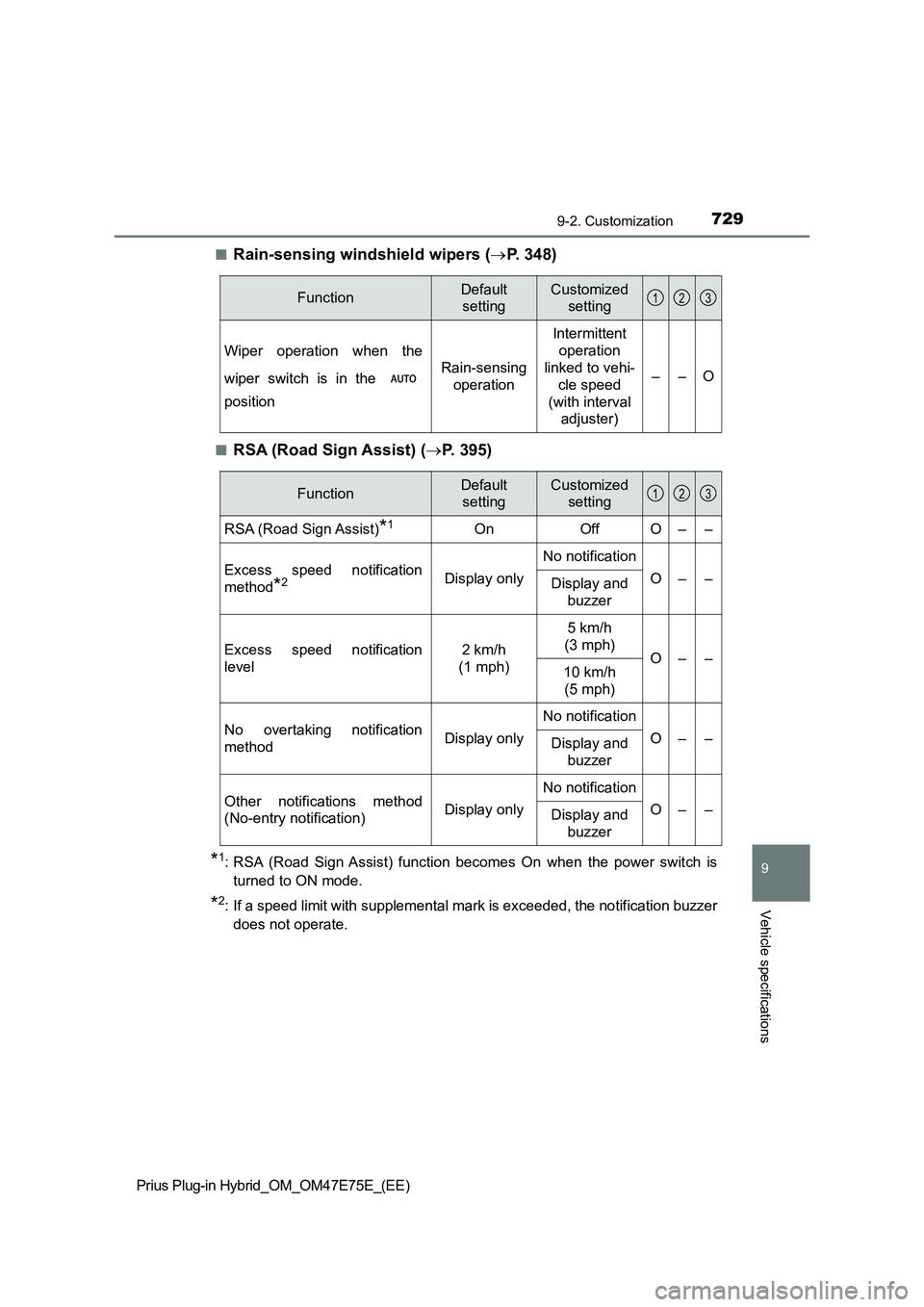

7299-2. Customization
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
QRain-sensing windshield wipers (P. 348)
QRSA (Road Sign Assist) (P. 395)
*1: RSA (Road Sign Assist) function becomes On when the power switch is
turned to ON mode.
*2: If a speed limit with supplemental mark is exceeded, the notification buzzer
does not operate.
FunctionDefault
settingCustomized
setting
Wiper operation when the
wiper switch is in the
position
Rain-sensing
operation
Intermittent
operation
linked to vehi-
cle speed
(with interval
adjuster)
––O
123
FunctionDefault
settingCustomized
setting
RSA (Road Sign Assist)*1OnOffO––
Excess speed notification
method
*2Display only
No notification
O––Display and
buzzer
Excess speed notification
level2 km/h
(1 mph)
5 km/h
(3 mph)
O––10 km/h
(5 mph)
No overtaking notification
methodDisplay only
No notification
O––Display and
buzzer
Other notifications method
(No-entry notification)Display only
No notification
O––Display and
buzzer
123

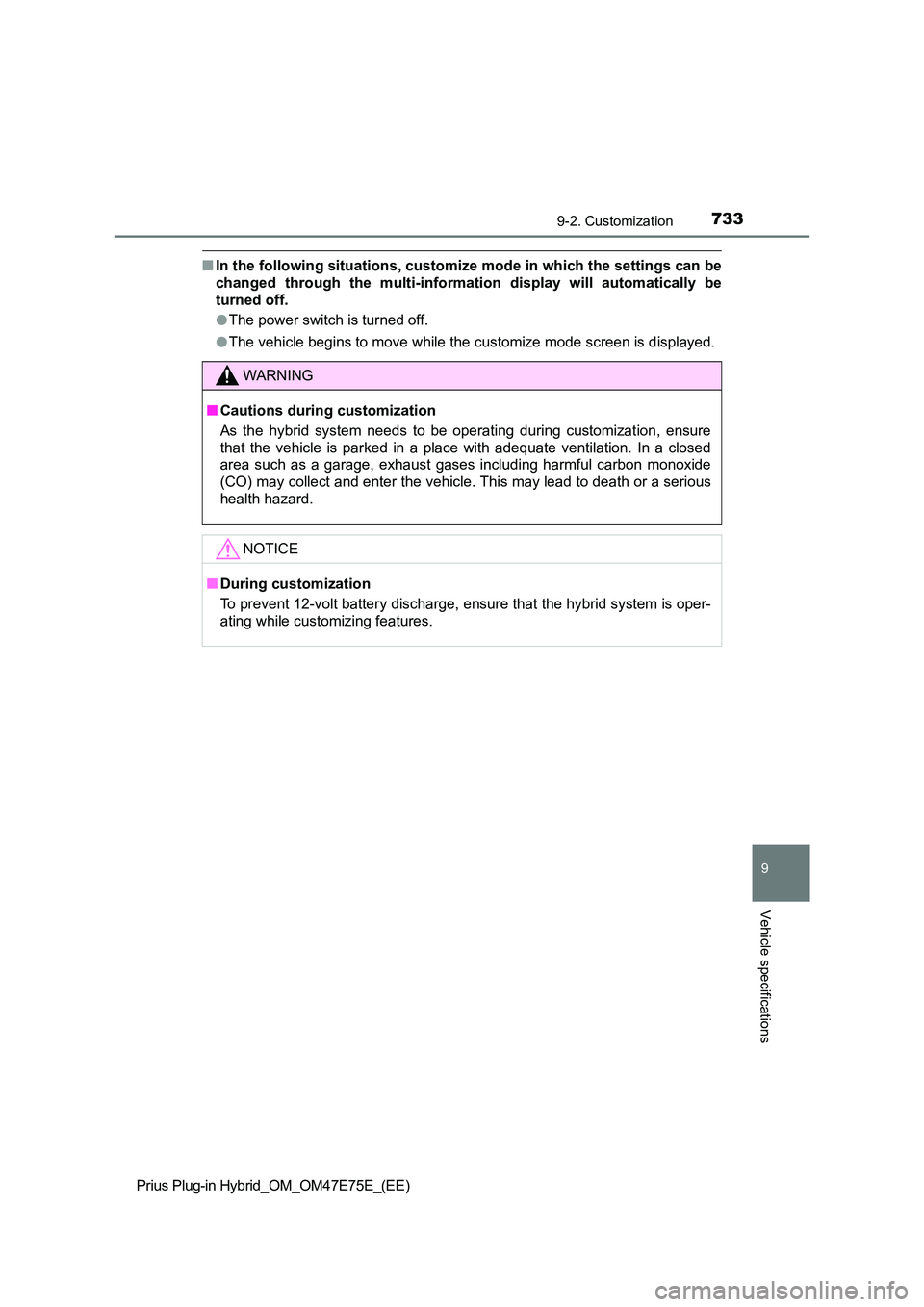

7339-2. Customization
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
QIn the following situations, customize mode in which the settings can be
changed through the multi-information display will automaticall y be
turned off.
O The power switch is turned off.
O The vehicle begins to move while the customize mode screen is displayed.
WARNING
QCautions during customization
As the hybrid system needs to be operating during customization , ensure
that the vehicle is parked in a place with adequate ventilation . In a closed
area such as a garage, exhaust gases including harmful carbon m onoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
Q During customization
To prevent 12-volt battery discharge, ensure that the hybrid sy stem is oper-
ating while customizing features.

738What to do if... (Troubleshooting)
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
OThe seat belt reminder light is flashing
Are the driver and all the passengers wearing the seat belts? (P. 662)
OThe parking brake indicator is on
Is the parking brake released? (P. 336)
Depending on the situation, other types of warning buzzer may also sound.
(P. 657, 665)
ODid anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 76)
To stop the alarm, turn the power switch to ON mode or start the hybrid sys-
tem.
OIs the electronic key left inside the vehicle?
Check the message on the multi-information display. (P. 665)
OWhen a warning light turns on or a warning message is displayed, refer to
P. 657, 665.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

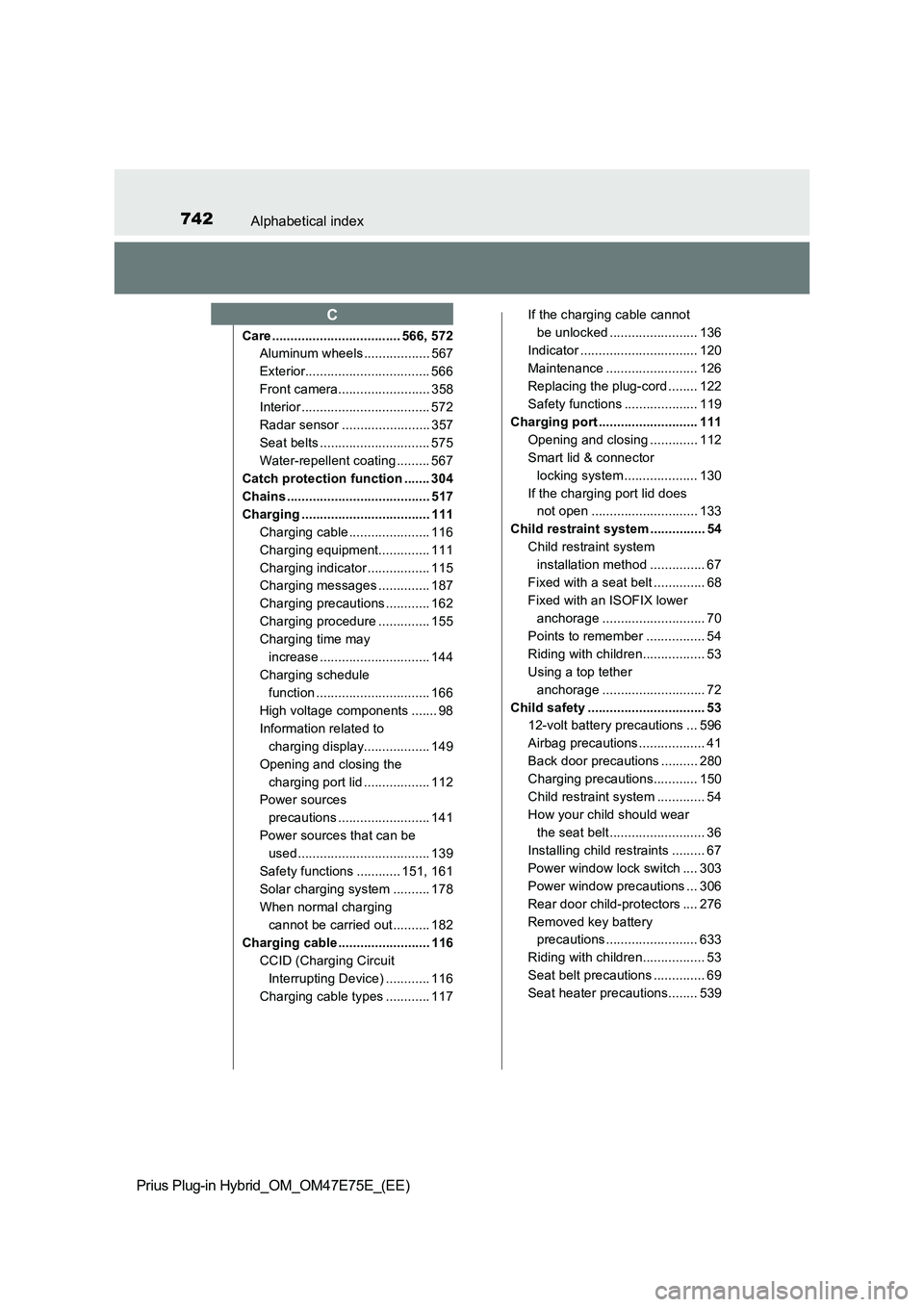

742Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Care ................................... 566, 572
Aluminum wheels .................. 567
Exterior.................................. 566
Front camera......................... 358
Interior ................................... 572
Radar sensor ........................ 357
Seat belts .............................. 575
Water-repellent coating ......... 567
Catch protection function ....... 304
Chains ....................................... 517
Charging ................................... 111
Charging cable ...................... 116
Charging equipment.............. 111
Charging indicator ................. 115
Charging messages .............. 187
Charging precautions ............ 162
Charging procedure .............. 155
Charging time may
increase .............................. 144
Charging schedule
function ............................... 166
High voltage components ....... 98
Information related to
charging display.................. 149
Opening and closing the
charging port lid .................. 112
Power sources
precautions ......................... 141
Power sources that can be
used.................................... 139
Safety functions ............ 151, 161
Solar charging system .......... 178
When normal charging
cannot be carried out.......... 182
Charging cable ......................... 116
CCID (Charging Circuit
Interrupting Device) ............ 116
Charging cable types ............ 117If the charging cable cannot
be unlocked ........................ 136
Indicator ................................ 120
Maintenance ......................... 126
Replacing the plug-cord ........ 122
Safety functions .................... 119
Charging port ........................... 111
Opening and closing ............. 112
Smart lid & connector
locking system .................... 130
If the charging port lid does
not open ............................. 133
Child restraint system ............... 54
Child restraint system
installation method ............... 67
Fixed with a seat belt .............. 68
Fixed with an ISOFIX lower
anchorage ............................ 70
Points to remember ................ 54
Riding with children................. 53
Using a top tether
anchorage ............................ 72
Child safety ................................ 53
12-volt battery precautions ... 596
Airbag precautions .................. 41
Back door precautions .......... 280
Charging precautions............ 150
Child restraint system ............. 54
How your child should wear
the seat belt.......................... 36
Installing child restraints ......... 67
Power window lock switch .... 303
Power window precautions ... 306
Rear door child-protectors .... 276
Removed key battery
precautions......................... 633
Riding with children................. 53
Seat belt precautions .............. 69
Seat heater precautions........ 539
C

743Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Child-protectors ....................... 276
Cleaning............................ 566, 572
Aluminum wheels .................. 567
Exterior.................................. 566
Front camera......................... 358
Hybrid battery (traction
battery) air intake vent ........ 573
Interior ................................... 572
Radar sensor ........................ 357
Seat belts .............................. 575
Water-repellent coating ......... 567
Clock ......................................... 194
Adjustment ............................ 200
Coat hooks ............................... 563
Combination meter .................. 194
Clock adjustment .................. 200
Main display .......................... 212
Multi-information display ....... 220
Warning lights and
indicators ............................ 204
Condenser ................................ 593
Console box ............................. 545
Consumption screen ............... 264
Coolant ..................................... 591
Capacity ................................ 718
Checking ............................... 591
Preparing and checking
before winter....................... 516
Cooling system ........................ 591
Engine overheating ............... 703
Hybrid system overheating ... 705
Cruise control
Dynamic radar cruise control
with full-speed range .......... 401
Cup holders .............................. 546
Curtain shield airbags ............... 39
Customizable features ............ 724Daytime running light
system .................................... 338
Deck board ............................... 550
Defogger
Outside rear view mirrors...... 527
Rear window ......................... 527
Windshield ............................ 527
Dimension ................................ 712
Display
Drive information................... 222
Dynamic radar cruise control
with full-speed range .......... 401
Energy monitor ............. 223, 261
Head-up display .................... 254
LTA (Lane Tracing Assist) .... 388
Main display .......................... 212
Multi-information display ....... 220
Parking Support Brake
function ............................... 468
Pre-collision warning............. 369
RCTA detection screen......... 423
RSA (Road Sign Assist)........ 396
S-IPA (Simple Intelligent
Parking Assist System) ...... 477
Toyota parking assist
sensor................................. 451
Warning messages ............... 665
Do-it-yourself maintenance .... 581
Door courtesy lights................ 541
Location ................................ 541
Wattage ................................ 721D
